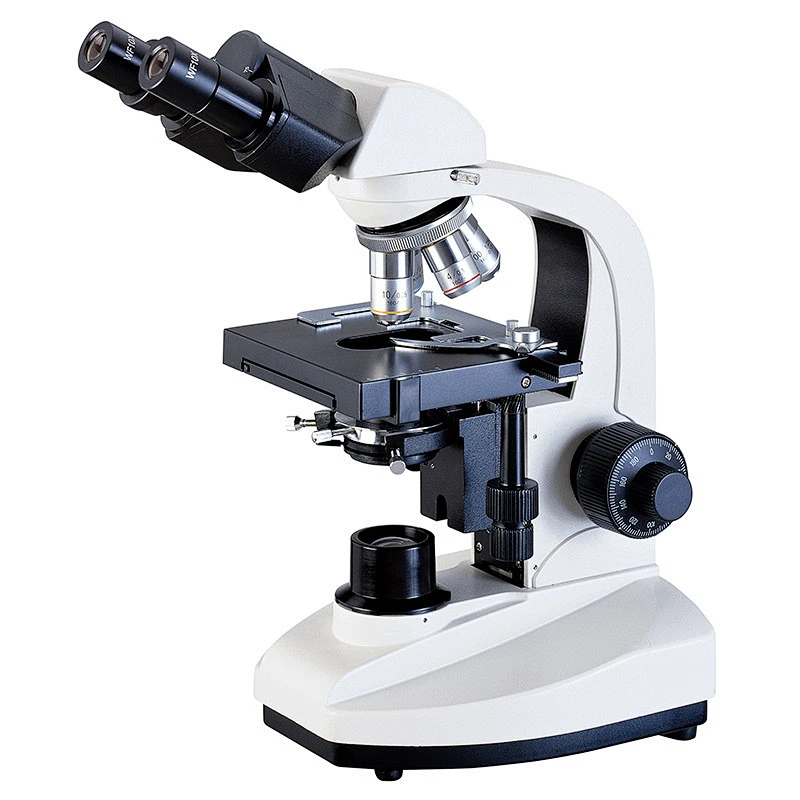

Biological Microscope

Specification	A11.0210
Eyepiece	WF10X(Φ18mm)
Objective	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Head	Compensation binocular head inclination 30°
Focus System	Coaxial coarse/finefocus system, Minimum division of fine focusing: 2um With tensional adjustable and up stop
Nosepiece	Quadruple backward ball bearing inner locating
Stage	Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser	AbbeN.A.1.25 Rack & pinion adjustment
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V 20W halogen lamp with brightness control

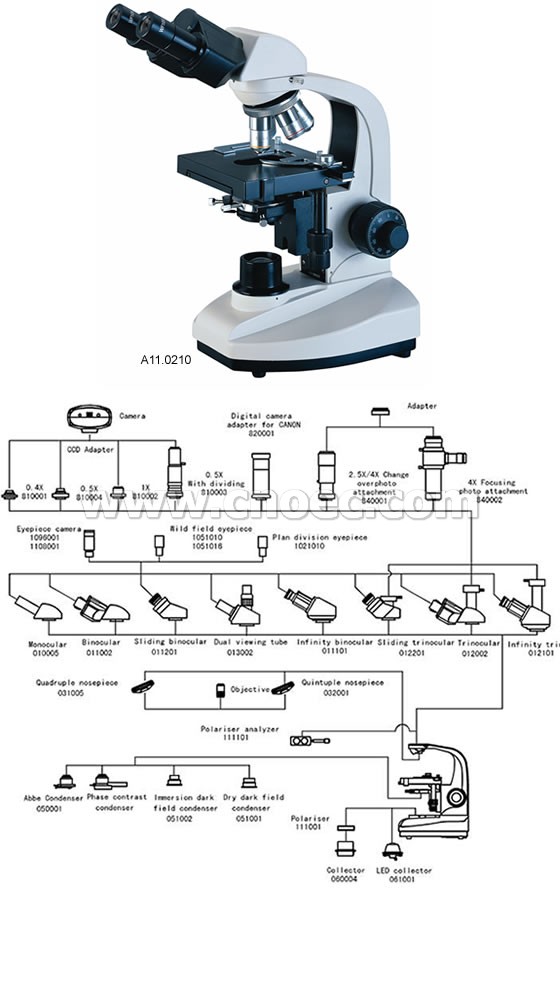

Optional Accessories		Item No.
Eyepiece	Wide field WF16x/11mm	A51.0203-16A
Eyepiece	Divding 10x, 0.1mm/Div	A51.0205-10
Objective	Plan achromatic 4x/0.10	A52.0203-4
	Plan achromatic 5x/0.12	A52.0203-5
	Plan achromatic 10x/0.25	A52.0203-10
	Plan achromatic 20x/0.40	A52.0203-20
	Plan achromatic 40x/0.65(Spring)	A52.0203-40
	Plan achromatic 60x/0.85(Spring)	A52.0203-60
	Plan achromatic 100x/1.25(Spring, oil)	A52.0203-100
Head	Monocular, inclination of 30°	A53.0201-5
	Binocular, inclination of 45°	A53.0206
	Trinocular, inclination of 45°	A53.0209
	Trinocular, inclination of 30°	A53.0207-3
	Dual viewing, inclination of 30°	A53.0203-2
Nosepiece	Quintuple (Backward ball bearing inner locating)	A54.0203-1
Filter	Green filter	A54.0209-2
Filter	Yellow filter	A54.0209-3
Light Source	LED collector, bright and white light	A54.0204-6
Condenser	Dark field, dry	A5D.0201
Condenser	Dark field, immersion	A5D.0202
Phase Contrast Attachment	Centering telescope	A5C.0204-1
	Objective, Phase contrast plan 10x/0.25 PHP	A5C.0211-10
	Objective, Phase contrast plan 20x/0.40 PHP(Spring)	A5C.0211-20
	Objective, Phase contrast plan 40x/0.65 PHP(Spring)	A5C.0211-40
	Objective, Phase contrast plan 100x/1.25 PHP (Spring,oil)	A5C.0211-100
	PH-I Turnplate phase contrast condenser	A5C.0202-1
	PH-II Turnplate phase contrast condenser	A5C.0202-4
	Flashboard phase contrast set	A5C.0202-2
	Pull board phase contrast set	A5C.0202-3
Infinity Optical System	Binocular head inclination of 30°	A53.0205-1
	Trinocular head inclination of 30°	A53.0208-1
	Centering telescope	A5C.0204-2
	Objective, infinity plan achromatic 4x/0.10	A52.0206-4
	Objective, infinity plan achromatic 10x/0.25	A52.0206-10
	Objective, infinity plan achromatic 20x/0.25	A52.0206-20
	Objective, infinity plan achromatic 40x/0.65(Spring)	A52.0206-40
	Objective, infinity plan achromatic 100x/1.25(Spring, oil)	A52.0206-100
	Objective, infinity phase contrast plan 10x/0.25 PHP	5C.0216-10
	Objective, infinity phase contrast plan 20x/0.40 PHP (Spring)	5C.0216-20
	Objective, infinity phase contrast plan 40x/0.65 PHP (Spring)	5C.0216-40
	Objective, infinity phase contrast plan 100x/1.25 PHP (Spring, oil)	5C.0216-100
CCD adapter	0.4x	A55.0202-1
	0.5x	A55.0202-4
	1x	A55.0202-2
	0.5x with dividing 0.1mm/Div	A55.0202-3
Digital Camera Adapter	Canon ditigal camera adapter (A610, A620, A630, A640)	A55.0204-01
Photo Adapter	2.5x/4x change over photograph attachment with 10x viewing eypiece	A55.0201-1
	4x focusing photograph attachment	A55.0201-2
	MD adapter	A55.0201-3
	PK adapter	A55.0201-4
Polarizing Attachment	Polarizer 360°rotatable	A5P.0201
Polarizing Attachment	Analyzer	A5P.0202

A11.0210
