A56.0600

Like Favorites

Cold Light Source


Quantity:

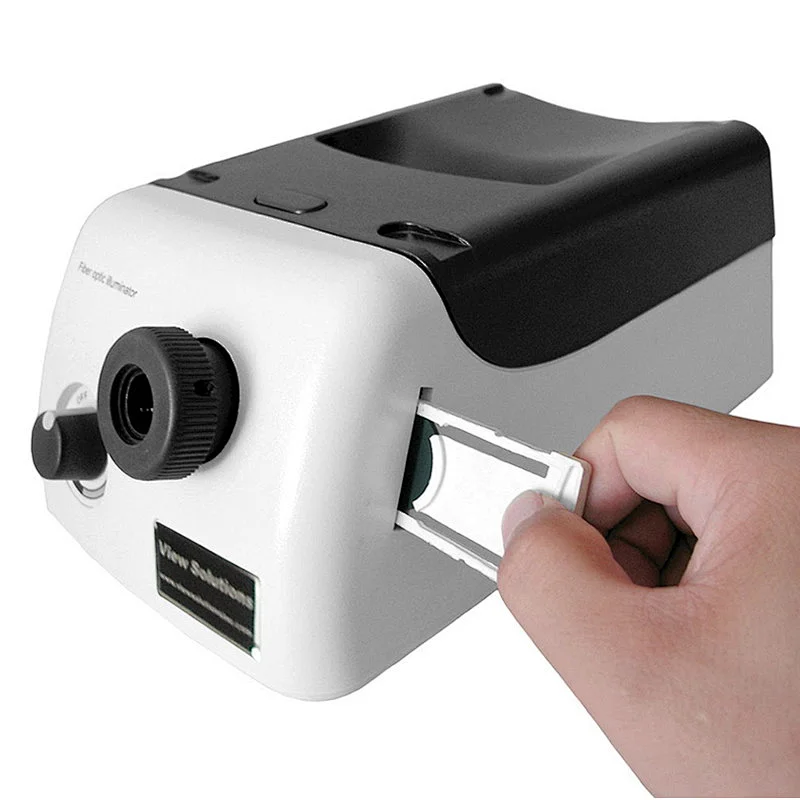

A56.0600 Fiber Optical Cold Light Source
A56.0600-01

Fiber Optical Cold Light Source Main Body
Power Consumption 150W
Input Current 1.5A
Output Current 1.5-7.5A
Fuse 2A
Startup Time 2s (Full Load)
Efficiency 85-95%
Operating Temperature 0-45℃
Storage Temperature -25-85℃
Relative Humidity 85%
Illumination ≥100000 Lux
Color Temperature ≥3000K
Spectrum Range 450-700nm
Dimensions(L×W×H) 8.19"×4.13"×4.88"(208mm×105mm×124mm)
Lamp 21V 150W halogen bulb
Service Llife of Lamp Approx. 200 hours at full load
Weight 3kg (6.6 lbs.)
Adapter With a 5/8"Fiber Optic Cable Adapter

A56.0600-02

Red, Dark Blue,Green Filters Kit
Note: Light blue filter for Daylght correction (standard unit)

A56.0600-03Single Pipe Light Guide
With focusing lens, fiber dia.: 6mm; 18"(460mm) gooseneck. 5/8"standard adapter is for attaching the Fiber Optic Illuminator.
A56.0600-04ADual Pipe Light Guide
Fiber Optic Goose Neck Dual Pipe without focusing lens, fiber dia.: 7.1mm; 800mm in length. 5/8"standard adapter is for attaching to the Fiber Optic Illuminator.
A56.0600-04BDual Pipe Light Guide
Fiber Optic Goose Neck Dual Pipe without focusing lens, fiber dia.: 7.1mm; 460mm in length. 5/8"standard adapter is for attaching to the Fiber Optic Illuminator.
A56.0600-05Ring Light Guide
Ring's I.D.: 58mm; Fiber Dia.: 10mm, with PVC tubing at 1m in length, fitting most major brand microscopes. 5/8"standard adapter is for attaching to Fiber Optic Illuminator.
◇ 360°Shadow-Free, Cool, Uniform Illumination
◇ Accepts Polarizer Accessories
◇ PVC-Covered Metal Sheathing
◇ Black Anodized Aluminum Housing
◇ 70% Typical Illuminator Coupling Efficiency
◇ Glass Fibers with Ground & Polished End-Faces
A56.0600-08Ring Light Guide
Ring's I.D.: 65mm; Fiber Dia.: 11mm, with PVC tubing at 1m in length, fitting most major brand microscopes. 5/8"standard adapter is for attaching to Fiber Optic Illuminator.
◇ 360°Shadow-Free, Cool, Uniform Illumination
◇ Accepts Polarizer Accessories
◇ PVC-Covered Metal Sheathing
◇ Black Anodized Aluminum Housing
◇ 70% Typical Illuminator Coupling Efficiency
◇ Glass Fibers with Ground & Polished End-Faces
A56.0600-06Back Light Guide
Used to silhouette opaque objects or for imaging through transparent objects, perfect for metrology or plastic applications.
4"×4"active area, 178×110×20mm dimension, fiber dia.: 10mm. 5/8"standard adapter is for attaching to the Fiber Optic Illuminator.
A56.0600-07Replacement Halogen Bulb
21V150W Halogen Bulb
