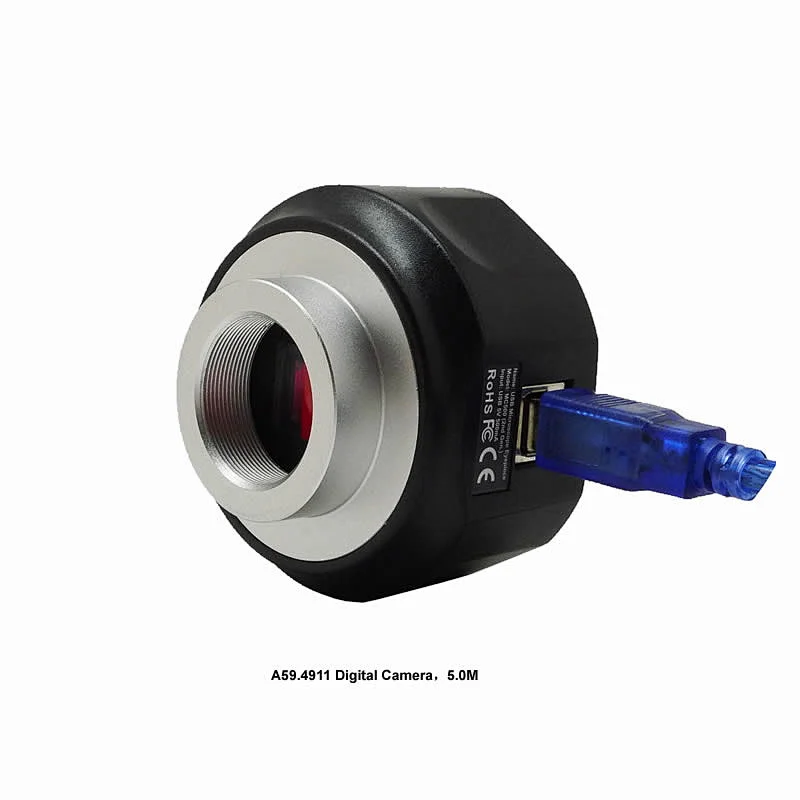

Digital Camera, 5.0M, C Mount

Quantity:


A59.4911
Hardware Configuration
Imaging Sensor

Colourful

Scan PatternsScan Line By Line
The Maximum Resolution2592 x 1944(5,038,848 Pixels)
Sensor Optical Format1/2.5“ (5.70mm(H) x 4.28mm(V), Diagona 7.13mm)
Pixel Size2.2μm x 2.2μm
Dynamic Range70.1dB
ADC12-bit, 8-Bit R.G.B to PC
SNRmax38.1dB
Spectral Characteristics380-650nm
Preview Modes10FPS@2592x1944,
15FPS@1920x1080, 1600x1200
40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480
Binning Modes1 x 1, 2 x 2
Exposure Capability3.9ms - 320ms, Automatic And Manual
White BalanceAutomatic And Manual
Software InterfaceDirectShow
Capture Modes

Photos And Videos (MJPG and AVI)

Software Environment
Operation SystemMicrosoft®Windows®XP / 7 / 8 /8.1/10(32 & 64 bit)
Computer ConfigurationCPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory :2G Or More
USB Port:USB2.0 High Speed Port Or Compatible Port
Displayer :Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature-10℃~ 50℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity

10~60%RH

Power Supply

Direct-current , Supply By USB Port
