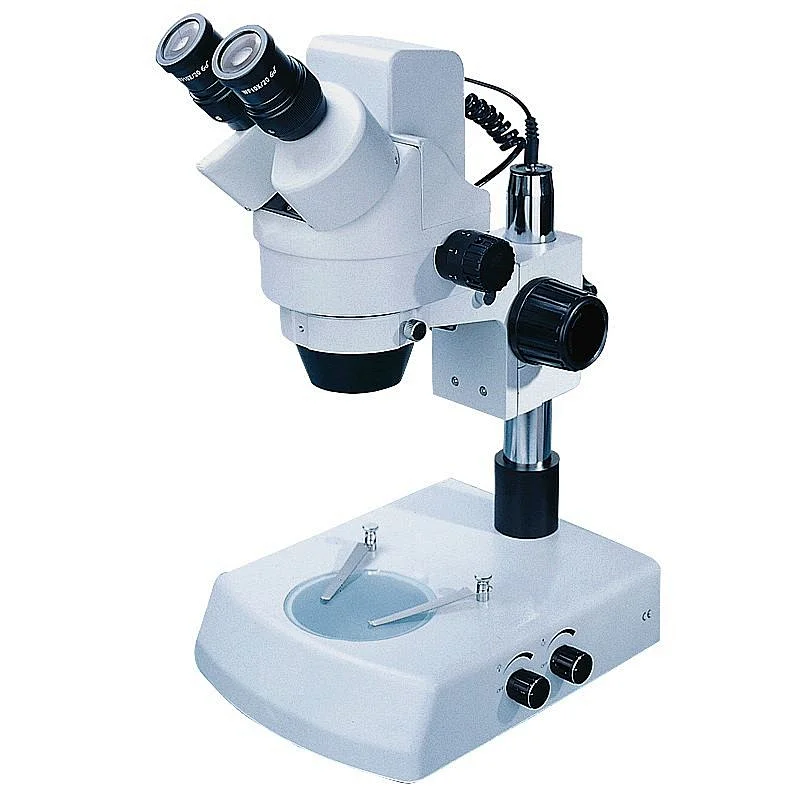

A32.0901 Digital Zoom Stereo Microscope Specification | ||
|---|---|---|
| Magnification | 7x~45x, With Auxiliary Objectives Can Reach 3.5x~180x | |
Head | Binocular, 45° Inclined, 360° Rotatable, Diopter Adjustment ±5, Interpupillary 55~76mm. | |
Eyepiece | Wide Filed, High Eyepoint WF10x/20mm | |
| Objective | 0.7x~4.5x Zoom Objective | |
| Working Distance | 100mm. | |
| Illumination | Top & Bottom Illumination 12V15W Halogen Lamp, Independent Brightness Adjustable | |
| Photo System | Build-in Integrated 450 TV Lines CCD Digital Camera | |
| Image Output | Analog RCA, S-Video, WithA59.0901 A/D Converter, Support USB Digital Outpu | |
A32.0901 CCD Camera Specification | ||
NTSC | PAL | |
| Sensor | 1/3" | |
| Horizontal Resolution | 450 TV Lines | |
| Pixels | (H)768 * (V)494 | (H)712 * (V)582 |
| Scanning System | 525 Lines, 60 fps | 625 Lines, 50 fps |
| White Balance | Auto & Manual White Balance | |
| Back Light Compensation | Auto | |
| Signal/Noise Ratio | More Than 46db | |
| Gamma Characteristic | 0.45 | |
| Minimum Illumination | 3 Lux | |
| Input Voltage | 12V DC (9~14V) | |
| Power Consumption | 12V 1.85W or Less | |
