Economic Digital Eyepiece
Economic Digital Eyepiece
Economic Digital Eyepiece
Economic Digital Eyepiece
Economic Digital Eyepiece
Economic Digital Eyepiece
Economic Digital Eyepiece

A59.4901

Like Favorites

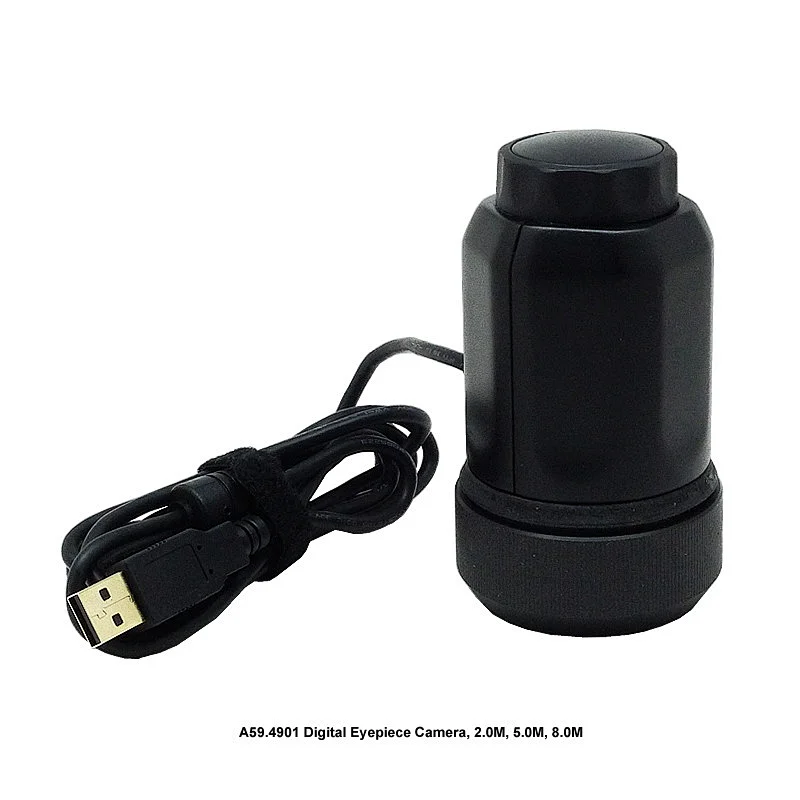

Economic Digital Eyepiece

Quantity:


A59.4901-2.0M
A59.4901-5.0M
A59.4901-8.0M
Hardware Parameter
Image SensorOmnivision OV2640 CMOS(colorful)
Scan Mode
Scan line by line
Resolution

2.0M, 1600*1200 Pixels

5.0M, 2592*1944 Pixels
8.0M, 3200*2400 Pixels
Sensor Optical Format
1/3.2‘’
1/4‘’
1/3.2‘’
Pixel Size
2.2μm x 2.2μm
1.4μm x 1.4μm
1.4μm x 1.4μm
Dynamic Range
50dB
68dB
70.45dB
ADC12-bit, 8-Bit R.G.B to PC
SNRmax
40dB
36dB
35.7dB
Spectral Charactristics380-650nm
Preview Modes
10FPS@
1600x1200,
1280x720,
1280x960

30FPS
@800x600,
640x480

60FPS@
320x240
10FPS@
2592x1944,

15FPS@
1920x1080,

30FPS@
1280x960,
1280x720,
1024x768,
800x600,
640x480
15FPS@
2592x1944,
2048x1536

30FPS@
1920x1080,
1280x960,
1024x768,
800x600,
640x480

60FPS@
1280x720
Exposure Capability3.9ms - 320ms, Automatic & Manual
White BalanceAutomatic & Manual
Software InterfaceDirectShow
Capture ModesPhotos (MJPG) & Videos (AVI)
Body SizeDia.61.5mm * Height 105mm
PackagePacking Box 106*143*63mm/1 pc,
Carton Size 565*315* 175mm/20pcs, 8Kgs
Interface Parameter
Camera InterfaceCan Connect With All Kinds Microscope, Telescope's Eyepiece Tube, Diameter Range:Φ20~Φ43mm , Including 7 Adapter Rings:
39~43mm、
36~40mm、
33~37mm、
30~34mm、
27~31mm、
24~28mm、
20~23mm、
Image InterfaceUSB A port High speed USB2.0
Charge InterfaceDirect-current 5V 500mA. It can charge by the image interface and do not need to charge separately
Software Environment
Operation SystemMicrosoft®Windows®XP / 7 / 8 /8.1(32 & 64 bit)
Computer Configuration
(Recommand)
CPU: equal or more than the second generation Intel core 2.8GHz
Memory :2G or more
USB port:USB2.0 high speed port or compatible port
Displayer :suggest 17 inches or larger
Operating Environment
Operating Temperature-10℃~ 50℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
