Flourescence Microscope, Semi-APO
Flourescence Microscope, Semi-APO
Flourescence Microscope, Semi-APO
Flourescence Microscope, Semi-APO
Flourescence Microscope, Semi-APO
Flourescence Microscope, Semi-APO

A16.0910

Like Favorites

Flourescence Microscope, Semi-APO


Quantity:

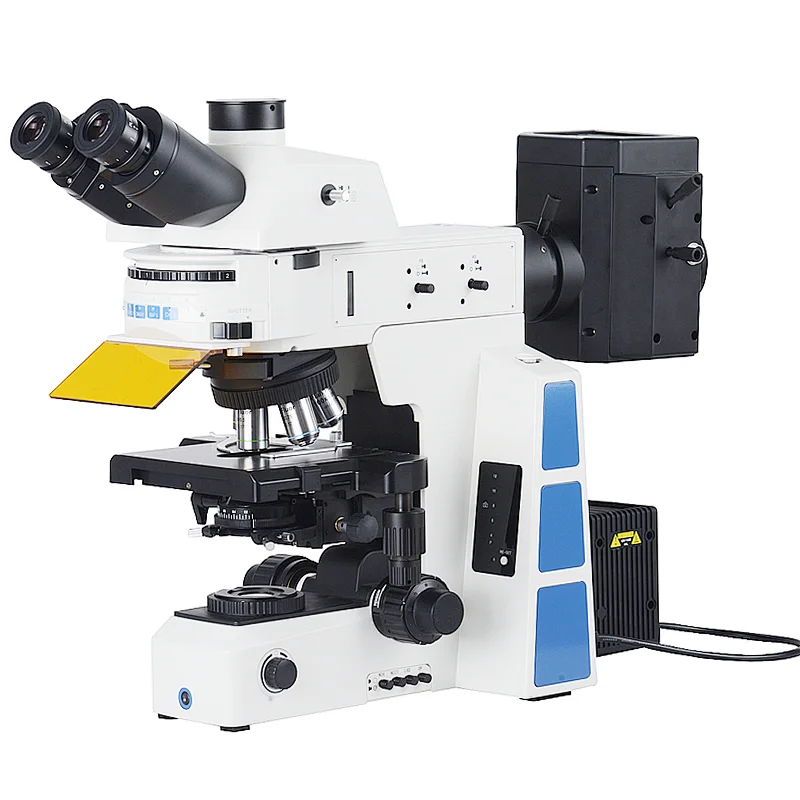

A16.0910 Fluorescence Microscope, APO
Optical SystemInfinity Optical System, Semi-Aprochromatic
Head

Trinocular Head, 30°inclined, Inverted Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0

Eyepiece
High-Eyepoint Plan Eyepeiece PL10X/25mm,Diopter Adjustable
NosepieceBF Sextuple Nosepiece, With Socket For DIC
Objective

Infinity Plan Semi-Aprochromatic Fluorescent Objective:
4x/0.13, W.D.=16.43mm
10x/0.3, W.D.=8.13mm
20x/0.5, W.D.=2.03mm
40x/0.75, W.D.=0.74mm
100x/1.3, W.D.=0.18mm

Working StageDouble Layer Mechanical Stage, 187*166mm, Moving Range 80*55mm,Precision 0.1mm,Double Direction Transmission, Left And Right Position Handle For Option. Tension Of The Torque Adjustable.
FocusingCoaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range:25mm, Fine Adjustment Precision: 0.001mm.
CondenserSwing-Out Achromatic Condenser, N.A.0.9
Light Source12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Fnction Of Light Set And Reset
Power100-240V Built-in Wideband Voltage Transformer,
Fluorescent System--Six Position Disc Reflection Fluorescent Koehler Illumination, With IRIS Diaphragm And Aperture Diaphragm, All Center Adjustable. Socket For Filter Inserter And Polarizer Device, With The Fluorescent Llight Shield In The Front
--100W mercury lamphouse
--Digital power control box of mercury lamp,voltage 90-240V
--Imported 100W DC mercury bulb(OSRAM)
--Fluorescence Filter, B,G,UV
--Attenuation Plate(Transmittance 50%)
A16.0910 Fluorescence Microscope, APO Optional Accessories
EyepieceHigh-eyepoint Plan eyepeiece PL10X/26.5mm,diopter adjustableA51.0904-10265T
High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable, with micrometerA51.0905-1025Tr
HeadTrinocular Head, 30°inclined, ErectImage,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0A53.0913-E
NosepieceBF Septuple Nosepiece, With Socket For DICA54.0930-R7
BF Quintuple Nosepiece, With Socket For DICA54.0930-R5
AdapterC-Mount 0.5x, FocusableA55.0930-05
C-Mount 0.65xA54.0930-65
Fluorescent System--Fluorescence Filter, VA5F.0923-V1
--Attenuation Plate(Transmittance 25%)A5F.0925-25R
Pictures
Model No. A16.0910
Function
Bright Field
Fluorescence
Features
Semi-APO (Apochromatic)
Optical System
Infinity Plan
Standard Magnification
40x-1000x
Head Type
Seidentopf Trinocular
Head Inclination
30°
Head Rotation
Head Rotate 360°
Head Interpupillary
50~76mm
Head Light Path
Switch E100:P0/E20:P80/E0:P100
Head Specification
Inverted Image
Eyepiece Features
Super Wide Field >22mm
Plan
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm
Eyepiece
PL10X/25mm, 2 pcs
Nosepiece Holes
6 Holes
Nosepiece Features
Backward
With DIC Slot
Objective Type
Infinity Plan
Semi-APO (Apochromatic)
Objective
Infinity Plan Semi-Aprochromatic Fluorescent Objective:
4x/0.13, W.D.=16.43mm
10x/0.3, W.D.=8.13mm
20x/0.5, W.D.=2.03mm
40x/0.75, W.D.=0.74mm
100x/1.3, W.D.=0.18mm
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Knob Switchable Left/Right
Working Stage Size
187x166mm
Working Stage Moving
Moving Range 80*55mm, Precision 0.1mm
Working Stage Spec.
Tension Of The Torque Adjustable.
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Range
25mm
Focusing Scale
0.001mm
Condenser Type
Swing-Out
Condenser N.A.
0.9/0.25
Condenser Features
Rack & Pinion Up/Down
Center Adjustable
Light Source Feature
Brightness Adjustable
Halogen 100W
Transmit & Reflect
Fluorscent 100W
Light Source Type
Halogen
Flourescent
Transmit Light
12V100W Halogen Lamp, Center Adjusted, Adopt Digital Dimming System, With LED Indicator, With The Fn
Reflect Light
100W Mercury Lamphouse
Power Supply Type
AC 100V-240V Wide Voltage
Fluorescene
--Six Position Disc Reflection Fluorescent Koehler Illumination, With IRIS Diaphragm And Aperture Diaphragm, All Center Adjustable. Socket For Filter Inserter And Polarizer Device, With The Fluorescen
Fluorescent Band
B,G,UV
