Inverted Biological Phase Contrast Microscope
Inverted Biological Phase Contrast Microscope
Inverted Biological Phase Contrast Microscope

A14.0201

Like Favorites

Inverted Biological Phase Contrast Microscope

  • Total Magnification 100-400x Inverted Phase Contrast Microscope
  • Wide Field Eyepiece WF10x/20mm, LWD Objective 10x,25x,40x
  • Impellent Phase Contrast Slide And 10x Phase Contrast Objective Included
  • Coaxial Coarse/Fine Focus System, Minimum Division 0.002mm
  • ranismit Light Halogen Lamp 6V 20W With Brightness Control
  • Supply Ability:500 piece / Month
  • Country of Origin:China Port
Quantity:

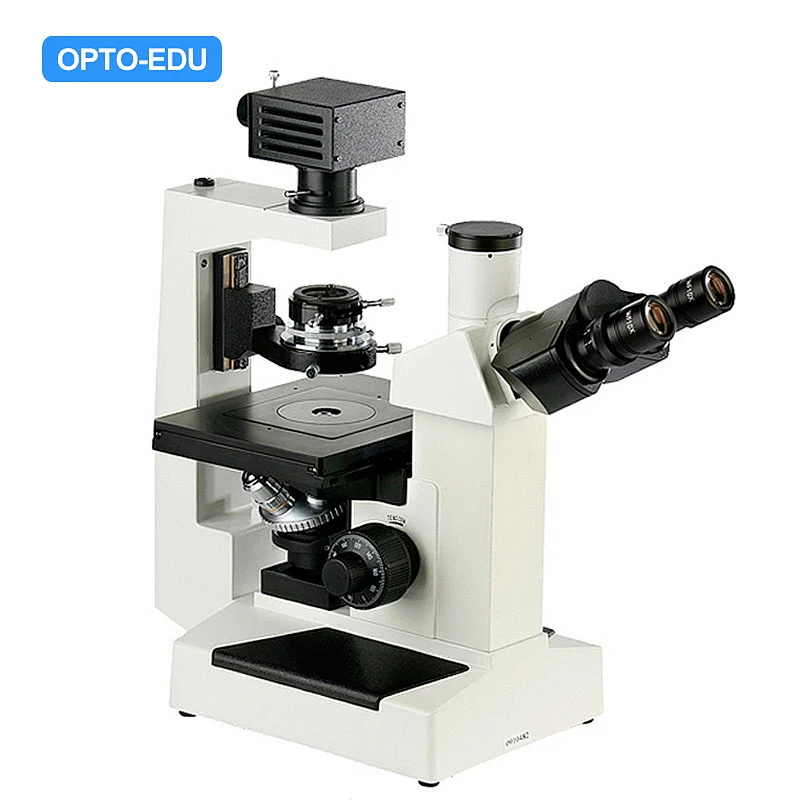

A14.0201 Inverted Phase Contrast Microscope
A14.0201 Inverted Phase Contrast Microscope
Is Equipped With Wide Field Eyepieces, Long Working Distance Plan Achromatic Objectives, Long Working Distance Condenser And Phase Contrast Unit. It Can Observe Transparent And Unfinished Living Specimen In Culture Bottle Or Culture Utensil. It Is The Ideal Tools For Research Of Living Specimen Structure, Liquid, Deposits And So On.

--Wide Field Eyepiece WF10x/20mm, LWD Objective 10x,25x,40x
--Impellent Phase Contrast Slide And 10x Phase Contrast Objective Included,
--Sliding Phase Contrast Slide Unit Optional
--Coaxial Coarse/Fine Focus System, Minimum Division 0.002mm
--Tranismit Light Halogen Lamp 6V 20W With Brightness Control
MagnificationTotal 100~400x
HeadTrinocular Head, 30° Inclined, 100 Light Pass For Photography
EyepieceWF10x/20mm Wide Field
NosepieceQuadruple
ObjectiveLWD Plan Achromatic Objective
PLL10x/0.25, W.D.8.8mm
PLL 25x/0.40, W.D.4.8mm
PLL 40x/0.60, W.D.3.3mm
LWD Plan Phase Contrast Objective
PLL10x/0.25 PHP, W.D.8.1mm
Working StageDouble Layer Mechanical Stage 200*152mm, Moving Range 75*30mm
Culture Dish Holder, For Dia.68mm Or 77*33mm Culture Utensil
Culture Dish Holder, For Dia.68mm
FocusingCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
Impellent
Phase Contrast
Long Working Distance Phase Contrast Condenser, N.A.0.4, Working Distance 30mm, Rack & Pinion Adjustable
Impellent Style Phase Plate 10x
Centering Telescope Eyepiece 10x
FilterBlue, Green, Frost Filter
Light SourceKohler Illumination, 6V20W Halogen Lamp, Brightness Adjustable
A14.0201 Optional Accessories
EyepieceWF16x/11mmA51.0203-16A
Dividing Eyepiece 10x/20mm, 0.1mm/DivA51.0205-G10A
Impellent
Phase Contrast
LWD Plan Phase Contrast ObjectivePLL 25x/0.40 PHP, W.D.4.78mmA5C.0232-25
PLL 40x/0.60 PHP, W.D.3.32mmA5C.0232-40
Ultra Long Working Distance Phase Contrast Condenser, N.A.0.4, Working Distance 70mmA5M.0210-6
Impellent Phase Contrast Plate 25xA5C.0211-2
Impellent Phase Contrast Plate 40xA5C.0211-3
Sliding
Phase Contrast
LWD Plan Phase Contrast ObjectivePLL10x/0.25 PHP2, W.D.8.1mmA5C.0232-10a
PLL25x/0.40 PHP2, W.D.4.78mmA5C.0232-25a
PLL40x/0.60 PHP2, W.D.3.32mmA5C.0232-40a
Long Working Distance Phase Contrast Condenser, N.A.0.4, Working Distance 55mmA5M.0210-7
Sliding Phase Contrast Plate 10xA5C.0211-4
Sliding Phase Contrast Plate 25x/40xA5C.0211-5
FilterYellow FilterA56.0209-3
AdapterCCD Adapter 0.5xA55.0202-04
Digital SLR Camera Adapter for Canon EF SeriesA55.0204-02

Pictures
Model No. A14.0201
Function
BF+FL+PH
Features
Inverted
Optical System
Plan
Standard Magnification
100x-400x
Optional Magnification
100x-640x
Head Type
Seidentopf Trinocular
Head Inclination
30°+90°
Head Rotation
Head Rotate 360°
Eyepiece Features
Wide Field
Eyepiece Diameter
23.2mm
Eyepiece
WF10x/20mm, 2 pcs
Nosepiece Holes
4 Holes
Objective Type
Plan
Phase Contrast
Objective Features
Covreless (Metallurgical)
Objective
LWD Plan Achromatic Objective

PLL10x/0.25, W.D.8.8mm

PLL 25x/0.40, W.D.4.8mm

PLL 40x/0.60, W.D.3.3mm



LWD Plan Phase Contrast Objective

PLL10x/0.25 PHP, W.D.8.1mm
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Large Size >140x140mm
Working Stage Size
200x152mm
Working Stage Moving
75x30mm
Working Stage Spec.
Culture Dish Holder, For Dia.68mm Or 77*33mm Culture Utensil

Culture Dish Holder, For Dia.68mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Scale
0.002mm
Condenser Type
Phase Contrast
LWD/ELWD
Condenser Features
Rack & Pinion Up/Down
Condenser Specification
Long Working Distance Phase Contrast Condener, N.A.0.4, Working Distance 30mm, Rack & Pinion Adjustable
Light Source Feature
Brightness Adjustable
Kohler Illumination
Light Source Type
Halogen
Transmit Light
6V20W Halogen Lamp, Kohler Illumination, Brightness Adjustable
Power Supply Type
AC 100V-240V Wide Voltage
Phase Contrast
Impellent Style Phase Plate 10x

Centering Telescope Eyepiece 10x
Other Specification
Blue, Green, Frost Filter
