The Key To Micro World!
Laboratory Microscope
Laboratory Microscope
Laboratory Microscope

A12.0903

Like Favorites

Laboratory Microscope


Quantity:

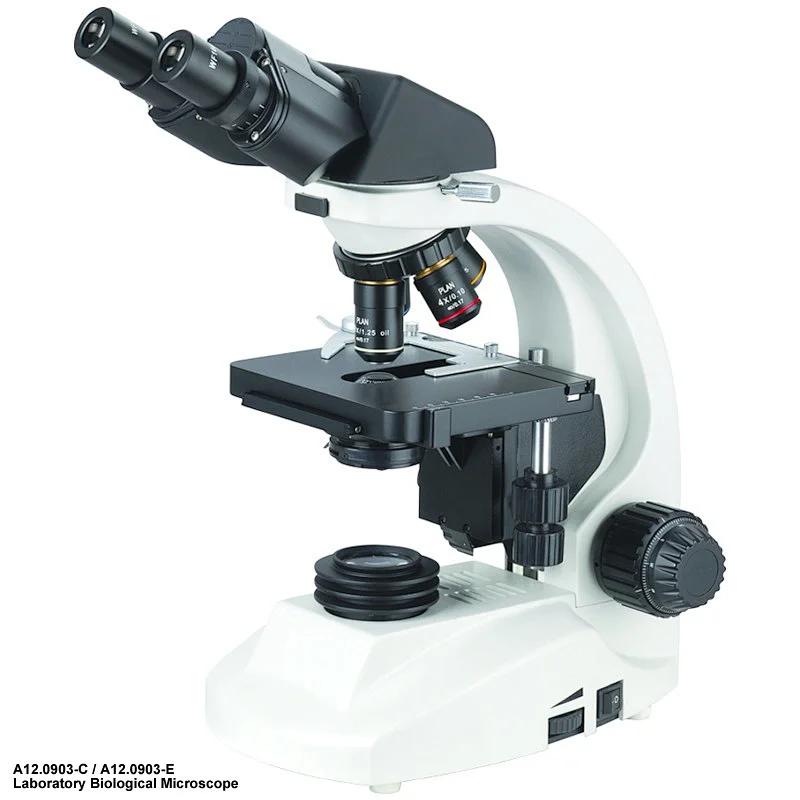

A12.0903 Laboratory Biological Microscope
A
B
C
D
E
F
Magnification40x~1600x
HeadSliding Binocular Head, 45° Inclined,360° Rotatable
o
Sliding Trinocular Head, 45° Inclined,360° Rotatable
o
Compensation Free Binocular Head, 30° Inclined,360° Rotatable
o
Compensation Free Trinocular Head, 30° Inclined,360° Rotatable
o
Compensation Free Binocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable
o
Compensation Free Trinocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable
o
Eyepiece
Wide Field WF10x/18mm, High Eyepoint
NosepieceQuadruple Nosepiece
Objective

Plan Achromatic
4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)

o
o
o
o
Infinity Plan Achromatic
4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
o
o
StageDouble Layer Mechanical Stage, 132*140mm, Mvoing Range 50*76mm, Precision 0.1mm
FocusingLow Position Coaxial Coarse & Fine Focusing. Coarse Focusing Range 22mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
CondenserN.A.1.2/0.24 Swing Out Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Dia.32mm
Light SourceKhohler Illumination, 6V/20W Halogen Lamp
Power90~240V Wide Range Voltage
A12.0903 Laboratory Biological Microscope Optional Accessories
EyepieceWF10x/18mm with ReticleA51.0905-1018R
WF10x/18mm with PointerA51.0906-1018
WF15x/13mm, High EyepointA51.0902-1513
WF16x/14mm, High EyepointA51.0902-1614
WF20x/10mm High EyepointA51.0902-2010
ObjectivePlan Achromatic 25xs/0.40A52.0903-25
Infinity Plan Achromatic 20xs/0.50A52.0906-20
Adapter0.5x C-Mount, For 1/2"CCD, Focus AdjustableA55.0923-05
0.35x C-Mount, For 1/3"CCD, Focus AdjustableA55.0923-35
PolarizingPolarizer Dia..32mm, Put on CollectorA5P.0916-P
Analyzer Slide, Insert To Hole On NosepieceA5P.0916-A
Rotatable Working StageA5P.0916-RW
Dark FieldDark Field Condenser N.A.0.9, DryA5D.0911-D
Dark Field Condenser N.A.1.25, ImmerisionA5D.0911-W
Phase ContrastCentering Telescope, Dia.23.2mmA5C.0910-232
5 Holes Turret Phase Contrast Condenser, N.A. 1.25A5C.0912-PCC
Phase Contrast Condenser for 10xA5C.0911-10
Phase Contrast Condenser for 20xA5C.0911-20
Phase Contrast Condenser for 40xA5C.0911-40
Phase Contrast Condenser for 100xA5C.0911-100
Phase Contrast Plan Achromatic Objective 10xA5C.0931-10
Phase Contrast Plan Achromatic Objective 20xA5C.0931-20
Phase Contrast Plan Achromatic Objective 40xA5C.0931-40
Phase Contrast Plan Achromatic Objective 100xA5C.0931-100
InfinityPhase ContrastCentering Telescope, Dia.23.2mmA5C.0910-232
5 Holes Turret Phase Contrast Condenser, N.A. 1.25A5C.0912-PCCI
Phase Contrast Condenser for 10xA5C.0911-10
Phase Contrast Condenser for 20xA5C.0911-20
Phase Contrast Condenser for 40xA5C.0911-40
Phase Contrast Condenser for 100xA5C.0911-100
Phase Contrast InfinityPlan Achromatic Objective 10xA5C.0935-10
Phase Contrast InfinityPlan Achromatic Objective 20xA5C.0935-20
Phase Contrast InfinityPlan Achromatic Objective 40xA5C.0935-40
Phase Contrast Infinity Plan Achromatic Objective 100xA5C.0935-100
