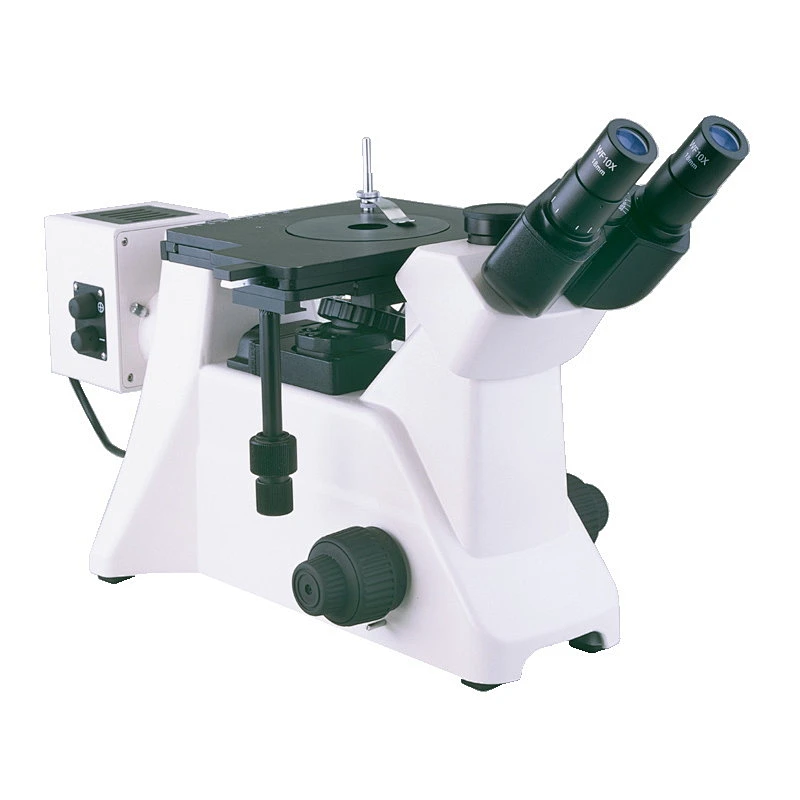

Metallurgical Microscope

Specification	A13.2601 Metallurgical Microscope
Head	Trinocular, inclinded 45°, interpupillary distance 50-75mm, light distribution 20:80
Eyepiece	WF10X/18mm
	WF12.5X/14mm
	WF10x/20mm with micrometer 0.1mm/Div, 1pc
Objective	PlanMetallurgicalObjective 10x/0.25, W.D.=8.8mm 20x/0.35(S), W.D.=1.59mm 40x/0.65(S), W.D.=0.73mm 100x/1.25(O,S), W.D.=0.69mm
Nosepiece	Quadruplenosepiece
Focusing	Coaxial coarse and fine focusing knob
Stage	Mechanical, size 180x165mm, moving range 50x40mm
	Stage plate 1 Φ10
	Stage plate 2 Φ20
Polarizing	Polarizer Slide
Polarizing	Analyer Slide
Filter	Blue, Green, Grey, White
Light source	6V 30W halogen lamp with brightness control, spare lamp 2 pcs, spare fuse 2 pcs Input Voltage 100-240V
Packing	1pc/carton, size 59x59x33cm, G/N weight 15/11 Kgs

Optional Accessories			Item No.
Eyepiece	Huygens 5x/20mm		A51.2601-05
	WF10x/20mm		A51.2602-1020
	WF16x/13mm		A51.2602-1613A
	WF10x/18mm, with micrometer 0.1m/Div		A51.2605-10
Objective	PlanMetallurgicalObjective	2.5x/0.07	A5M.2630-2.5
		4x/0.10,W.D=17.5mm	A5M.2630-4
	LWD Plan MetallurgicalObjective	PLL40x/0.60, W.D.=3.64mm	A5M.2631-40P
		PLL50x/0.70, W.D.=3.01mm	A5M.2631-50P
		PLL80x/0.80, W.D.=1.08mm	A5M.2631-80P
Stage Plate	Stage plate 3 Φ40		A54.2603-40
Adapter	CCD Adapter 0.6x		A55.2601-M06
	CCD Adapter 1.0x		A55.2601-M10
Digital Camera Adapter	For OLYMPUS digital camera		A55.2620
	For CANON digital camera		A55.2621
Digital SLR Camera Adapter	For NIKON SLR digital camera		A55.2622-N
	For SONY SLR digital camera		A55.2622-S
	For Canon SLR digital camera		A55.2622-C

A13.2601
