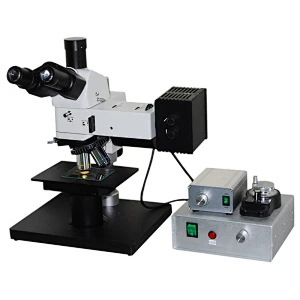

Specification | A13.0216 Metallurigical Microscope | | -BD | -DIC |
Head | Trinocular head, inclination of 22.5 °,diopter adjustment 5, interpupillary 53mm-75mm |
Eyepiece | Wide field WF10X(field number:Φ22mm) |
Infinity Plan Achromatic Objective | PL L5X/0.12 (Work distance):26.1 mm (Bright field) | ● | | |
| PL L10X/0.25 (Work distance):20.2 mm ( Bright field) | ● | | |
| PL L20X/0.40 (Work distance):8.8. mm (Bright field) | ● | | |
| PL L50X/0.70 (Work distance):3.68 mm (Bright field) | ● | | |
| PL L5X/0.12 (Work distance):9.7 mm (Bright /Dark field) | | ● | |
| PL L10X/0.25 (Work distance):9.3 mm (Bright /Dark field) | | ● | |
| PL L20X/0.40 (Work distance):7.2 mm (Bright /Dark field) | | ● | |
| PL L50X/0.70 (Work distance):2.5 mm (Bright /Ddark field) | | ● | |
| PL L5X/0.10 (Work distance):18.2 mm (DIC） | | | ● |
| PL L10X/0.25 (Work distance):20.2 mm (DIC） | | | ● |
| PL L20X/0.35 (Work distance):6.0mm (DIC） | | | ● |
| PL L50X/0.70 (Work distance):2.5 mm (DIC） | | | ● |
Illumination | 12V50W halogen and brightness adjustable |
| For LMPlan 5x/10x/20x objective DIC flashboard | ● |
Focus System | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm. Max. hight of sample: 100mm. Range: 35mm |
Nosepiece | Quintuple nosepiece |
| Filter | Gross filter, yellow, green, blue filters |

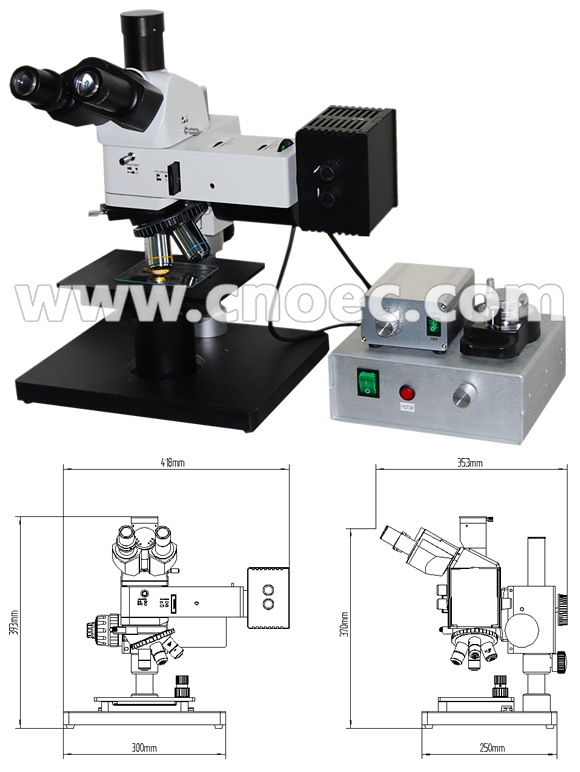

Stage | Base overall size：300mmX250mm |
| Mechanical stage overall size：160mmX140mm, moving range：30mmx35mm |
