OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope
OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope

A33.1302-T2

Like Favorites

OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope


Quantity:

OPTO-EDU A33.1302-T2 40x~1000x Lcd Trinocular Biological Microscope

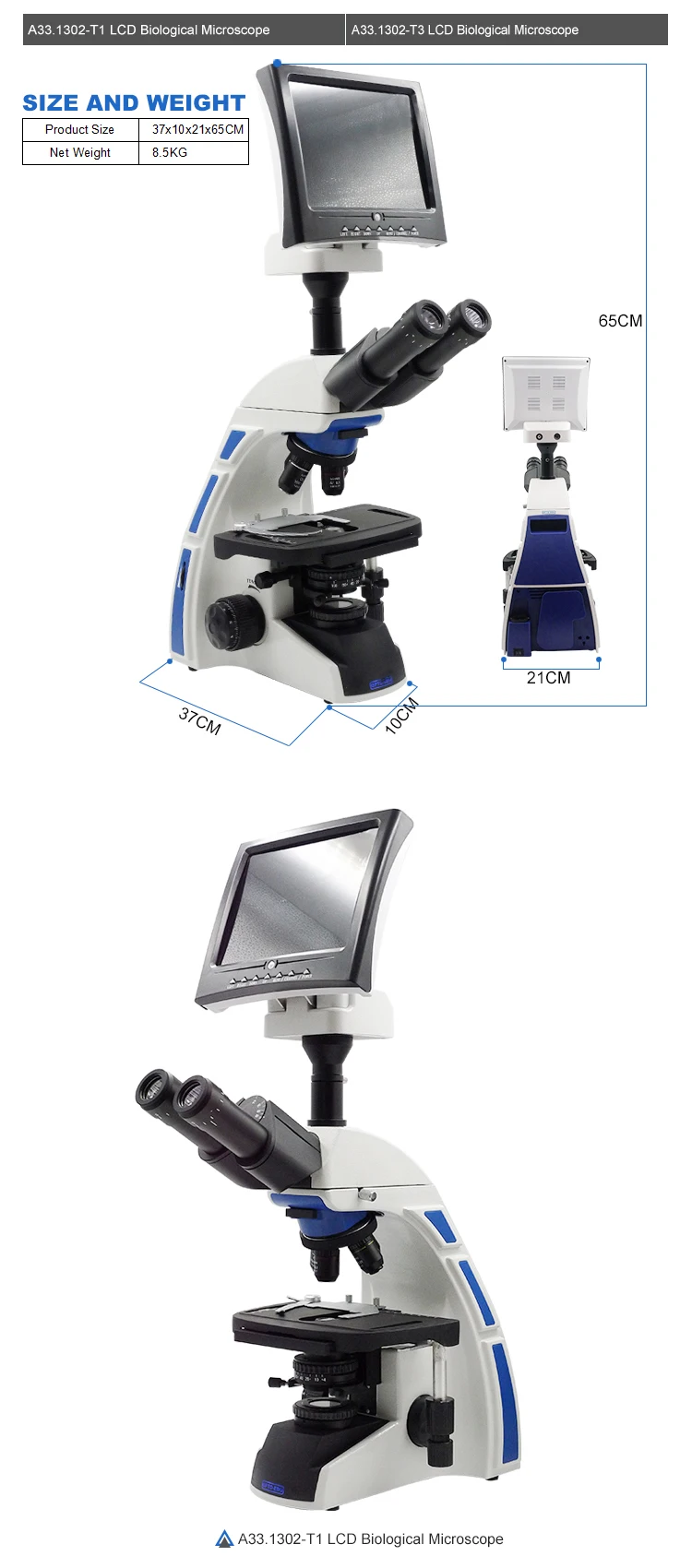

A33.1302 is based on the A12.1305 biological microscope, which configuration extra 8.0"LCD pad camera and CCD camera. It is a type of professional biological microscope and very convenient to observe. You don’t need to connect the computer anymore because LCD screen will display directly. There are 3 types of objective to choose, all models are equipped with an integrated X-Y mechanical stage and are supplied with an Abbe N.A. 1.25 condenser. 3W LED Kohler illumination with removable light house is very bright.


Parameter



Specification

A33.1302 Series of Digital LCD Laboratory Microscope

Head

8"Color LCD Display, Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm

Eyepiece

WF10x/23mm, Dia.30mm, High Eyepoint, Dioper Ajustment -/+5

Objective

A33.1302-T1 With Achromatic Objectives 4x,10x, 40x & 100x (oil)

A33.1302-T2 With Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)

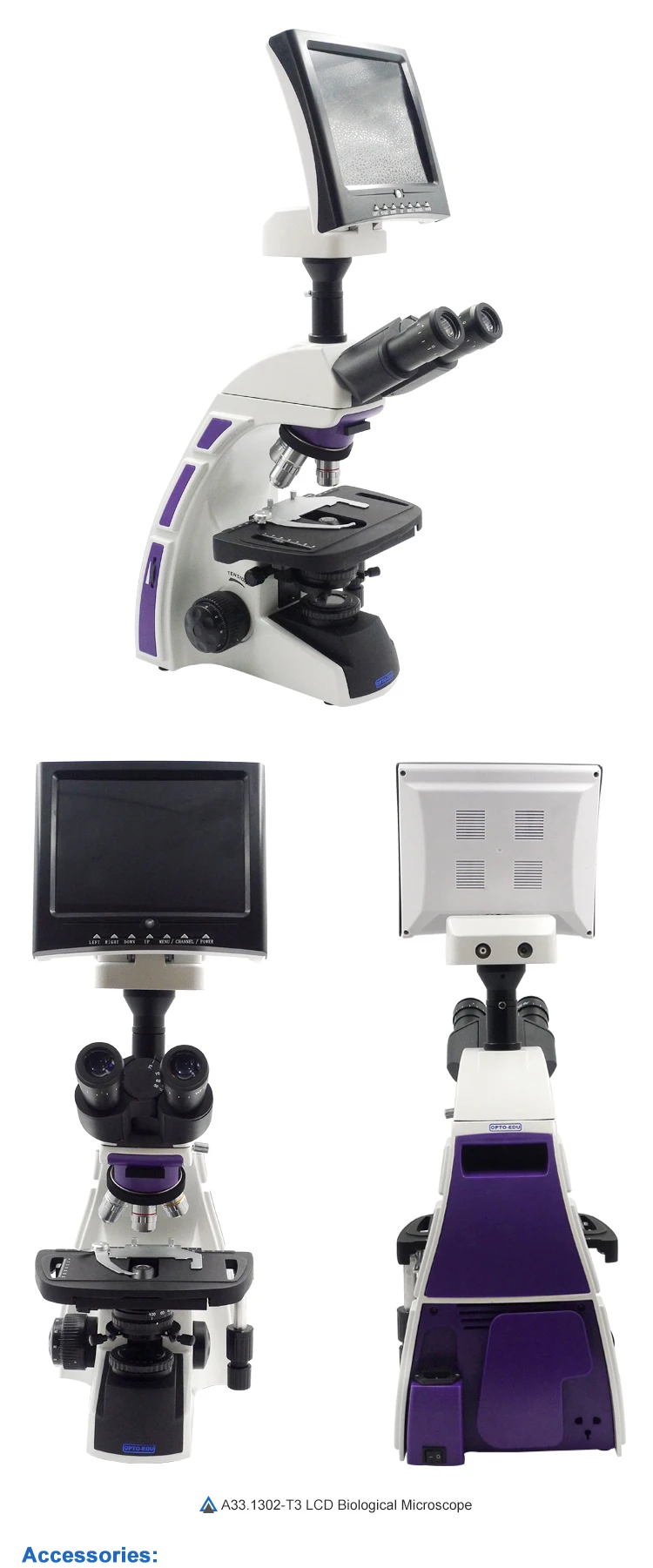

A33.1302-T3 With Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)

Nosepiece

Backward Quadruple Nosepiece

Focus System

CoaxialCoarse & FineFocusing,CoarseFocusingRange 25mm, FineFocusingScale 0.002mm, WithTensionAdjustment,WithUpperSafetyStop

Stage

Double Layer Mechanical Stage 220x148mm/76x50mm, Precision 0.1mm, Double Slide Clamp, Rackless Steel Wire Transmission Moving

Condenser

Abbe N.A.1.25 With Slot For DF, PH & Pol

Light Source

3W LED With Kohler Illumination System, Brightness Adjustable

Product Display





A33.1302 Laboratory Microscope Optional Accessories

Item No.

Dark Field

DF Condenser, Immersion

A5D.1301-I

DF Condenser, Dry

A5D.1301-D

Phase Contrast Set

Turret Type

A5C.1303-T

Slider Type

A5C.1303-S

Polarzing Set

Analyzer & Polarizer

A5P.1301-2

Condenser

Swing-Out Type

A56.1308

Adapter

C-Mount

A55.1305-1.0


Product Details


Related Products


Product Application



LCD Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects. It is not only clear but also convenient to observe.


Packaging & Shipping




 1 Set/ 2Carton

Microscope

LCD Camera

Package

36x31x47CM

41x30x21CM

Gross Weight

8KG

2KG

Packing

Polyfoam Protection And Strong Carton

Shipping Time

5~20 Days After Receive The Deposit


Company Information



OPTO-EDU is a unique, long-term and excellent supplier of microscopes and educational instruments from China. We focus on the international market of microscopes and education instruments. At present our customers come from more than 80 countries, such as the United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, the United Arab Emirates, Qatar, Saudi Arabia, Egypt, Argentina, Korea, Thailand, Brazil and so on. OPTO-EDU as our trademark is well known in the professional field, our products ranked No.1 in Alibaba.com. We have been working tirelessly for the sale of high quality optical products and educational products made in China to the world market.


As one of the most professional and most dynamic suppliers of optical and educational products in China, we have been concentrating on this field for more than 10 years. We have created the most professional product database of microscope & educational instrument, with 5000+ products and 500+ professional suppliers in system. We can provide our customers with the most comprehensive range of products in the related field, from the primary entry products to professional-level solutions, to meet the different needs of customers in the field of scientific research, teaching, industry, agriculture and various industries.
