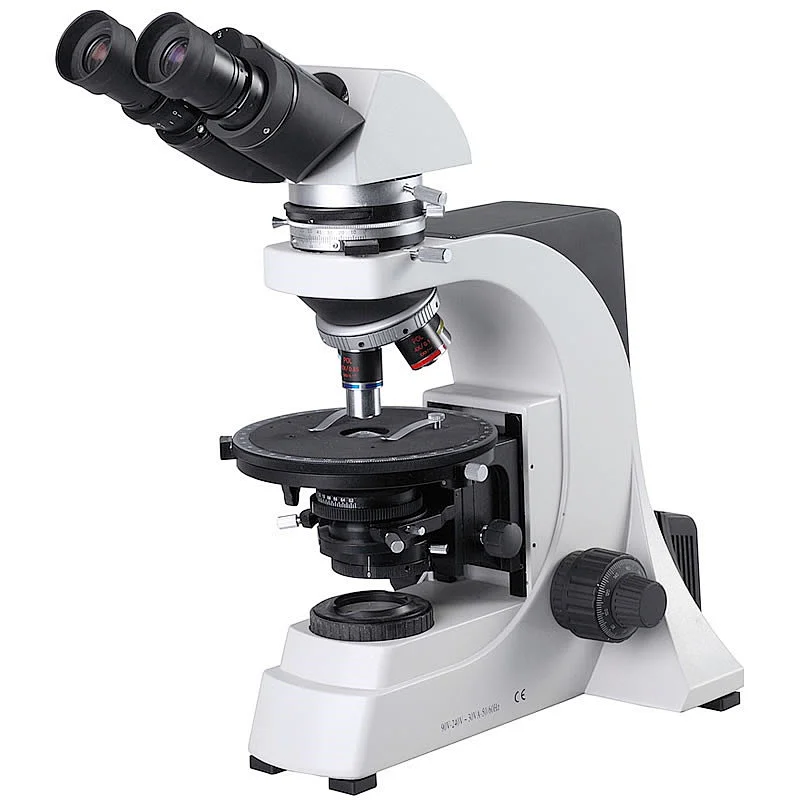

Polarizing Microscope, Transmit
Polarizing Microscope, Transmit
Polarizing Microscope, Transmit

A15.0901

Like Favorites

Polarizing Microscope, Transmit

Quantity:


A15.0901 Specification
A
B
Optical systemColor Corrected Infinity Optical System
Head
Compensation Free Binocular Head
o
Compensation Free Trinocular Head
o
EyepiecePL10X/22mm, High Eye-point
Analyzer
Built-in Analyzer, Can Shift Out Of Optical Path, 90° Rotatable;
Built-in Bertrand Lens, Center And Focus Adjustable
Compensator
λ Plate : F=18mm, First-class Red, Light Path Aberration: 551nm
1/4 λ Plate : F=18mm, First-class Ashen, Light Path Aberration: 147.3nm
Quartzose Chock : 12x28mm, Produce I-IV Interfere Color
Nosepiece
Quadruple Nosepiece
Objective
Strain-free Infinity Plan Objective 4x
Strain-free Infinity Plan Objective10x
Strain-free Infinity Plan Objective 40x
Strain-free Infinity Plan Objective 60x
Objective Center adjusting wrench 1.5mm
Focusing
Coaxial Coarse & Fine Focus System, With Tension Adjustment, With Up-limited, Coarse Focusing Range 28mm, Fine Focusing Precision 0.002mm
Stage
Metal Round Working Stage, 360° Rotatable, Dia. 160mm, Prcision 6', Scale 1°
With Graphite Coating Surface, Anti-Scratch, With Position Lock
Slice
Plug Ttype
Condenser
N.A.1.2/0.22 Swing Type Achromatic Condenser
Polarizer
360° Rotatable, Can Shift Out From Optical Path
Micrometer Ruler
0.01mm
FilterBlue
Illumination
Transmit Illumination,6V30W
Power90~240V Wide Voltage
Optional Accessories
EyepiecePL15X/16mm, High Eye-pointA51.0903-1516
PL10x/22mm with Reticle, Diopter AdjustableA51.0905-1022R
PL10x/22mm with ReseauA51.0905-1022G
ObjectvieStrain-free Infinity Plan Objective 20A5P.0932-20
Strain-free Infinity Plan Objective 100A5P.0932-100
NosepieceQuintuple Nosepiece, Center AdjustableA54.0930-XYP5
Vernial ScaleProfessional Moving Scale For Round Stage, Moving Range 40*30mmA54.0932-03
Color FilterYellowA56.0935-XY-FCY
GreenA56.0935-XY-FCG
Neutral Color FilterA56.0935-XY-FCF
CCD Adapter1.0x C-Mount, Focus AdjustableA55.0926-10
0.35x C-Mount, For 1/3"CCD Camera, Focus AdjustableA55.0926-35
0.50x C-Mount, For 1/1"CCD Camera, Focus AdjustableA55.0926-50
0.67x C-Mount, For 2/3"CCD Camera, Focus AdjustableA55.0926-67
