Polarizing Microscope
Polarizing Microscope

A15.0101

Like Favorites

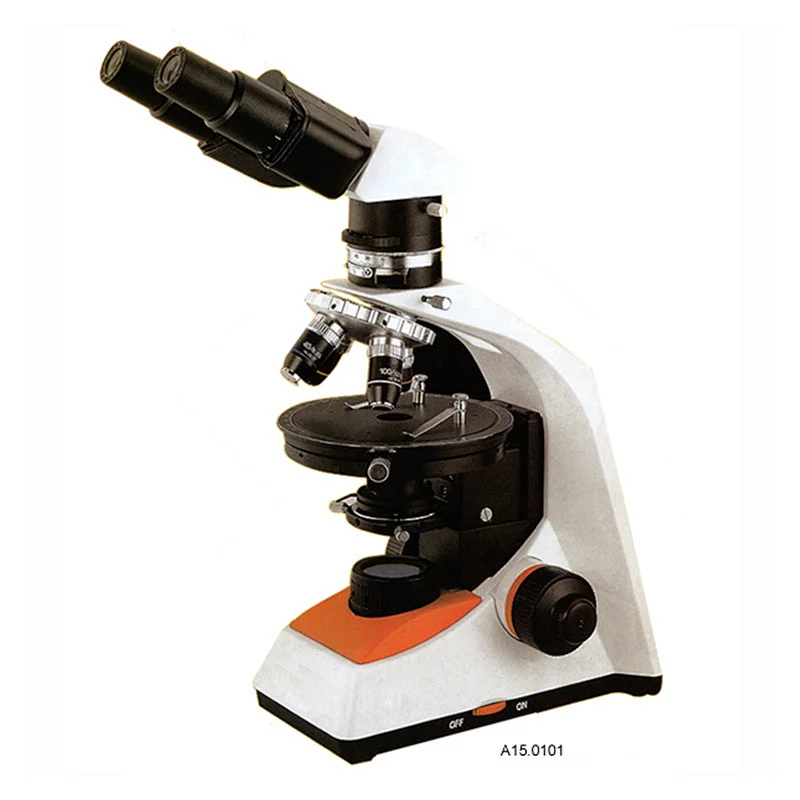

Polarizing Microscope


Quantity:


A15.0101 Specification
Head
Binocular Head, 30° Inclined, Interpupillary Distance: 55-75cm
Tube Group in the Middle
Sliding in/out of Optical Path,Built-in Analyzer,Polarizing Drection Adjustable, 100° Rotatable, Gradyated in 1°increments
Optical Compensation
--λSlip(First Class Red)
--1/4λSlip
--Quartz wedge (I-IV)
Eyepiece
Eyepiece WF10X/18 with with scale of crosshair and 0.1mm
WF10X/18
Objective
Infinity Achromatic Objective 4X, NA=0.1 strainfree
Infinity Achromatic Objective10X, NA=0.25 strainfree
Infinity Achromatic Objective40X, NA=0.65 strainfree
Infinity Achromatic Objective 100X, NA=1.25 strainfree
Nosepiece
Quadruple Nosepiece, Center adjustable
Stage
Size: Φ152mm, 360° Rotatable, Locking Device, Gradyated in 1° Increments, Minimum Resolution 6'

Condenser

Abbe Condenser, N.A..=1.25 Strainfree
Focusing
Coaxial Coarse & Fine Focusing Knob
Fine Focusing Scale:0.002mm
Light Source
Polarizer Group: Locking Device
Collector Group
Optional accessories
Micrometer0.01 Micrometer
Moving Scale
