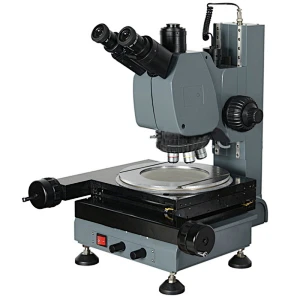

Presicion Measuring Microscope
Presicion Measuring Microscope

A13.1118

Like Favorites

Presicion Measuring Microscope

Quantity:


A13.1118
Head

Positive Compensation Free Head Inclined At 30° Interpupilary Distance Adjustable( 50mm-75mm),0.3X CCD Adapter

EyepieceWide Field Plan WF10×/22mm
WF10×/20mm,Crosshair With Reticule0.1mm

Nosepiece

Six Hole Nosepiece With DIC Jack

Stage

Stage Size:250mm x 250mm
(Glass Stage Size:Ф148mm)

Measuring Range:50mm x 50mm

Measuring Accuracy:≤(3+L/25) um
(L represents Length To Be Measured)

Infinite Lone Working Distance Plan Objectives5X/0.15(W.D.14.47mm)
10X/0.25(W.D.16.01mm)
20X/0.40(W.D.10.5mm)
50X/0.55(W.D.5.1mm)
Light Source

Reflecting Illumination,Kohler Illumination LED 5V/3W,AV85V-230V,Brightness Adjustable
Transmitted Illumination
Telecentric Lighting,LED5V/3W,AC85V-230V,Brightness Adjustable

Optional AccessoryEyepiece:WF15X/17mm、WF20X/12.5mm
Infinite Long Working Distance Plan Objective 80X/0.70(W.D.3.1mm)100X/0.80(W.D.3.01mm)
Two-dimensional Measurement Software

Professional Metallurgical Image Analysis Software
1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega
Piexels CMOS Digital Camera Eyepiece

Photography Attachment And CCD C-mount:
0.5X、0.57X、0.75X、1X

Micrometer Eyepiece
CCD Camera,Colour1/3 High Resolution 700 TV Lines
Various Industrial Camera
