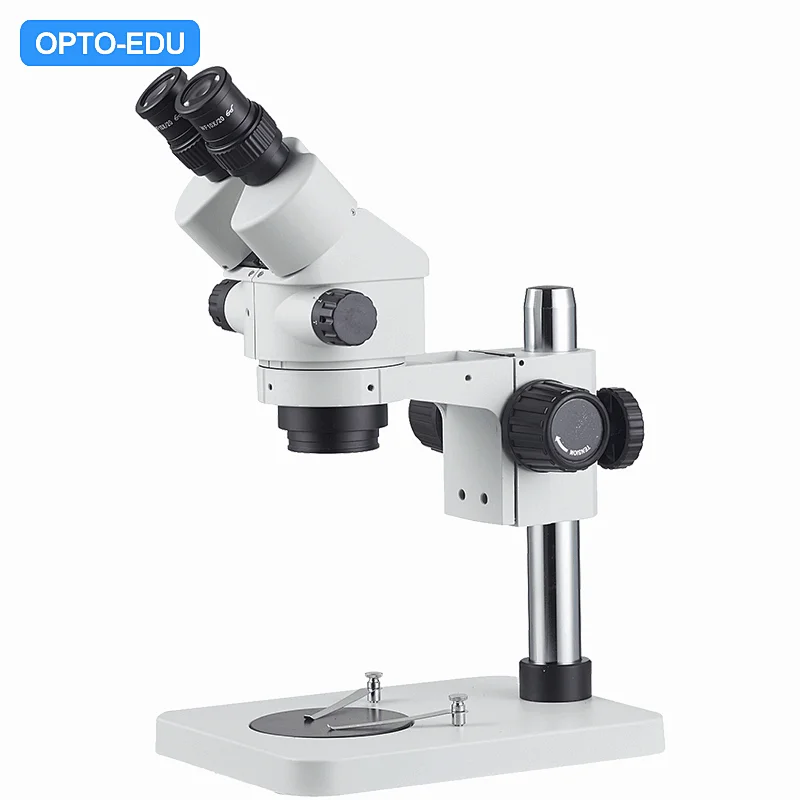

0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope
0.7x~4.5x Binocular Zoom Stereo Microscope

0.7x~4.5x Binocular Zoom Stereo Microscope

Quantidade:




Eyepiece WF10X/20mm, High Eyepoint, Eyepiece Tube Diopter Adjustable
0.7x-4.5x, Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
A54.3640 35 Kinds Stands Optional For Different Usage & Condition

A23.3645, A23.3645N Series Zoom Stereo Microscope SpecificationBT
HeadBinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable,
Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable,
With Eyepiece Adapter Focus Adjustable,
Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time

EyepieceWF10x/20mm, High Eyepoint, Dia.30mm
Zoom Lens0.7x~4.5x
Zoom Ratio1:6.5
Magnification7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives
Working Distance100mm, Up To 30~165mm With Auxiliary Objectives
Field Of View0.9-57.1mm (Detail See Optical Data Sheet)
FocusingPole Stand Coarse Focusing Range 50mm, Tension Adjustable
Track Stand Coarse Focusing Range 74mm, Tension Adjustable
Stand35 Kinds Stand Optional, Details See A54.3630
Choose Model According To Cata. No. Like:
A23.3645-B1  Means Binocular Head With B1 Stand
A23.3645-B1TMeans Trinocular Head With B1 Stand

A23.3645, A23.3645N Series Zoom Stereo Microscope Optical Data Sheet
Zoom Lens0.7x~4.5x
Auxiliary Lens0.5x1.0x (Standard )1.5x2.0x
Working Distance165mm100mm45mm30mm
WF10x/20mmMagnification3.5x-22.5x7.0x-45x10.5x-67.5x14x-90x
View Field(mm)57.1-8.928.6-4.419-314.3-2.2
WF15x/15mmMagnification5.25x-33.75x10.5x-67.5x15.75x-101.25x21x-135x
View Field(mm)42.8-6.721.1-3.314.3-2.210.7-1.7
WF20x/10mmMagnification7.0x-45x14.0x-90x21.0x-135x28x-180x
View Field(mm)28.6-4.414.3-2.29.5-1.57.1-1.1
WF25x/9mmMagnification8.85x-56.3x17.5x-112.5x26.2x-168.8x35x-225x
View Field(mm)25.4-4.012.9-2.08.6-1.36.4-1.0
WF30x/8mmMagnification10.5x-67.5x21x-135x31.5x-202.5x42x-270x
View Field(mm)22.9-3.611.4-1.87.6-1.25.7-0.9

Optional AccessoriesCata.No.
HeadBinocular Head + WF10x/20mmA53.3645-B
Trinocular Head + WF10x/20mmA53.3645-T
EyepieceWF10x/20mm, High Eyepoint, Dia.30mmA51.3621-1020
WF15x/15mm, High Eyepoint, Dia.30mmA51.3621-1515
WF20x/10mm, High Eyepoint, Dia.30mmA51.3621-2010
WF25x/9mm, High Eyepoint, Dia.30mmA51.3621-2509
WF30x/8mm, High Eyepoint, Dia.30mm, Diopter AdjustableA51.3622-3008
Auxiliary Lens0.5x, W.D. 165mmA52.3621-05
1.5x, W.D. 45mmA52.3621-15
2.0x, W.D. 30mmA52.3621-20
CCD AdapterEyepiece Adapter Focus AdjustableA55.3623-E
1.0x, Focus AdjustableA55.3623-10
0.50x, Focus Adjustable, For 1/2"CCDA55.3623-05
0.35x, Focus Adjustable, For 1/3"CCDA55.3623-35





















A22.3660A22.3660NA22.3670A32.3645
A23.3645A23.3645NA23.3667A23.3667L
Pictures
Model No. A23.3645N A32.3645 A23.3645 A23.3667 A23.3667L
Features
Simul Focal —— Simul Focal Simul Focal ——
Video Adapter
C-Mount 0.3x C-Mount 0.3x C-Mount 0.3x C-Mount 0.3x ——
Optical System
—— Greenough Greenough —— ——
Head Type
—— Seidentopf Binocular Seidentopf Binocular —— ——
Head Rotation
—— Head Rotate 360° Head Rotate 360° —— ——
Head Interpupillary
—— 50~76mm 50~76mm —— ——
Head Diopter
—— Both Tube Adjustable Both Tube Adjustable —— ——
Head Light Path
—— E50:P50 E50:P50 —— ——
Eyepiece Diameter
—— 30.0mm 30.0mm —— ——
Focusing Type
—— Coarse Only Coarse Only —— ——
Stereo Stand Type
—— Pole Stand Pole Stand —— ——
Camera Pixel
—— 3.0MP —— —— ——
Camera Sensor Size
—— 1/2" —— —— ——
Camera Output
—— USB —— —— ——
