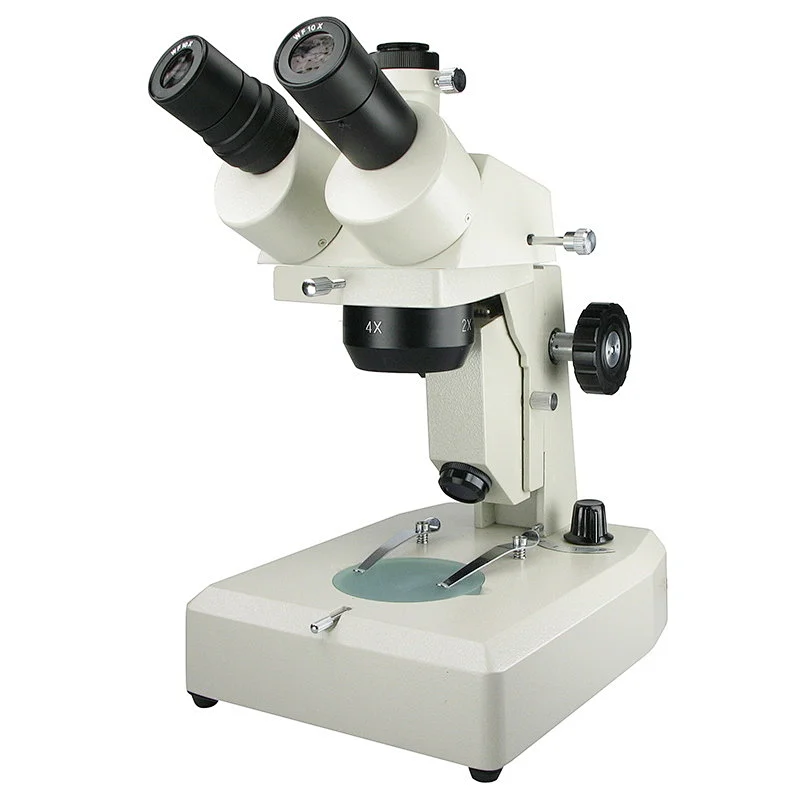

Stereo Microscope

Quantity:


A22.0803 Specification
A
B
C
D
Total Magnification
10x-40x
Eyepiece
WF10x/20mm
Objective1x/3x, or 2x/4x
Head
Binocular head, 45° inclined, interpupillary distance 55-75mm
Trinocular head, 30° inclined, interpupillary distance 55-75mm
Diopter
Both eyepiece tube diopter adjustable ±5
Stand & Base
Track stand III type, up/down range 75-150mm, base size 180x220mm
Pole stand L type, up/down range 65-235mm, base size 150x225mm
Light Source
Upper & Bottom both halogen lamp 6V/20W, brightness adjustable
No light source
View Field Ø5-28mm
Working Distance

105mm

Adapter
C-mount
Optional Accessories
Item No.
Eyepiece
WF15xA51.0801-15
WF20xA51.0801-20
Auxiliary objective
0.5xA52.0802-05
1.5xA52.0802-15
2xA52.0802-20
Adapter
SLR camera adapterA55.0808
CCD adapter A55.0801
Digital camera adapterA55.0809
Light Source
LED or Flourescent Ring Light
