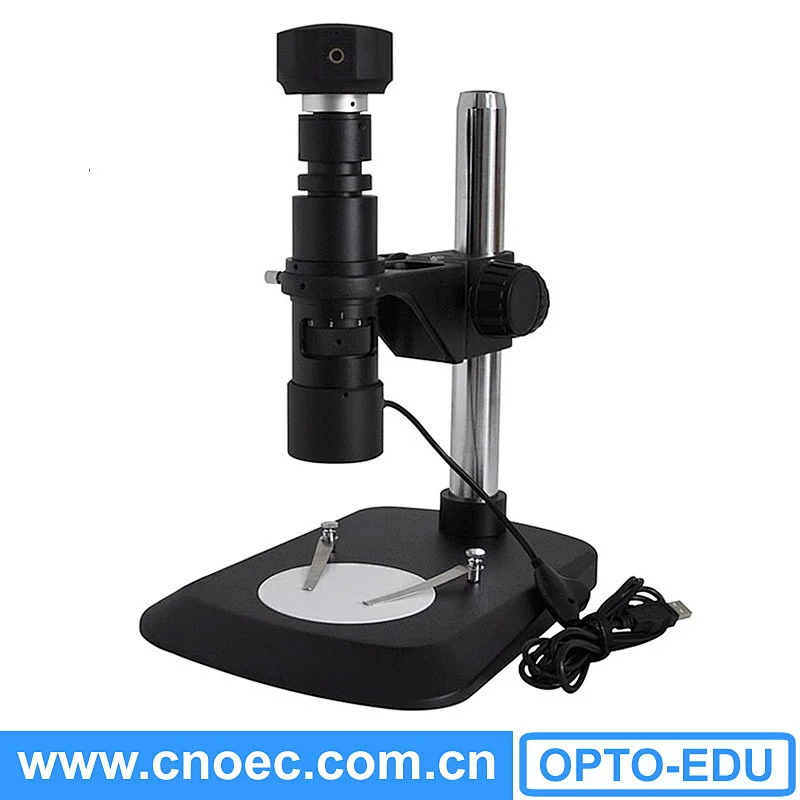

USB Digital Microscope, 365X,5.0M
USB Digital Microscope, 365X,5.0M

A34.4904-B

Like Favorites

USB Digital Microscope, 365X,5.0M

Quantity:


Hardware Configuration
Image Sensor
Colorful
Scan Mode
Scan Line By Line
Maximum Resolution5.0M, 2592 x 1944 (5,038,848 Pixels)
Sensor Optical Format1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm
Pixel Size2.2μm x 2.2μm
Dynamic Range70.1dB
ADC
12-Bit, 8-Bit R.G.B to PC
SNR(Signal Noise Ratio)38.1dB
Spectral Characteristics
380-650nm
Preview Modes

10FPS@2592x1944
15FPS@1920x1080, 1600x1200
40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480

Binning Modes1 x 1, 2 x 2
Exposure Capability3.9ms - 320ms, Automatic And Manual
White BalanceAutomatic And Manual
Software InterfaceDirectShow
Capture Modes

Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
Format:JPG,BMP,PNG,TIFF,PDF
Video
Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
Format:MJPG format AVI file

Optical Parameters
Optical Main Body0.7x~5x
Total Magnification55x~365x
Object Distance(mm)105mm
Focusing Hand Wheel Height Range(mm)230mm
Focusing Bracket Adjustment Range(mm)50mm
Field Of View(mm)7.14( When In 0.7x)
3.33( When In 1x)
1.25( When In 2x)
0.61( When In 3x)
0.32( When In 4x)
0.29( When In 5x)
Resolution(um)16.78(When In 0.7x)
11.18( When In 1x)
8.39( When In 2x)
6.10( When In 3x)
4.79( When In 4x)
4.79( When In 5x)
Observation Range20.4 x 15.3mm~2.86 x 2.15mm Continuous Adjustment
Comprehensive Resolution (When Display On 17 Inch 16:9 Screen)13.8~98.5 Continuous Zoom,55~394 Continuous Zoom(This Data Is Based On Preview Resolution Is 640x480 With Decompression Zoom And The Picture Is Display To Adapt To Screen)
Software Environment
Operation SystemMicrosoft® Windows® XP/ 7 / 8 /8.1/10(32 & 64 bit)
Computer ConfigurationCPU: Equal Or More Than The Second Generation Lntel Core 2.8GHz
Memory :2G Or More
USB Port:USB2.0 High Speed Port Or Compatible Port
Displayer :Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature0℃~ 40℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Charge InterfaceDirect-current 5V. Power Supply By USB Interface
