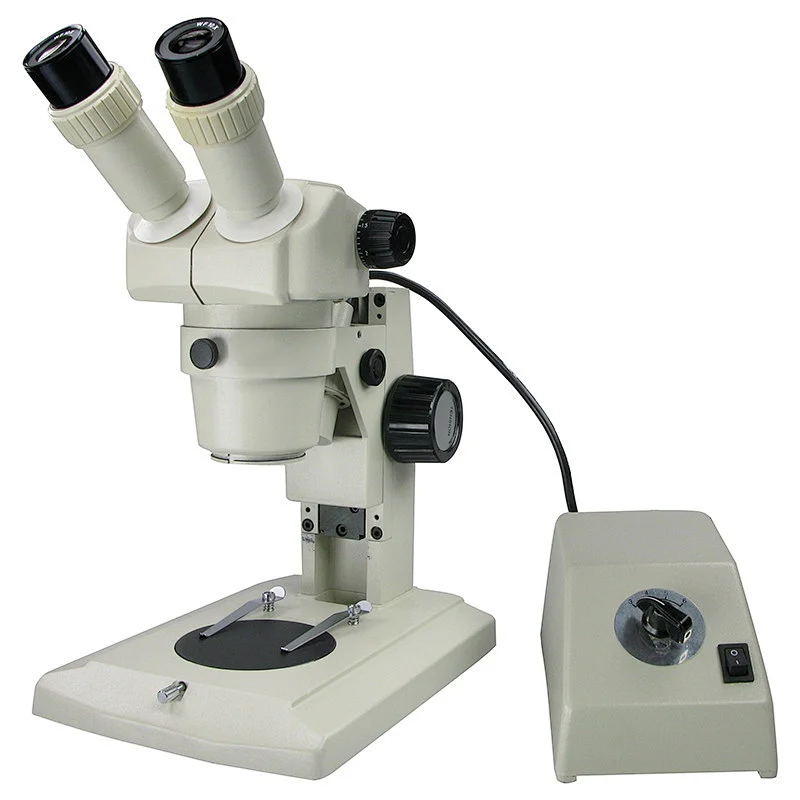

A23.0802 Specification | A | B | |
Total Magnification | 7.5x-35x, with auxiliary lens can reach 3.75x-140x | ● | ● |
Zoom Ratio | 1:4.7 | ● | ● |
Head | Binocular head, 45° inclined, interpupillary distance 55-75mm | ● | ● |
Eyepiece | WF10x/20mm | ● | ● |
Objective | 0.75x-3.5x | ● | ● |
Diopter | Both eyepiece tube diopter adjustable ±6 | ● | ● |
Stand & Base | Track stand I type, up/down range 75-175mm, focusing range 100mm, base size 180x240mm | ● | |
Pole stand L type, up/down range 55-200mm, focusing range 60mm, base size 175x235mm | ● | ||
Light Source | Seperate upper light source halogen lamp 6V/20W, brightness adjustable | ● | |
No light source | ● | ||
View Field | Ø5-30mm | ● | ● |
Working Distance | 100mm | ● | ● |
Adapter | C-mount | ● | |
Optional Accessories | Item No. | ||
Eyepiece | WF15x | A51.0801-15 | |
WF20x | A51.0801-20 | ||
Auxiliary objective | 0.5x | A52.0802-05 | |
1.5x | A52.0802-15 | ||
2x | A52.0802-20 |
