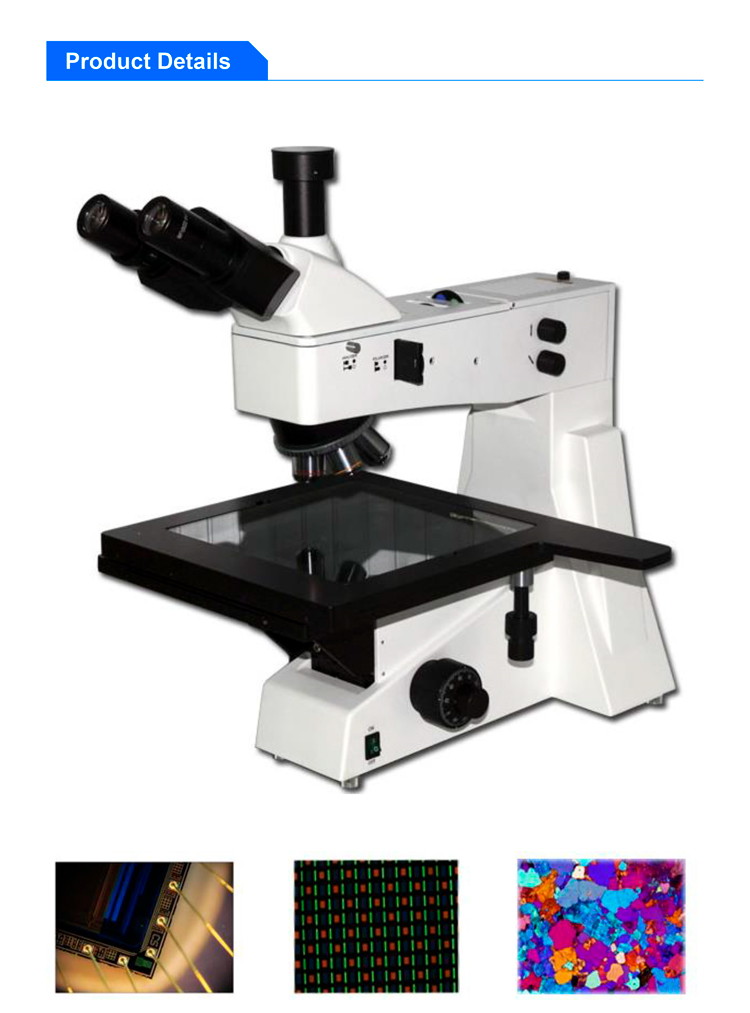

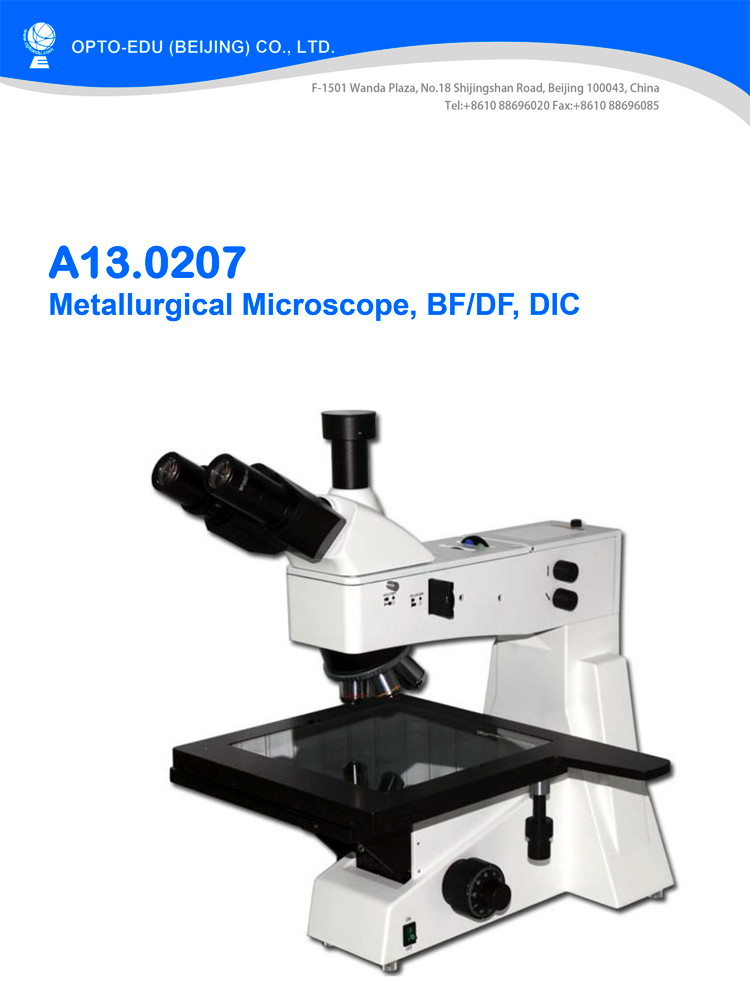

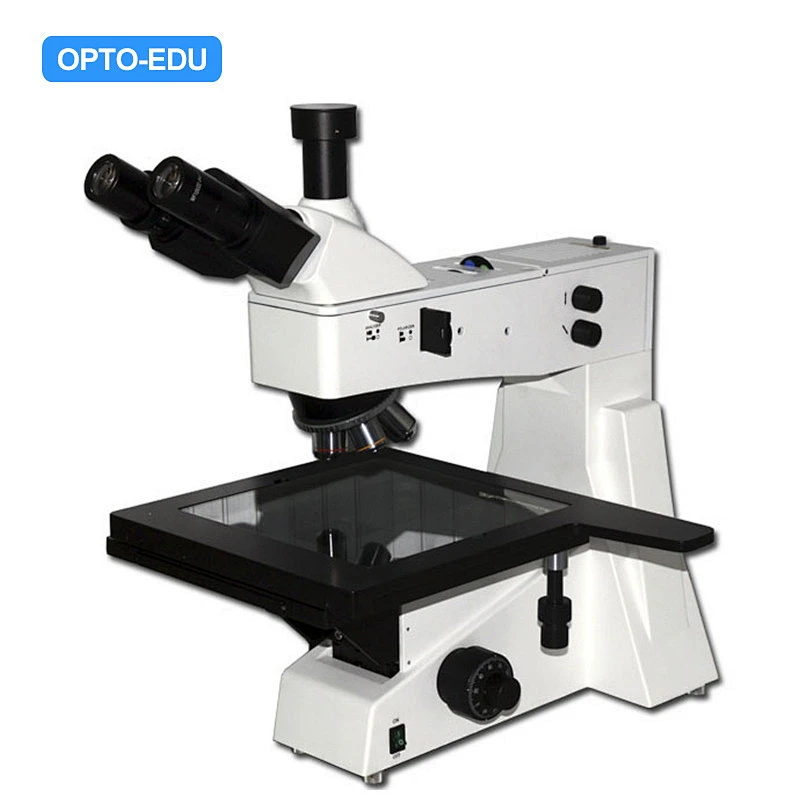

| A13.0207 Rechtopstaande metallurgische microscoop, Zenden en reflecteren, BD, DIC, polariserend | A13.0207 | -BD | -DIC | -BDDIC | Kata. Nee. | |
| Hoofd | Trinoculaire kop, hellingshoek 30°, 360° draaibaar, oogafstand 53~75 mm, lichtpadschakelaar E100:P0/E0:P100 | |||||
| Oculair | WF10x/22mm | |||||
| WF16x/11mm | A51.0203-16A | |||||
| Verdelen 10x, 0.1mm/Div | A51.0205-10 | |||||
| neusstuk | Vijfvoudig, kogelgelagerd binnenste lokaliseren | |||||
| LWD Oneindigheid Helder veld Plandoel (Geen afdekglas) | PLL2.5x/0.07mm, WD13mm | A5M.0235-2.5 | ||||
| PLL5x/0.12mm, WD26,1mm | A5M.0235-5 | |||||
| PLL10x/0,25 mm, WD20,2 mm | A5M.0235-10A | |||||
| PLL20x/0.40mm, WD8.8mm | A5M.0235-20 | |||||
| PLL40x/0.60mm, WD3.98mm, veer | A5M.0235-40 | |||||
| PLL50x/0.70mm, WD3.68mm, veer | A5M.0235-50 | |||||
| PLL60x/0.70mm, WD3.18mm, veer | A5M.0235-60A | |||||
| PLL80x/0.80mm, WD1.25mm, veer | A5M.0235-80 | |||||
| PLL100x/0.85mm, WD0.4mm, veer | A5M.0235-100 | |||||
| LWD Oneindigheid Helder/donker veld Plandoel (Geen afdekglas) | PLL5x/0.12BD WD8.05mm | |||||
| PLL10x/0,25 BD WD7,86 mm | ||||||
| PLL20x/0.40 BD WD7.23mm | ||||||
| PLL50x/0.70 BD WD1.75mm | ||||||
| PLL80x/0.80 BD WD0.80mm | ||||||
| LWD OneindigheidDIC Plandoel (Geen afdekglas) | LMPlan 5x/0.12 WD 15mm | A5M.0238-5D | ||||
| LMPlan 10x/0.3 WD 10.5mm | A5M.0238-10B | |||||
| LMPlan 20x/0.4 WD 84.5mm | A5M.0238-20A | |||||
| LWD OneindigheidDIC Helder/donker veld PlanDoelstelling | BD LMPlan 5x/0,12 mm, WD7,9 mm | A5M.0239-5A | ||||
| BD LMPlan 10x/0.3mm, WD6.03mm | A5M.0239-10A | |||||
| BD LMPlan 20x/0.40mm, WD1.4mm | A5M.0239-20A | |||||
| DIC | 5x/10x/20x DIC Push-Pull Groepsschuif | |||||
| Werkfase: | Dubbellaags mechanisch podium, afmeting 280x270 mm, bewegingsbereik 204x204 mm | |||||
| Focussen | Coaxiale grove en fijne focus, spanning instelbaar, met stop omhoog, fijne scherpstelschaal0,7um | |||||
| Coaxiale grove en fijne focus, spanning instelbaar, met stop omhoog, fijne scherpstelschaal0,8um | ||||||
| Reflecteren Verlichting | 6V30W halogeenlamp, helderheid instelbaar | |||||
| 12V50W halogeenlamp, helderheid instelbaar | ||||||
| Epi Illumination Intergrate Field Diafragma, Diafragma Diafragma, Filter Switching Device Voor Geel, Blauw, Groen Filter & Geslepen Glas | ||||||
| Polariserend | Push-Pull-type polarisator | |||||
| Ingebouwde analysator en vrij schakelen | ||||||
| Adapter | 0,4x C-bevestiging | A55.0202-1 | ||||
| 1.0x C-montage | A55.0202-2 | |||||
| 0,5x C-montage met verdeling 0,1 mm/div | A55.0202-3 | |||||
| 0,5x C-bevestiging | A55.0202-4 | |||||
| Digitale SLR Camera Adapter voor Canon EF | A55.0204-1 | |||||
| Opmerking: ''Betekent standaard outfit'' Betekent optioneel | ||||||
