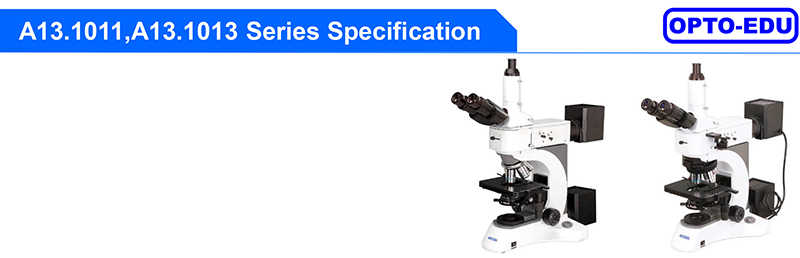

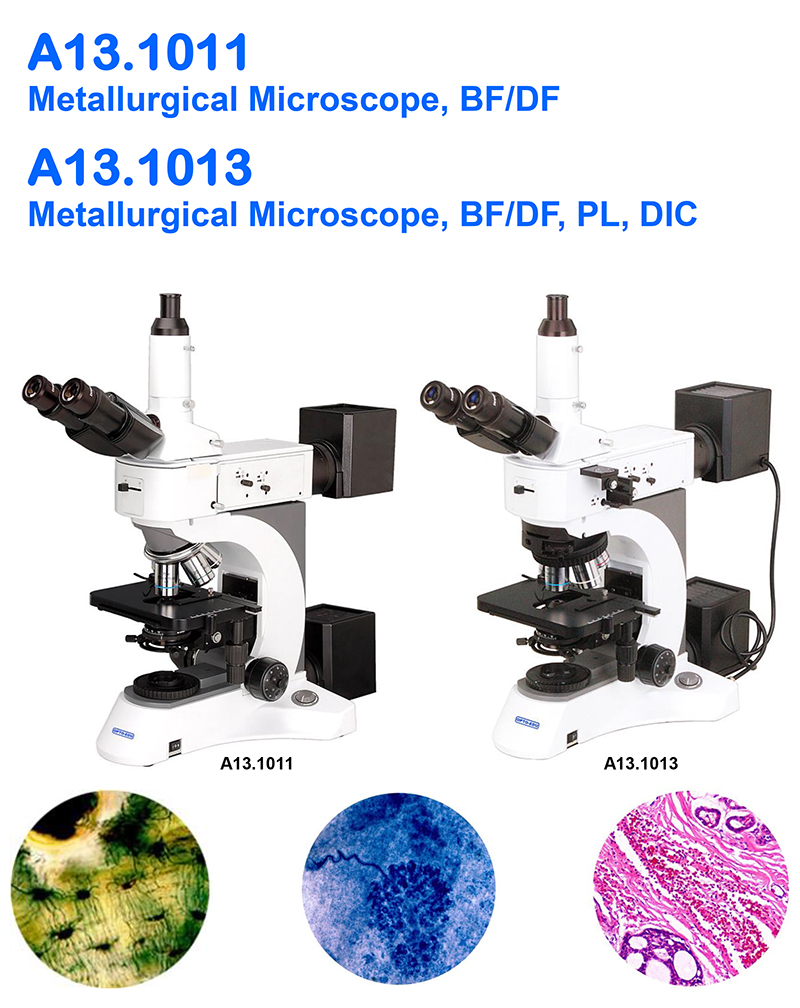

| A13.1011 Metallurgical Microscope, BF/DF A13.1013 Metallurgical Microscope, BF/DF, PL, DIC | A13.1011 | A13.1013 | |||
| R | RT | R | RT | ||

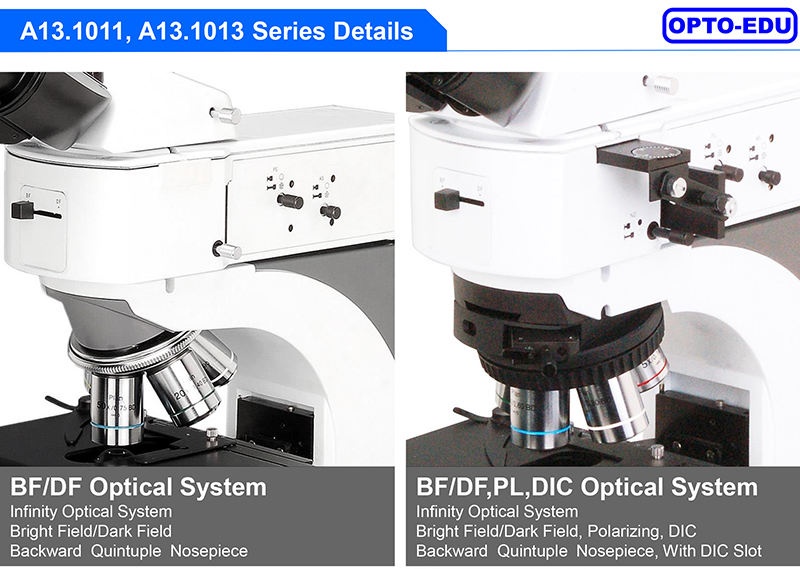

| Optical System | Infinity Optical System, Bright Field/Dark Field | ● | ● | ||
| Infinity Optical System, Bright Field/Dark Field, Polarizing, DIC | ● | ● | |||

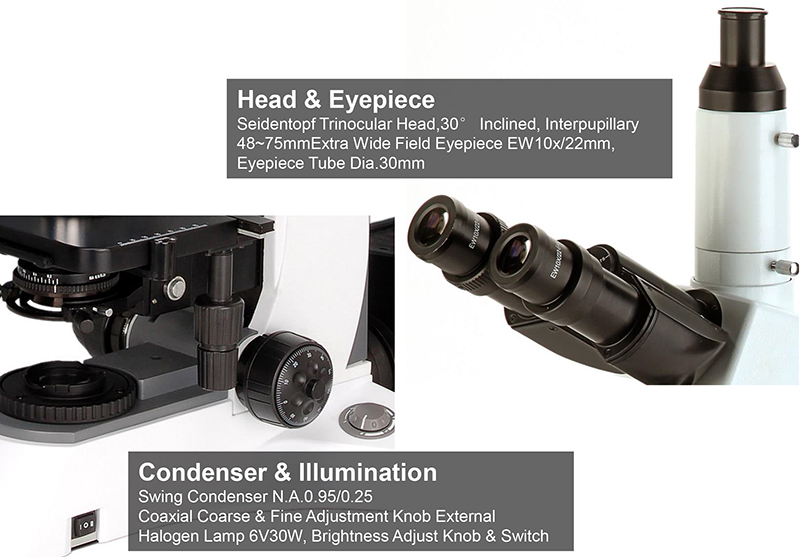

| Head | Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm | ||||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | ||||
| Nosepiece | Backward Quintuple Nosepiece | ● | ● | ||
| Backward Quintuple Nosepiece, With DIC Slot | ● | ● | |||

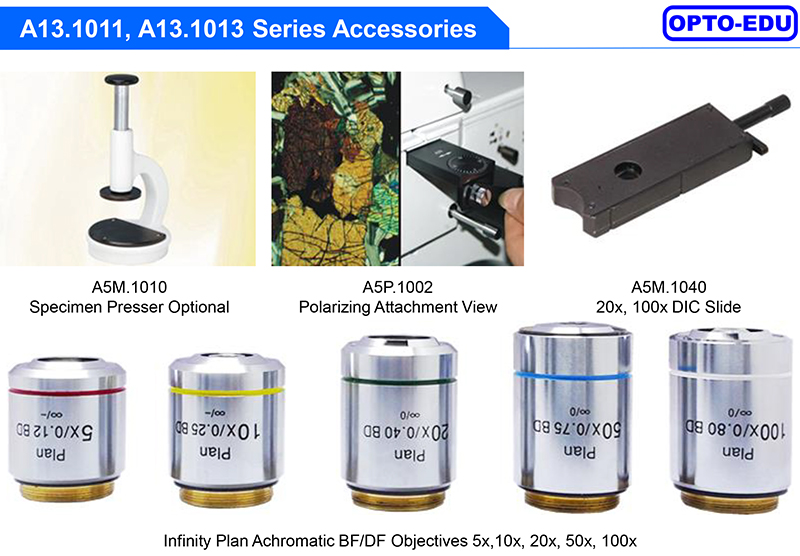

| Objective | Infinity Plan Achromatic Metallurgical (Coverless) Objectives, BF | ||||
| 5x/0.12/- (BF), W.D.15.5mm | ● | ● | |||
| 50x/0.75/- (BF), W.D.0.32mm | ● | ● | |||
| 100x/0.8/- (BF), W.D.2.0mm | ● | ● | |||
| Infinity Plan Achromatic Metallurgical (Coverless) Objectives, BF/DF, A5M.1036 | |||||
| 5x/0.12/- (BF/DF), W.D.12mm | o | o | ● | ● | |
| 10x/0.25/- (BF/DF), W.D.10mm | ● | ● | ● | ● | |
| 20x/0.4/- (BF/DF), W.D.4.3mm | ● | ● | ● | ● | |
| 40x/0.6/- (BF/DF), W.D.2.9mm | o | o | o | o | |
| 50x/0.75/- (BF/DF), W.D.0.32mm | o | o | ● | ● | |
| 100x/0.80/- (BF/DF), W.D.2.0mm | o | o | ● | ● | |
| Infinity Plan Achromatic (Cover Glass 0.17) Objective, BF | |||||
| 40x/0.65/0.17,W.D.0.54mm | ● | ● | |||
| 100x/1.25/0.17,W.D.0.13mm | ● | ● | |||
| DIC | DIC Slide For 20x, 100x, A5M.1040 | - | - | o | o |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment | ||||
| Working Stage | Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, ForReflectLight Non-Porous, Max Sample Height 50mm | ● | ● | ||
| Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, ForReflect & Transmit Light, Max Sample Height 30mm | ● | ● | |||
| Glass Specimen Preparation Plate | o | o | |||
| Specimen Preparation Plate | ● | ● | |||
| Slide Glass | ● | ● | |||
| Reflect Illumination | 24V 100W Halogen Light, Brightness Adjustable Kohler Illumination With Aspherical Condenser Blue, Green, Yellow Filter, Gound Glass | ● | ● | ● | ● |
| Reflect Polarizing | Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer, A5P.1005 | o | o | ||
| Transmit Illumination | Swing-Out Condenser N.A.0.9/0.25 24V 100W Halogen Light With Aspherical Condenser, Blue Filter | ● | ● | ||
| Netural Filter ND25, A5F.1011-25 | o | o | |||
| Netural Filter ND6, A5F.1011-6 | o | o | |||
| Adaptor | Photo Adapter, For Nikon or Canon SLR Camera, A55.1001 | o | o | o | o |
| C-Mount 1.0x, A55.1002-10 | o | o | o | o | |
| C-Mount 0.5x, A55.1002-05 | o | o | o | o | |
| Other | Specimen Presser, A5M.1010 | o | o | o | o |
