| Cata. No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
| Dark Signal | ||||||
| 2MPA | Sony IMX385(C) | 3.75x3.75 | 1175mv with 1/30s | 60@1920*1080(HDMI) | 1x1 | 0.04ms~1000ms |
| 1/2"(7.2x4.05) | 0.15mv with 1/30s | 50@1920*1080(USB) | ||||
| 8MPB | Sony IMX415(C) | 1.45x1.45 | 300mv with 1/30s | 30@1920*1080(HDMI) | 1x1 | 0.04ms~1000ms |
| 1/2.8"(5.57x3.13) | 0.13mv with 1/30s | 30@3840*2160(USB) | ||||
| Remark: C - Color, M-Monocolor, GS-GS Shutter | ||||||
| INTERFACE & BUTTON FUNCTION | ||||||
| USB Mouse | Connect USB mouse for easy operation on HDMI menu | |||||
| USB Video | Connect PC or other host device to realize video image transmission | |||||
| HDMI | Comply with HDMI1.4 standard. 1080P format video output for standard monitor, Mouse Control & Measure Function | |||||
| DC12V | Power adapter connection (12V/1A) | |||||
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images saving | |||||
| LED | LED status indicator | |||||
| ON/OFF | Power On/Off Switch | |||||
| VIDEO OUTPUT INTERFACE | ||||||
| HDMI Interface | Comply with HDMI1.4 standard; 60fps@1080P | |||||
| USB Video Interface | Connecting USB Video port of PC for video transfer MJPEG format video | |||||
| USB OUTPUT | ||||||
| Video Saving | Video format：1920*1080 H264/H265 encoded MP4 file; | |||||
| Video saving frame rate：60fps(2MPA);30fps(8MPB) | ||||||
| Image Capture | 2M (1920*2160, 2MPA) JPEG/TIFF image in SD card; | |||||
| 8M (3840*2160, 8MPB) JPEG/TIFF image in SD card; | ||||||
| Measurement Saving | Measurement information saved in different layer with image content | |||||
| Measurement information is saved together with image content in burn in mode | ||||||
| ISP | Exposure(Automatic, Manual Exposure), Gain, White Balance(Manual, Automatic, ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function | |||||
| Image Operation | Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function | |||||
| Embedded RTC | To support accurate time on board (Optional) | |||||
| Restore | Restore camera parameters to Default Factory Settings | |||||
| Multiple Language | English, Simplified Chinese, Traditional Chinese, Korean, Thailand, French, German, Japanese, Italian, Russian | |||||
| SOFTWARE ENVIRONMENT UNDER LAN/WLAN/USB VIDEO OUTPUT | ||||||
| White Balance | Auto White Balance | |||||
| Color Technique | Ultra-Fine Color Engine | |||||
| Capture/Control SDK | Win/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |||||
| Recording System | Still Picture or Movie | |||||
| Operating System | Microsoft® Windows® XP, Vista, 7, 8, 8.1 /10 /11(32 & 64 bit) | |||||
| OSx(Mac OS X) | ||||||
| Linux | ||||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |||||
| Memory: 4GB or More | ||||||
| Display:19” or Larger | ||||||
| CD-ROM | ||||||
| OPERATING ENVIRONMENT | ||||||
| Operating Temperature | -10 °C~ 50 °C | |||||
| Storage Temperature | -20 °C~ 60 °C | |||||
| Operating Humidity | 30~80%RH | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | DC 12V/2A Adaptor | |||||
| Dimension of A59.2222 Series Camera | ||||||

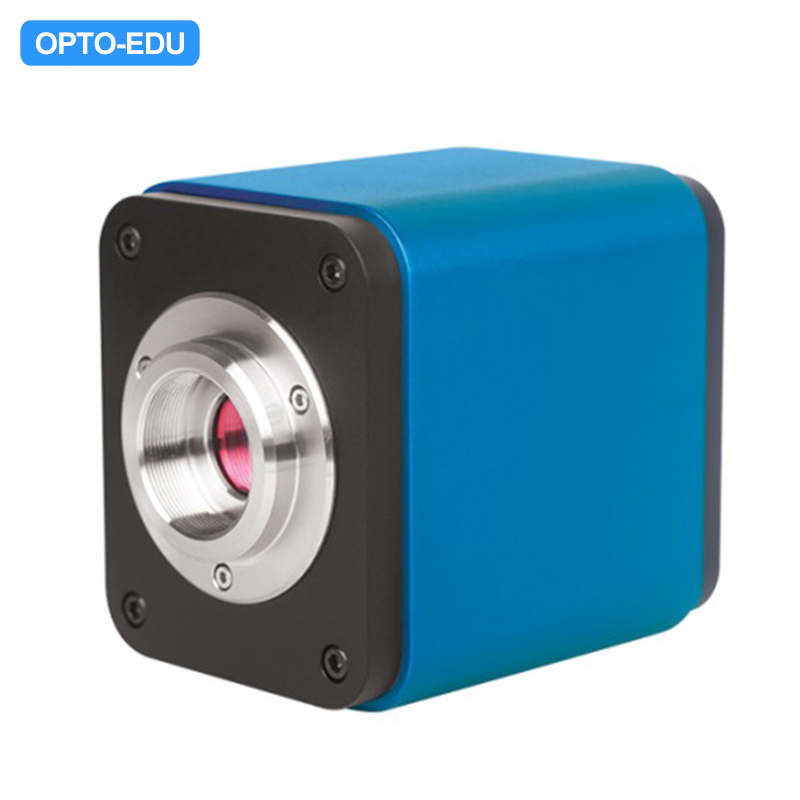

| A59.2222 series camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions | ||||||
| Packing List of A59.2222 Series Camera | ||||||
| Standard Outfit | ||||||
| A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.48Kg/ box) | |||||
| B | A59.2222 Digital Camera | |||||
| C | Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A | |||||
| American standard： POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC | ||||||
| European standard： POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC | ||||||
| EMI standard: FCC Part 15 Subpart B | ||||||
| EMS standard: EN61000-4-2,3,4,5,6 | ||||||
| D | USB Mouse | |||||
| E | HDMI Cable | |||||
| F | USB2.0 A male to A male gold-plated connectors cable /2.0m | |||||
| G | CD (Driver & utilities software, Ø12cm) | |||||
| Optional Accessory | ||||||
| H | SD Card(16G or above; Speed: class 10) | |||||
| I | FocusAdjustable Eyepiece Adapter | For Microscope | 0.37x, C-Mount to Dia.23.2mm | A55.2202-A37 | ||
| 0.50x, C-Mount to Dia.23.2mm | A55.2202-A50 | |||||
| 0.75x, C-Mount to Dia.23.2mm | A55.2202-A75 | |||||
| For Telescope | 0.37x, C-Mount to Dia.31.75mm | A55.2204-A37 | ||||
| 0.50x, C-Mount to Dia.31.75mm | A55.2204-A50 | |||||
| 0.75x, C-Mount to Dia.31.75mm | A55.2204-A75 | |||||
| J | FocusFixed Eyepiece Adapter | For Microscope | 0.37x, C-Mount to Dia.23.2mm | A55.2202-F37 | ||
| 0.50x, C-Mount to Dia.23.2mm | A55.2202-F50 | |||||
| 0.75x, C-Mount to Dia.23.2mm | A55.2202-F75 | |||||
| For Telescope | 0.37x, C-Mount to Dia.31.75mm | A55.2204-F37 | ||||
| 0.50x, C-Mount to Dia.31.75mm | A55.2204-F50 | |||||
| 0.75x, C-Mount to Dia.31.75mm | A55.2204-F75 | |||||
| K | Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube | A55.2203-30 | ||||
| L | Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube | A55.2203-30.5 | ||||
| M | Calibration Stage Micrometer | X=0.01mm/100Div. | ||||
| X,Y=0.01mm/100Div | ||||||
| X=0.01mm/100Div., 0.10mm/100Div | ||||||
