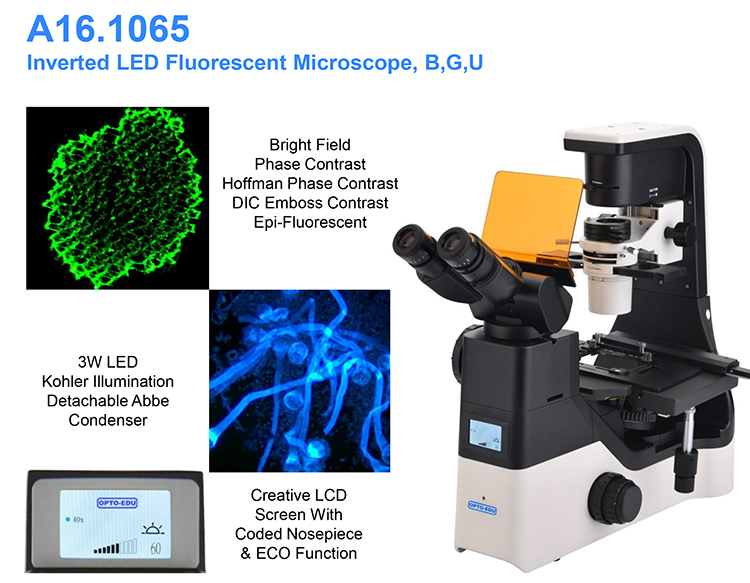

Microscópio fluorescente de LED invertido Opto-Edu A16.1065, B,G,U, LCD de informações

Microscópio fluorescente de LED invertido, B, G, U, LCD de informações

Novo design 2019 microscópio fluorescente invertido de alto nível

Acessório de epifluorescência, torre com 3 orifícios para cubos de filtro bandas B, G, U

Condensador de distância de trabalho super longa até 187 mm

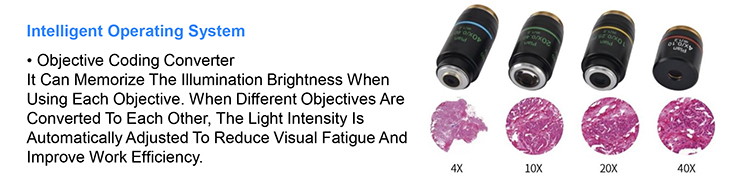

Nospiece codificado de 5 furos com tela LCD e função de ajuste automático de brilho

Contraste de fase, contraste de Hoffman, contraste de gravação (DIC) opcional

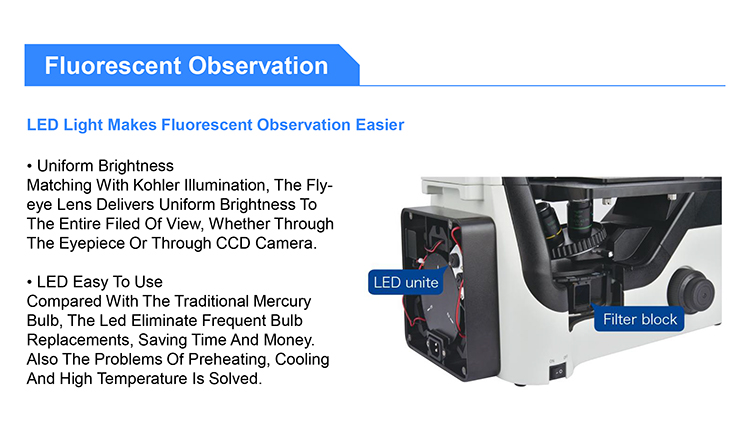

LED Illuminator, Suitable For Various Observation With A High Brightness And Long Lifetime Led
Illumination System For Both Transmission And Fluorescent Lighting, Proving Even Brightness
And Cool Lighting. Adopt Long Life LED Light Source And Infinity Optical System, Easy To Obtain High-definition And High Contrast Wide Viewing Images.

Use A Dimming Knob To Achieve Multiple Functions
Click: Enter Standby Status, Press + Up-spin: Switch To The Upper Light Source; Double Click: Light Lock Or Unlock, Press + Down-spin: Switch To The Under Light Source; Rotation: Adjust Brightness, Press 3 Seconds: Set The Time Of Turning Off The Light After Leaving.

Suitable For A Variety Of Fluorescent Dyes
Equipped With 3 Fluorescent Filter Blocks, It Provides A Wide Range Of Choice Of Dyes And Capture Clear High Contrast Fluorescence Images.

Contrast Shield
The Contrast Shield Can Effectively Block The Interference Of The External Light, Increase The Contrast Of The Fluorescent Image, And Provide A High Signal-to-noise Ratio Fluorescent Image. When Need Phase Contrast Observation, The Contrast Shield Is Very Convenient To Be Removed From The Light Path, Avoiding Influence On The Quality Of Phase Contrast.

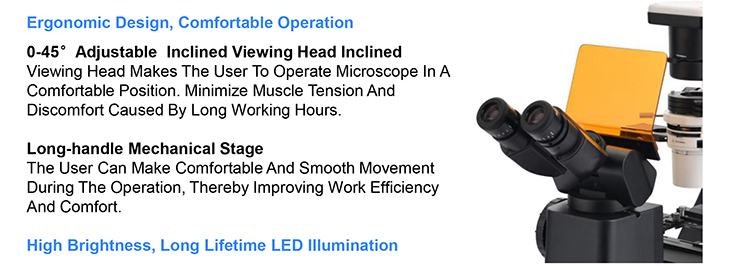

The Microscope Control Mechanism Is Reasonable In Layout And Easy To Operate
Make Reasonable Improvement On Basis Of Scientific Research Microscope. More Suitable For Laboratory Observation Of Cells.
The Body Is Compact And Stable, And The Operation Buttons Are Well Arranged, The Cells Can Be Observed, Sampled And Processed In The Super Clean Bench Freely.
The Frequently Used Control Mechanisms Are Close To The User And In Low-hand Position. This Kind Of Design Makes Operation More Quickly And Conveniently, And Reduce The Fatigue Caused By The Long Observation. On The Other Hand, It Reduces The Airflow And Dust Caused By Large Amplitude Operation, And It Is Very Effective To Reduce The Probability Of Sample Pollution. It Is A Strong Guarantee For The Accuracy And Repeatability Of The Experimental Results.

The Body Is Compact, Stable And Suitable For Clean Bench
Can Be Sterilized In The Clean Bench
On The Premise Of Ensuring The Effect Of Imaging, A14.1065 Is With Relative Compact Design. The Volume And Weight Of The Body Is Reduced As Much As Possible In Principle Of Stability. The Compact Body Is With Anti-uv Coating And Can Be Placed Into The Clean Bench For Sterilization Under Uv Lamp.

Cell Sampling And Operation Can Be Performed In Clean Bench
The Distance Between The Eye Point To The Operation Button And The Focusing Knob Of The A14.1065 Is Relatively Short, And The Distance From The Stage Is Far Away. It Is Available To Make The Viewing Head And Operating Mechanism Outside, And Stage, Objectives And Sample Inside. So Realize Cell Sampling And Operation Inside And Observing Comfortably Outside.

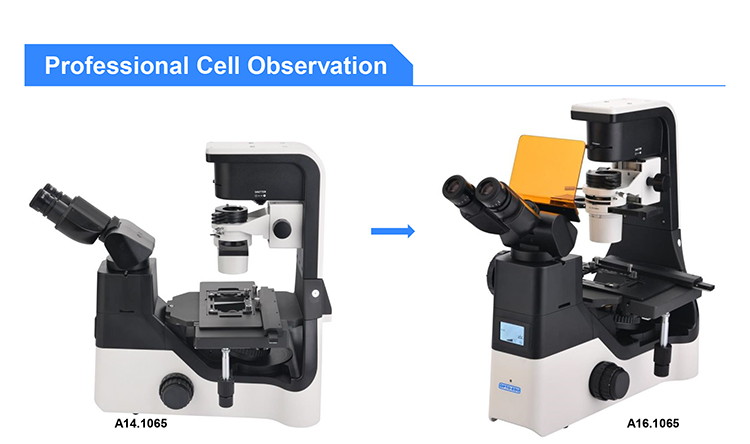

A14.1065 Inverted Biological Microscope, A16.1065 Inverted LED Fluorescent Microscope		A14.1065	A16.1065	Cata. No.
Optical System	NIS60 Infinite Optical System (F200)	●	●
Observation Method	Bright Field,	●	●
	Phase Contrast	●	○
	Epi-Fluorscence	○	●
	DIC 3D Emboss Contrast	○	○
	Hoffman Phase Contrast	○	○
Head	Tilting Seidentopf Binocular Head, Incline 0-45° Adjustable , Interpupillary Distance 48-75mm, Eyepiece Tube Dia.30mm	●	●
Eyepiece / F.O.V	EW10x/22mm, Diopter Adjustable, Dia.30mm	●	●	A51.1030-1022
	EW15x/16mm, Diopter Adjustable, Dia.30mm	○	○	A51.1030-1516
	EW20x/12mm, Diopter Adjustable, Dia.30mm	○	○	A51.1030-2012
Nosepiece	Coded Quintuple Nosepiece, Dovetail Interface	●	●
LWD Infinity Plan Objective	4x/0.10, W.D.30.0mm	●	○	A5M.1032-4
	10x/0.25, W.D.10.2mm	○	○	A5M.1032-10
	20x/0.40, W.D.12.0mm	○	○	A5M.1032-20
	40x/0.60, W.D.2.20mm	○	○	A5M.1032-40
LWD Infinity Plan Phase Contrast Objective	4x/0.10, W.D.30.0mm	○	○	A5C.1038-4
	10x/0.25, W.D.10.2mm	●	○	A5C.1038-10
	20x/0.40, W.D.12.0mm	●	○	A5C.1038-20
	40x/0.60, W.D.2.20mm	●	○	A5C.1038-40
LWD Infinity Plan Semi-APO Phase Contrast Objective	4x/0.13, W.D.17.0mm	○	○	A5C.1039-4
	10x/0.3, W.D.7.4mm	○	○	A5C.1039-10
	20x/0.45, W.D.8.0mm	○	○	A5C.1039-20
	40x/0.60, W.D.3.6mm	○	○	A5C.1039-40
	20x/0.45, W.D.7.5-8.8mm With Iris Adjustable	○	○	A5C.1040-20
	40x/0.60, W.D.3.0-4.4mm With Iris Adjustable	○	○	A5C.1040-40
	60x/0.70, W.D.1.8-2.6mm With Iris Adjustable	○	○	A5C.1040-60
LWD Infinity Plan Semi-APO Fluorescent Objective	4x/0.13, W.D.17.0mm, Cover Glass -	-	●	A5F.1032-4
	10x/0.30, W.D.7.4mm, Cover Glass1.2mm	-	●	A5F.1032-10
	20x/0.45, W.D.8.0mm, Cover Glass1.2mm	-	●	A5F.1032-20
	40x/0.60, W.D.3.3mm, Cover Glass1.2mm	-	●	A5F.1032-40
	60x/0.70, W.D.1.8-2.6mm, Cover Glass1.2mm	○	○	A5F.1032-60
Focusing System	Coaxial Coarse & Fine Adjustment, Tension Adjustable (At Right Hand), Fine Division 0.002mm, Coarse Focusing Range Up 7mm, Down 1.5mm, Max Up To 18.5mm After Removing Focusing Limit.	●	●

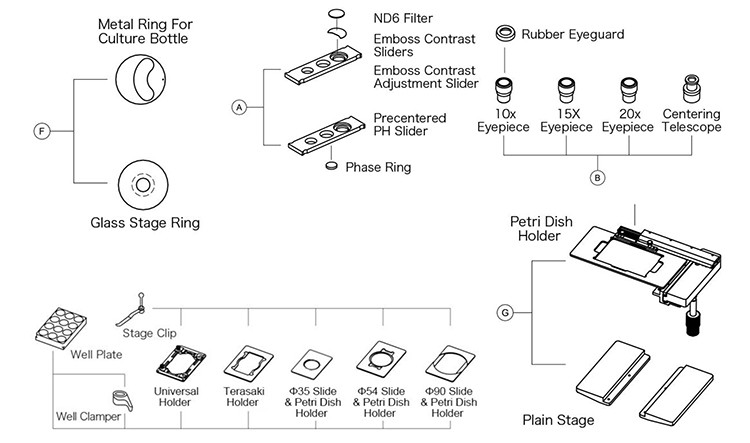

Working Stage	Plain Working Stage 170(X) x 250(Y)mm,	●	●
	Attachable Mechanical Moving Stage, X-Y Coaxial Moving 128x80mm	●	●	A54.1063-XY
	Stage Clip	●	●	A54.1063-SC
	Well Clamper For Well Plate	●	●	A54.1063-WC
	Glass Stage Plate	●	●	A54.1063-G
	Metal Stage Plate For Culture Bottle	○	○	A54.1063-M
	Auxilliary Plate 1 Piece	●	●	A54.1063-A
	Universal Holder	●	●	A54.1063-U
	Terasaki Holder	○	○	A54.1063-T
	Dia.35mm Petri Dish Holder	○	○	A54.1063-35
	Dia.54mm Slide & Petri Dish Holder	○	○	A54.1063-54
	Dia.65mm Slide & Petri Dish Holder	○	○	A54.1063-65
	Dia.90mm Petri Dish Holder	○	○	A54.1063-90

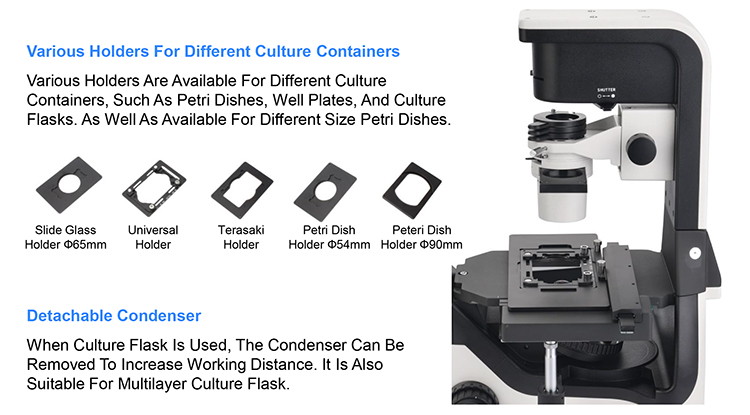

Condenser	Long Working Distance Detachable Condenser NA 0.3, W.D.75mm, Without Condenser W.D.187mm	●	●
Illumination	Transmitted Illumination 3W S-LED Kohler Illumination	●	●
Illumination	Reflected Illumination 3W LED, For Epi-Fluorescence	○	●
Phase Contrast	Centering Telescope 10x, Tube Dia. 30mm	●	○	A5C.1063-T
	Phase Slider For 4x//10x-20x-40x	●	○	A5C.1063-S
	Phase Slider For 10x-20x,40x APO Objectives	○	○	A5C.1063-APOS1
	Phase Slider For 4x,60x APO Objectives	○	○	A5C.1063-APOS2
Emboss Contrast DIC	Emboss Contrast Slider For 10x-20x-40x Universal Emboss Contrast Plate For 10x-20x-40x	○	○	A5C.1063-DIC
Hoffman Phase Contrast	Hoffman Phase Contrast Set: --Hoffman Phase Contrast Condenser, With Polarizer, --Hoffman Phase Contrast Objective 10x, 20x, 40x --Hoffman Phase Slider For 10x, 20x, 40x --Centering Telescope 10x, Tube Dia. 30mm	○	○	A5C.1064

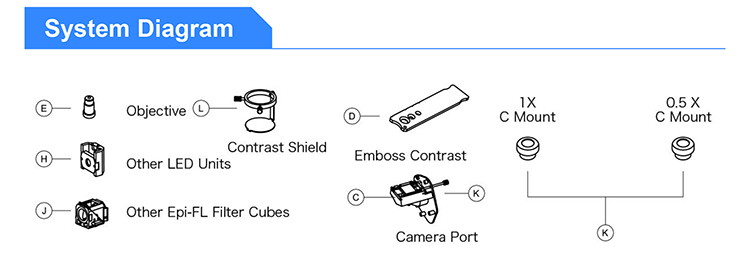

Epi-Fluorescence Attachment	Epi-Fluorescence Attachment, Turret With 3 Holes For Filter Cubes, With Noise Terminator Mechanism, With Attachable UV Shield	○	●
	Filter Cube B + LED Unit, 365nm	○	●	A5F.1063-B
	Filter Cube G + LED Unit, 405nm	○	●	A5F.1063-G
	Filter Cube U + LED Unit, 485nm	○	●	A5F.1063-U
	Filter Cube V + LED Unit, 525nm	○	○	A5F.1063-V
	Filter Cube FITC	○	○	A5F.1063-FITC
	Filter Cube DAPI	○	○	A5F.1063-DAPI
	Filter Cube TRITC	○	○	A5F.1063-TRITC
Photo Port	Head Side Camera Port Switchable 100/0:0/100	●	●
Photo Adapter	1.0x C-Mount	○	○	A55.1063-1.0
	0.5x C-Mount	○	○	A55.1063-0.5
	0.7x C-Mount	○	○	A55.1063-0.7
Power Supply	AC 100-240V,50/60Hz	●	●

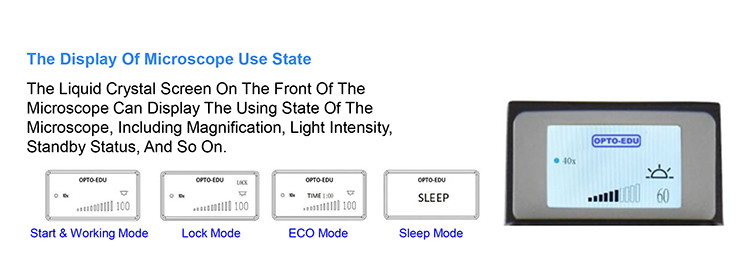

LCD Screen	LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, ECO Set Power Off Timer 5 Mins to 8 Hours, And So On.	●	●
Dimensions	244(W)x543(D)x526(H) mm	●	●
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures

Microscópio fluorescente de LED invertido, B, G, U, LCD de informações

Model No.

A16.1065

Outra Especificação

Tela LCD na frente do corpo

Fluoresceno

Epi Reflect LED Fluorescente de 3 W, Max 3 Bandas Acopláveis, Disco Fluorescente de 3 Furos, B, G, U

Banda Fluorescente

3 bandas

Adaptador de vídeo

Porta lateral de foto/vídeo

Tipo de fonte de alimentação

Tensão larga AC 100V-240V

Refletir luz

LED de iluminação refletida de 3W, para visualização de epifluorescência

Transmitir Luz

Iluminação transmitida 3W S-LED Kohler Illumination

Tipo de fonte de luz

LIDERADO

Recursos da fonte de luz

Transmitir & Refletir
Kohler

Condensador

Condensador destacável de longa distância de trabalho NA 0,3, WD75mm, sem condensador WD187mm

Condensador NA

0,3

Tipo de condensador

LWD/ELWD

Recursos do condensador

Ranhura para corrediça de PH

botão de focagem

Alcance de focagem grosseiro até 7 mm, para baixo 1,5 mm, máximo até 18,5 mm após a remoção do limite de focagem.

Escala de focagem

0,002 mm

Faixa de foco

18,5 mm

Tipo de focagem

Coaxial grosso e fino

Recursos de Foco

Tensão Ajustável

Fase de trabalho

Com placa de vidro, placa auxiliar x2, suporte universal

Mudança de Palco de Trabalho

128x80mm

Tamanho do Estágio de Trabalho

170x250mm

Tipo de estágio de trabalho

Fixo + Anexável

Recursos do Estágio de Trabalho

Tamanho ≥140x180mm

Objetivo

Objetivo Fluorescente LWD Infinity Plan Semi-APO 4x10x20x40x

Tipo de objetivo

Plano Infinito
Fluorescente

Características objetivas

APO
LWD

Orifícios do revólver

5 buracos

Recursos do revólver

codificado

Ocular

EW10x/22mm, 2 peças

Diâmetro da ocular

30,0 mm

Recursos da ocular

Dioptria Ajustável
Super WF ≥23mm

Cabeça interpupilar

48~75mm

Rotação da Cabeça

Tubo ocular Girar 360°

Inclinação da Cabeça

45°

Tipo de cabeça

Binóculo Seidentopf

Ampliação Padrão

40x-400x

Sistema óptico

Plano Infinito

Recursos

Infinidade
APO
DIC
Hoffman
Revólver codificado

Função de atualização

BF+FL+PH+DIC

Função padrão

BF+FL

Novo Produto Ano

2019
