A11.1531 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.
A11.1531 Student Biological Microscope Model A11.1531-V A11.1531-M A11.1531-B A11.1531-T Optical System Finity Optical System Head Teaching Head Monocular Head Binocular Head Trinocular Head Inclined at 30º, 360ºRotatable, Interpupillary Distance 54~75 mm, Diopter Adjustable ± 5 On Left Tube Eyepiece Wide Field Eyepiece WF10X/18mm Objective Achromatic Objectives 4X 10X 40Xs 100Xs(oil) Nosepiece Quadruple Nosepiece Condenser Abbe Condenser N.A. 1.25 With Iris Diaphragm And Filter Holder Focusing System Coaxial Coarse and Fine Adjustments, Fine Division 0.002mm, Coarse Stroke 36mm Supplied With An Adjustable Rack Stop To Prevent Damage To Sample And Objectives, The Coarse Adjustment Are Equipped With Friction Control Stage Double Layer Mechanical Stage 110X125mm, Moving Range 30X75mm Illumination 3W LED Brightness Adjustment Optional: Power By Battery Optional: Power By Rechargeable Battery With External 100-240V Mains Adapter Adapter Eyepiece Tube Adapter N/A N/A Eyepiece Tube Adapter
A11.1531 Biological Microscope Optional Accessories
Eyepiece
Wide Field Eyepiece WF16X/13mm
A51.1503-16
Wide Field Eyepiece WF20X/11mm
A51.1503-20
Objective
Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil)
A52.1510
CCD Adapter
1.0X
A55.1530-10
0.5X
A55.1530-05
Biological microscope is widely used to observe biologicalslices,biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
A11.1531 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.
A11.1531 Student Biological Microscope Model A11.1531-V A11.1531-M A11.1531-B A11.1531-T Optical System Finity Optical System Head Teaching Head Monocular Head Binocular Head Trinocular Head Inclined at 30º, 360ºRotatable, Interpupillary Distance 54~75 mm, Diopter Adjustable ± 5 On Left Tube Eyepiece Wide Field Eyepiece WF10X/18mm Objective Achromatic Objectives 4X 10X 40Xs 100Xs(oil) Nosepiece Quadruple Nosepiece Condenser Abbe Condenser N.A. 1.25 With Iris Diaphragm And Filter Holder Focusing System Coaxial Coarse and Fine Adjustments, Fine Division 0.002mm, Coarse Stroke 36mm Supplied With An Adjustable Rack Stop To Prevent Damage To Sample And Objectives, The Coarse Adjustment Are Equipped With Friction Control Stage Double Layer Mechanical Stage 110X125mm, Moving Range 30X75mm Illumination 3W LED Brightness Adjustment Optional: Power By Battery Optional: Power By Rechargeable Battery With External 100-240V Mains Adapter Adapter Eyepiece Tube Adapter N/A N/A Eyepiece Tube Adapter A11.1531 Biological Microscope Optional Accessories
Eyepiece
Wide Field Eyepiece WF16X/13mm
A51.1503-16
Wide Field Eyepiece WF20X/11mm
A51.1503-20
Objective
Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil)
A52.1510
CCD Adapter
1.0X
A55.1530-10
0.5X
A55.1530-05
Biological microscope is widely used to observe biologicalslices,biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.

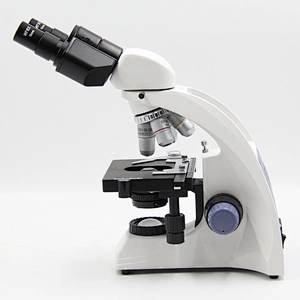

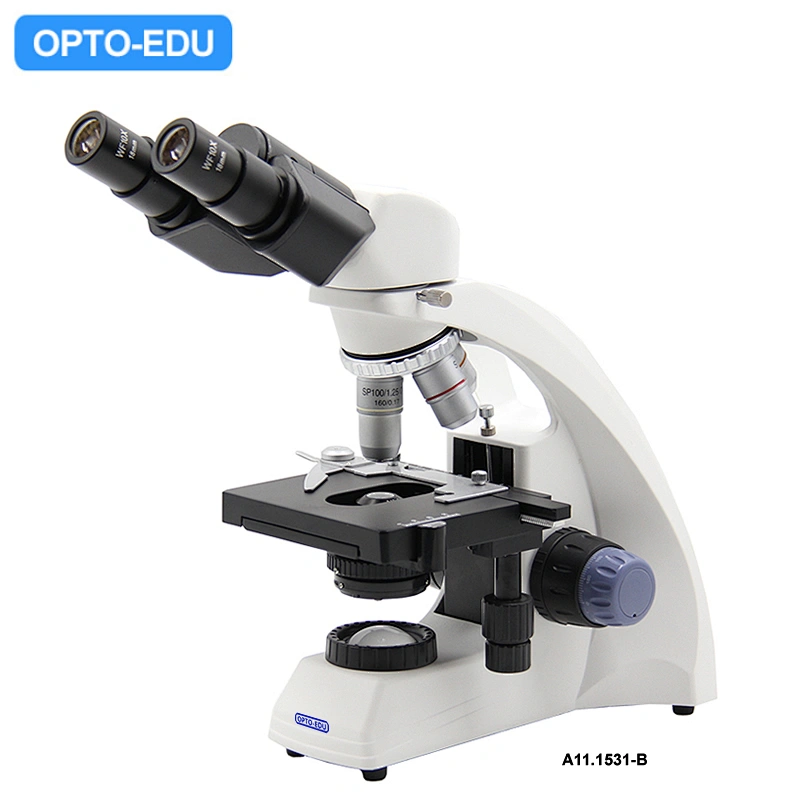

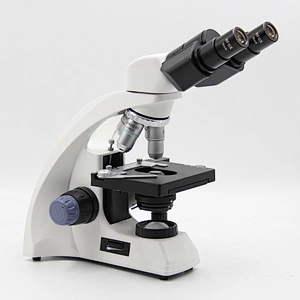

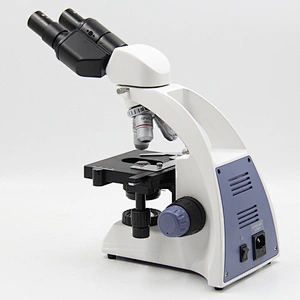

A11.1531-B
Como os FavoritosMicroscópio Biológico, Binóculo
- Monocular, ensino em V, binóculo, cabeça trinocular disponível
- Ocular opcional WF16x, WF20x permite ampliação óptica máxima de 2000X.
- Abbe Condenser NA 1.25 com diafragma de íris e suporte de filtro
- Nariz quádruplo com objetivas acromáticas 4x,10x,40x,100x
- Fonte de luz de alto brilho 3W LED de brilho ajustável
Specification:
|
Pictures
|
|
|
|
|
|---|---|---|---|---|
| Model No. | A11.1531-B | A11.1531-T | A11.1531-V | A11.1531-M |
|
Adaptador de vídeo
|
C-Mount 0,3x | —— | —— | —— |
|
Transmitir Luz
|
LED de 3W, brilho ajustável | LED de 3W, brilho ajustável | LED de 3W, brilho ajustável | LED de 3W, brilho ajustável |
|
Tipo de fonte de luz
|
LIDERADO | LIDERADO | LIDERADO | LIDERADO |
|
Condensador NA
|
1.25 | 1.25 | 1.25 | 1.25 |
|
Tipo de condensador
|
abade | abade | abade | abade |
|
Recursos do condensador
|
Suporte de filtro | Suporte de filtro | Suporte de filtro |
Suporte de filtro Diafragma da íris |
|
Escala de focagem
|
0,002 mm | 0,002 mm | 0,002 mm | 0,002 mm |
|
Faixa de foco
|
36 mm | 36 mm | 36 mm | 36 mm |
|
Tipo de focagem
|
Coaxial grosso e fino | Coaxial grosso e fino | Coaxial grosso e fino | Coaxial grosso e fino |
|
Recursos de Foco
|
Tensão Ajustável Parafuso de parada de segurança |
Tensão Ajustável Parafuso de parada de segurança |
Tensão Ajustável Parafuso de parada de segurança |
Tensão Ajustável Parafuso de parada de segurança |
|
Mudança de Palco de Trabalho
|
30x75mm | 30x75mm | 30x75mm | 30x75mm |
|
Tamanho do Estágio de Trabalho
|
110x125mm | 110x125mm | 110x125mm | 110x125mm |
|
Tipo de estágio de trabalho
|
2 Camadas Mecânicas | 2 Camadas Mecânicas | 2 Camadas Mecânicas | 2 Camadas Mecânicas |
|
Objetivo
|
Acromático 4x,10x,40x(S),100x(O,S) | Acromático 4x,10x,40x(S),100x(O,S) | Acromático 4x,10x,40x(S),100x(O,S) | Acromático 4x,10x,40x(S),100x(O,S) |
|
Tipo de objetivo
|
acromático | acromático | acromático | acromático |
|
Orifícios do revólver
|
4 buracos | 4 buracos | 4 buracos | 4 buracos |
|
Recursos do revólver
|
interior | interior | interior | interior |
|
Ocular
|
WF10x/18mm | WF10x/18mm | WF10x/18mm | WF10x/18mm |
|
Especificação da Cabeça
|
Cabeça binocular | Cabeça Trinocular | Diretor de Ensino | Cabeça monocular |
|
Cabeça interpupilar
|
54~75mm | 54~75mm | 54~75mm | 54~75mm |
|
Rotação da Cabeça
|
Cabeça Girar 360° | Cabeça Girar 360° | Cabeça Girar 360° | Cabeça Girar 360° |
|
Tipo de cabeça
|
Binóculo Seidentopf | Seidentopf Trinocular | Visão dupla | Monocular |
|
Ampliação Padrão
|
—— | —— | —— | 40x-1000x |
|
Sistema óptico
|
acromático | acromático | acromático | acromático |
|
Novo Produto Ano
|
2016 | 2016 | 2016 | 2016 |
|
Tipo de fonte de alimentação
|
—— | —— | —— |
Recarregável sem fio AC 110V-240V |
|
Inclinação da Cabeça
|
—— | —— | —— | 30° |
|
Função padrão
|
—— | —— | —— | namorado |
