Head & Eyepiece

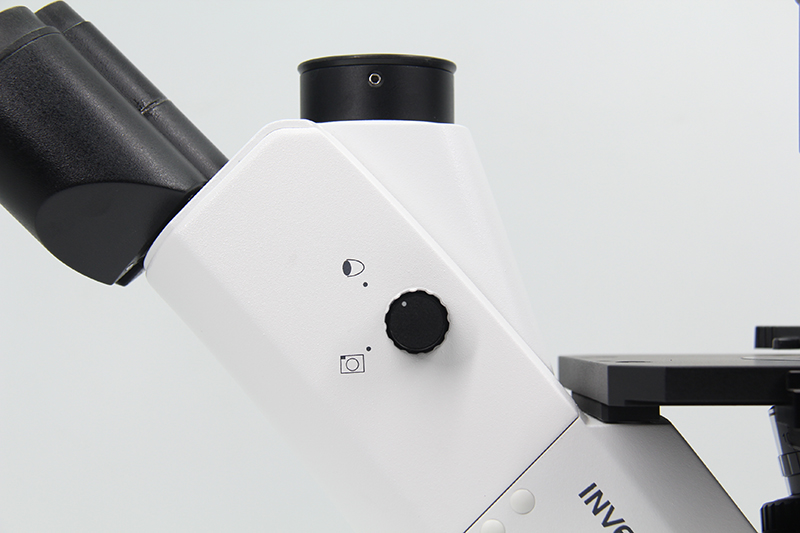

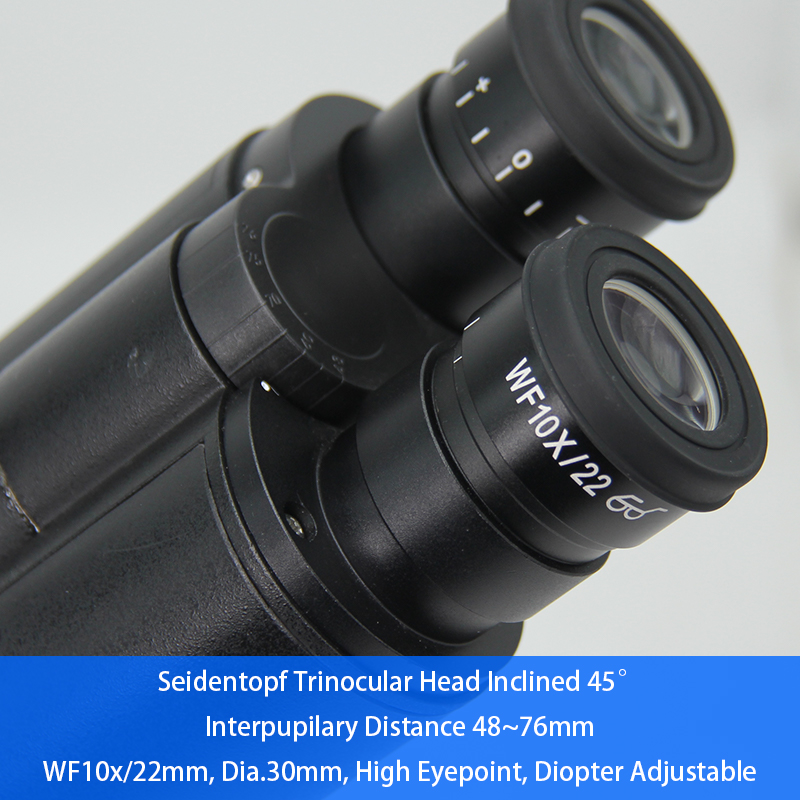

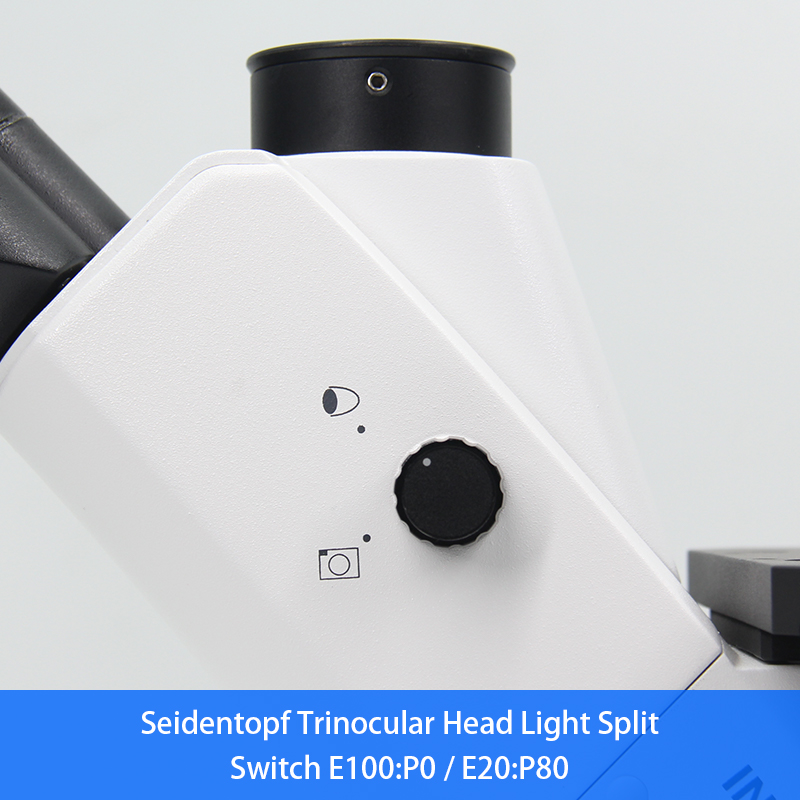

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80

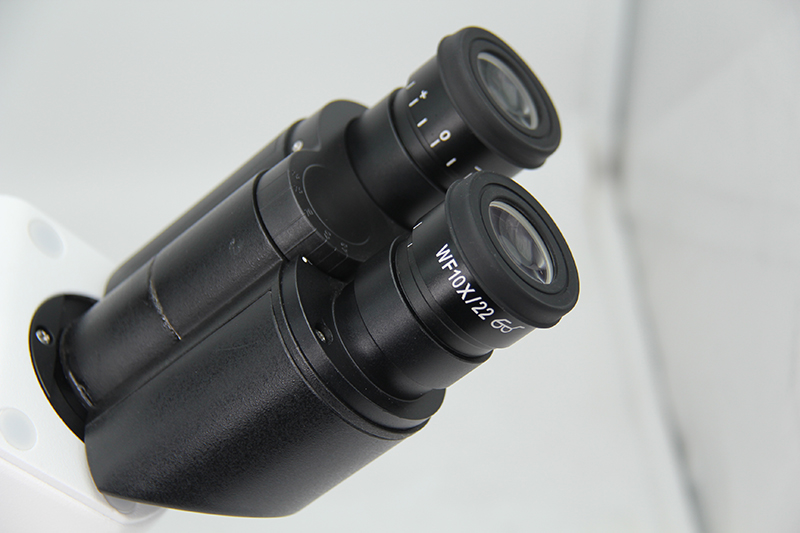

WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

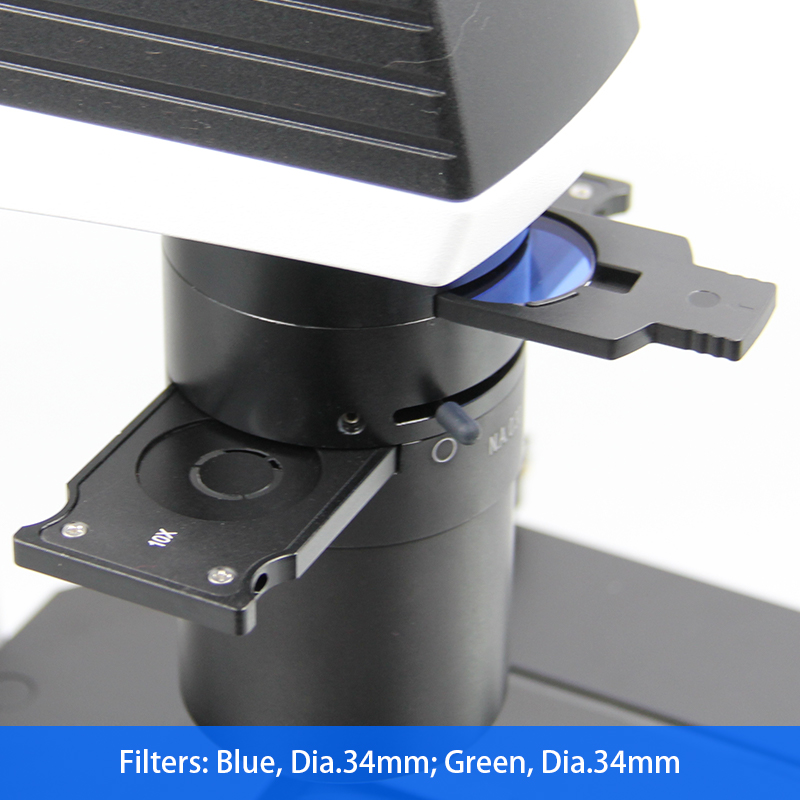

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

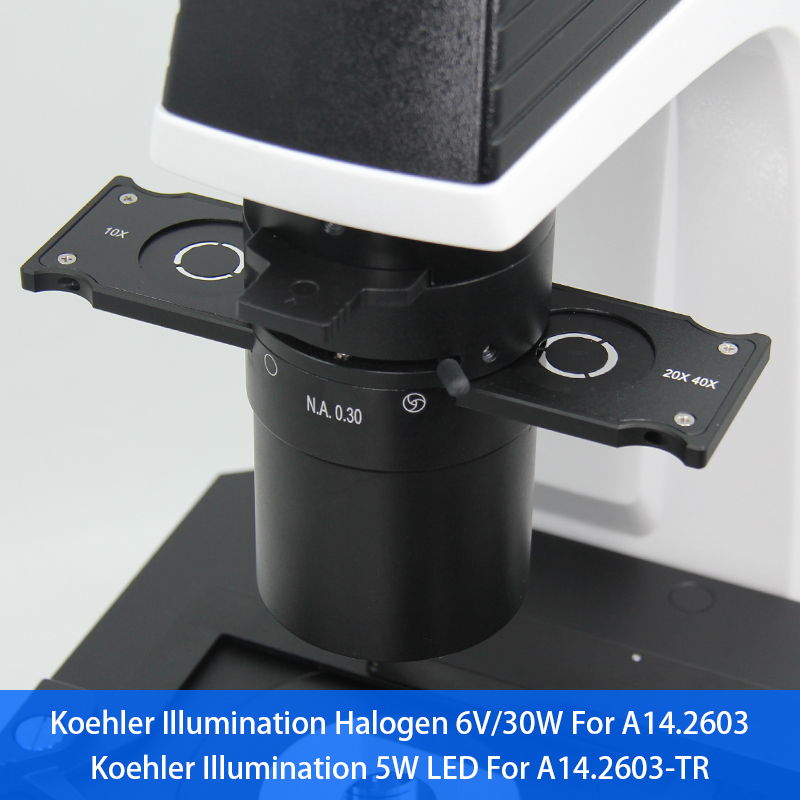

Koehler Illumination Halogen 6V/30W For A14.2603
Koehler Illumination 5W LED For A14.2603-TR

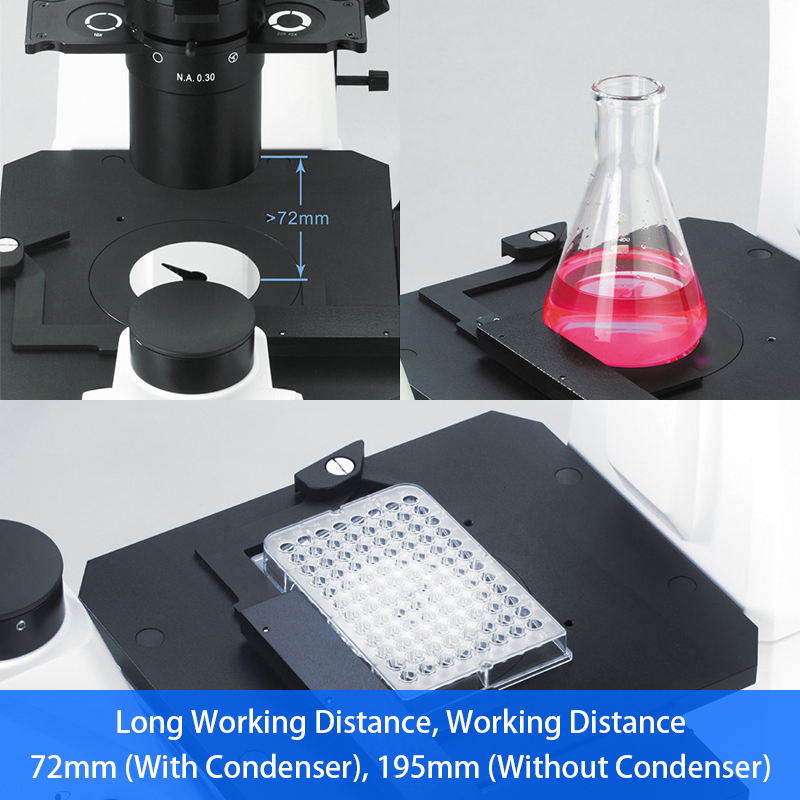

Long Working Distance
Working Distance 72mm (With Condenser), 195mm (Without Condenser)
Objectives

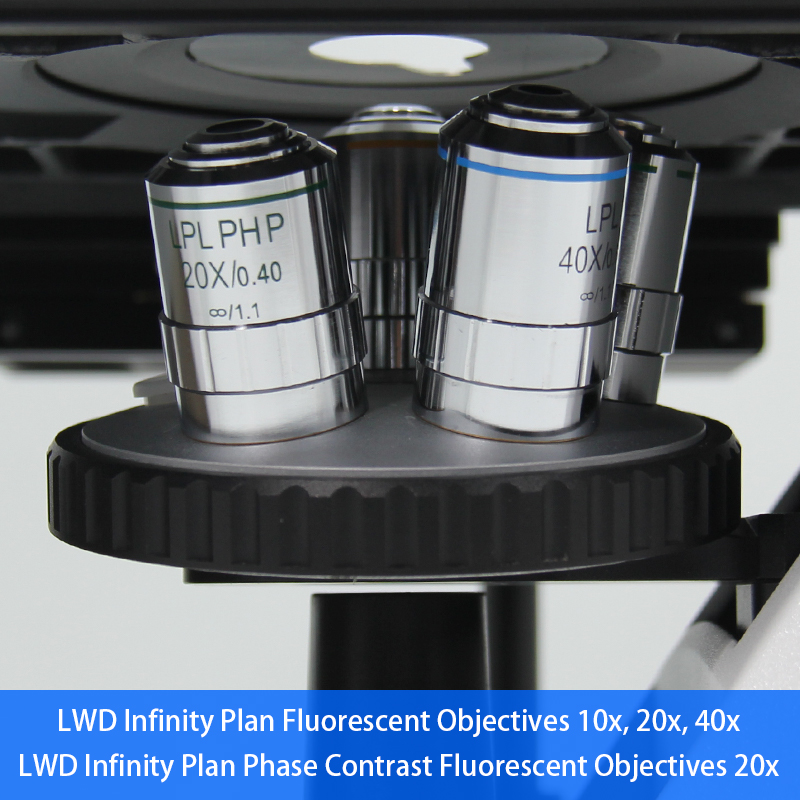

LWD Infinity Plan Fluorescent Objectives 10x, 20x, 40x
LWD Infinity Plan Phase Contrast Fluorescent Objectives 20x

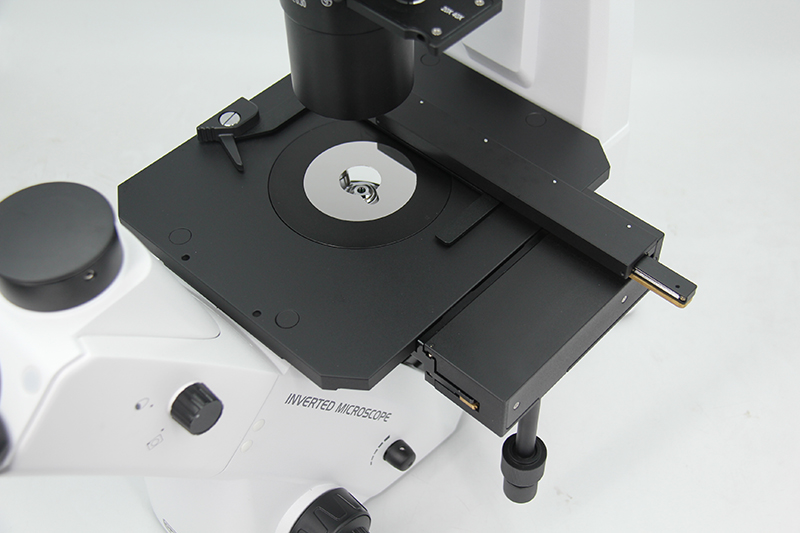

Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm
3W LED Koehler Illumination, Field Diaphragm

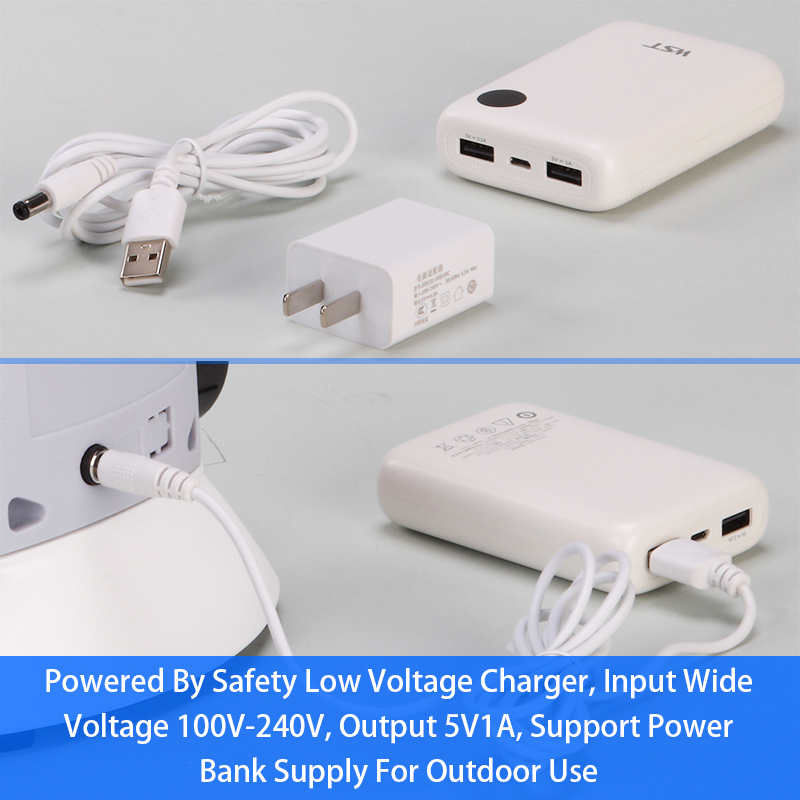

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

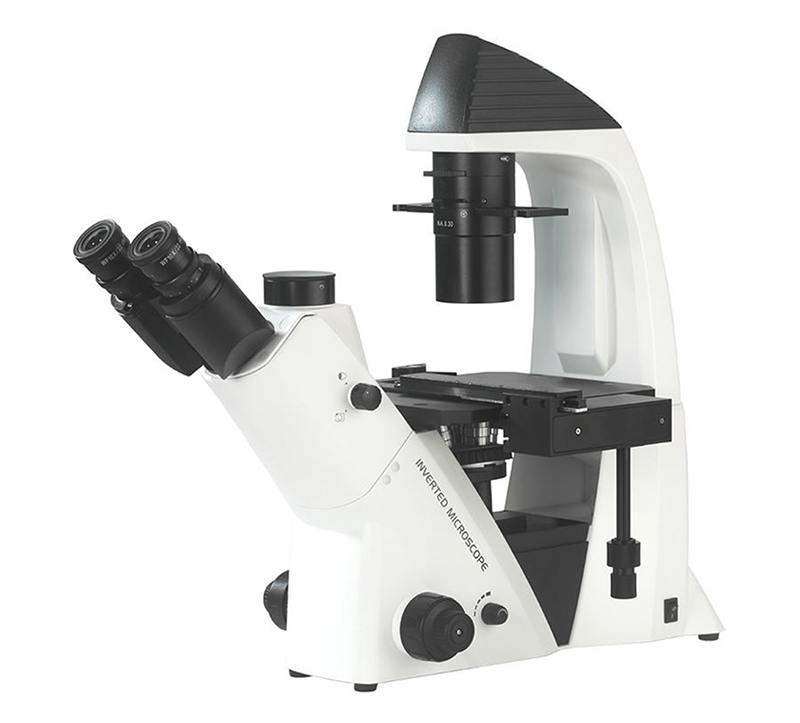

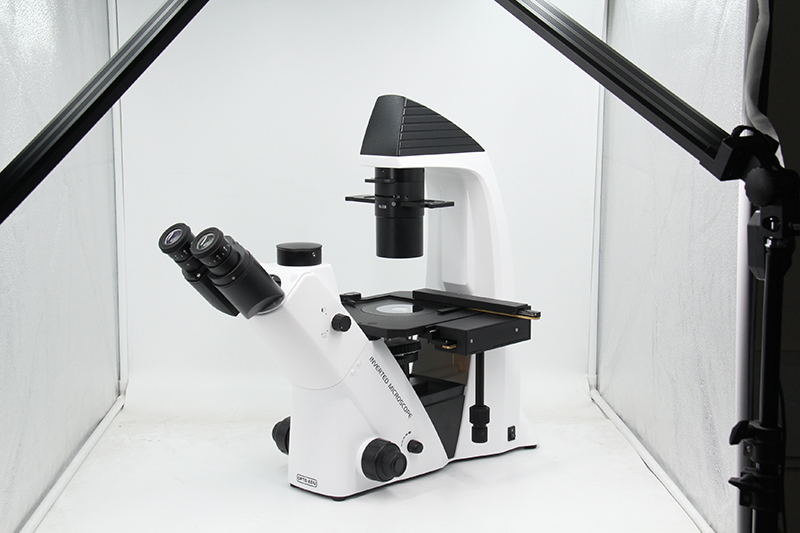

| Items | A14.2603 Inverted Biological Microscope | A14.2603 | A14.2603-TR | Cata. No. |
| Head | Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 | ● | ● | A53.2643 |

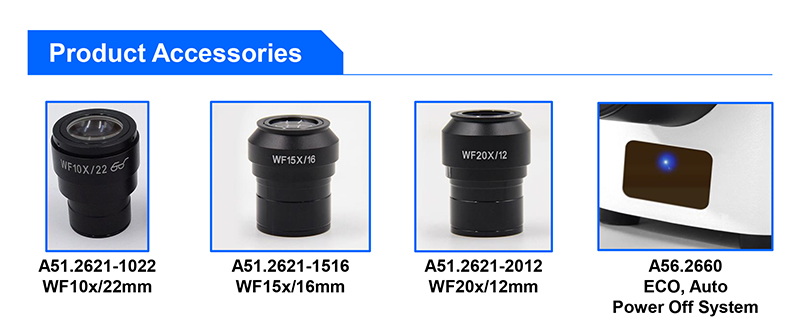

| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable | ●● | ●● | A51.2621-1022 |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | A51.2621-1516 | |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | A51.2621-2012 | |

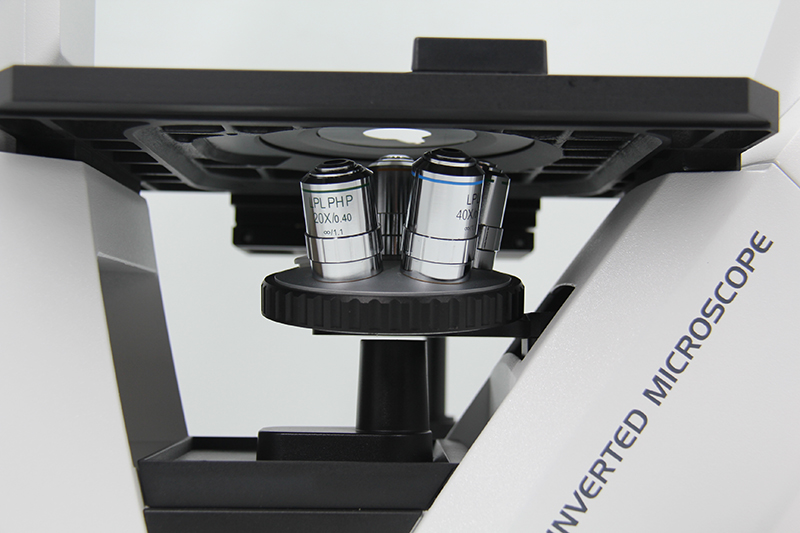

| Nosepiece | Quintuple | ● | ● | A54.2610-N925 |

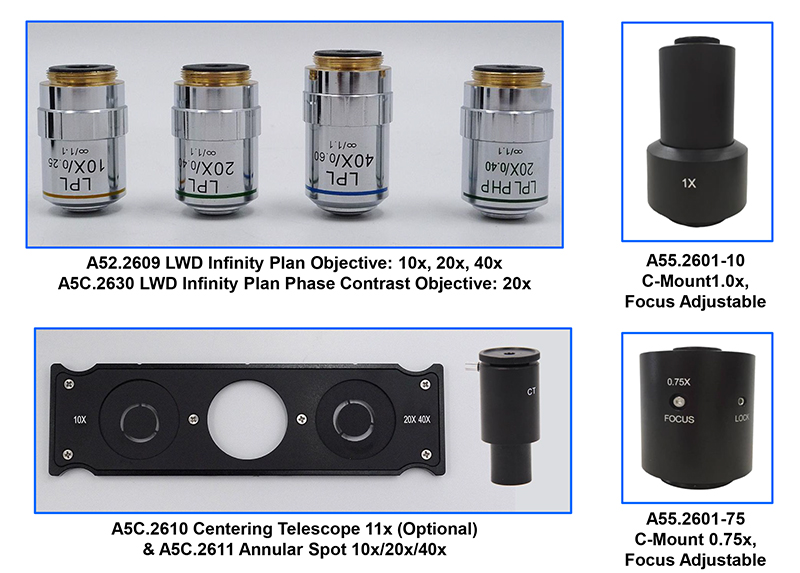

| LWD Infinity Plan FluorescentObjectives Newly Update 2021 | L Plan FL 4x/0.11 W.D.=12.1mm | ○ | ○ | A5F.2635-4 |
| L Plan FL 10x/0.25 W.D.=10.3mm | ● | ● | A5F.2635-10 | |
| L Plan FL 20x/0.45 W.D.=5.8mm | ● | ● | A5F.2635-20 | |
| L Plan FL 40x/0.65 W.D.=5.1mm | ● | ● | A5F.2635-40 | |
| LWD Infinity Plan Phase Contrast FluorescentObjectives Newly Update 2021 | L Plan FL PHP 4x/0.10 W.D.=9.2mm | ○ | ○ | A5C.2635-4 |
| L Plan FL PHP 10x/0.25 W.D.=10.3mm | ○ | ○ | A5C.2635-10 | |
| L Plan FL PHP 20x/0.45 W.D.=5.8mm | ● | ● | A5C.2635-20 | |
| L Plan FL PHP 40x/0.65 W.D.=5.1mm | ○ | ○ | A5C.2635-40 | |
| Phase Contrast | Centering Telescope 11x | ○ | ○ | A5C.2610 |
| Annular Spot 4x | ○ | ○ | A5C.2611-4 | |
| Annular Spot 20x/ 40x | ● | ● | A5C.2611-10 | |
| Annular Spot 10x | ● | ● | A5C.2611-20/40 | |

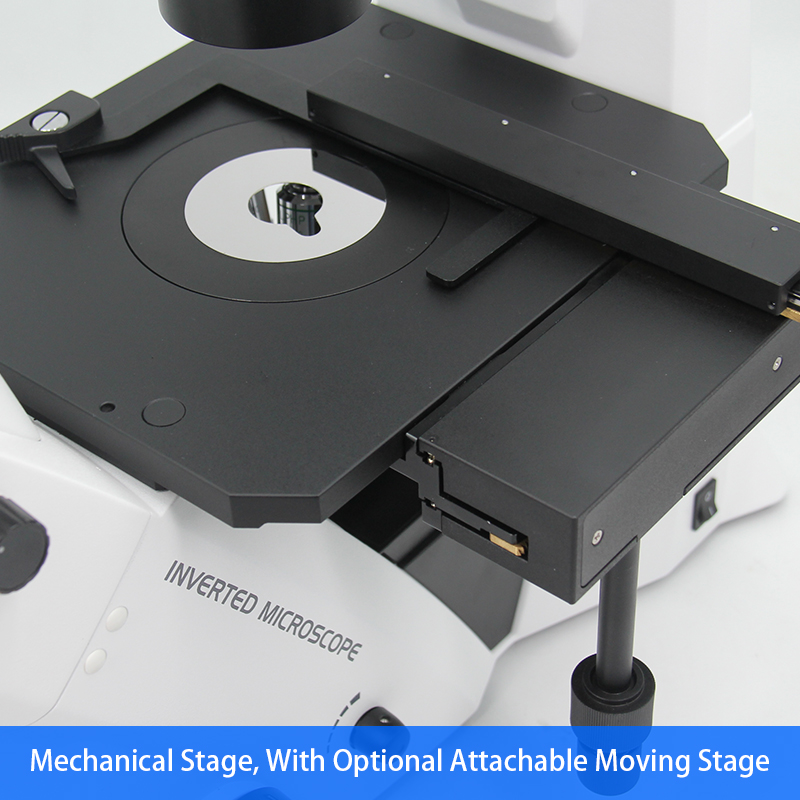

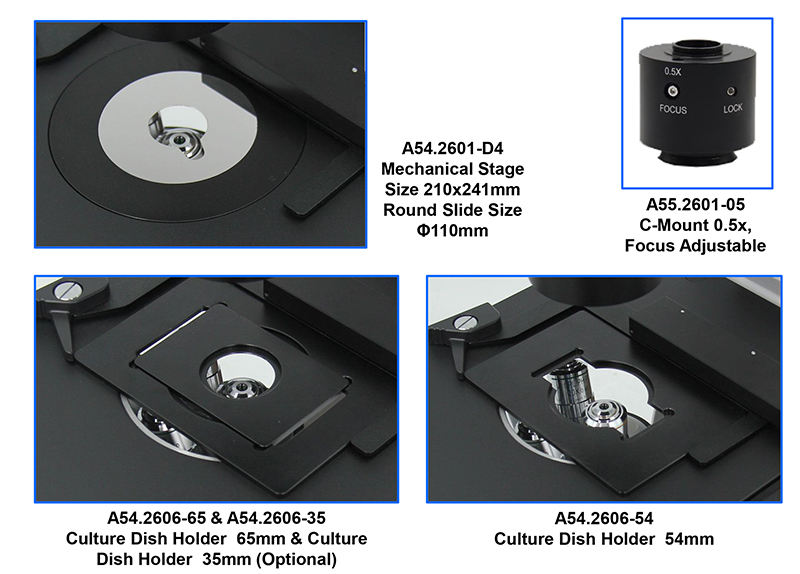

| Working Stage | Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm | ● | ● | A54.2601-D4 |

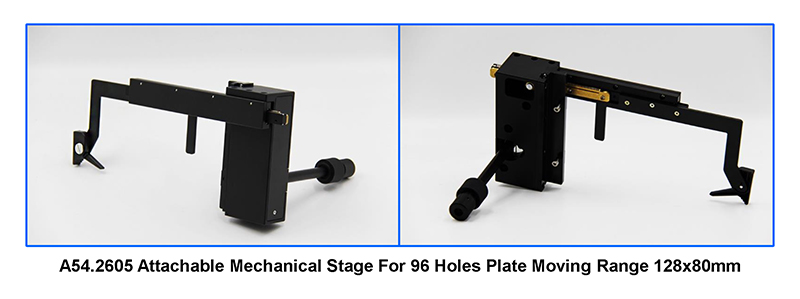

| Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm | ○ | ○ | A54.2605 | |
| Culture Dish Holder 65mm | ○ | ○ | A54.2606-65 | |
| Culture Dish Holder 54mm | ● | ● | A54.2606-54 | |
| Culture Dish Holder 35mm | ○ | ○ | A54.2606-35 | |
| Holder For Blood Cell Counter | ○ | ○ | A54.2606-BC | |
| Universal Holder (New Accessory 2021) | ○ | ○ | A54.2606-UH | |
| Round Glass Holder (New Accessory 2021) | ○ | ○ | A54.2606-GL | |

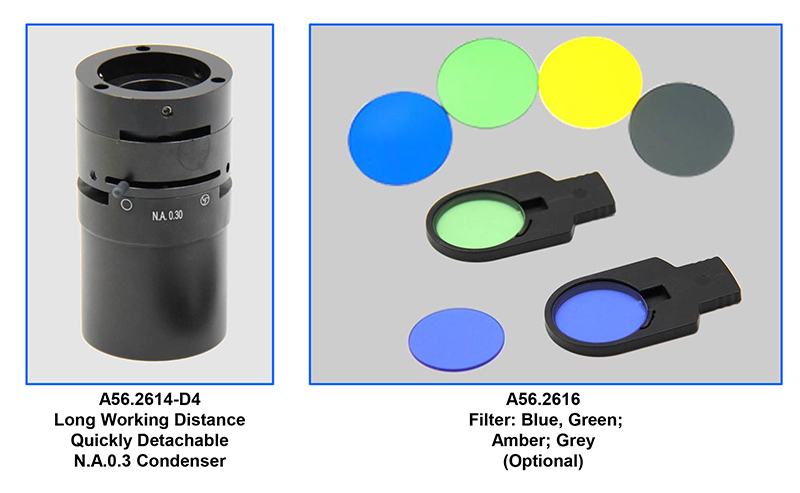

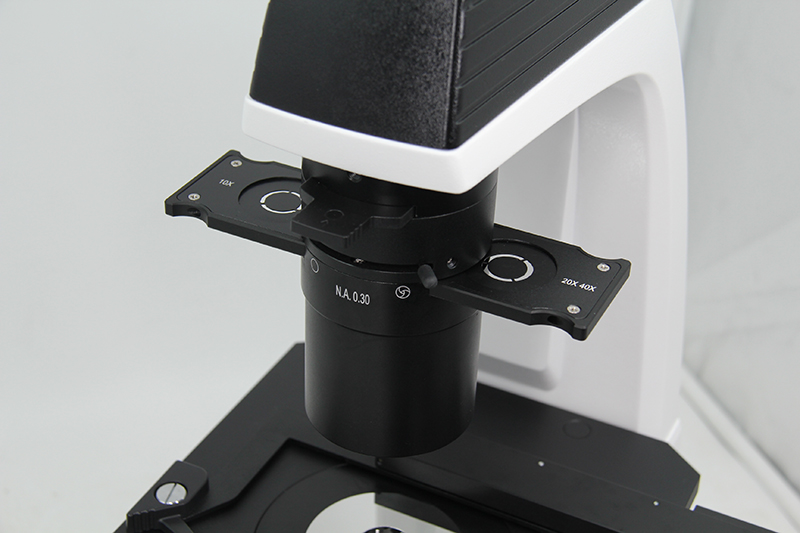

| Condenser | Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). | ● | ● | A56.2614-D4 |
| Tranmist Illumination | Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V | ● | ○ | A56.2613-6V30W |
| Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ○ | ● | A56.2651-5W | |
| Reflect Illumination | Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | ● | |
| Polarizing Set | ● | |||
| Power | ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually | ○ | ○ | A56.2660 |
| Filter | Blue, Dia.34mm | ● | ● | A56.2616-34B |
| Green, Dia.34mm | ● | ● | A56.2616-34G | |
| Amber, Dia.34mm | ○ | ○ | A56.2616-34A | |
| Grey, Dia.34mm | ○ | ○ | A56.2616-34N | |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | A55.2601-75 | |
| C-Mount1.0x, Focus Adjustable | ○ | ○ | A55.2601-10 | |

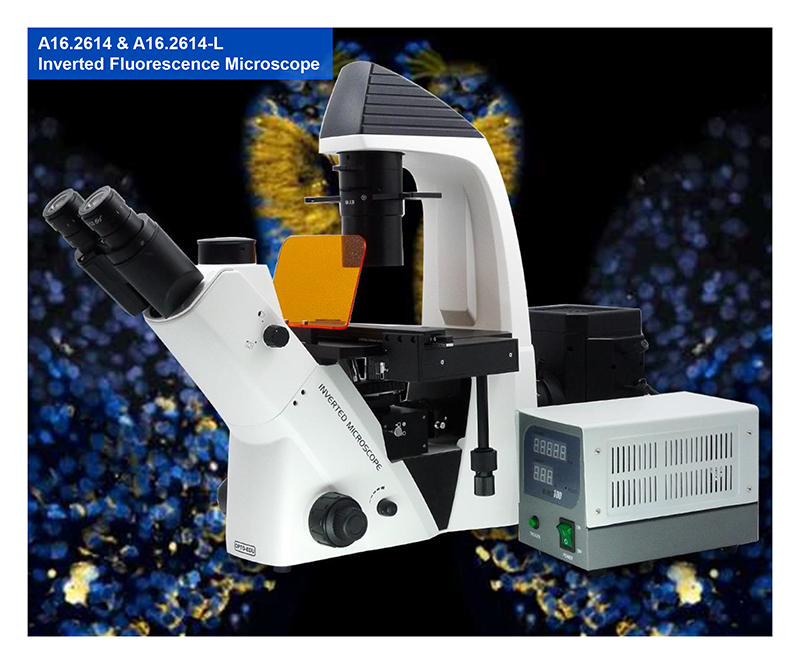

| Epi Fluorescence Illumination | Upgrade to A16.2614-2 Inverted Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier | ○ | ○ | A5F.2603-2 |
| Upgrade to A16.2614-4 Inverted Fluorescence Microscope With: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier | ○ | ○ | A5F.2603-4 | |
| Upgrade to A16.2614-L2 Inverted Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier | ○ | ○ | A5F.2604-2 | |
| Upgrade to A16.2614-L4 Inverted Fluorescence Microscope With: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier | ○ | ○ | A5F.2604-4 | |
| Package | Packing Size: 660mmx590mmx325mm | |||
| Weight | Gross Weight: 18 kgs, Net Weight: 13.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories. | ||||
| More Pictures |
