Head & Eyepiece

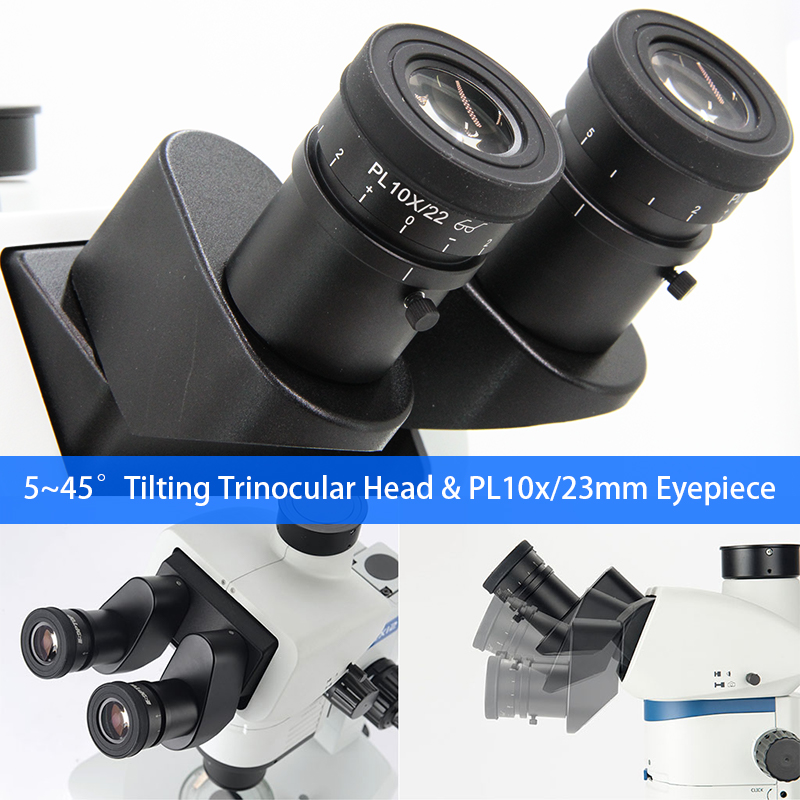

5~45°TiltingTrinocular Head, Whether Standing Or Sitting, FullyMeet Your Operating Posture

HighEye-Point Wide Field Plan Eyepiece, Diopter Adjustable, With A Larger Field Of View Than

Traditional Eyepieces,A Wider And Clearer Image Can BeObtained

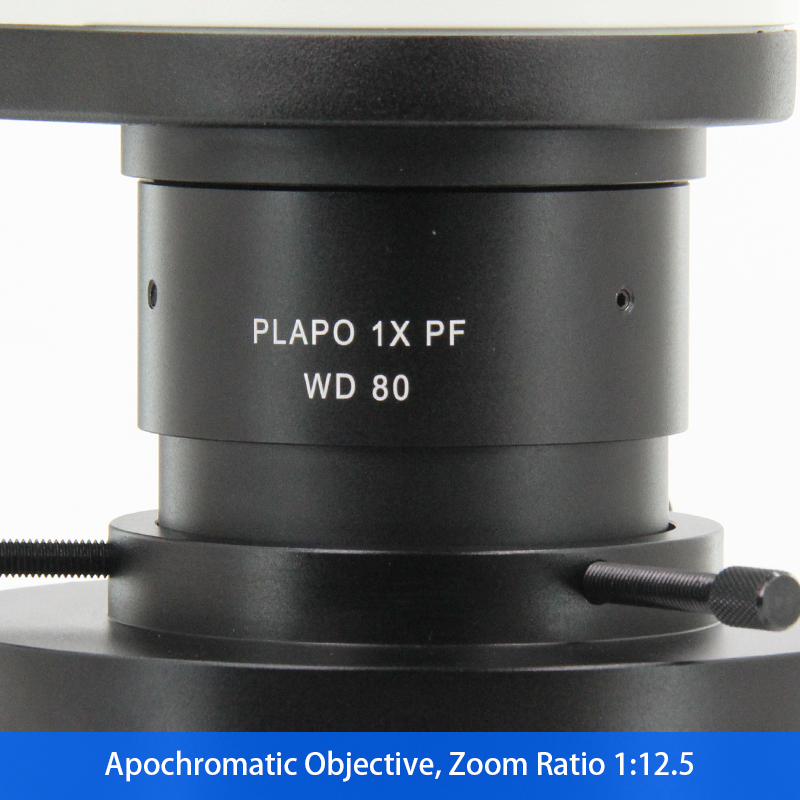

ApochromaticObjective

ApochromaticDesign Significantly Improves The LensPerformanceofColor Rendition.

CorrectingThe Axial ChromaticAberration Of Red/green/blue/purple, And ConvergeThem On A

FocalPlane, The Objective Is AbleTo Present The Real Color Of The Samples.

Zoom Ratio 1:12.5

Has Large Zoom Ratio From 0.63xTo8x, With Click Stop For Every Main Time,

WhichCan Be Manually Unbind For Zoom Magnifying Smoothly

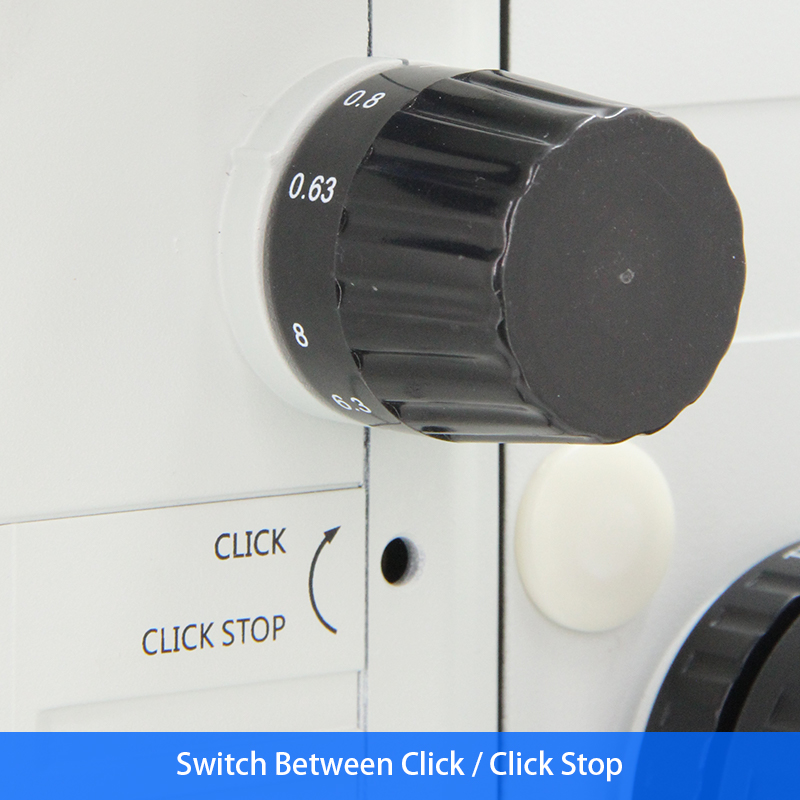

Switch Between Click / Click Stop

Click Mode, the zoom knob will click at each integer magnification like 1x, 2x, 3x...,

for user to know which magnification is under view easily.

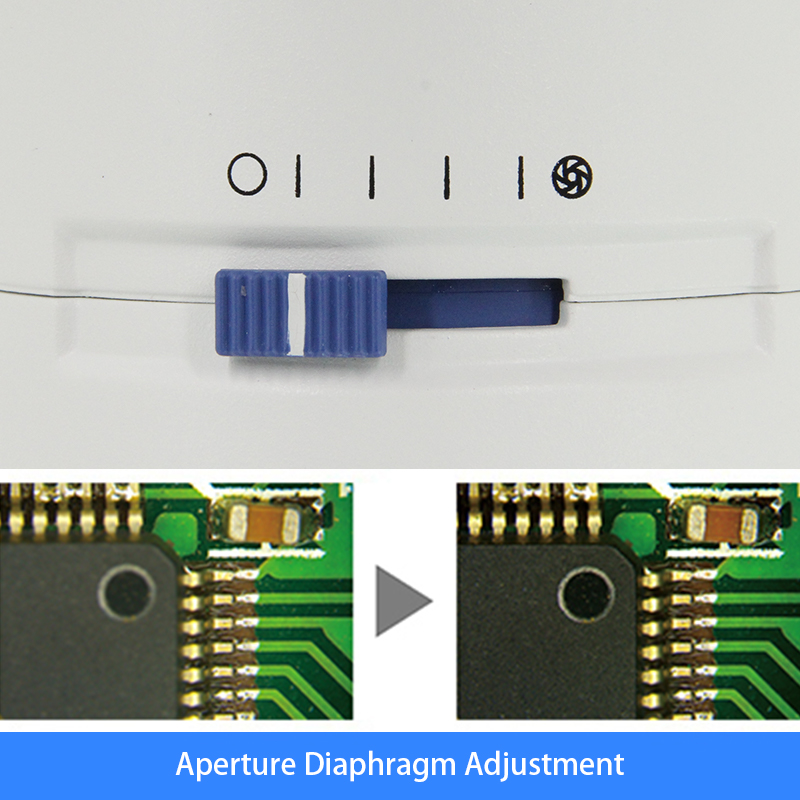

Aperture Diaphragm Adjustment

Shift The Aperture Diaphragm In Front To Adjust Depth Of Field For High-quality Image

Humanized Light Intensity

Rotate The Dimmer To Adjust Light Intensity, The Detailed Percent Of Brightness

Will Be Displayed From The Lcd On The Base. It Is Helpful To Record Data Of The Best Back Light For Sample Observation

Optional Color Temperature

Adjust The ColorTemperatureTo Create A Perfect Imaging BackgroundFor Different SamplesIn Different WorkEnvironment

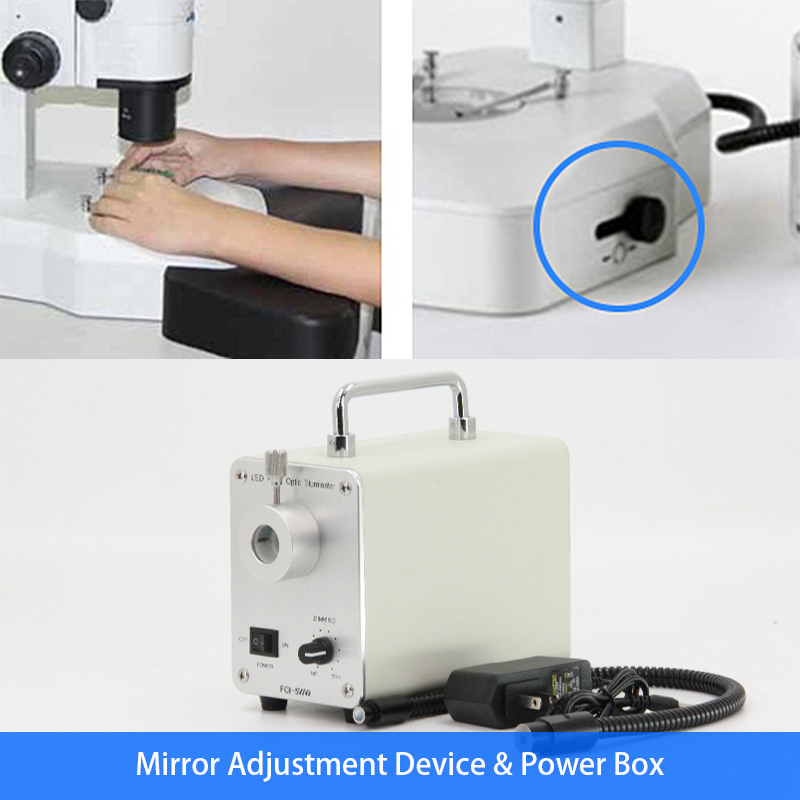

Mirror Adjustment Device

The Base Has A Built-in Mirror, And The Mirror Can Be Rotated 360 ° By Adjusting The Knob To

ChangeThe Illumination Range Of The Light Passing Through The Mirror. The Reflector Is Two

Sides, That Is, A Flat Mirror And A Matte Surface, Which Can Obtain Images With Different Effects

ToMeet The Various Needs Of Users For Lighting Effects

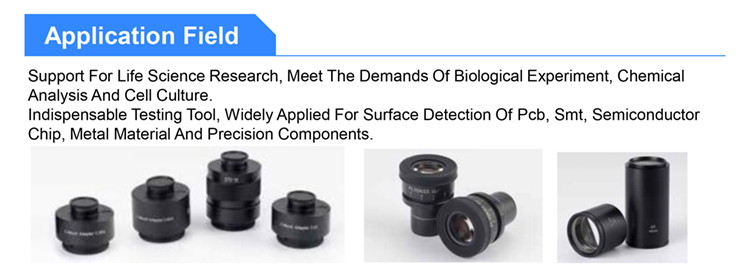

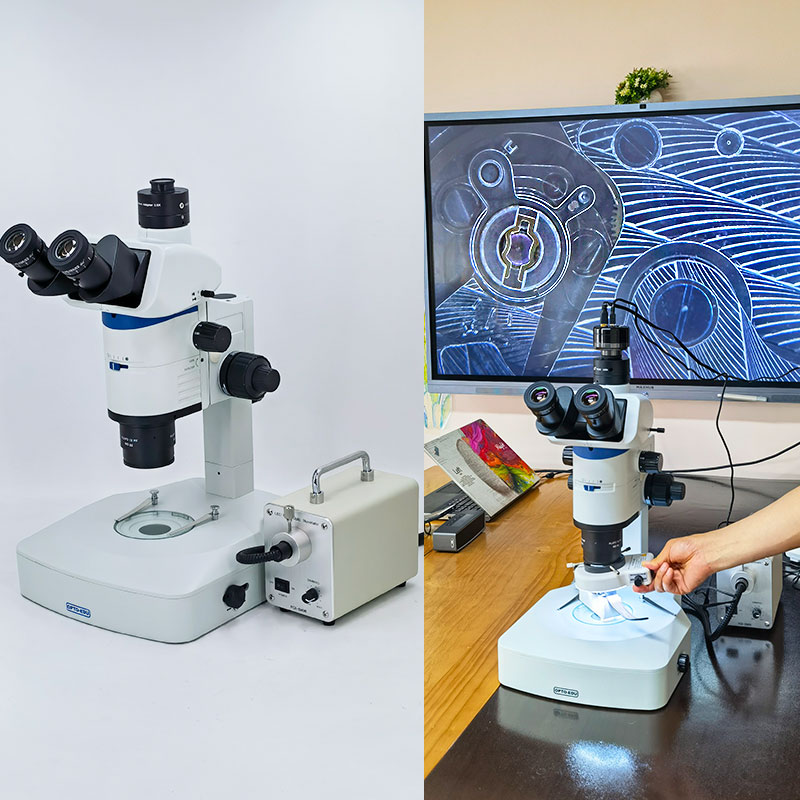

Support For Life Science Research, Meet The Demands Of Biological Experiment, Chemical Analysis And Cell Culture.
Indispensable Testing Tool, Widely Applied For Surface Detection Of Pcb, Smt, Semiconductor Chip, Metal Material And Precision Components.

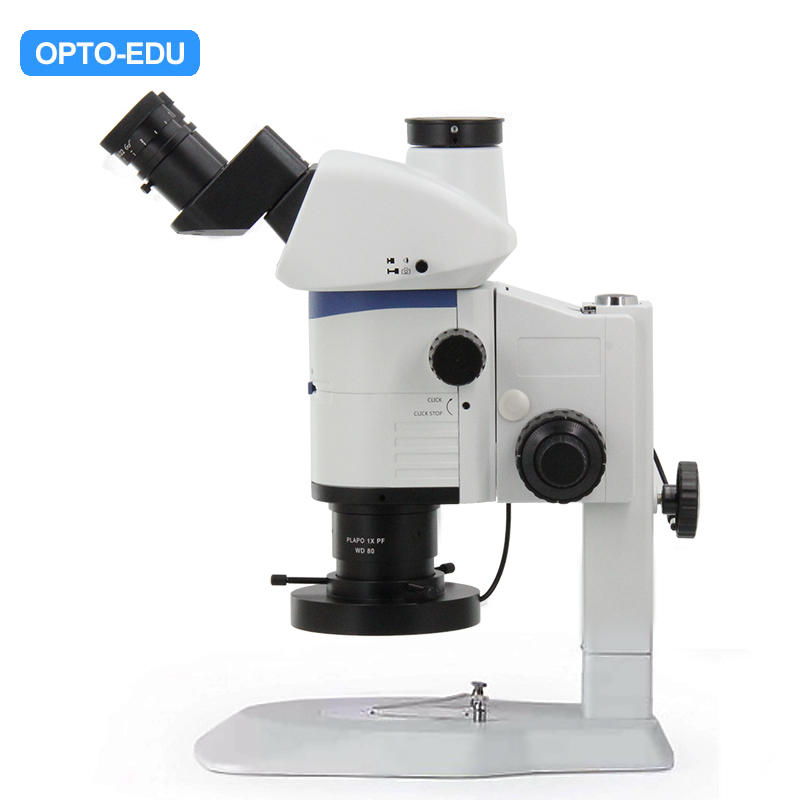

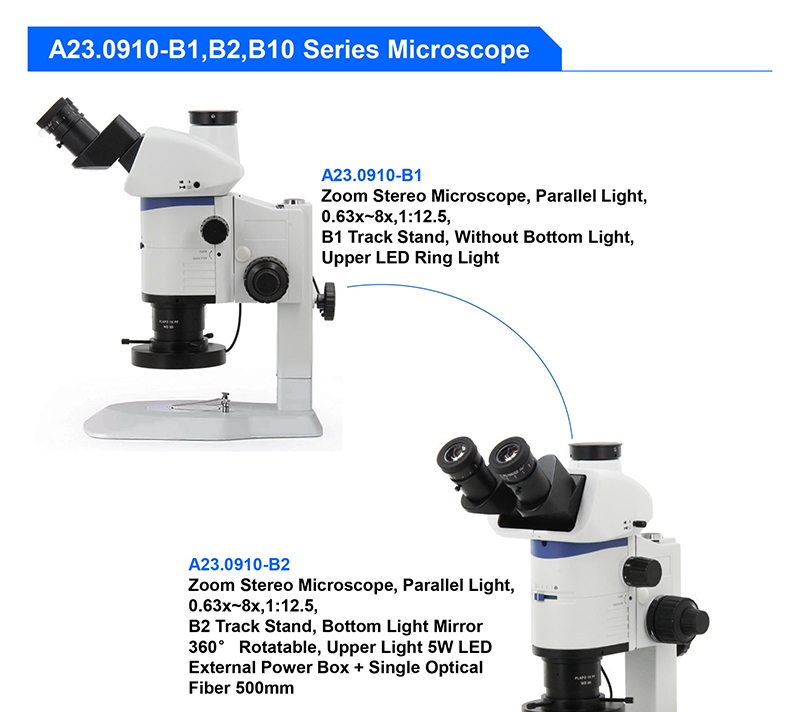

A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel Light		A23.0910-B1	A23.0910-B2	A23.0910-B10	Cata. No.
Head	5°~45° Tilting Trinocular Head, Light Splitting Switch E100:P0/E0:P100, Inter-Pupillary Distance 50~76mm, With Eyepiece Lock	●	●	●
	30° Inclined Trinocular Head, Light Splitting Fixed E50:P50, Inter-Pupillary Distance 50~76mm, With Eyepiece Lock
Eyepiece	PL10x/22mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable	●	●	●	A51.0925-10
	PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable	○	○	○	A51.0925-15
	PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable	○	○	○	A51.0925-20
Lens	Zoom Lens 0.63x~8x, Zoom Ratio 1:12.5, Built-in Aperture Diaphragm Adjustable, Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click Stop	●	●	●
Auxiliary Objective	0.5x Main Objective APO, Working Distance 70.5mm	○	○	○	A52.0930-05
	1.0x Main Objective APO, Working Distance 78.0mm	●	●	●	A52.0930-10
	1.5x Main Objective APO, Working Distance 31.1mm	○	○	○	A52.0930-15
	2.0x Main Objective APO, Working Distance 20.0mm	○	○	○	A52.0930-20
Nosepiece	Double Nosepiece	○	○	○
Frame	Coaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm	●	●	●
Base & Bottom Light Source	(B1)Plan Base Without Illumination, With Black/White Plate Dia.100mm	●	-	-
	(B2)Plan Base With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable Use With Oblique Illumination 5W LED	-	●	-
	Forearm Holder (Matching Use With B2 Base)	-	○	-	A54.0965

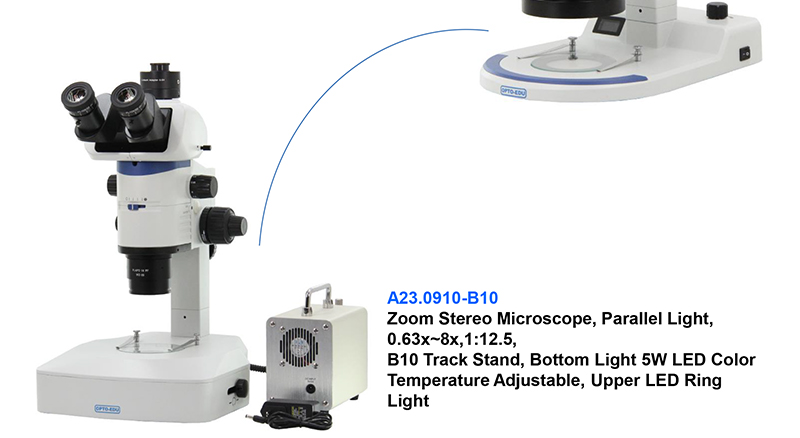

	(B10)Ultra-thin Base, With Bottom Illumination 5W LED, Color Temperature 3200~5600K & Light Intensity Adjustable With Digital Readout LCD Screen	-	-	●
Uppler Light Source	Upper Illumination: Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V	●		●
	Oblique Illumination: External5W LEDModule,ColorTemperature 5000-5500K White Light,WideVoltage 100-220V, Output 12V5W, Power Supply BoxSize 270×100×130mm, With Single Optical Fiber 500mm (Matching Use With B2 Base)	-	●	-
	Coaxial Illumination: 1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable, With Power Supply Box, With Soft Double Optical Fiber 1000mm	-	-	-
Polarizing	Polarizer Fixed On Bottom Light Source (For Transmit Light)	-	○	○	A5P.0925-P
	Analyzer Attached Under Lens, 360° Rotatable (For Transmit Light)	-	○	○	A5P.0925-A
Adapter	0.35xC-mountAdapter,Focus Adjustable	○	○	○	A55.0930-35
	0.5xC-mountAdapter, Focus Adjustable	○	○	○	A55.0930-05
	0.65xC-mountAdapter,Focus Adjustable	○	○	○	A55.0930-65
	1.0xC-mount Adapter, Focus Adjustable	○	○	○	A55.0930-10
Allen key	M4 allen key (3mm)	●	●	●

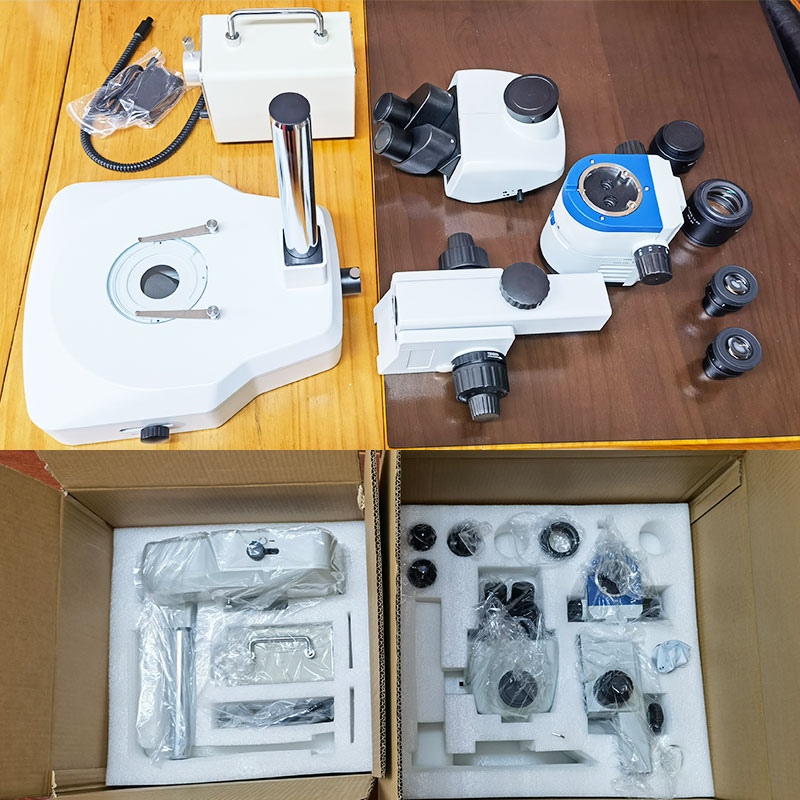

Package	Sponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm	●	●	●
● Means Standard Outfit ○ Means Optional Parts - Mean Not Match
