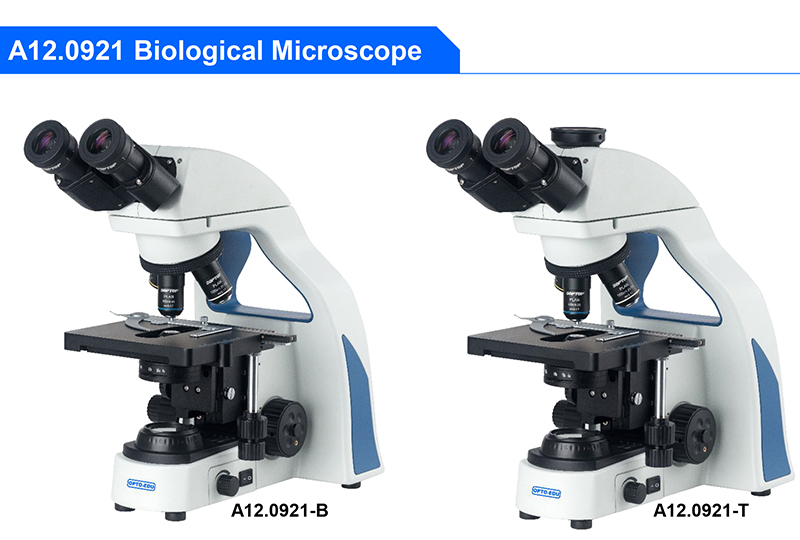

Biological Microscope, Infinity Plan, Trinocular

A12.0921-T

Nais na mangolekta

Biological Microscope, Infinity Plan, Trinocular

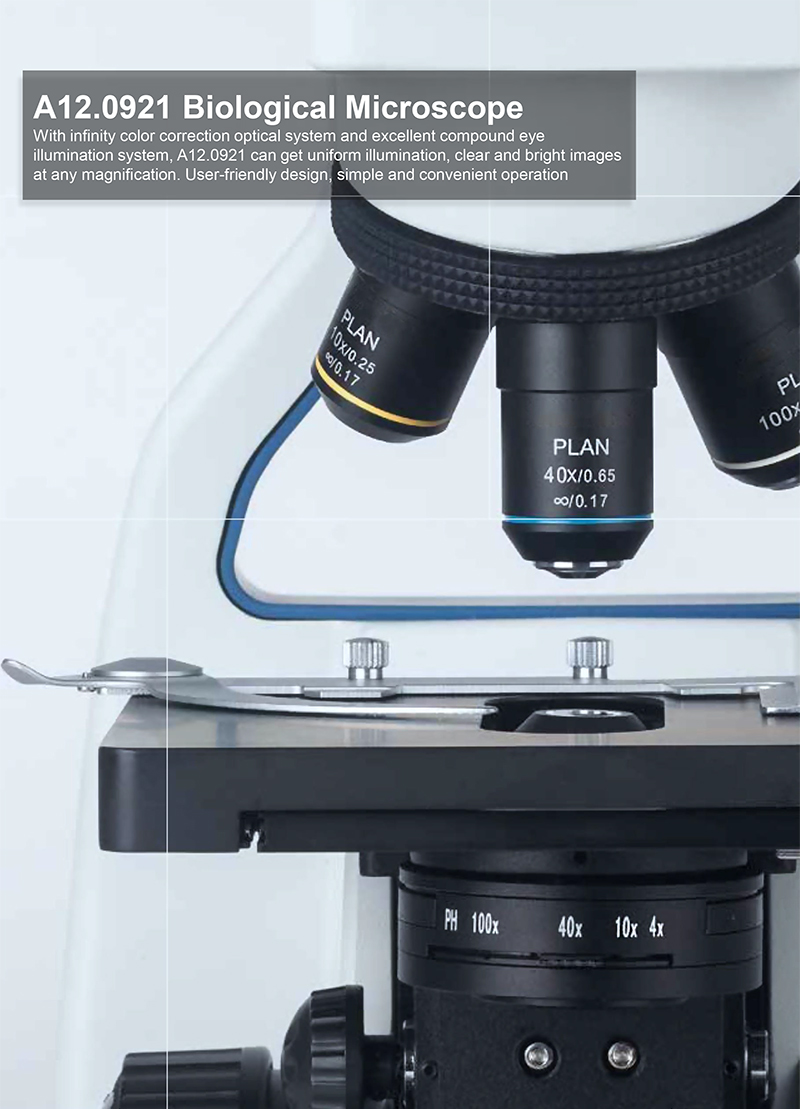

Infinity Color Corrected Optical System Para sa Maliwanag na Field
Simpleng Polarizing, Dark Field, Phase Contrast Function Opsyonal
Abbe Condenser NA1.25 Preset Center, Opsyonal na Lifting Function
Single High Brightness 3W LED Brightness Adjustable
Malawak na Saklaw 100~240V Power Supply

Specification:

A12.0921-T

Biological Microscope, Infinity Plan, Binocular Head

A12.0921-B

Modelo	Pagpapalaki	NA (mm)	WD (mm)	Kapal ng Coverslip (mm)	Immersion Liquid	tagsibol

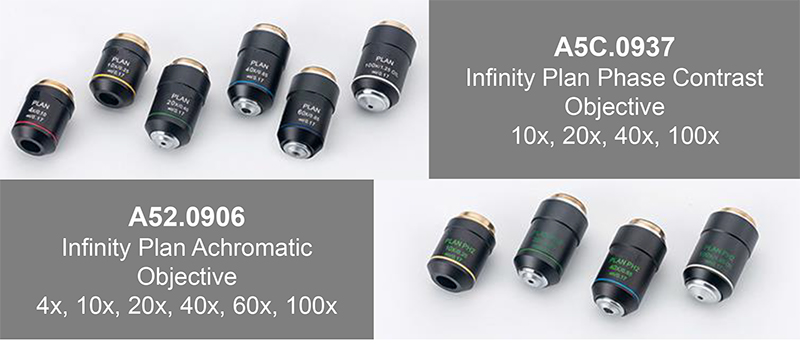

PLAN Infinity Plan Achromatic Objective Series	4x	0.10	11.9	/	/	/
	10x	0.25	12.1	/	/	/
	20x	0.40	1.56	0.17	/	/
	40x	0.65	0.36	0.17	/	Oo
	60x	0.85	0.3	0.17	/	Oo
	100x	1.25	0.21	0.17	Langis	Oo
PLAN-PH2 Infinity Plan Positive Phase Contrast Objective Series	10x	0.25	12.1	/	/	/
	20x	0.40	1.56	0.17	/	/
	40x	0.65	0.36	0.17	/	Oo
	100x	1.25	0.21	0.17	Langis	Oo

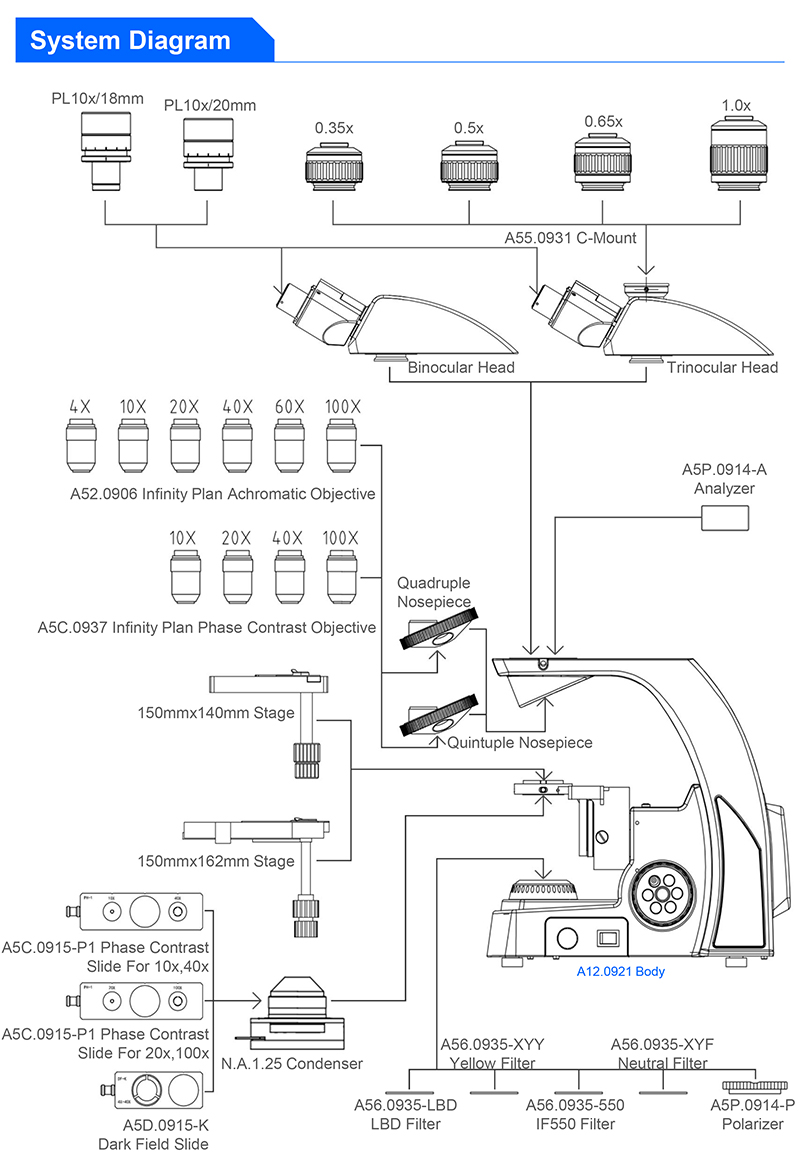

A12.0921 Serye Biological Student Microscope		-B	-T	Cata. Hindi.
Optical System	Infinity Color Corrected Optical System	●	●
Ulo	30° Nakahilig, Gemel Binocular Head, Interpupillary Distansya 47~75mm	●
Ulo	30° Nakahilig, Gemel Trinocular Head, Interpupillary Distansya 47~75mm, Light Splitting Ratio R:T= 8.2		●
Eyepiece	High Eye Point WF Plan Eyepiece PL10x/20mm, Diopter Adjustable	●	●
Eyepiece	High Eye Point WF Plan Eyepiece PL10x/18mm, Diopter Adjustable	○	○
Nosepiece	Nakabaliktad na Quadruple Nosepiece	●	●
Nosepiece	Baliktad na Quintuple Nosepiece	○	○
	2x/0.06,WD=5.0mm	○	○
Infinity Plan Achromatic Objective	4x/0.10, WD=11.9mm	●	●	A52.0906-4
	10x/0.25, WD=12.1mm	●	●	A52.0906-10
	20x/0.40,WD=1.6mm	○	○
	40x/0.65, WD=0.36mm, Spring	●	●	A52.0906-40
	60X/0.85,WD=0.30mm, Spring	○	○
	100x/1.25, WD=0.18mm, Spring, Langis	●	●	A52.0906-100
Nakatutok	Mababang Posisyon na Coaxial Focusing Mechanism, Coarse Range: 25mm, Fine Precision: 0.002mm, With Tension Adjustment At Upper Limit	●	●
Yugto ng Paggawa	150mmx162mm Double Layer Stage, Moving Range:76mm-50mm, Precision 0.1mm ( X-Axis Single Track Transmission)	○	○
Yugto ng Paggawa	150mmx140mm Double Layer Stage, Moving Range:76mm-50mm, Precision 0.1mm (Triangular Guide Rail)	●	●

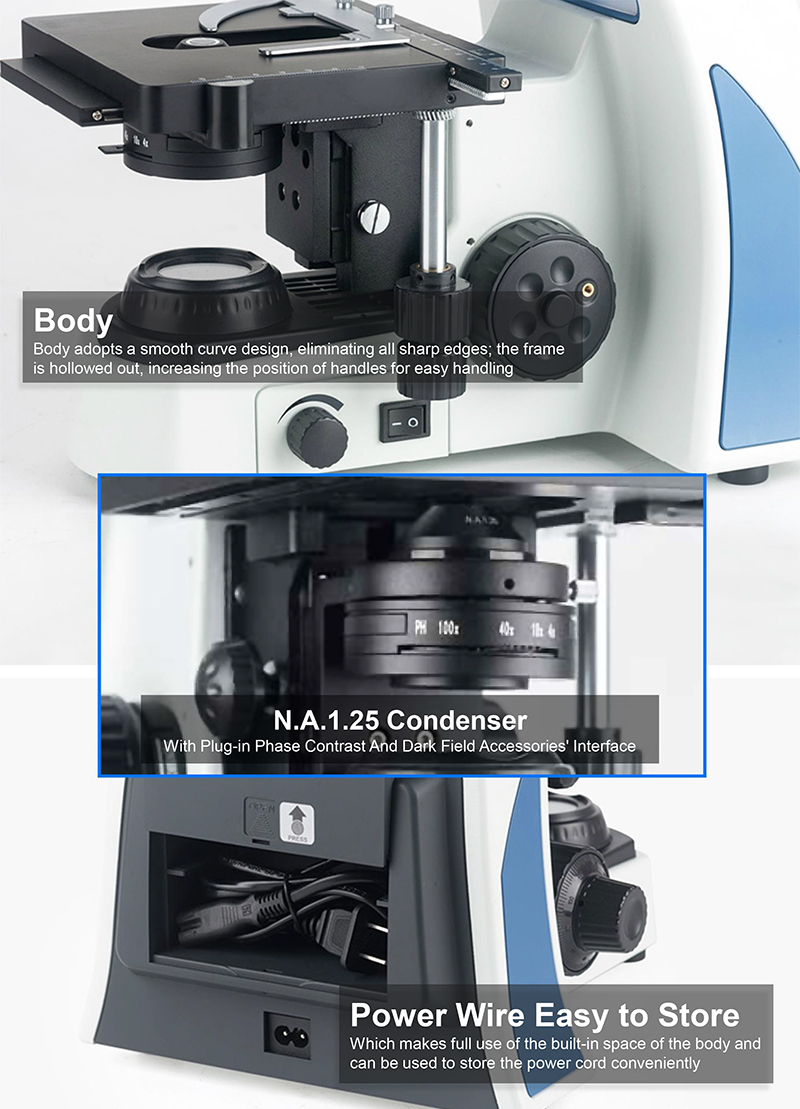

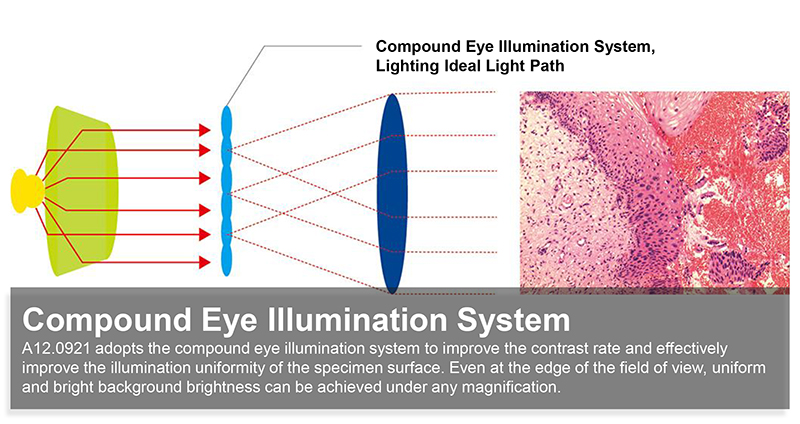

Condenser	NA1.25 Compound Eye Illumination Condenser Group (Na may Plug-in Phase Contrast At Dark Field Accessories' Interface), Condenser Preset Center	●	●
Salain	LBD, Dia.45mm	○	○	A56.0935-LBD
	Dilaw, Dia.45mm	○	○	A56.0935-XYY
	Neutral, Dia.45mm	○	○	A56.0935-XYF
	IF550,Dia.45mm	○	○	A56.0935-550
Pag-iilaw	Single High Brightness 3W LED (Opsyonal ang Cold/Warm Color, Cold Color Temperature 4750K-5500K, Warm Color Temperature 2850K-3250K) (Preset Center), Maaaring Tuloy-tuloy na Isaayos ang Light Intensity	●	●
Power Supply	Adaptive 100V-240V Switching Power Supply	●	●

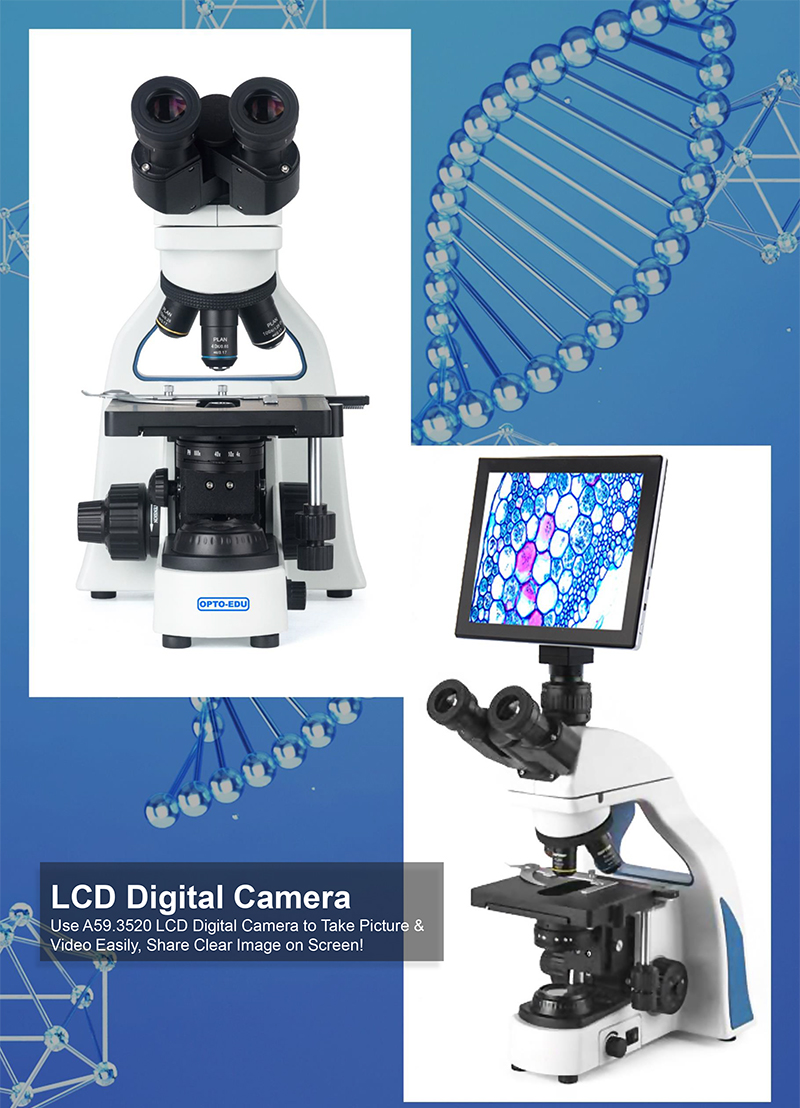

Adapter	C-Mount Adapter 0.35x, Focusing Adjustable	○	○	A55.0931-35
	C-Mount Adapter 0.5x, Focusing Adjustable	○	○	A55.0931-05
	C-Mount Adapter 0.65x, Focusing Adjustable	○	○	A55.0931-65
	C-Mount Adapter 1.0x, Focusing Adjustable	○	○	A55.0931-10
Madilim na Patlang	Dark Field Slide	○	○	A5D.0915-K
Polarizing	Polarizer Dia.40, Para sa Transmit Light Source, Ilagay sa Light Collector	○	○	A5P.0914-P
Polarizing	Analyzer, Lugar sa Pagitan ng Pangunahing Katawan at Ulo	○	○	A5P.0914-A
Phase Contrast	Phase Contrast Slide Para sa 10x,40x	○	○	A5C.0915-P1
	Phase Contrast Slide Para sa 20x,100x	○	○	A5C.0915-P1
	Infinity Plan Phase Contrast Objective 10x/0.25,WD=4.70mm	○	○	A5C.0937-10
	Infinity Plan Phase Contrast Objective 20x/0.50,WD=1.75mm	○	○	A5C.0937-20
	Infinity Plan Phase Contrast Objective 40x/0.65 ,WD=0.72mm	○	○	A5C.0937-40
	Infinity Plan Phase Contrast Objective 100x/1.25 ,WD=0.15mm	○	○	A5C.0937-100
Puna:●Nangangahulugan ng Standard Outfit,○Nangangahulugan ng Opsyonal na Accessory

Pictures Hide Same Show Difference
Model No.	A12.0921-T	A12.0921-B
Video Adapter	C-Mount 0.3x	——
Magpadala ng Liwanag	Single High Brightness 3W LED (Opsyonal ang Cold/Warm Color)	3W LED (Opsyonal na Cold/Warm Color)
Uri ng Light Source	LED	LED
Condenser NA	1.25	1.25
Uri ng Condenser	Abbe	Abbe
Scale ng Pagtutok	0.002mm	0.002mm
Saklaw ng Pagtutok	25mm	25mm
Uri ng Pagtutok	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Mga Tampok na Tumututok	Madaling iakma ang pag-igting	Madaling iakma ang pag-igting Safety Stop Screw
Yugto ng Paggawa	Precision 0.1mm (Triangular Guide Rail)	Katumpakan ng Paggalaw 0.1mm (Triangular Guide Rail)
Paglipat ng Yugto ng Paggawa	76x50mm	76x50mm
Laki ng Yugto ng Paggawa	150x140mm	150x140mm
Uri ng Yugto ng Paggawa	2 Layers Mechanical	2 Layers Mechanical
Mga Tampok sa Yugto ng Paggawa	Double Slide Holder Sukat ≥140x140mm	Double Slide Holder Sukat ≥140x140mm
Layunin	Infinity Plan Achromatic 4x/0.10, WD=11.9mm 10x/0.25, WD=12.1mm 40x/0.65, WD=0.36mm 100x/1.25, WD=0.18mm	Infinity Plan Achromatic Objective 4x10x40x100x
Uri ng Layunin	Infinity Plan	Infinity Plan
Mga butas ng ilong	4 na butas	4 na butas
Mga Tampok ng Nosepiece	Sa loob	Sa loob
Eyepiece	WF10x/20mm, 2pcs	PL10x/20mm, 2pcs
Diameter ng eyepiece	30.0mm	23.2mm
Mga Tampok ng Eyepiece	Diopter Adjustable	Diopter Adjustable
Daan ng Head Light	E80:P20	——
Uri ng Ulo	Seidentopf Trinocular	Seidentopf Binocular
Standard Magnification	——	40x-1000x
Optical System	Infinity Achromatic	Infinity Achromatic
Uri ng Power Supply	——	AC 110V-240V
Mga Tampok ng Condenser	——	Slot Para sa PH Slide Slot Para sa DF Slide Tagahawak ng Filter Iris diaphragm Rack at Pinionↆ↑
Head Interpupillary	——	47-75mm
Pag-ikot ng Ulo	——	Iikot ang Ulo 360°
Pagkahilig sa Ulo	——	30°
I-upgrade ang Function	——	BF+PH+DF+PL
Karaniwang Pag-andar	——	BF
