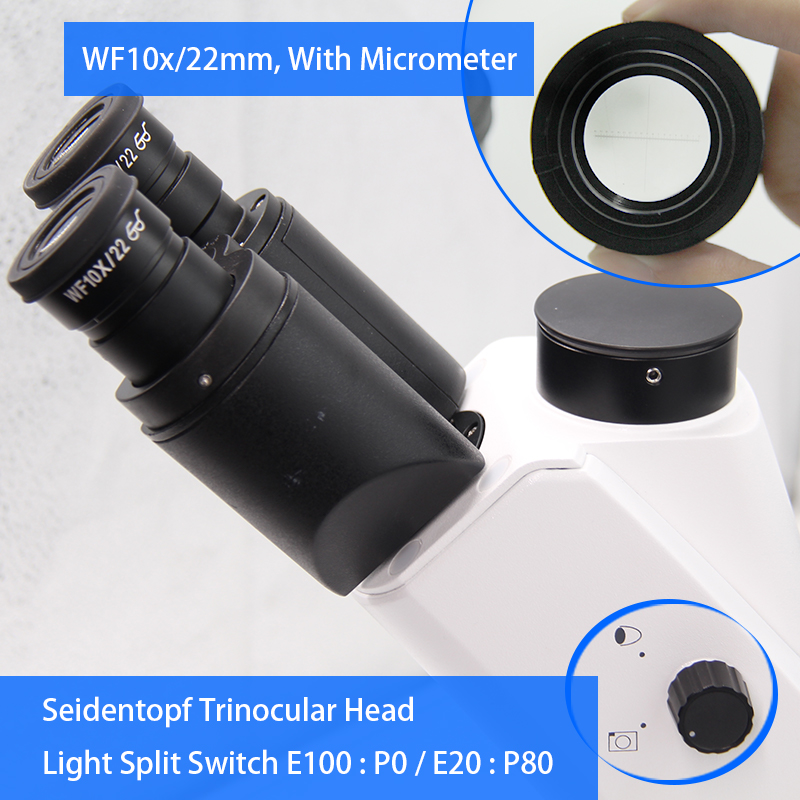

Super Wide Field Eyepiece
Seidentopf Trinocular Head Inclined 30°, Interpupillary Distansya 48~76mm, Light Split Switch E100:P0 / E20:P80

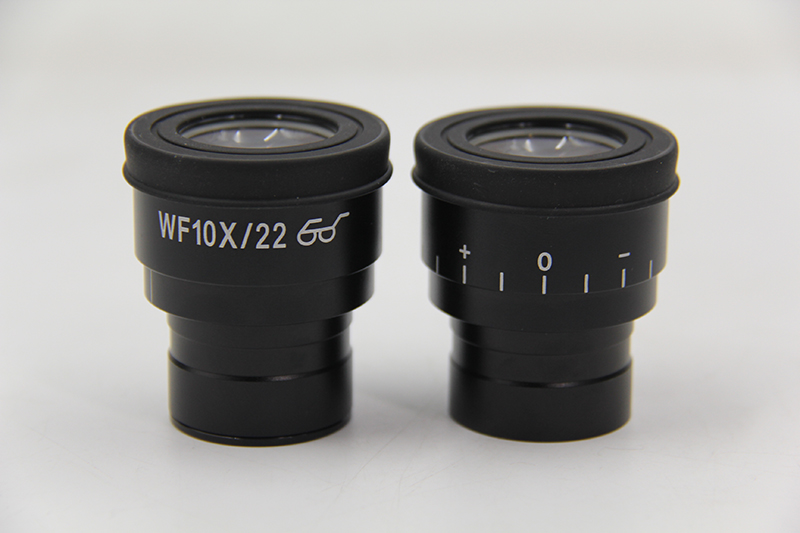

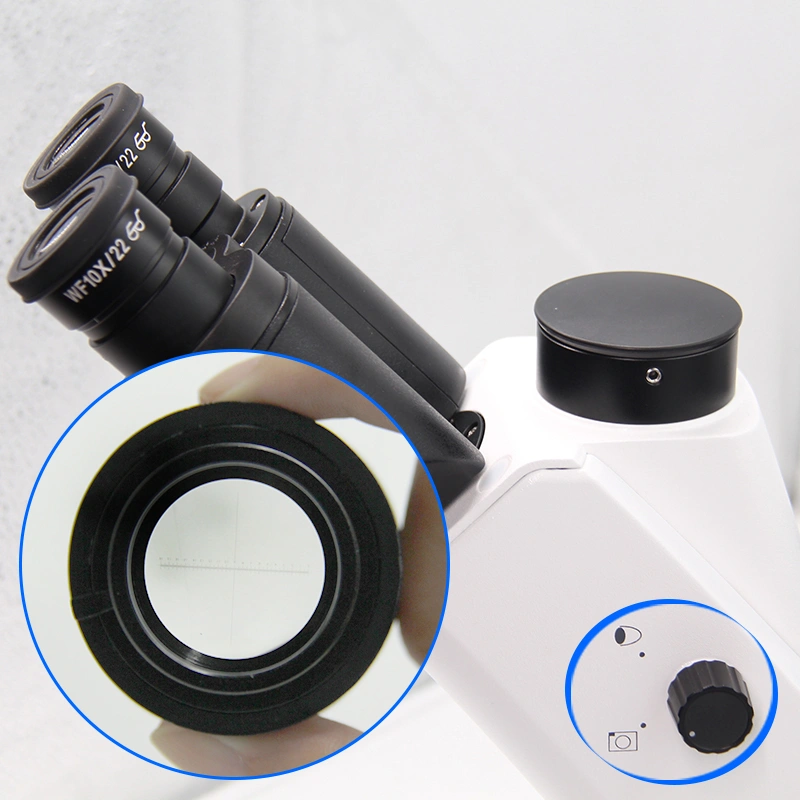

WF10x/22mm, May Micrometer
Yugto ng Paggawa

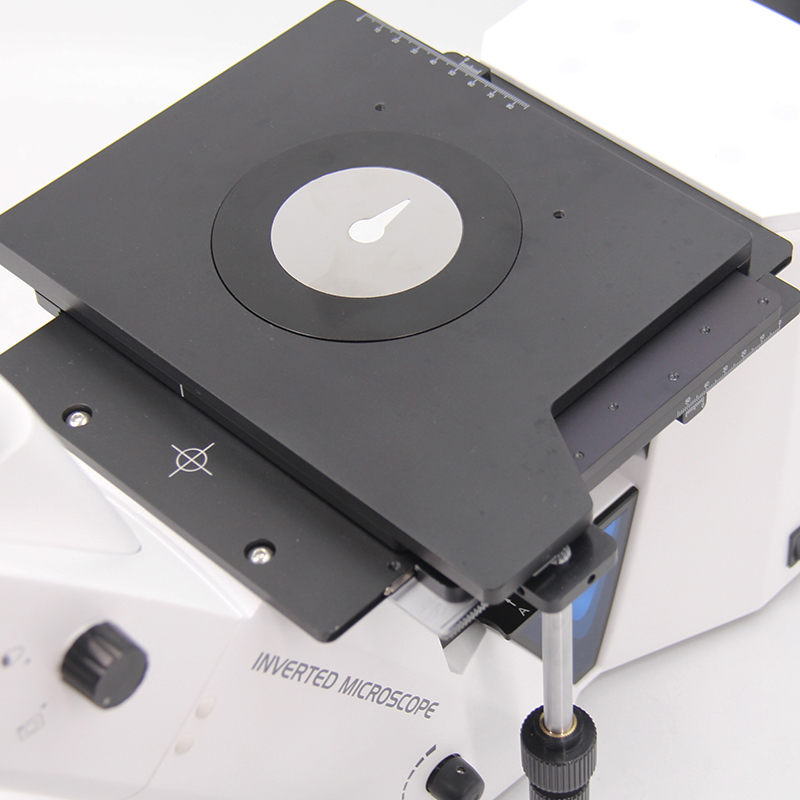

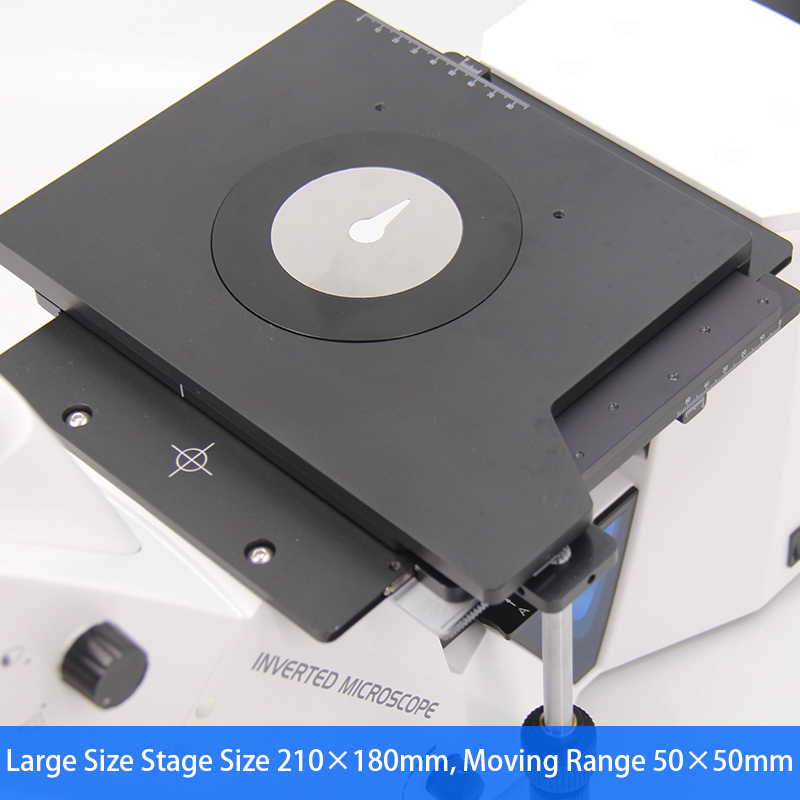

Laki ng Stage 210×180mm, Moving Range 50×50mm

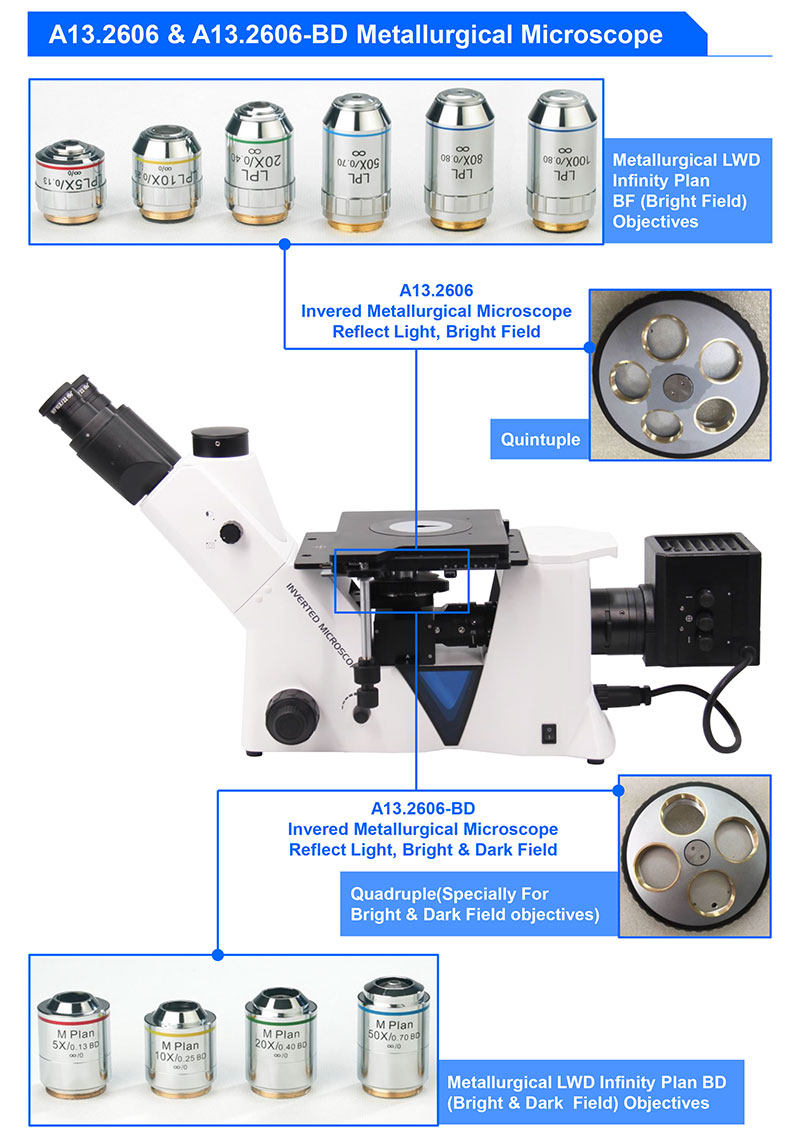

Mga Layunin Para sa A13.2606

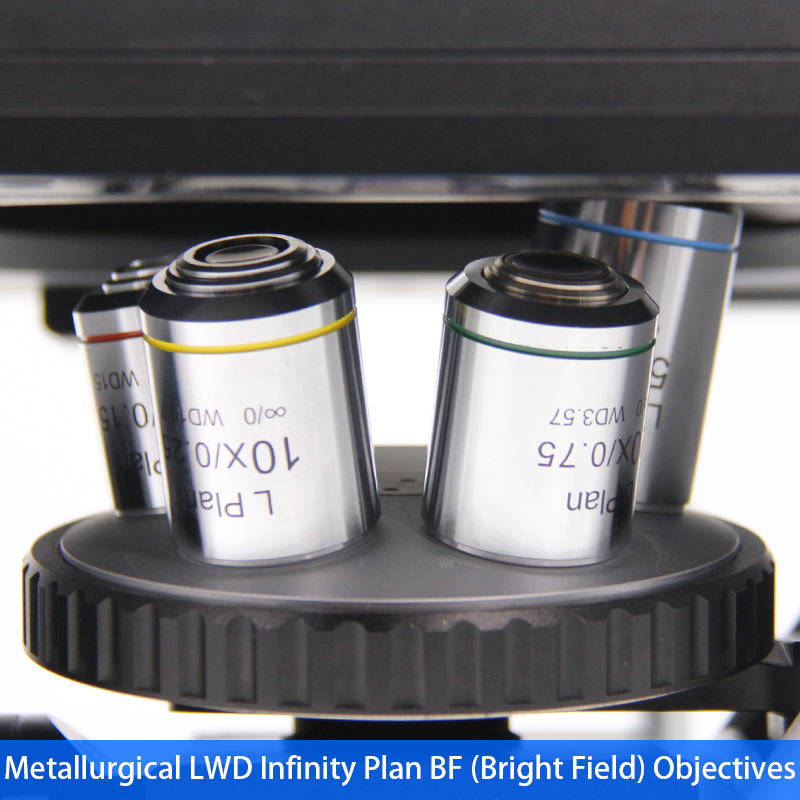

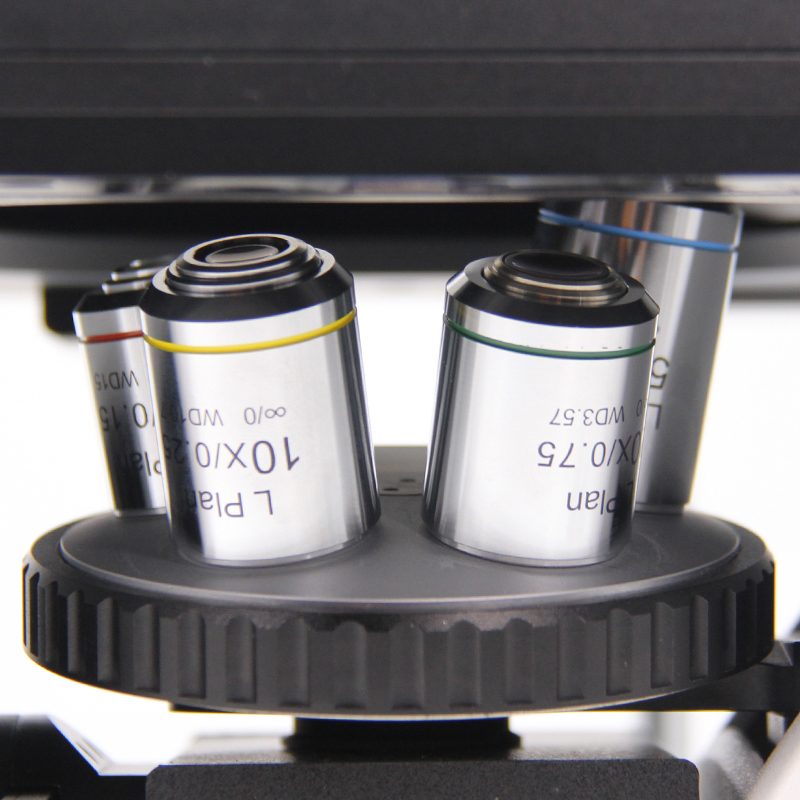

Metallurgical LWD Infinity Plan BF (Bright Field) at BD (Bright & Dark Field) Mga Layunin
Pag-iilaw

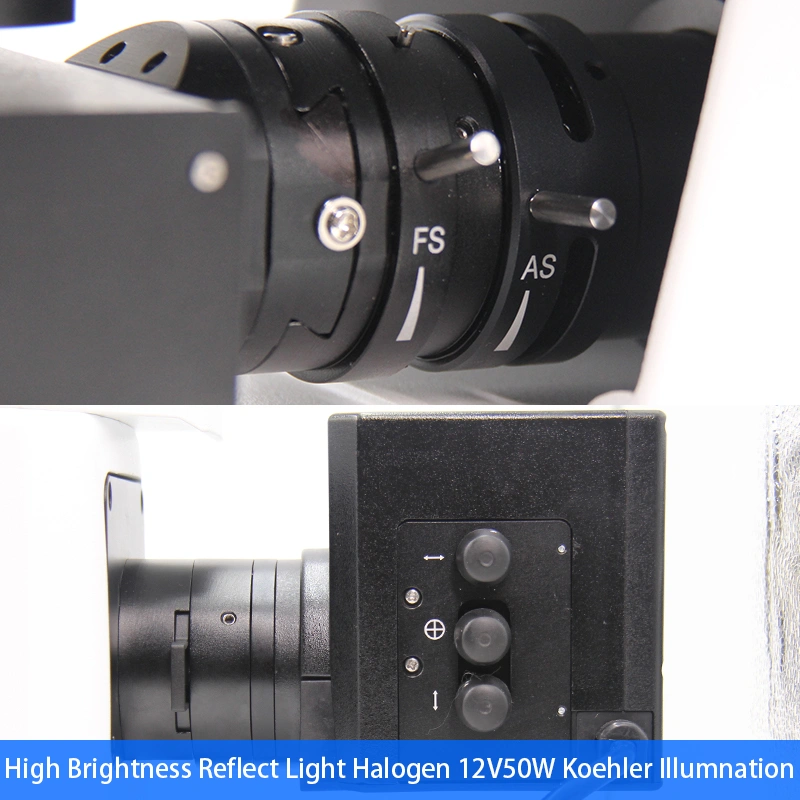

Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

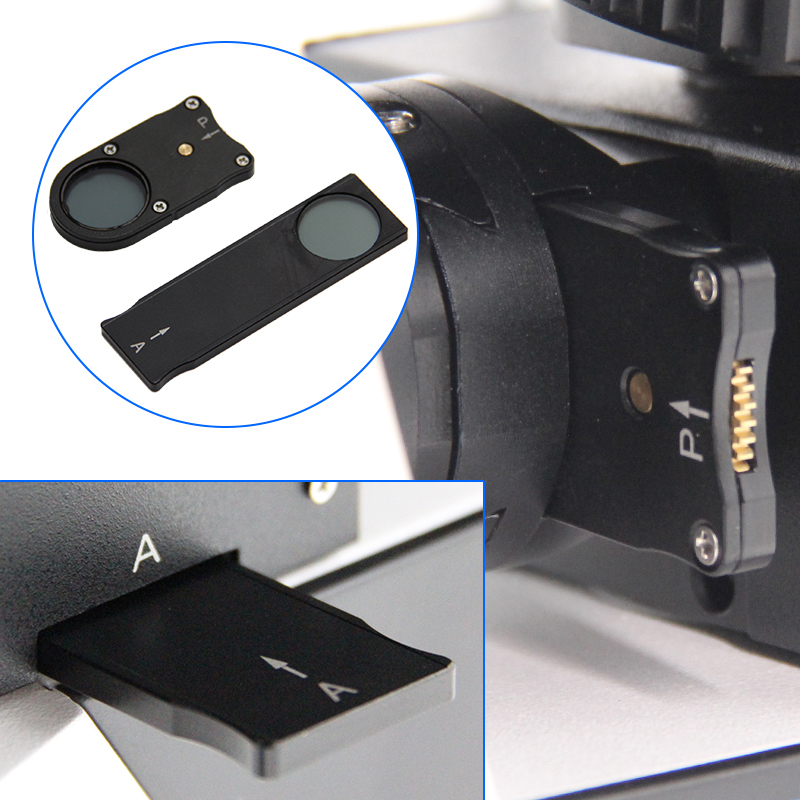

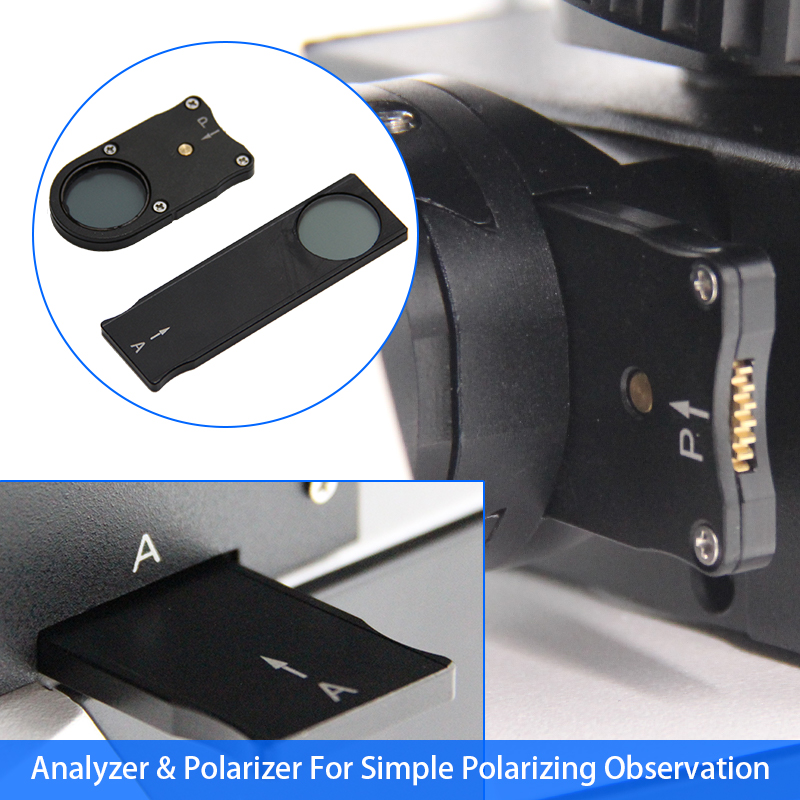

Polarizing
Analyzer & Polarizer para sa simpleng polarizing observation

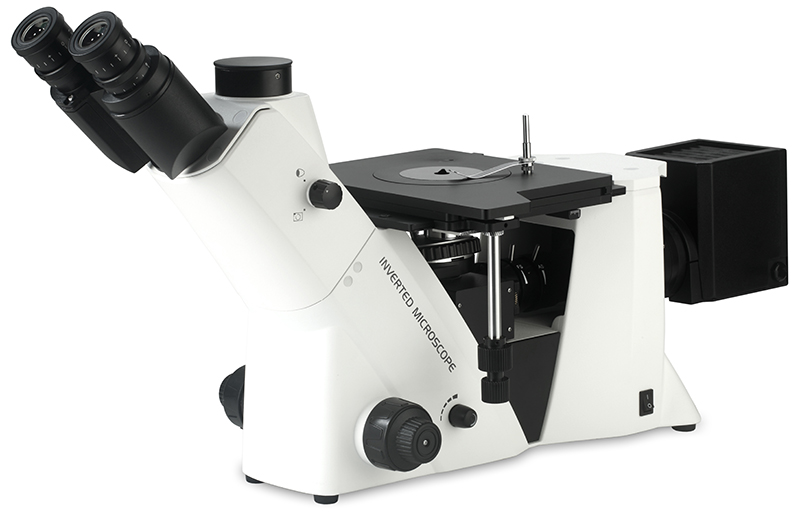

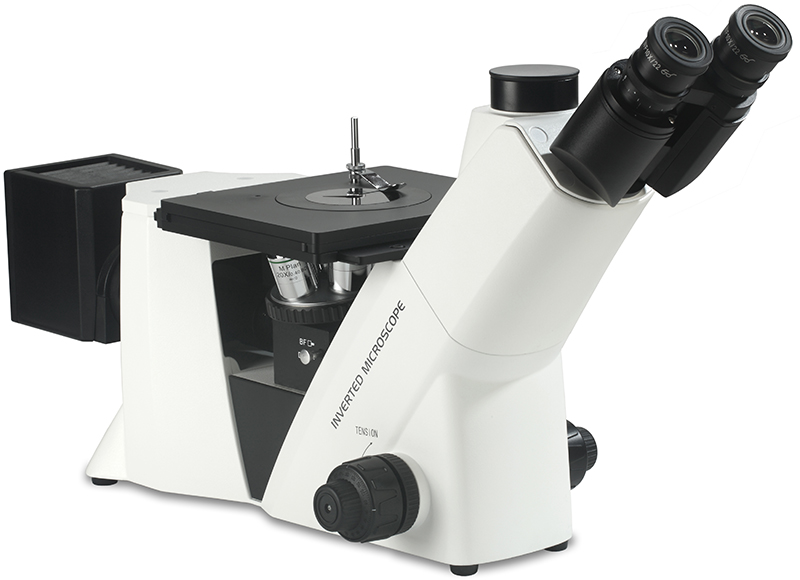

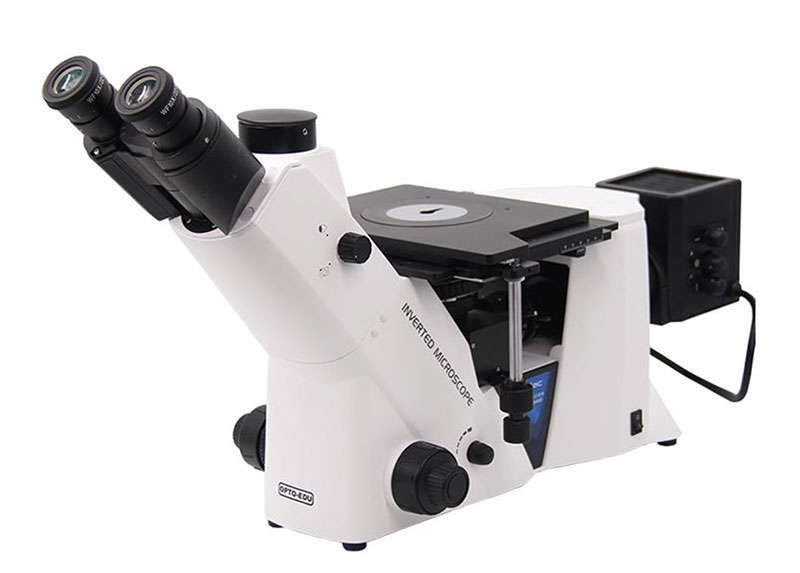

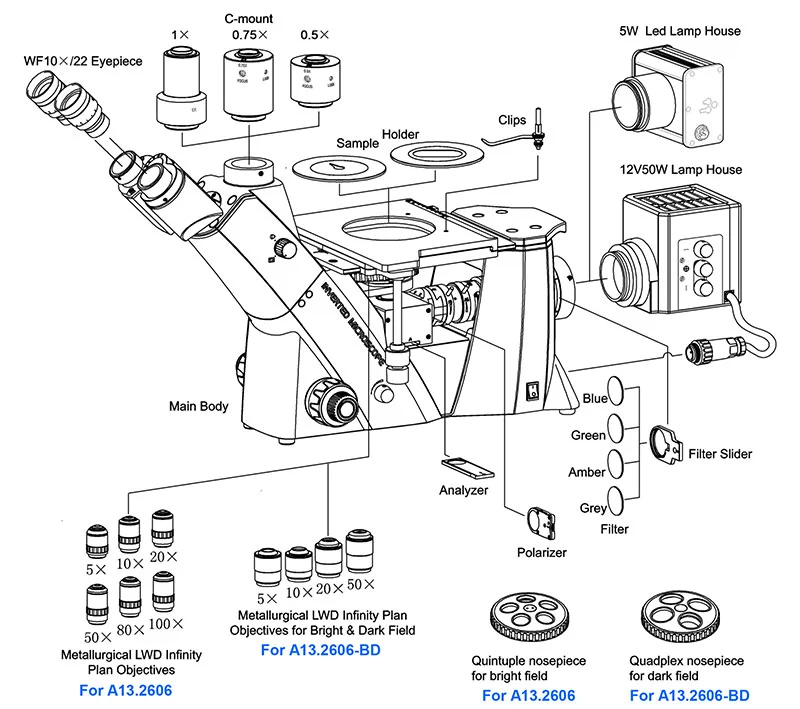

| Mga bagay | A13.2606 Invered Metallurgical Microscope | A13.2606 | A13.2606-BD | Cata. Hindi. |
| Ulo | Seidentopf Trinocular Head Inclined 30°, Interpupilary Distansya 48~76mm, Light Split Switch E100:P0 / E20:P80 | ● | ● | A53.2643 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ● | ● | A51.2621-1022 |
| WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable, Gamit ang Micrometer X-0.1mm*180 Div / Y-Single Line | ● | ● | A51.2622-1022 | |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | A51.2621-1516 | |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | A51.2621-2012 | |
| Nosepiece | Quintuple | ● | - | A54.2610-N925 |
| Quadruple(Espesyal Para sa mga layunin ng Maliwanag at Madilim na Field) | - | ● | A54.2610-N924 | |
| Metallurgical LWD Infinity Plan BF (Maliwanag na lugar) Semi-APO Mga layunin | LMPLan FL5x/0.15, WD=21.0mm | ● | ○ | A5M.2635-5 |
| LMplan FL 10x/0.3, WD=20.0mm | ● | ○ | A5M.263510 | |
| LMplan FL 20x/0.40 WD=15.0mm | ● | ○ | A5M.2635-20 | |
| LMplan FL 50x/0.55 WD=10.0mm | ● | ○ | A5M.2635-50 | |
| LMplan FL 50x/0.75 WD=4.25mm | ○ | ○ | A5M.2635-80 | |
| LMplan FL 100x/0.85 WD=3.0mm | ○ | ○ | A5M.2635-100 | |

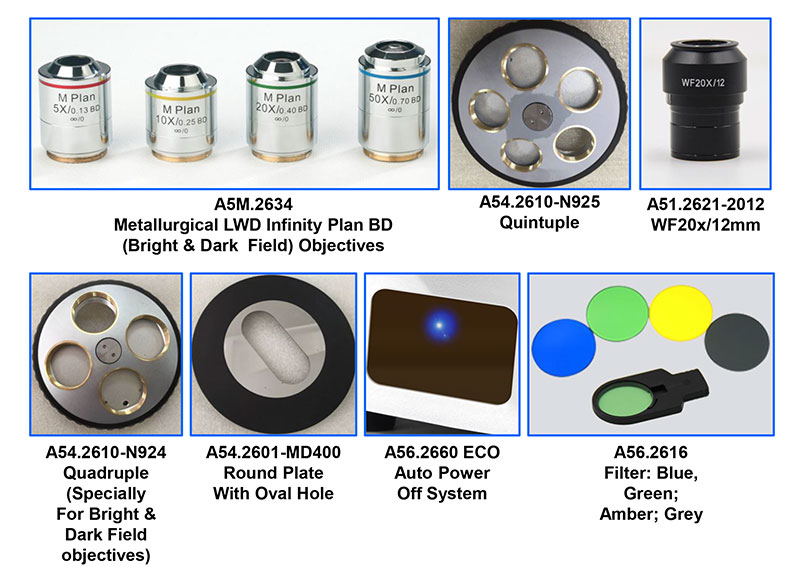

| Metallurgical LWD Infinity Plan BD (Bright & Dark Field) Mga Layunin | LPL 5x/0.13BD, WD=16.04mm | - | ● | A5M.2634-5 |
| LPL10x/0.25BD, WD=18.48mm | - | ● | A5M.2634-10 | |
| LPL 20x/0.40BD, WD=8.35mm | - | ● | A5M.2634-20 | |
| LPL 50x/0.70BD, WD=1.95mm | - | ● | A5M.2634-50 | |
| Yugto ng Paggawa | Laki ng Stage 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm | ● | ● | A54.2601-S11T |
| Round Plate na May Oval Hole | ○ | ○ | A54.2601-MD400 | |
| Nakatutok | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Bawat Pag-ikot 0.2mm | ● | ● | |
| Polarizing | Analyzer + Polarizer Set | ● | ● | A5P.2602 |
| Pag-iilaw | Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V | ● | ● | A56.2613-12V50W |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | ○ | ○ | A56.2651-5W | |
| kapangyarihan | ECO, Auto Power Off System. Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto, Awtomatikong Naka-on Sa Paglapit ng User, Maaaring Manu-manong I-shut Down ang Function na ito | ○ | ○ | A56.2660 |
| Salain | Asul, Dia.34mm | ● | ● | A56.2616-34B |
| Berde, Dia.34mm | ○ | ○ | A56.2616-34G | |
| Amber, Dia.34mm | ○ | ○ | A56.2616-34A | |
| Gray, Dia.34mm | ○ | ○ | A56.2616-34N | |

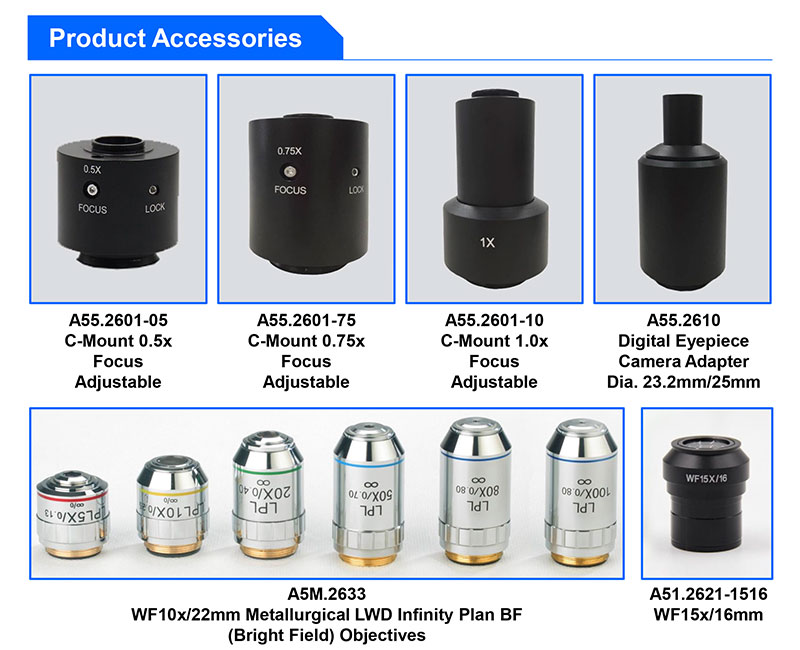

| Adapter | SLR Digital Camera Adapter Para sa Canon, 100% Light Para sa Camera Portt | ○ | ○ | A55.2622-BC |
| SLR Digital Camera Adapter Para sa Nikon, 100% Light Para sa Camera Port | ○ | ○ | A55.2622-BN | |
| C-Mount 0.5x, Focus Adjustable | ○ | ○ | A55.2601-05 | |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | A55.2601-75 | |
| C-Mount 1.0x, Focus Adjustable | ○ | ○ | A55.2601-10 | |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | ○ | A55.2610 | |

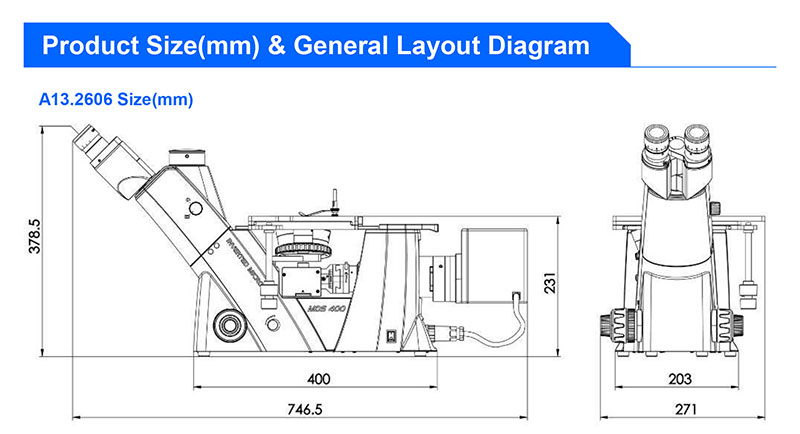

| Package | Laki ng Packing: 660mmx590mmx325mm | |||
| Timbang | Kabuuang Timbang: 17 kg, Netong Timbang: 12.5 kg | |||
| Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan. | ||||

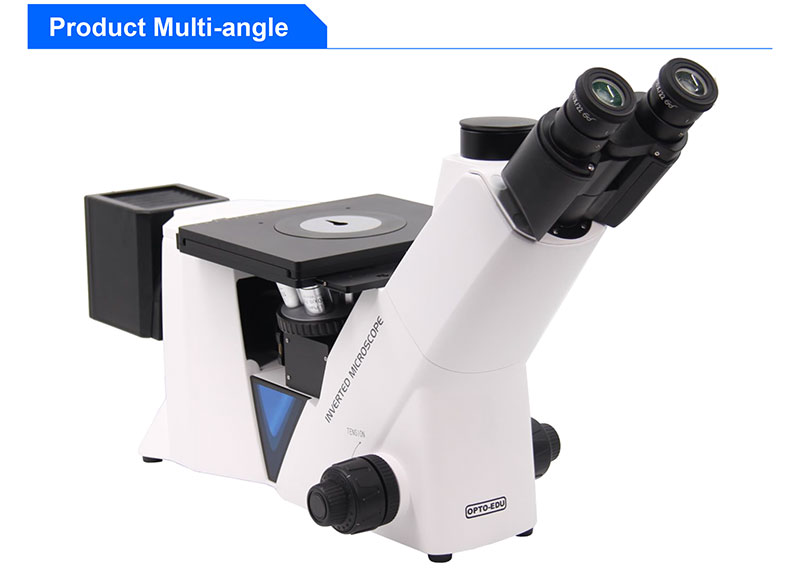

| Mas marami pang litrato |
