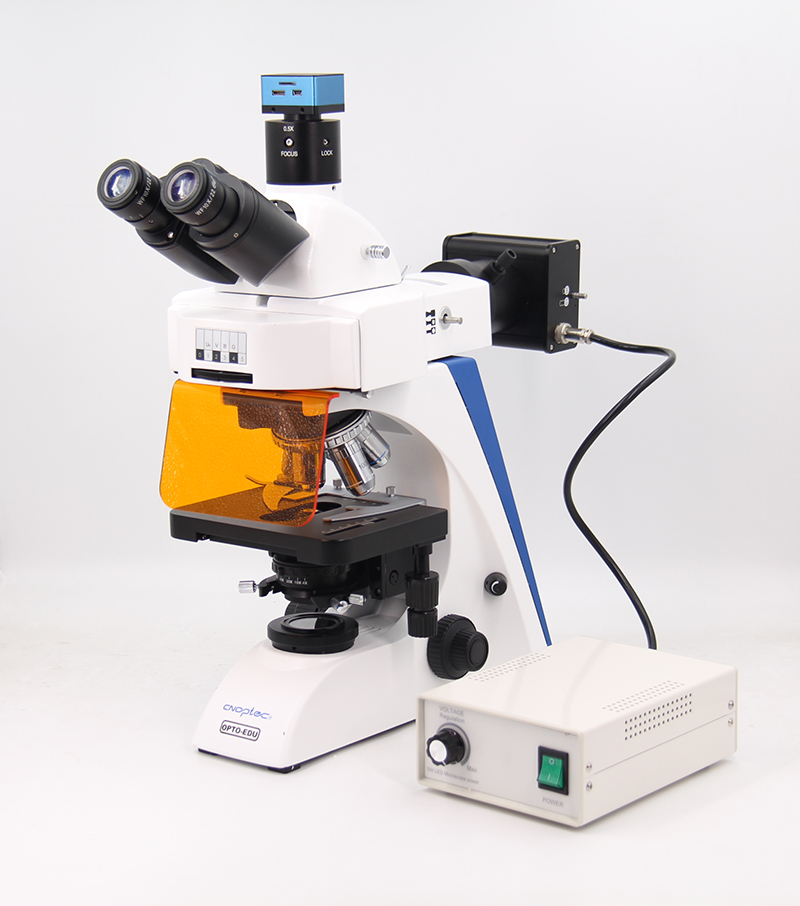

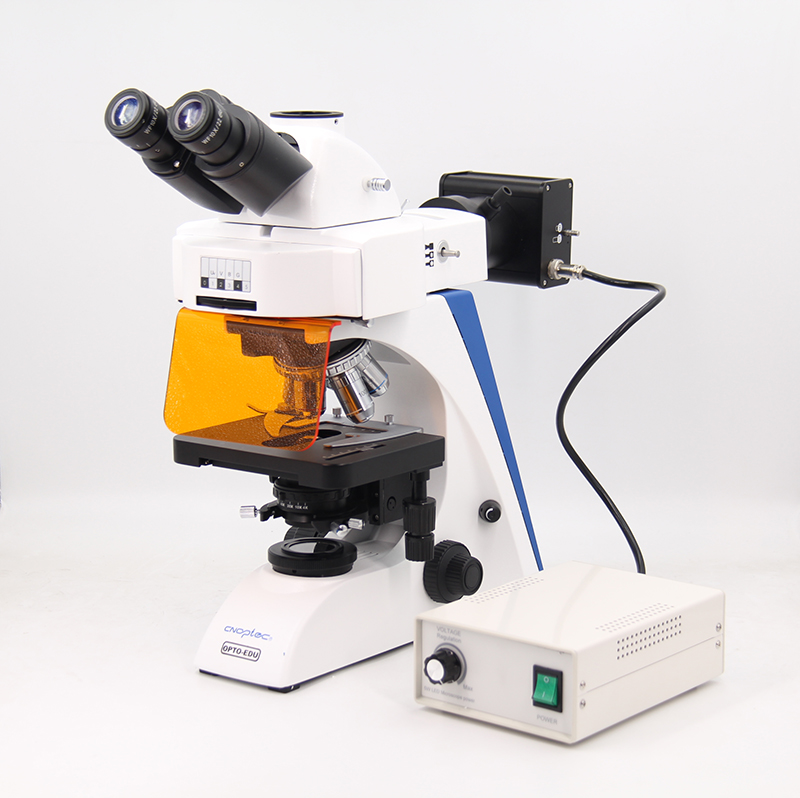

LED Fluorescent Microscope, Semi-APO, Trinocular, B/G

A16.2603-L-T2

Nais na mangolekta

LED Fluorescent Microscope, Semi-APO, Trinocular, B/G

Naa-upgrade sa Semi-APO Fluorescent Objectives at 100x Water Objective
5W LED Fluorescent Light Source Para Pagmasdan Sa Patolohiya, Paggamit ng Clinical Lab
Malaking Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece
Rackless Malaking Mechanical Stag 182x140mm/77x52m May Double Slide Holder
Swing Out Condenser NA 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

Specification:

A16.2603-L-T2

LED Fluorescent Microscope, Semi-APO, Trinocular, B/G/U/UV

A16.2603-L-T4

LED Fluorescent Microscope, Semi-APO, Binocular, B/G/U/UV

A16.2603-L-B4

LED Fluorescent Microscope, Semi-APO, Binocular, B/G

A16.2603-L-B2

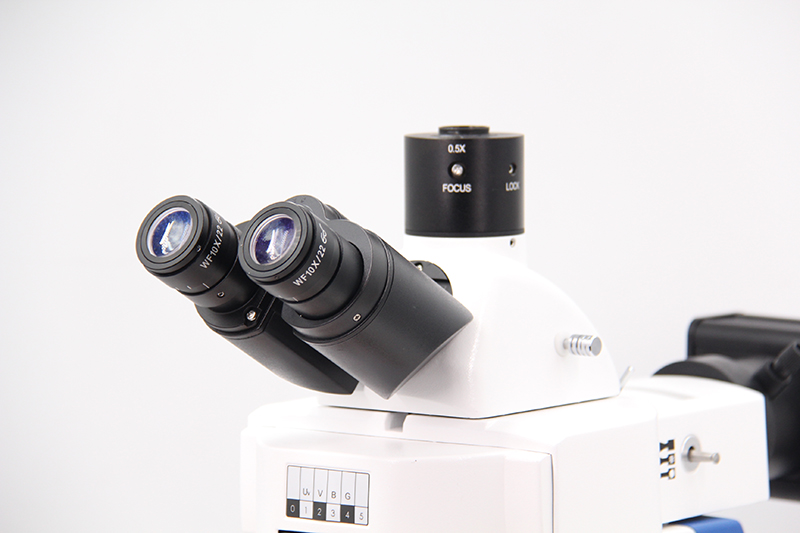

Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable

May Fix Screw ang Eyepiece Tube
Para maiwasan ang pagkahulog ng eyepiece habang gumagalaw

Trinocular Head Light Split Opsyonal sa Pagitan ng Switch E100:P0/E0:P100 at Fixed E80:P20
Sa Fixed Light Split, Eyepiece 80% : Larawan 20% Maaaring Tingnan ng User ang Larawan Sa Sabay na Oras Sa Parehong Landas
Sa Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light Para sa Photo Capture.

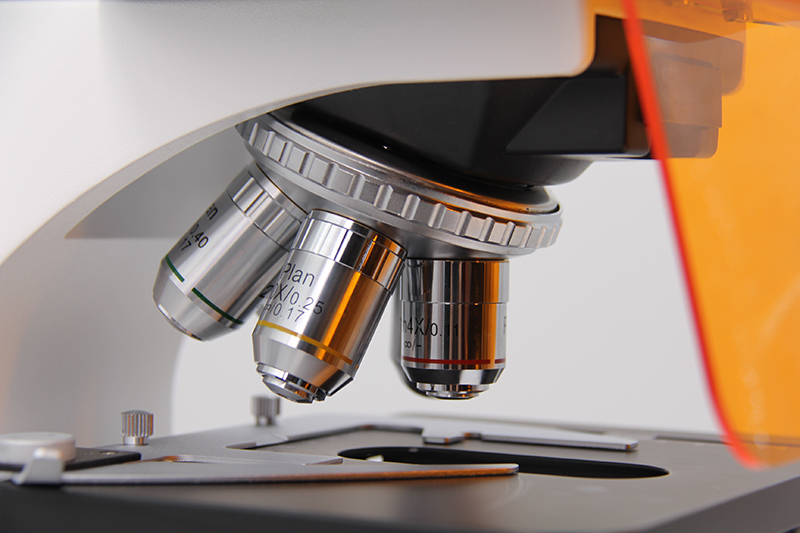

Malaking Sukat High Precision Quintuple Nosepiece, May Polarizing Analyzer Slot,
Layunin ng Infinity Plan 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Opsyonal) Sa halip na 100X Oil Objective, Mas Maginhawa Para sa Paggamit at Paglilinis Pagkatapos Gamitin

Rackless (Integrated) Mechanical Stage
Malaking Sukat 182×140mm, Double Slide Holder
Saklaw ng Paglalakbay 77×52mm

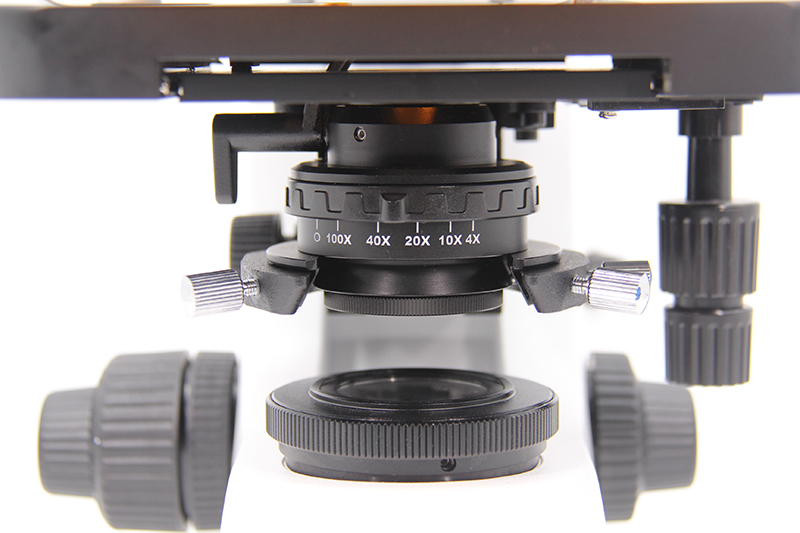

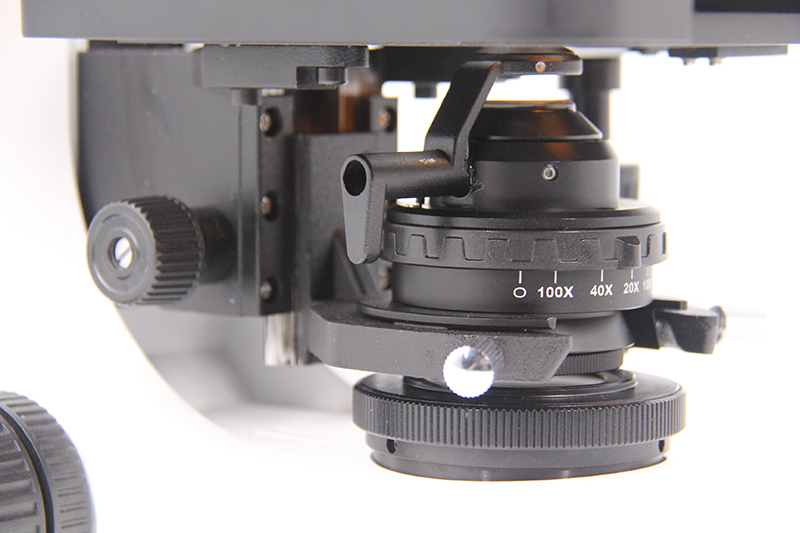

Swing-out Condenser,NA0.9/0.13,Iris Diaphragm
Kontrolin ang Dami ng Liwanag Ayon sa Demand, Mas Perpekto Ang Epekto.

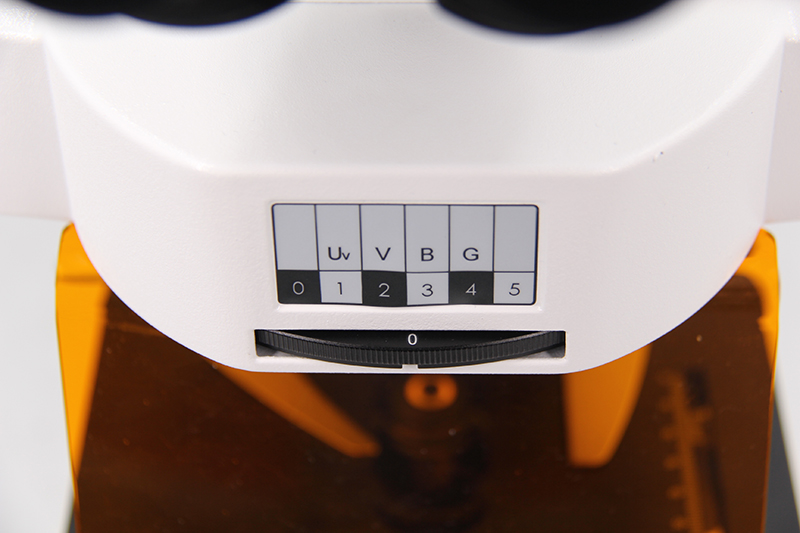

6 na butas na Yunit ng Fluorescence ng Disk
Maaaring Mag-load ng Hanggang 5 Fluorescence Filter + 1 Hole Para sa Maliwanag na Field View,

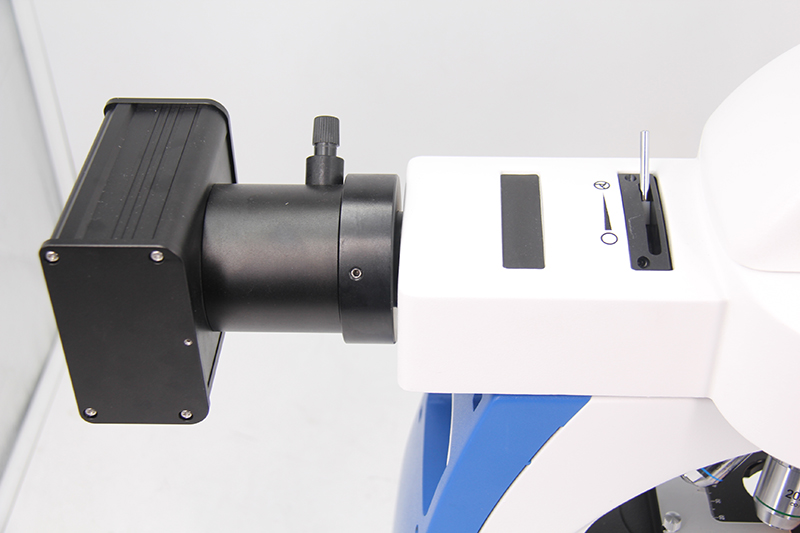

5W LED Lamp Fluorescent
Yunit ng Pag-iilaw, May Field Diaphragm, Light Switch Lever.

Mga bagay	A16.2603-L LED Fluorescent Microscope Detalye	B2	T2	B4	T4	Cata. Hindi.
Ulo	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm	●	○	●	○	A53.2623-B
Ulo	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Disstance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	○	●	○	●	A53.2623-T
Eyepiece	WF10x/22mm,Dia.30mm,Mataas na Eyepoint, Diopter Adjustable	●●	●●	●●	●●	A51.2621-1022
Nosepiece	Quintuple	●	●	●	●	A54.2610-N01
Layunin ng Infinity Plan	PLANO 2.5X/0.07,WD=8.47mm	○	○	○	○	A52.2606-2.5
	PLANO 4X/0.10,WD=12.10mm	●	●	●	●	A52.2606-4
	PLANO 10X/0.25,,WD=4.64mm	●	●	●	●	A52.2606-10
	PLANO 20X/0.40(S),WD=2.41mm	●	●	●	●	A52.2606-20
	PLANO 40X/0.66(S),WD=0.65mm	●	●	●	●	A52.2606-40
	PLANO 60X/0.80(S),WD=0.33mm	○	○	○	○	A52.2606-60
	PLANO 100X/1.25(S, Langis),WD=0.12mm	●	●	●	●	A52.2606-100
	PLANO 100X/1.15(S,Tubig),WD=0.19mm	○	○	○	○	A52.2606-100W
Infinity Plan Semi-APOFluorescent na Layunin	UplanFLN 4x, NA0.16，WD=17.151mm	○	○	○	○	A5F.2611-4
	UplanFLN 10x, NA0.30，WD=7.68mm	○	○	○	○	A5F.2611-10
	UplanFLN 20x, NA0.50，WD=1.96mm	○	○	○	○	A5F.2611-20
	UplanFLN 40x, NA0.75，WD=0.78mm	○	○	○	○	A5F.2611-40
	UplanFLN 100x(Oil), NA1.30，WD=0.15mm	○	○	○	○	A5F.2611-100
Yugto ng Paggawa	Walang kwenta(Integrated) Mechanical Stage, Sukat 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	●	●	A54.2601-S10
Yugto ng Paggawa	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	○	○	A54.2601-S01

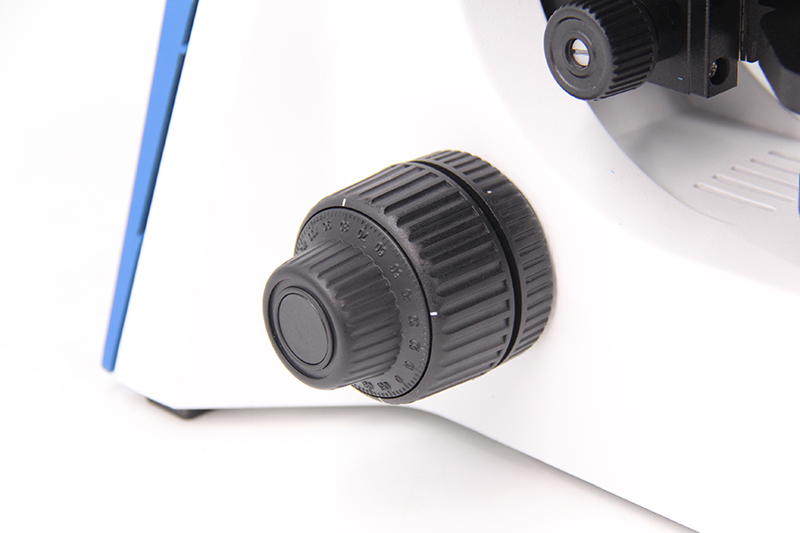

Nakatutok	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●	●	●
Condenser	Swing-out Condenser,NA0.9/0.13,Iris Diaphragm	●	●	●	●	A56.2614-07a
Pag-iilaw	Magpadala ng Banayad na 6V30W Halogen Pag-iilaw ng Koehler, Malapad na Boltahe 100V~240V, Field Diaphragm	●	●	●	●	A56.2650-30W
Field Diaphragm	Para sa Kohler Illumnation	●	●	●	●	A56.2615-BK
Salain	Dia.45mm, Asul	●	●	●	●	A56.2616-45B
	Dia.45mm, Berde	○	○	○	○	A56.2616-45G
	Dia.45mm, Dilaw	○	○	○	○	A56.2616-45A
Madilim na Patlang	Dark Field Condenser, Dry, NA0.83-0.91, Para sa 4x10x40x Layunin	○	○	○	○	A5D.2610-BK
Madilim na Patlang	Dark Field Condenser, Immersion, NA1.3, Para sa 100x Layunin					A5D.2610-BKW
Polarizing	Analyzer + Polarizer Set	○	○	○	○	A5P.2601-BK
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2602-100
	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Hole, Telescope 11x, Green Filter	○	○	○	○	A5C.2603-BK
Fluorescence	Mag-upgrade Mula sa A12.2603-B/T Biological Microscope Gamit B,GChina Fluorescent Set 6 na butas na Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet	●	●			A5F.2602-2
Fluorescence	Mag-upgrade Mula sa A12.2603-B/T Biological Microscope Gamit B,G,U,UVChina Fluorescent Set 6 na butas na Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet			●	●	A5F.2602-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	○	○	A55.2610
Package	Sukat ng karton 990×340×440mm, 1 pc / Ctn
Timbang	Kabuuang Timbang: 23 kg, Netong Timbang: 18 kg
Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan

Mga Fluorescent na Filter	Exciter (nm)	Dichroic (nm)	Emitter (nm)
UV	330-380	400	435
V	380-420	430	460
B	420-490	505	520
G	500-550	575	590

Mas marami pang litrato

Pictures Hide Same Show Difference
Model No.	A16.2603-L-T2	A16.2603-L-B2	A16.2603-L-T4	A16.2603-L-B4
Iba pang Pagtutukoy	Asul na filter, Dia. 45mm	Field Diaphragm Para sa Kohler Illumnation Blue filter, Dia. 45mm	Asul na filter, Dia. 45mm	Asul na filter, Dia. 45mm
Distansya ng Trabaho	格式:1.0,或1.0~2.0	——	格式:1.0,或1.0~2.0	格式:1.0,或1.0~2.0
Fluorescene	B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier
Fluorescent Band	3 banda	2 banda	——	——
Video Adapter	C-Mount 0.3x	——	C-Mount 0.3x	C-Mount 0.3x
Sumasalamin sa Liwanag	5W LED	5W LED	5W LED	5W LED
Magpadala ng Liwanag	6V30W Halogen	6V30W Halogen	6V30W Halogen	6V30W Halogen
Uri ng Light Source	Halogen	LED Halogen	Halogen	Halogen
Mga Tampok ng Light Source	Banayad na Tagapagpahiwatig Kohler	Halogen 30W Magpadala at Magmuni-muni Kohler	Banayad na Tagapagpahiwatig Kohler	Banayad na Tagapagpahiwatig Kohler
Condenser NA	0.9/0.13	0.9/0.13	0.9/0.13	0.9/0.13
Uri ng Condenser	Iugoy	Iugoy	Iugoy	Iugoy
Mga Tampok ng Condenser	Tagahawak ng Filter Center Adjustable Rack at Pinionↆ↑	Iris diaphragm	Tagahawak ng Filter Center Adjustable Rack at Pinionↆ↑	Tagahawak ng Filter Center Adjustable Rack at Pinionↆ↑
Scale ng Pagtutok	0.002mm	0.002mm	0.002mm	0.002mm
Saklaw ng Pagtutok	22mm	22mm	22mm	22mm
Mga Tampok na Tumututok	Madaling iakma ang pag-igting Safety Stop Screw	Madaling iakma ang pag-igting	Madaling iakma ang pag-igting Safety Stop Screw	Madaling iakma ang pag-igting Safety Stop Screw
Paglipat ng Yugto ng Paggawa	77x52mm	77x52mm	77x52mm	77x52mm
Laki ng Yugto ng Paggawa	182x140mm	182x140mm	182x140mm	182x140mm
Uri ng Yugto ng Paggawa	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Mga Tampok sa Yugto ng Paggawa	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge
Layunin	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm
Uri ng Layunin	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Mga butas ng ilong	5 butas	5 butas	5 butas	5 butas
Mga Tampok ng Nosepiece	Sa loob	Sa loob	Sa loob	Sa loob
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Diameter ng eyepiece	30.0mm	30.0mm	30.0mm	30.0mm
Mga Tampok ng Eyepiece	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Daan ng Head Light	E100:P0/E20:P80	——	E100:P0/E20:P80	——
Head Diopter	Parehong Tube Adjustable	——	Parehong Tube Adjustable	Parehong Tube Adjustable
Head Interpupillary	48~76mm	48~76mm	48~76mm	48~76mm
Pag-ikot ng Ulo	Umiikot ang Eyetube 360°	Iikot ang Ulo 360°	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°
Uri ng Ulo	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular
Standard Magnification	——	40x-1000x	——	——
Optical System	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Mga tampok	Infinity	Infinity	Infinity	Infinity
Uri ng Power Supply	——	AC 110V-240V	——	——
Uri ng Pagtutok	——	Coaxial Coarse & Fine	——	——
Pagkahilig sa Ulo	——	30°	——	——
I-upgrade ang Function	——	BF+PH+DF+PL+FL	——	——
Karaniwang Pag-andar	——	BF+FL	——	——

A16.2603-L Catalogue.pdf

A16.2603-L Instruction Manual.pdf
