A13.0210

Nais na mangolekta

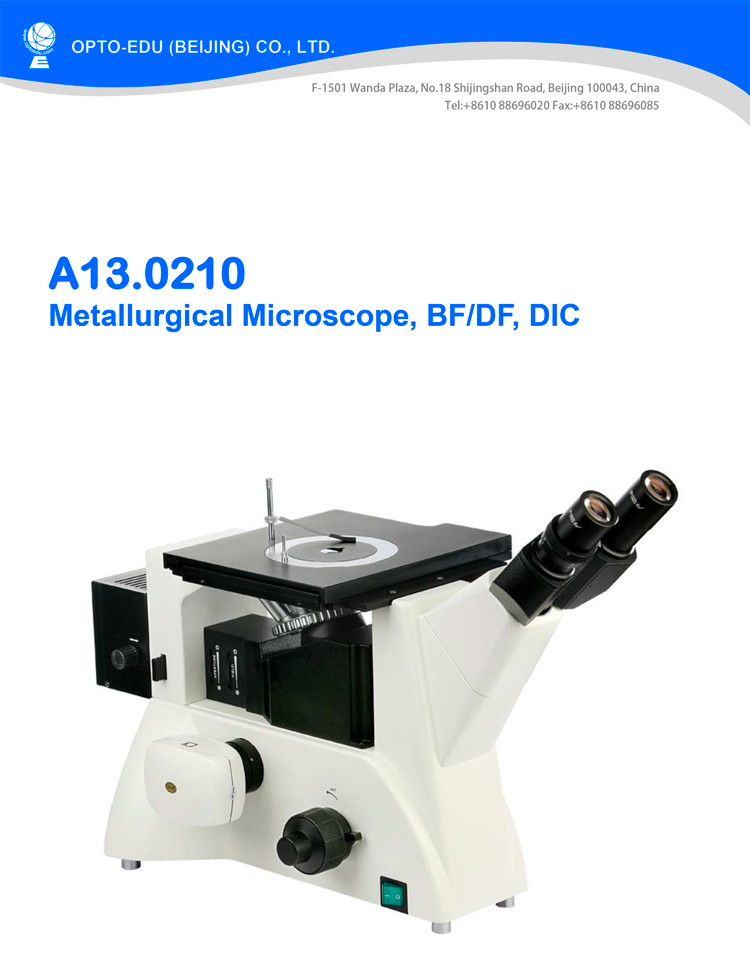

Metallurgical Microscope, BF

Modularization Function Design Para sa BF/DF, DIC, Polarizing View Para sa Metallurgical Lab
Layunin ng LWD Infinity BD Plan (Walang Cover Glass) Para sa DIC
DIC Push-Pull Group Slide Para sa 5x/10x/20x Layunin na Available
Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filters Switching Device Para sa Y,B,G at Ground Glass Filter
Transmit & Reflect Halogen Light Source Para sa Metallurigcal Observe

Specification:

Metallurgical Microscope, BF/DF, PL, DIC

A13.0210-BDDIC

A13.0210-BD

A13.0210-DIC

A13.0210

A13.0210 Inverted Metallurgical Microscope, Transmit at Reflect, BD, DIC, Polarizing		A13.0210	-BD	-DIC	-BDDIC	Cata. Hindi.
Ulo	Binocular Head, Inclination 45°, Interpupillary Distansya 53~75mm	●	●	●	●
Eyepiece	WF10x/22mm,	●●	●●	●●	●●	A51.0202-1022
Eyepiece	Divding WF10x/22mm, 0.1mm/Div	○	○	○	○	A51.0205-G10B
Nosepiece	Quintuple, Ball Bearing Inner Locating	●	●	●	●
LWD Infinity Maliwanag na lugar Layunin ng Plano (Walang Cover Glass)	PLL2.5x/0.07mm, WD13mm	○
	PLL5x/0.12mm, WD26.1mm	○				A5M.0235-5
	PLL10x/0.25mm, WD20.2mm	●				A5M.0235-10A
	PLL20x/0.40mm, WD8.8mm	●				A5M.0235-20
	PLL40x/0.60mm, WD3.98mm, Spring	○				A5M.0235-40
	PLL50x/0.70mm, WD3.68mm, Spring	●		●		A5M.0235-50
	PLL60x/0.70mm, WD3.18mm, Spring	○				A5M.0235-60A
	PLL80x/0.80mm, WD1.25mm, Spring	○				A5M.0235-80
	PLL100x/0.85mm, WD0.4mm, Spring	●				A5M.0235-100
LWD Infinity Maliwanag/Madilim na Patlang Layunin ng Plano (Walang Cover Glass)	BD PLL5x/0.12mm, WD9.7mm		●			A5M.0237-5
	BD PLL10x/0.25mm, WD9.3mm		●			A5M.0237-10
	BD PLL20x/0.40mm, WD7.2mm		●			A5M.0237-20
	BD PLL40x/0.60mm, WD3.0mm, Spring		○			A5M.0237-40
	BD PLL50x/0.70mm, WD2.5mm, Spring		●		●	A5M.0237-50
	BD PLL60x/0.75mm, WD1.9mm, Spring		○			A5M.0237-60
	BD PLL80x/0.80mm, WD0.8mm, Spring		○			A5M.0237-80
	BD PLL100x/0.85mm, WD0.22mm, Spring		○			A5M.0237-100
	BD PLL100x/0.85mm, WD0.40mm, Spring		○			A5M.0237-100A
LWD InfinityDIC Layunin ng Plano (Walang Cover Glass)	LMplan 5x/0.12mm, WD15.0mm			●		A5M.0238-5D
	LMPlan 10x/0.3mm, WD10.5mm			●		A5M.0238-10B
	LMPlan 20x/0.40mm, WD4.5mm			●		A5M.0238-20A
LWD InfinityDIC Maliwanag/Madilim na Patlang PlanoLayunin	BD LMplan 5x/0.12mm, WD7.9mm				●	A5M.0239-5A
	BD LMplan 10x/0.3mm, WD6.03mm				●	A5M.0239-10A
	BD LMplan 20x/0.40mm, WD1.4mm				●	A5M.0239-20A
Pagmamasid sa DIC	5x/10x/20x DIC Push-Pull Group Slide			●	●
Yugto ng Paggawa	Dobleng Layer na Mechanical Stage, Sukat 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Mas Mababa sa Dia.20mm	●	●	●	●
Nakatutok	Coaxial Coarse & Fine Focu, May Tension Adjustment At Up Stop, Fine Focusing Minimum Division 2um	●	●	●	●
Pagnilayan Pag-iilaw	6V30W Halogen Lamp, Brightness Adjustable	●
	12V50W Halogen Lamp, Brightness Adjustable		●	●	●
	Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filter Switching Device Para sa Yellow, Blue, Green Filter at Ground Glass	●	●	●	●
Polarizing	Push-Pull Type Polarizer	●	●	●	●
Polarizing	Built-in Analyzer At Malayang Pag-swithching	●	●	●	●
Adapter	0.4x C-Mount	○	○	○	○	A55.0202-1
	1.0x C-Mount	○	○	○	○	A55.0202-2
	0.5x C-Mount na May Dividing 0.1mm/Div	○	○	○	○	A55.0202-3
	0.5x C-Mount	○	○	○	○	A55.0202-4
	Digital SLR Camera Adapter para sa Canon EF	○	○	○	○	A55.0204-1
Puna: '●' Nangangahulugan ng Standard Outfit, '○' Ang ibig sabihin ay Opsyonal

Pictures Hide Same Show Difference
Model No.	A13.0210	A13.0210-BDDIC	A13.0210-BD	A13.0210-DIC
Iba pang Pagtutukoy	——	DIC Slide Para sa 5x10x20x	——	DIC Slide Para sa 5x10x20x
Polarizing	Push-Pull Type Polarizer Built-in Analyzer At Malayang Pag-swithching	Push-Pull Type Polarizer Built-in Analyzer At Malayang Pag-swithching	Push-Pull Type Polarizer Built-in Analyzer At Malayang Pag-swithching	Push-Pull Type Polarizer Built-in Analyzer At Malayang Pag-swithching
Uri ng Power Supply	AC 110V/220V	AC 110V/220V	AC 110V/220V	AC 110V/220V
Magpadala ng Liwanag	6V30W Halogen Lamp , Brightness Adjustable	12V50W Halogen Lamp , Brightness Adjustable	12V50W Halogen Lamp , Brightness Adjustable	12V50W Halogen Lamp , Brightness Adjustable
Uri ng Light Source	Halogen	Halogen	Halogen	Halogen
Mga Tampok ng Light Source	Halogen 30W	Halogen 50W	Halogen 50W	Halogen 50W
Scale ng Pagtutok	0.002mm	0.002mm	0.002mm	0.002mm
Uri ng Pagtutok	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Mga Tampok na Tumututok	Madaling iakma ang pag-igting Pangkaligtasan Stop Lock Ring	Madaling iakma ang pag-igting Pangkaligtasan Stop Lock Ring	Madaling iakma ang pag-igting Pangkaligtasan Stop Lock Ring	Madaling iakma ang pag-igting Pangkaligtasan Stop Lock Ring
Yugto ng Paggawa	Dobleng Layer na Mechanical Stage, Sukat 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Mas Mababa sa Dia.20mm	Dobleng Layer na Mechanical Stage, Sukat 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Mas Mababa sa Dia.20mm	Dobleng Layer na Mechanical Stage, Sukat 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Mas Mababa sa Dia.20mm	Dobleng Layer na Mechanical Stage, Sukat 242x200mm, Moving Range 30x30mm, Round Rotatable Stage Max Measurement Dia.130mm, Minimum Clear Aperture Mas Mababa sa Dia.20mm
Paglipat ng Yugto ng Paggawa	30x30mm	30x30mm	30x30mm	30x30mm
Laki ng Yugto ng Paggawa	242x200mm	242x200mm	242x200mm	242x200mm
Uri ng Yugto ng Paggawa	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Mga Tampok sa Yugto ng Paggawa	Sukat ≥140x180mm	Sukat ≥140x180mm	Sukat ≥140x180mm	Sukat ≥140x180mm
Layunin	LWD Infinity Plan 10x20x50x100x,	LWD Infinity Plan BF/DF DIC 5x10x20x, BD50x	LWD Infinity Plan BF/DF 5x10x20x50x,	LWD Infinity Plan DIC 5x10x20x, Plan 50x,
Uri ng Layunin	Infinity Plan	Infinity Plan Madilim na Patlang	Infinity Plan Madilim na Patlang	Infinity Plan
Mga Tampok ng Layunin	LWD Walang takip	DIC LWD BF+DF Walang takip	LWD BF+DF Walang takip	DIC LWD Walang takip
Mga butas ng ilong	5 butas	5 butas	5 butas	5 butas
Eyepiece	WF10x/22mm 2pcs	WF10x/22mm 2pcs	WF10x/22mm 2pcs	WF10x/22mm 2pcs
Diameter ng eyepiece	23.2mm	23.2mm	23.2mm	23.2mm
Daan ng Head Light	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100
Head Diopter	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube
Head Interpupillary	53~75mm	53~75mm	53~75mm	53~75mm
Pag-ikot ng Ulo	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°
Pagkahilig sa Ulo	45°	45°	45°	45°
Uri ng Ulo	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	100x-1000x	50x-500x	50x-500x	50x-500x
Optical System	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Mga tampok	Infinity DIC	Infinity DIC	Infinity DIC	Infinity DIC
Karaniwang Pag-andar	BF+PL	BF+DF+PL+DIC	BF+DF+PL	BF+DIC
Mga Tampok ng Nosepiece	——	Gamit ang DIC Slot	——	Gamit ang DIC Slot
