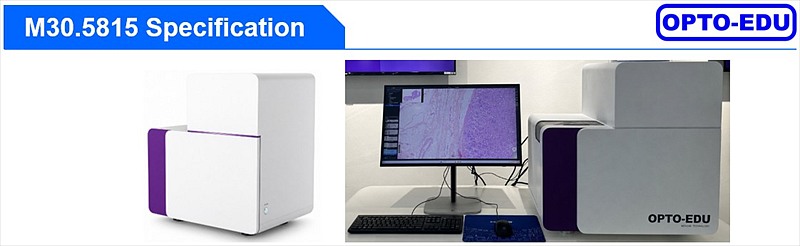

M30.5815 Full Auto Microscope Slide Scanner Specification

Flux

30 standard pathology sections (75*25mm)

Objective

High quality plan apochromatic objective lens 20 times NA value 0.8

Camera

Scientific research-grade large-area array camera, 5 million effective pixels

Scanning method

High-speed continuous area scanning

Scanning resolution

20x scan ≤ 0.24um/pixel; 40x scan ≤ 0.12um/pixel

Scanning speed

15mmx15mm scanning area, 20x magnification mode, s35 seconds; 40x magnification mode, s50 seconds

Scanning mode

Fast, accurate, 3D, fusion mode

Automatic identification

Automatic identification of tissue area, label code, character and slice type

Real-time browsing

Observe slice information without scanning, switch zoom ratios, capture, edit and export high-definition images

Online quality control

Automatic quality control of slice thickness, knife marks, wrinkles, bubbles, and position

Ai application

Supports docking with artificial intelligence software such as cytology, histology, and immunohistochemistry
