Biological Microscope
Biological Microscope
Biological Microscope
Biological Microscope
Biological Microscope
Biological Microscope

A11.3621

Like Favorites

Biological Microscope

  • Binocular, Trinocular Head With 0.5x C-Mount Digtal Camera
  • WF10x/18mm Eyepiece. Quadruple Nosepiece, 195mm Achromatic Objective 4x10x40x100x
  • Abbe Condenser N.A.1.25 Equipped Iris Diaphragm And Filter Holder
  • Double Layer Mechanical Working Stage 115x125mm Moving 80*30mm
  • LED Adjustable Brightness, Rechargeable Batteries Built-in

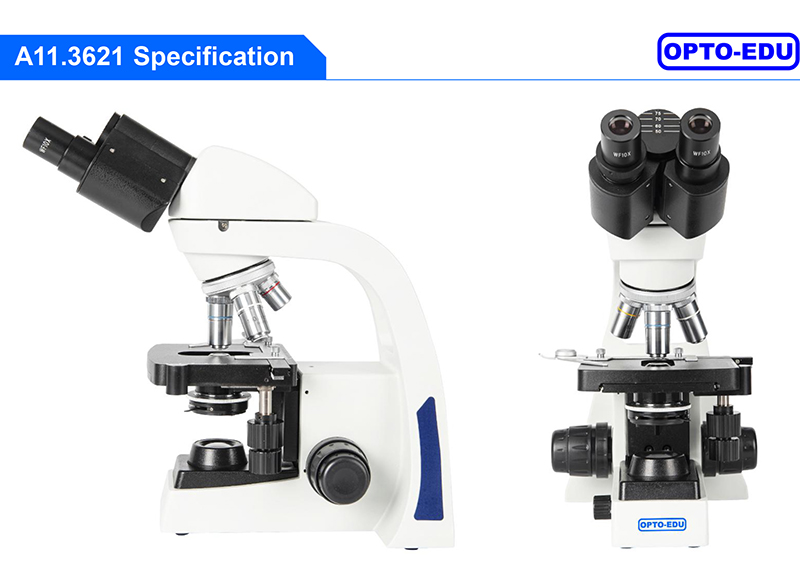

Specification:

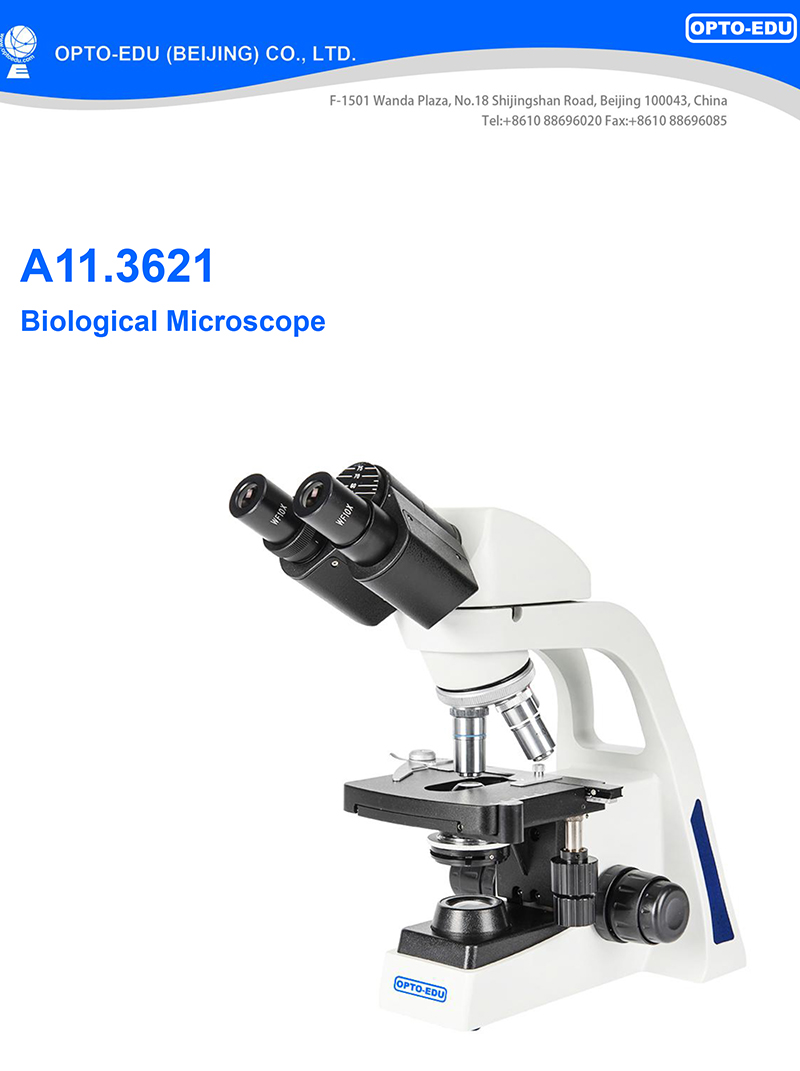

Biological Microscope A11.3621
Quantity：

A11.3621 Biological Microscope
Magnification40x-1000x
HeadA11.3621-B
Binocular, 30° Inclined, Interpupillary Distance 50~75mm, Left Diopter Adjustable +/-5°
A11.3621-T
Trinocular, 30° Inclined, Interpupillary Distance 50~75mm, Left Diopter Adjustable +/-5°,  With 0.5x C-Mount
EyepieceWF10x/18mm, 1 Pair
WF16x/14mm, 1 Pair (Optional)
WF20x/10mm, 1 Pair (Optional)
ObjectiveAchromatic Objective 4x,10x,40x,100x
Plan Achromatic Objective 4x,10x,40x,100x (Optional)
NosepieceQuadruple
Quintuple (Optional)
FocusingCoaxial Coarse & Fine Focusing,  Coarse Focus Range 8mm, Fine Focus Precision 0.004mm, Tension Adjustment Ring
Working StageDouble Layer Mechanical Working Stage, 115x125mm, Moving 30x80mm
CondenserN.A1.25 Abbe Condenser, With Iris Diaphragm, With Filter Holder
IlluminationLED, Brightness Continuously Adjustable, Built-in Recharging Batteries
Power AdapterInput 100-240V, Output DC 5V-1A

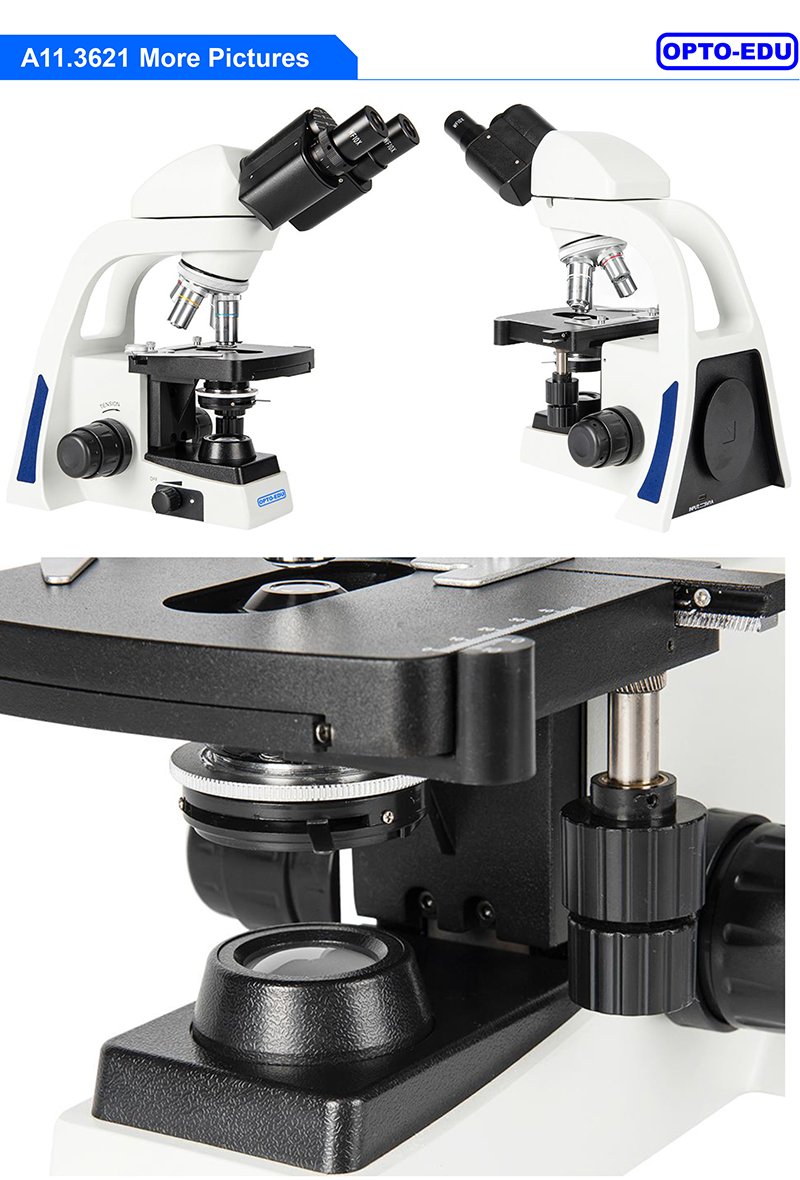

Pictures
Biological Microscope
Model No. A11.3621
Working Distance
 格式:1.0,或1.0~2.0
Focusing Scale
 0.000000
Focusing Range
 0.000000
Working Stage Size
 格式:100x100mm,或 Dia.100mm
