Upright Metallurgical Microscope, Transmit & Reflect, BF/DF, Polarizing

A13.0211-BD

Like Favorites

Upright Metallurgical Microscope, Transmit & Reflect, BF/DF, Polarizing

Modularization Function Design For BF/DF, DIC, Polarizing View In Metallurgical Lab
LWD Infinity BD Plan Objective (No Cover Glass) For DIC View

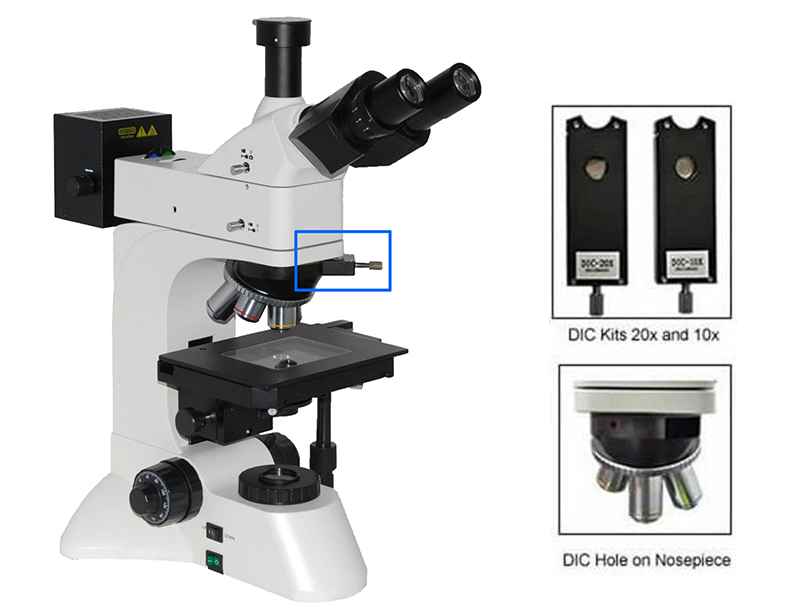

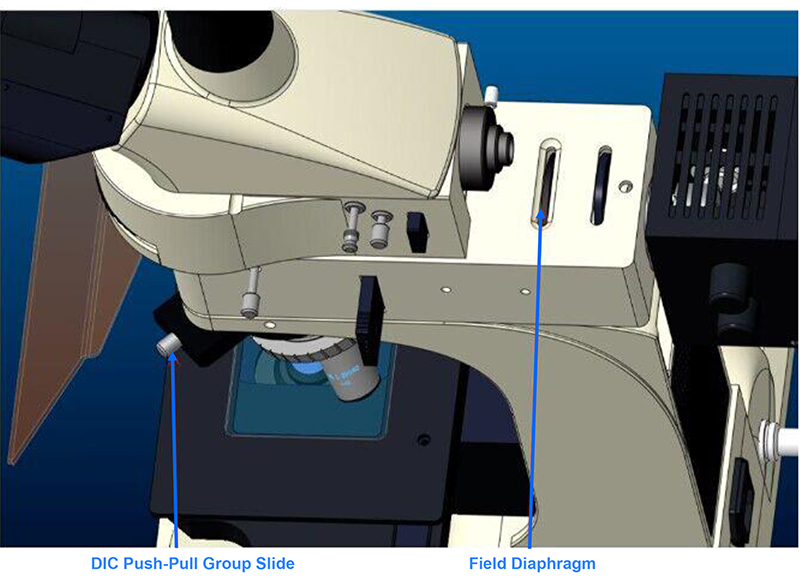

Optional DIC Push-Pull Group Slide For 5x/10x/20x DIC Objective

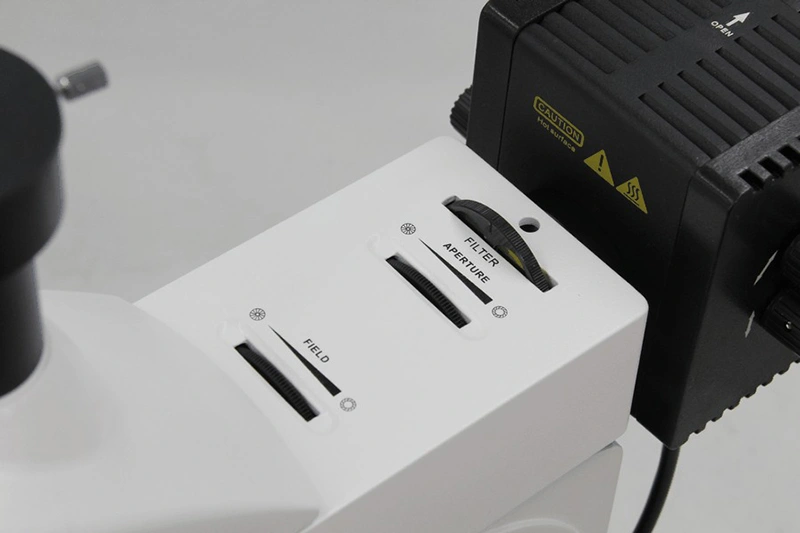

Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filters Switching Device
Transmit & Reflect Halogen Light Source For Metallurigcal Observe

Specification:

A13.0211-BD

Upright Metallurgical Microscope, Transmit & Reflect, DIC, Polarizing

A13.0211-DIC

Upright Metallurgical Microscope, Transmit & Reflect, BF/DF, DIC, Polarizing

A13.0211-BDDIC

A13.0211-R

Upright Metallurgical Microscope, Transmit & Reflect, Polarizing

A13.0211

A13.0211 Upright Metallurgical Microscope, Transmit & Reflect, BD, DIC, Polarizing		A13.0211 -R	A13.0211	A13.0211 -BD	A13.0211 -DIC	A13.0211 -BDDIC	Cata. No.

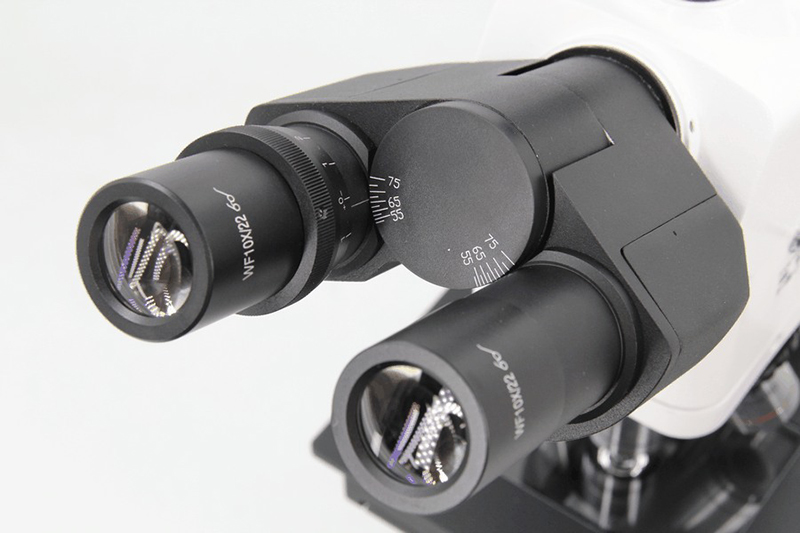

Head	Trinocular, Inclination 30°, Rotatable 360°, Interpupillary 53~75mm, Left Side Eyepiece Tube Diopter Adjustable ±5°, Switch E100:P0/E0:P100	●	●	●	●	●
Eyepiece	WF10x/22mm,	●●	●●	●●	●●	●●	A51.0202-1022
Eyepiece	Divding WF10x/22mm, 0.1mm/Div	○	○	○	○	○	A51.0205-G10B

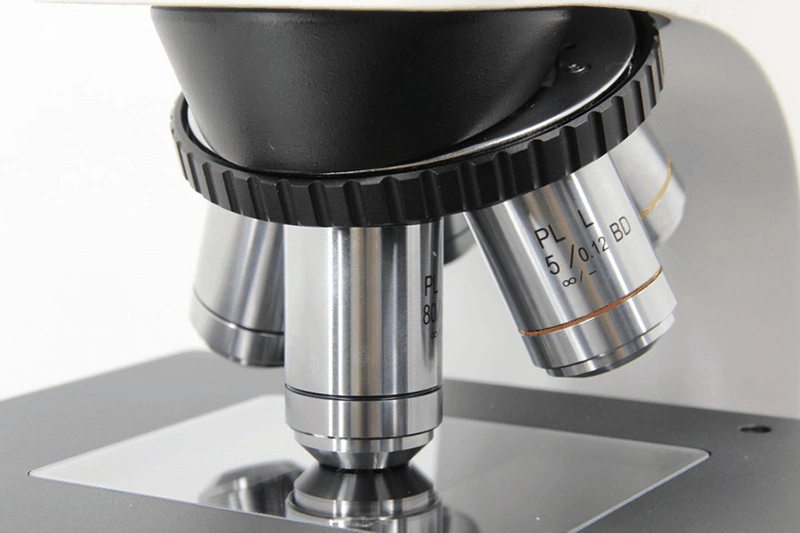

Nosepiece	Quintuple, Ball Bearing Inner Locating	●	●	●	●	●
LWD Infinity Bright Field Plan Objective (No Cover Glass)	PLL2.5x/0.07mm, W.D.13mm	○	○				A5M.0235-2.5
	PLL5x/0.12mm, W.D.26.1mm	●	●				A5M.0235-5
	PLL10x/0.25mm, W.D.20.2mm	●	●				A5M.0235-10A
	PLL20x/0.40mm, W.D.8.8mm	○	○				A5M.0235-20
	PLL40x/0.60mm, W.D.3.98mm, Spring	●	●		●	●	A5M.0235-40
	PLL50x/0.70mm, W.D.3.68mm, Spring	○	○				A5M.0235-50
	PLL60x/0.70mm, W.D.3.18mm, Spring	●	●				A5M.0235-60A
	PLL80x/0.80mm, W.D.1.25mm, Spring	○	○				A5M.0235-80
	PLL100x/0.85mm, W.D.0.4mm, Spring	○	○				A5M.0235-100

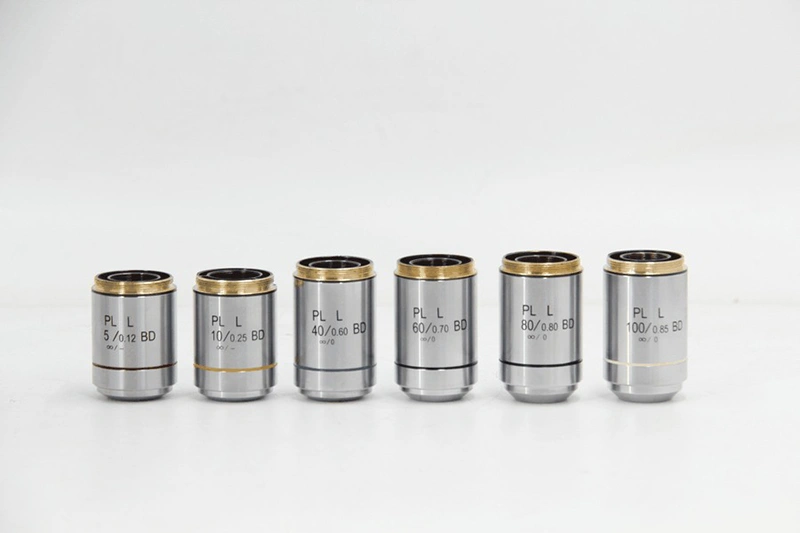

LWD Infinity Bright/Dark Field Plan Objective (No Cover Glass)	BD PLL5x/0.12mm, W.D.9.7mm			●			A5M.0237-5
	BD PLL10x/0.25mm, W.D.9.3mm			●			A5M.0237-10
	BD PLL20x/0.40mm, W.D.7.2mm			●			A5M.0237-20
	BD PLL40x/0.60mm, W.D.3.0mm, Spring			●			A5M.0237-40
	BD PLL50x/0.70mm, W.D.2.5mm, Spring			○			A5M.0237-50
	BD PLL60x/0.75mm, W.D.1.9mm, Spring			○			A5M.0237-60
	BD PLL80x/0.80mm, W.D.0.8mm, Spring			○			A5M.0237-80
	BD PLL100x/0.85mm, W.D.0.22mm, Spring			○			A5M.0237-100A
	BD PLL100x/0.85mm, W.D.0.40mm, Spring			○			A5M.0237-100A
LWD Infinity DIC Plan Objective (No Cover Glass)	LMPlan 5x/0.12mm, W.D.15.0mm				●		A5M.0238-5D
	LMPlan 10x/0.3mm, W.D.10.5mm				●		A5M.0238-10B
	LMPlan 20x/0.40mm, W.D.4.5mm				●		A5M.0238-20A
LWD Infinity DIC Bright/Dark Field PlanObjective	BD LMPlan 5x/0.12mm, W.D.7.9mm					●	A5M.0239-5A
	BD LMPlan 10x/0.25mm, W.D.9.3mm					●	A5M.0239-10A
	BD LMPlan 20x/0.40mm, W.D.1.4mm					●	A5M.0239-20A
DIC Observation	5x/10x/20x DIC Push-Pull Group Slide				●	●

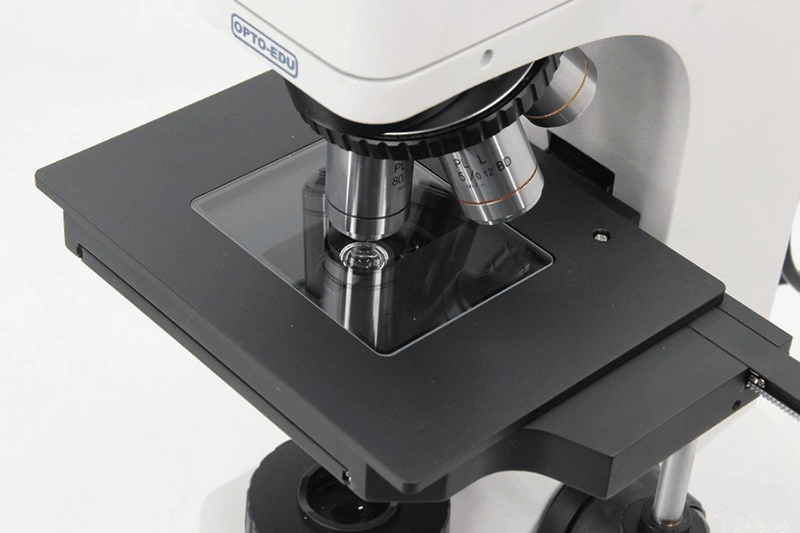

Working Stage	Double Layer Mechanical Stage, Size 210x140mm, Moving Range 63x50mm	●	●	●	●	●
Focusing	Coaxial Coarse & Ffine Focus System, With Tensional Adjustable And Up Stop, Fine Focusing Minimum Division 2um	●	●	●	●	●
Transmit Illumination
	12V30W Halogen Lamp, Brightness Adjustable		●	●	●	●
	Abbe Condenser N.A.=1.25, Rack & Pinion Up/Down Adjustable		●	●	●	●
	Blue Filter And Ground Glass		●	●	●	●
	Collector For Illumination With Halogen Lamp (With Filed Diaphragm)		●	●	●	●
Reflect Illumination	12V30W Halogen Lamp, Brightness Adjustable	●	●
	12V50W Halogen Lamp, Brightness Adjustable			●	●	●
	Epi Illumination Intergrate Field Diaphragm, Aperture Diaphragm, Filter Switching Device For Yellow, Blue, Green Filter & Ground Glass	●	●	●	●	●
Polarizing For Reflect Illumination	Push-Pull Type Polarizer	●	●	●	●	●
Polarizing For Reflect Illumination	Built-in Analyzer, Switch Freely	●	●	●	●	●
Adapter	0.4x C-Mount	○	○	○	○	○	A55.0202-1
	1.0x C-Mount	○	○	○	○	○	A55.0202-2
	0.5x C-Mount With Dividing 0.1mm/Div	○	○	○	○	○	A55.0202-3
	0.5x C-Mount	○	○	○	○	○	A55.0202-4
	Digital SLR Camera Adapter for Canon EF	○	○	○	○	○	A55.0204-1
Remark: '●' Means Standard Outfit, '○' Means Optional

Pictures Hide Same Show Difference
Model No.	A13.0211-BD	A13.0211-R	A13.0211	A13.0211-DIC	A13.0211-BDDIC
Other Specification	——	——	——	DIC Push-Pull Group Slide For 5x/10x/20x Objective	DIC Push-Pull Group Slide For 5x/10x/20x Objective
Polarizing	Push-Pull Type Polarizer, Built-in Analyzer And Swithching Freely	Push-Pull Type Polarizer, Built-in Analyzer And Swithching Freely	Push-Pull Type Polarizer, Built-in Analyzer And Swithching Freely	Push-Pull Type Polarizer, Built-in Analyzer And Swithching Freely	Push-Pull Type Polarizer, Built-in Analyzer And Swithching Freely
Power Supply Type	AC 110V/220V	AC 110V/220V	AC 110V/220V	AC 110V/220V	AC 110V/220V
Reflect Light	12V50W Halogen Lamp , Brightness Adjustable	6V30W Halogen Lamp , Brightness Adjustable	6V30W Halogen Lamp , Brightness Adjustable	12V50W Halogen Lamp , Brightness Adjustable	12V50W Halogen Lamp , Brightness Adjustable
Transmit Light	12V30W Halogen Lamp , Brightness Adjustable	6V30W Halogen Lamp , Brightness Adjustable	6V30W Halogen Lamp , Brightness Adjustable	12V30W Halogen Lamp , Brightness Adjustable	12V30W Halogen Lamp , Brightness Adjustable
Light Source Type	Halogen	Halogen	Halogen	Halogen	Halogen
Light Source Features	Halogen 50W Halogen 30W Transmit & Reflect	Halogen 30W Transmit & Reflect	Halogen 30W Transmit & Reflect	Halogen 50W Halogen 30W Transmit & Reflect	Halogen 50W Halogen 30W Transmit & Reflect
Condenser N.A.	1.25	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe	Abbe
Condenser Features	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Safety Stop Lock Ring
Working Stage Moving	63X50mm	63x50mm	63x50mm	63x50mm	63x50mm
Working Stage Size	210*140mm	210x140mm	210x140mm	210x140mm	210x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm
Objective	LWD Infinity Plan BF/DF PLL5x10x20x40x	LWD Infinity Plan PLL5x10x40x60x	LWD Infinity Plan PLL5x10x40x60x	LWD Infinity Plan Coverless LMPlan DIC 5x10x20x, Plan 40x	LWD Infinity Plan Coverless BF/DF LMPlan 5x10x20x, BF/DF Plan 40x,
Objective Type	Infinity Plan Dark Field	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan Dark Field
Objective Features	LWD BF+DF Covreless	LWD Covreless	LWD Covreless	DIC LWD Covreless	DIC LWD BF+DF
Nosepiece Holes	5 Holes	5 Holes	5 Holes	5 Holes	5 Holes
Nosepiece Features	Inward	Inward	Inward	Inward With DIC Slot	Inward With DIC Slot
Eyepiece	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm
Head Light Path	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100
Head Diopter	Left Tube Adjustable	Left Tube Adjustable	Left Tube Adjustable	Left Tube Adjustable	Left Tube Adjustable
Head Interpupillary	53~75mm	53~75mm	53~75mm	53~75mm	53~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°	30°	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	50x-400x	50x-600x	50x-600x	50x-400x	50x-400x
Optical System	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Features	Infinity	Infinity	Infinity	Infinity DIC	Infinity DIC
Standard Function	BF+DF+PL	BF+PL	BF+PL	BF+PL+DIC	BF+DF+PL+DIC

A13.0211 Catalogue.pdf 1.61M 2022/10/27
