The Key To Micro World!
Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Reflect & Transmit Light
Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Reflect & Transmit Light
Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Reflect & Transmit Light
Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Reflect & Transmit Light

A13.0901N-RT

Like Favorites

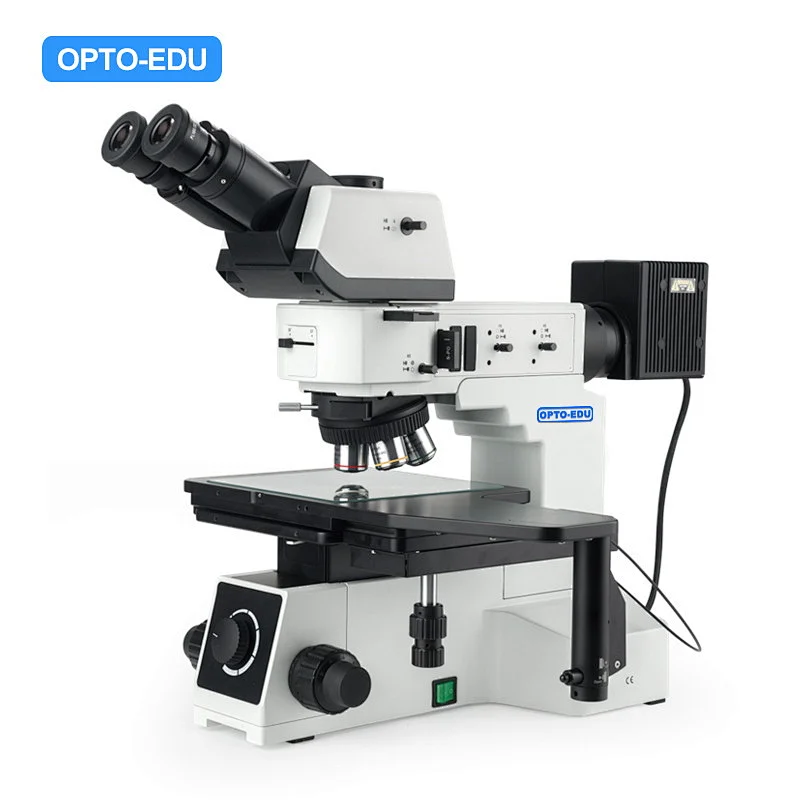

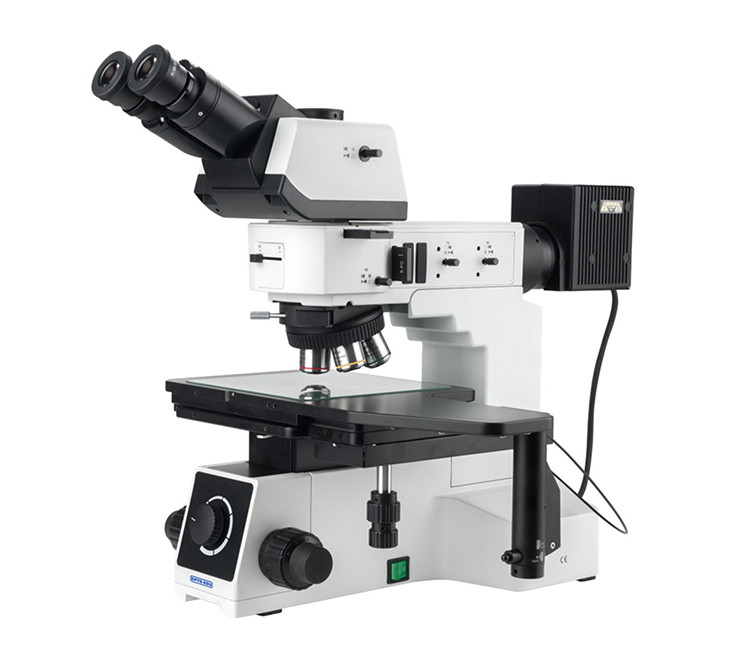

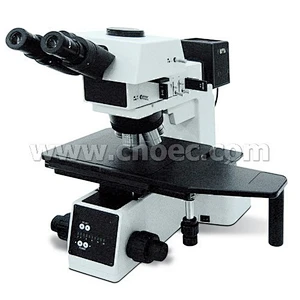

Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Reflect & Transmit Light


  • Bright/Dark Field, Polarzing, DIC, Semi-APO View Under Transmit & Reflect Light Source
  • 5°-35° Tiltable Trinocular Head With Erect Image Light Spiltting Ratio Switch E100:P0/E0:P100
  • Super Wide Field Plan Eyepiece 10x/25mm, 10x/26.5mm Optional
  • LWD Infinity Plan Metallurgical BF/DF DIC & Semi-APO Objectives
  • 6" Large Working Stage With Moving Range 158x158mm For Reflect & 100x100mm For Transmit Light
Quantity:












A13.0901  BD DIC Semi-APO Polarizing Metallurgical MicroscopeRRTCata. No.
Optical SystemBright Field, Dark Field, Polarizing, DIC, Reflect Light
Bright Field, Dark Field, Polarizing, DIC, Transmit & Reflect Light

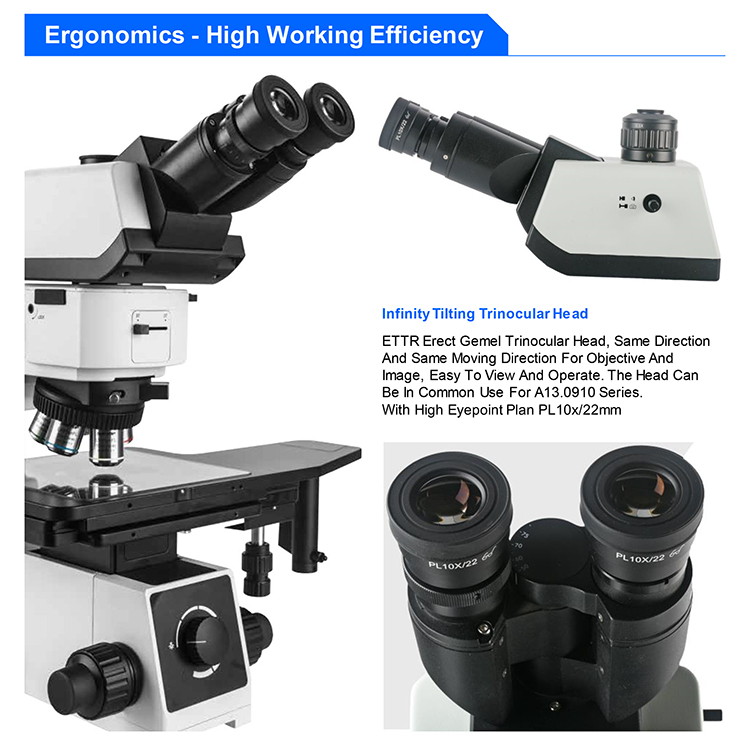

HeadETTR 5°-35° Tiltable Trinocular Head, Infinity Sedentopf, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100, Erect ImageA53.0911-T535

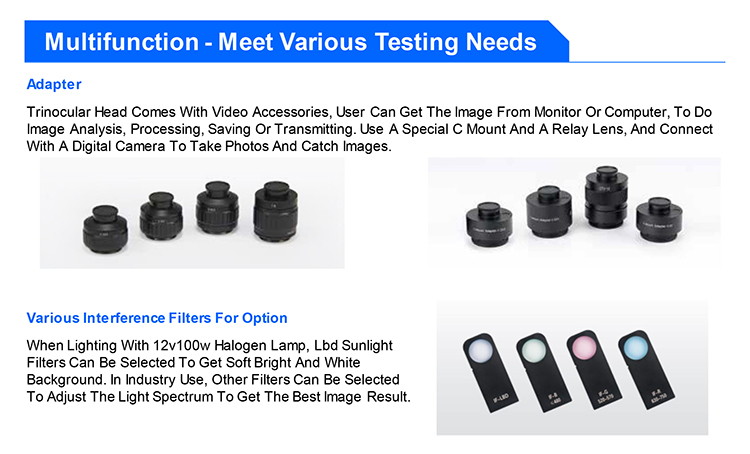

CCD Adapter0.5x C-Mount, For 1/2"CCD, Focus AdjustableA55.0931-05
0.35x C-Mount, For 1/2"CCD, Focus AdjustableA55.0931-35
0.65x C-Mount, For 1/2"CCD, Focus AdjustableA55.0931-65
1.0x C-Mount, For 1"CCD, Focus AdjustableA55.0931-10
EyepieceHigh Eyepoint Plan PL10x/22mm●●●●A51.0903-1022
High Eyepoint Plan PL10x/22mm With ReticleA51.0905-1022R
High Eyepoint Plan PL10x/22mm, Diopter AdjustableA51.0904-1022T
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, With Reticle  A51.0905-1022RT
High Eyepoint Plan PL10x/23mm, Diopter AdjustableA51.0904-1023T
High Eyepoint Plan PL15x/16mmPL15x16A51.0903-1516

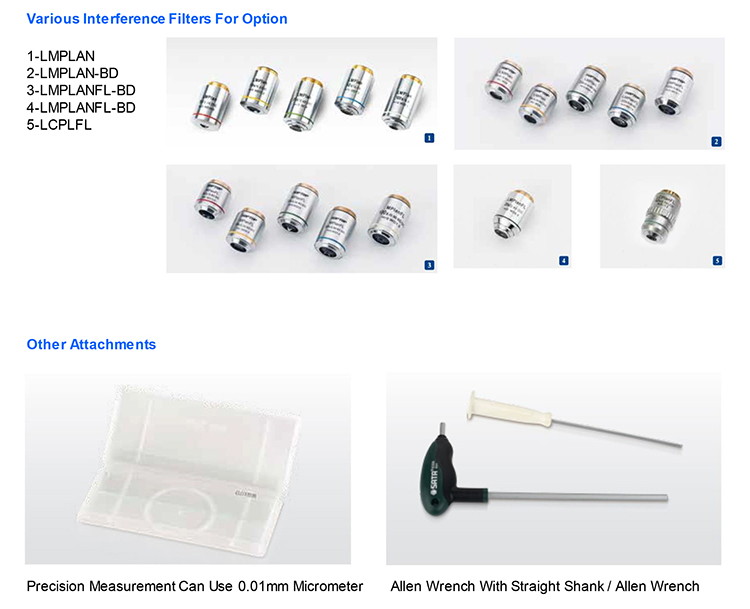

ObjectiveLWD Infinity Plan Metallurgical BF/DF DIC Objective
5X-DIC LMPL5X/0.15 W.D.9mmA5M.0939-5
10X-DIC LMPL10X/0.3 W.D.9mmA5M.0939-10
20X-DIC LMPL20X/0.50 W.D.3.4mmA5M.0939-20
LWD Infinity Plan Metallurgical BF/DF Semi-APO Objective
50X LMPLFL50X/0.55 W.D.7.5mmA5M.0940-50
LMPL100x/0.8 WD2.1mmA5M.0940-100
NosepieceBackward, Quintuple For Bright/Dark Field, With DIC SlotA54.0930-MX5BD
DICDIC Interfere SetA5M.0950

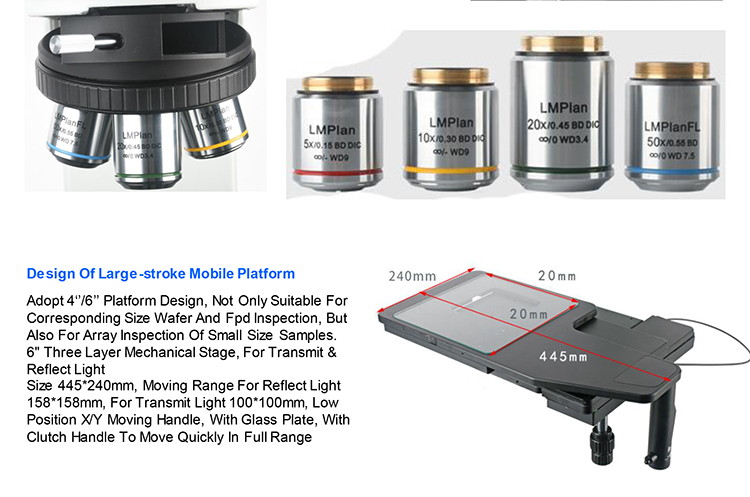

Working Stage6"Three Layer Mechanical Stage, For Transmit & Reflect Light
Size 445*240mm, Moving Range For Reflect Light 158*158mm, For Transmit Light 100*100mm, Low Position X/Y Moving Handle, With Glass Plate, With Clutch Handle To Move Quickly In Full Range
A54.0944-M6RT
Adapter for 4"Plate, for Reflect LightA54.0944-M4A
Adapter for 4"Plate, for Transmit & Reflect LightA54.0944-M4ART
4"Double Layer Mechanical Stage, For Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Metal Plate, Right Hand UseA54.0944-M4
4"Double Layer Mechanical Stage, For Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Metal Plate, Left Hand UseA54.0944-M4N
4"Double Layer Mechanical Stage, For Transmit & Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Glass PlateA54.0944-M4RT
Rotatable Working Stage 6", For Wafer 4", 5", 6"A54.0944-W6

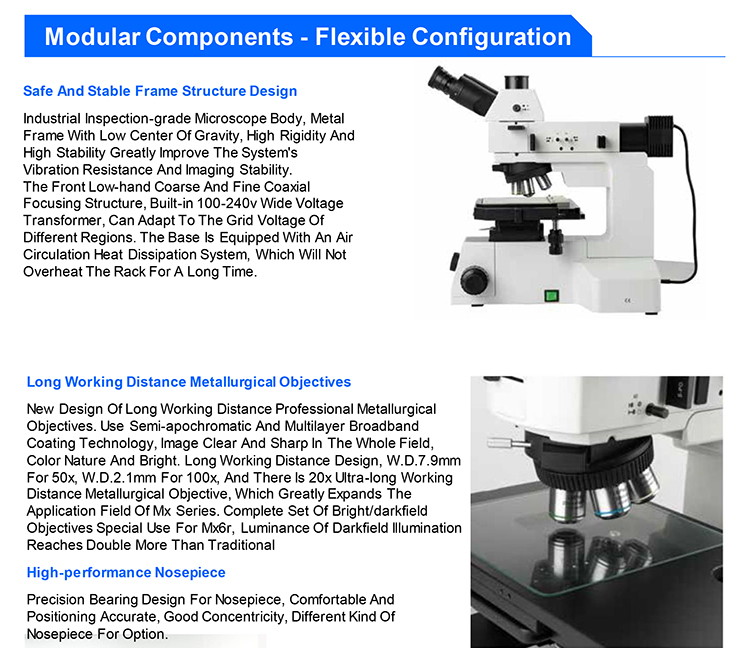

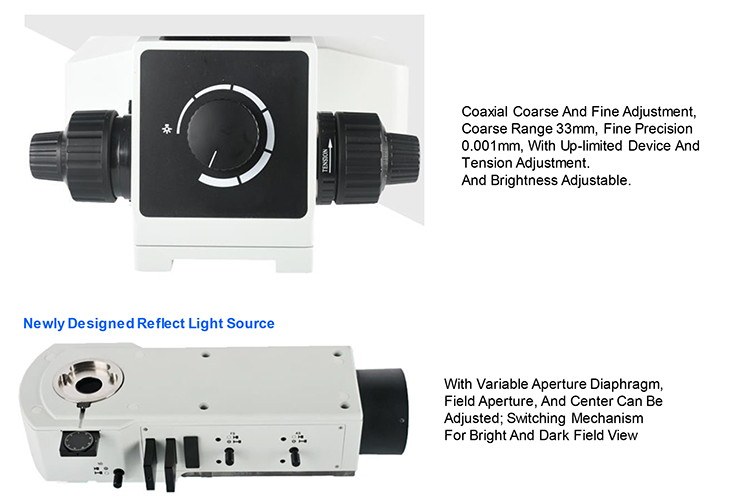

Main Body & FocusingReflected Frame: Coaxial Coarse And Fine Adjustment, Coarse Range 33mm, Fine Precision 0.001mm, With Pp-limited Device And Tension Adjustment. Built-in 90-240V Wide Voltage Transformer.
Transmitted & Reflected Frame: Coaxial Coarse And Fine Adjustment, Coarse Range 33mm, Fine Precision 0.001mm, With Up-limited Device And Tension Adjustment. Built-in 90-240V Wide Voltage Transformer, Transmitted Lamp-house With Single 5W LED. With NA 0.5 Condenser.
Reflect
Light

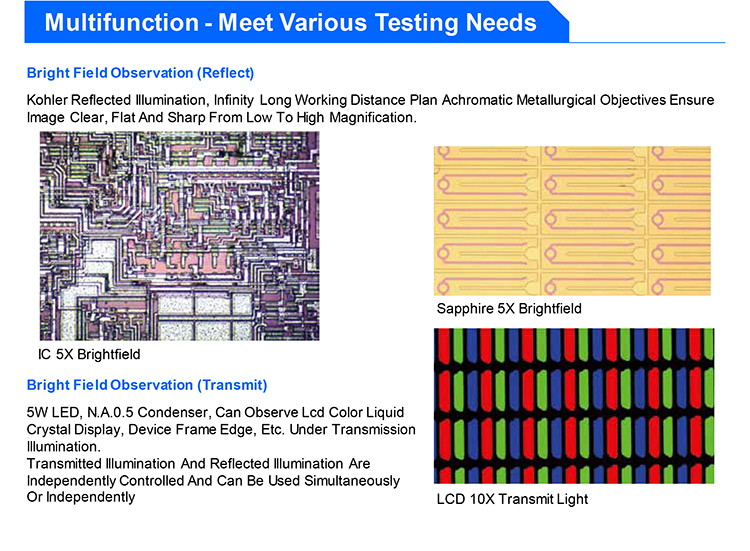

BF/DF Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing Slot, With Bright Field/Dark Field Switch, With Bright Intensity Setting And Reset Function On StandA56.0915
12V100W Halogen Light Box, Pre CenteredA56.0909-LH
12V100W Halogen Bulb (Philps 7724)A56.0923-12100
Interference Filter, For Reflect Light, Netural WhiteA5M.0953-LBD
Interference Filter, For Reflect Light, Blue, <480nmA5M.0953-B
Interference Filter, For Reflect Light, Green, 520~570nmA5M.0953-G
Interference Filter, For Reflect Light, Red, 630~750nmA5M.0953-R
Transmit
Light
Transmit Illumination, Single High Power 5W LED, Brightness Adjustable, N.A.0.5 Condenser, With Iris Diaphragm

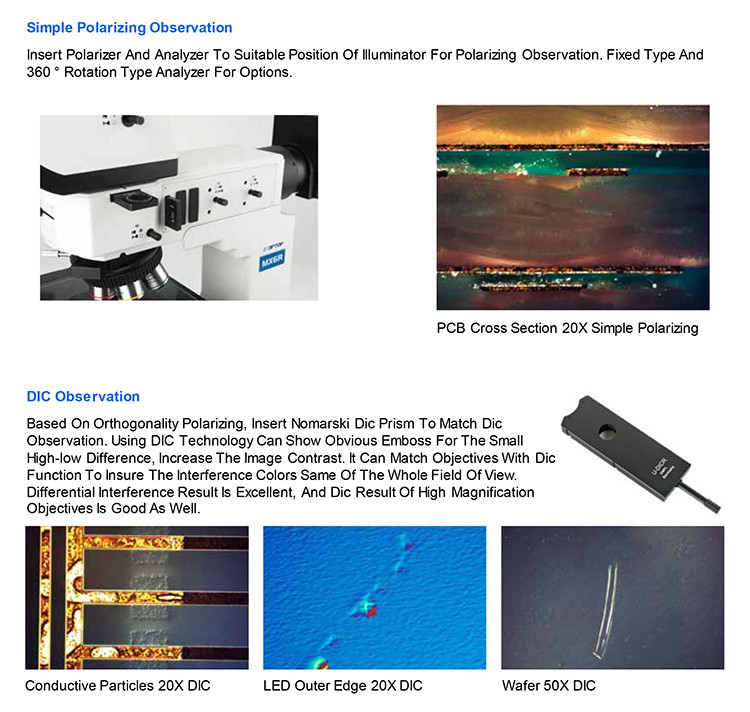

Polarizing For Reflect LightFixed Polarizer FlashboardA5P.0924-RP
360° Rotatable Analyzer FlashboardA5P.0924-RA360
Fixed Analyzer Flashboard A5P.0924-RA
Power90-240V Wide Voltage, One Way Power Output
90-240V Wide Voltage, Double Way Power Output
OtherAllen Key M3
Allen Key M4
Specimen PresserA5M.0920
New Developed Optional Accessories 2020
HeadTrinocular Head, 30° Inclined, Inverted Image, Interpupillary Distance 50~76mm, Light Split Ratio 0:100; 20:80; 100:0, Support Super Large Wide Field Eyepiece 25mm/26.5mmA53.0913-T30
Trinocular Head, 30° Inclined, Erect Image, Interpupillary Distance 50~76mmLight Split Ratio 0:100, 100:0, Support Super Large Wide Field Eyepiece 25mm/26.5mmA53.0913-T30E
EyepieceHigh Eyepoint Plan PL10x/25mm, Diopter AdjustableA51.0904-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter AdjustableA51.0904-10265T
High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With ReticleA51.0905-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With ReticleA51.0905-10265T
CCD Adapter0.5x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-05
0.35x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-35
0.65x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-65
1.0x C-Mount, For 1"CCD, Focus AdjustableA55.0930-10
ObjectiveLWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective
5X/0.15, WD=13.5mmA5M.0941-5
10X/0.30, WD=9mmA5M.0941-10
20X/0.50, WD=2.5mmA5M.0941-20
20X/0.40, WD=8.5mmA5M.0941-20A
50X/0.80, WD=1.0mmA5M.0941-50
100X/0.90, WD=1.0mmA5M.0941-100
Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mmA5M.0945-50
DICDIC Interfere Set, For BF/DF Semi-APO Objective ObjectiveA5M.0952
DIC Interfere Set, For BF/DF Semi-APO Objective Objective, Olympus LevelA5M.0952-O
Remark:  '' Means Standard Outfit, '' Means Optional





Pictures
Model No. A13.0901N-RT A13.0901N-R
Function
BF+PL+DIC BF+PL+DIC
Features
Infinity

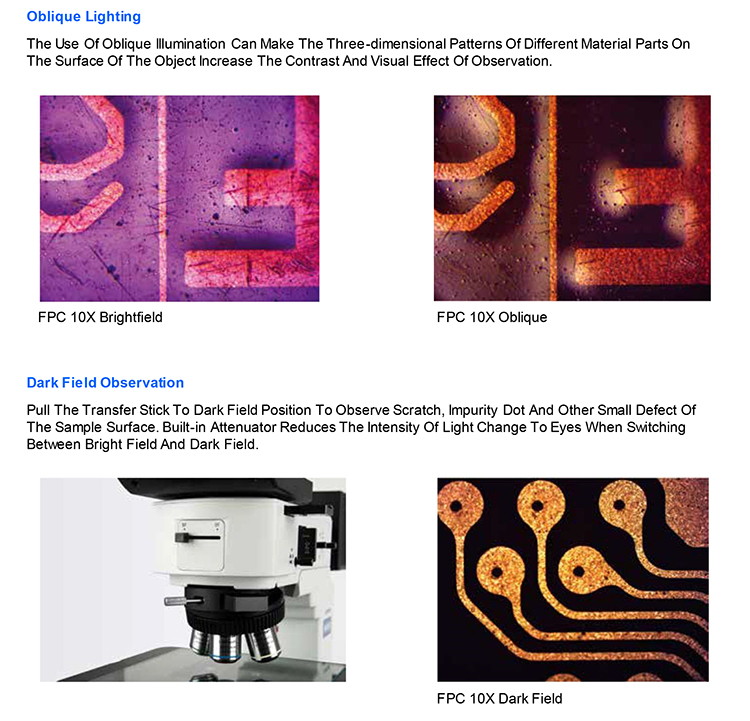

BF/DF
Coaxial Illumination
Motorized Control
Infinity
BF/DF
Coaxial Illumination
Motorized Control
Optical System
Infinity Plan Infinity Plan
Standard Magnification
50x-500x 50x-500x
Optional Magnification
50x-1500x 50x-1500x
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Head Rotation
Head Rotate 360° Head Rotate 360°
Head Specification
Erect Image Erect Image
Eyepiece Features
Wide Field
Plan
High Eyepoint
Wide Field
Plan
High Eyepoint
Eyepiece Diameter
30.0mm 30.0mm
Eyepiece
High Eyepoint Plan PL10x/22mm, 2 pcs High Eyepoint Plan PL10x/22mm, 2 pcs
Nosepiece Holes
5 Holes 5 Holes
Nosepiece Features
Center Adjustable
With Polarzing Slot
Center Adjustable
With Polarzing Slot
Objective Type
Infinity Plan
Dark Field
BD (Bright & Dark Field)
DIC
Semi-APO (Apochromatic)
Infinity Plan
BD (Bright & Dark Field)
DIC
Semi-APO (Apochromatic)
Objective Features
Covreless (Metallurgical)
Center Adjustable
With Iris Diaphragm
Covreless (Metallurgical)
Center Adjustable
With Iris Diaphragm
Objective
LWD Infinity Plan Metallurgical BF/DF DIC
LMPL5x/0.15 W.D.10.8mm
LMPL10x/0.3 W.D.10mm
LMPL20x/0.45 W.D.4mm

LWD Infinity Plan Metallurgical BF/DF Semi-APO
LMPL50x/0.55 WD7.8MM
LWD Infinity Plan Metallurgical BF/DF DIC
LMPL5x/0.15 W.D.10.8mm
LMPL10x/0.3 W.D.10mm
LMPL20x/0.45 W.D.4mm

LWD Infinity Plan Metallurgical BF/DF Semi-APO
LMPL50x/0.55 WD7.8MM
Working Stage Type
Triple Layers Mechanical Triple Layers Mechanical
Working Stage Feature
Large Size >140x140mm Large Size >140x140mm
Working Stage Size
455x240mm 455x240mm
Working Stage Moving
For Reflect Light 158*158mm,
For Transmit Light
For Reflect Light 158*158mm,
For Transmit Light
Working Stage Spec.
Low Position X/Y Moving Handle, With Glass Plate, With Clutch Handle To Move Quickly In Full Range Low Position X/Y Moving Handle, With Glass Plate, With Clutch Handle To Move Quickly In Full Range
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Range
33mm 33mm
Focusing Scale
0.001mm 0.001mm
Condenser Type
Abbe + Iris Diaphragm ——
Light Source Feature
Brightness Adjustable
LED 3W
Brightness Adjustable
Halogen 30W
Light Source Type
Halogen
LED
Halogen
Transmit Light
5W LED ——
Reflect Light
BF/DF 12V100W Halogen BF/DF 12V100W Halogen
Power Supply Type
AC 90V-240V Wide Voltage AC 90V-240V Wide Voltage
Power Supply
Double Way Power Output One Way Power Output
Polarizing
Fixed Polarizer Flashboard
360° Rotatable Analyzer Flashboard
Fixed Polarizer Flashboard
360° Rotatable Analyzer Flashboard
Optional Accessory
--LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective 5x,10x,20x,50x,100x
--DIC Interfere Set, For BF/DF Semi-APO Objective
--LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective 5x,10x,20x,50x,100x
--DIC Interfere Set, For BF/DF Semi-APO Objective
Other Specification
Interference Filter, For Reflect Light, Netural White Interference Filter, For Reflect Light, Netural White
