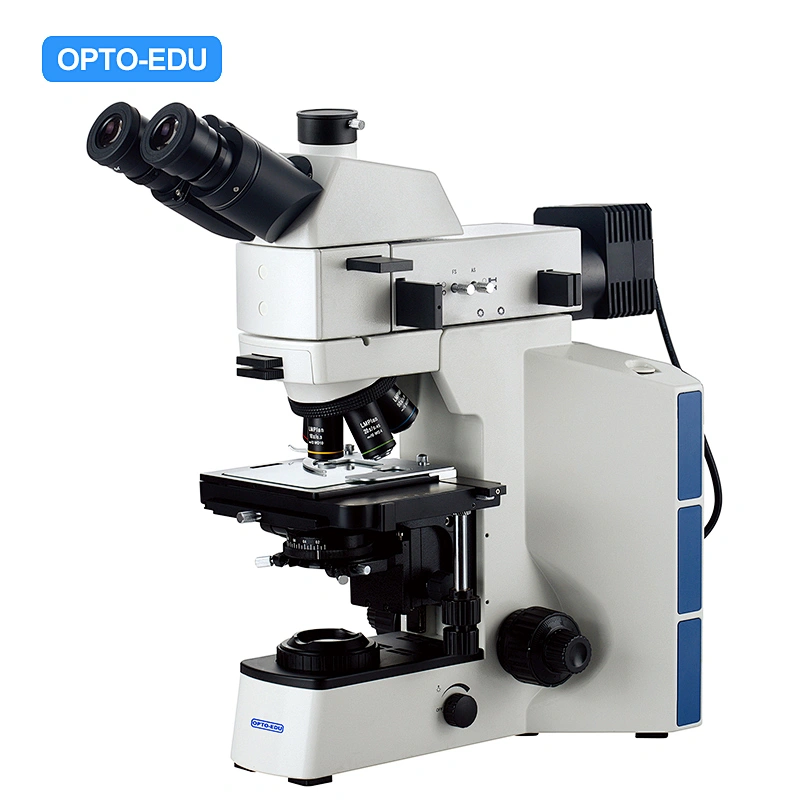

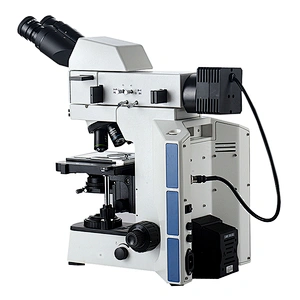

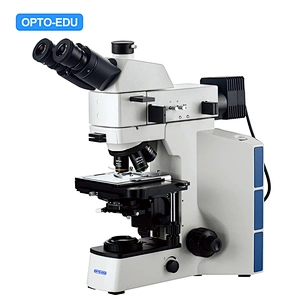

Metallurgical Microscope, Transmit & Reflect Light

A13.0909-RT

Like Favorites

Metallurgical Microscope, Transmit & Reflect Light

Newly Designed Integrative Y Shape Full Metal Body High Stability No Image Dithering
Compensation Trinocular Head, 30° Inclined, 360° Rotatable
LWD Infinity Plan Achromatic Metallurgical Objectives 5x,10x,20x,50x,100x (Optional)
Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm
Transmit & Reflect Light Both 5W LED With Oblique Light

Specification:

A13.0909-RT

A13.0909-R

A13.0909 Metallurgical Microscope Specification		R	RT
Optical System	Infinity Color Corrected Optical System
Head	Compensation Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Splitting Ratio R:T=100:0/0:100, Diopter +/-5 Adjustable.
Eyepiece	High Eye-point Wide Field Plan Eyepiece PL10x22mm
Objective	LWD Infinity Plan Achromatic Metallurgical Objectives
	5x LMPL5x/0.15, WD10.8mm
	10x LMPL10x/0.3, WD10mm
	20x LMPL20x/0.45, WD4mm
	50x LMPL50x/0.55, WD7.9mm
Nosepiece	5 Holes Revolving Nosepiece, Backward
Focusing	Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Range 25mm, Fine Precision 0.002mm
Working Stage	For Reflect Light	•
	Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment, With MetalPlate, Up/Down Range Accept 78mm High Sample
	For Transmit & Reflect Light		•
	Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment, With Glass Plate, Up/Down Range Accept 28mm High Sample
Light Source	Reflect Light	•	•
	Lamp House With Single 5W LED, Warm Color, Koehler Illuminator With Oblique Light Device, Center Adjustable Field And Aperture Diaphragm, Interference Filter Blue <480nm, Green 520~570nm, Red 630~750nm, White Balance
	Transmit Light		•
	Lamp House With Single 5W LED, Warm Color, Filter: Yellow, Neutral, IF550, LBD, Condenser N.A. 0.9/0.25 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm
Power	Wide Range Voltage 100~240V AC 50/60Hz
Optional Accessories
Eyepiece	High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable	A51.0905-1022R
	High Eye-point PL15x/16mm	A51.0903-1516
Objective	LWD Infinity Plan Ac hromatic Metallurgical Objectives 100X LMPL100X/0.8, WD2.1mm	A5M.0954-100
CCD Adapter	1x C-Mount, Focus Adjustable	A55.0926-10
	0.50x, For 1/2” C-Mount, Focus Adjustable	A55.0926-50
	0.67x, For 2/3” C-Mount, Focus Adjustable	A55.0926-67

Pictures Hide Same Show Difference
Model No.	A13.0909-RT	A13.0909-R
Camera Features	Auto 3D Measure	——
Polarizing	——	Polarizer & Analyzer Flashboard For Reflect Light
Power Supply Type	AC 110V-240V	AC 110V-240V
Reflect Light	5W LED With Oblique Light, Interference Filter: Blue <480nm, Green 520~570nm, Red 630~750nm, White B	5W LED With Oblique Light, With Polarizing Set
Transmit Light	5W LED, Filter Yellow, Neutral, IF550, LBD	——
Light Source Type	LED	LED
Light Source Features	LED 5W Transmit & Reflect Oblique Kohler	LED 5W Oblique Kohler
Condenser N.A.	0.9/0.25	——
Condenser Type	Swing-Out	——
Condenser Features	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	——
Focusing Scale	0.002mm	0.002mm
Focusing Range	25mm	25mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage	For Transmit & Reflect Light, With Glass Plate, Up/Down Range Accept 28mm High Sample	For Reflect, With Metal Plate, Up/Down Range Accept 78mm High Sample
Working Stage Moving	76x42mm	76x42mm
Working Stage Size	175x145mm	175x145mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm	Size ≥140x140mm
Objective	LWD Infinity Plan Metallurgical 5x10x20x50x	LWD Infinity Plan Metallurgical 5x10x20x50x
Objective Type	Infinity Plan Metallurgical	Infinity Plan Metallurgical
Objective Features	LWD Covreless	LWD Covreless
Nosepiece Holes	5 Holes	5 Holes
Nosepiece Features	Inward	Inward
Eyepiece	PL10x22mm, 2 pcs	PL10x22mm, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm
Head Light Path	E100:P0/E0:P100	E100:P0/E0:P100
Head Diopter	Left Tube Adjustable	Left Tube Adjustable
Head Interpupillary	54~75mm	54~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	50x-500x	50x-500x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity
Standard Function	BF	BF+FL
New Product Year	2019	2019

A13.0909 Catalogue.pdf 2.54M 2022/10/09
