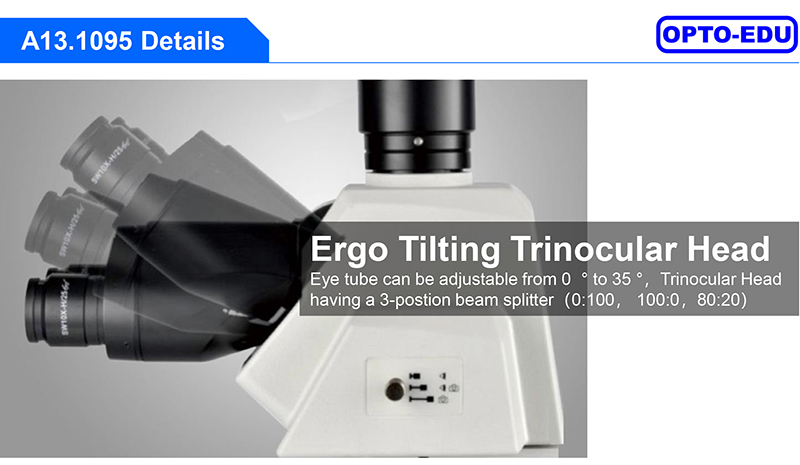

| Ergo Tilting Trinocular Head Eye tube can be adjustable from 0 ° to 35 °，Trinocular Head having a 3-postion beam splitter（0:100， 100:0，80:20） |

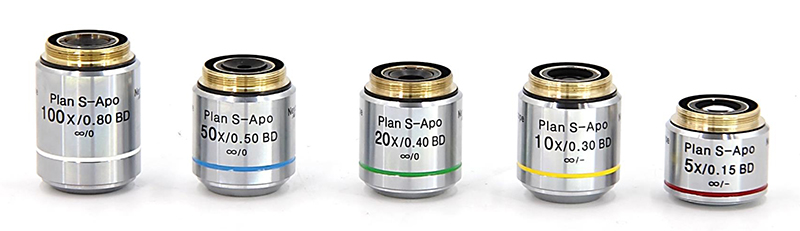

| A5M.1091, A5M1092 Series Infinity Plan BF/DF Semi-APO Objectives By using carefully selected high- transparent glass and advanced coating technology, A5M.1091 objective lens can provide high resolution image and accurately reproduce the natural color of the specimen . For special applications, a variety of objectives is available, including polarizing and long working distance. |

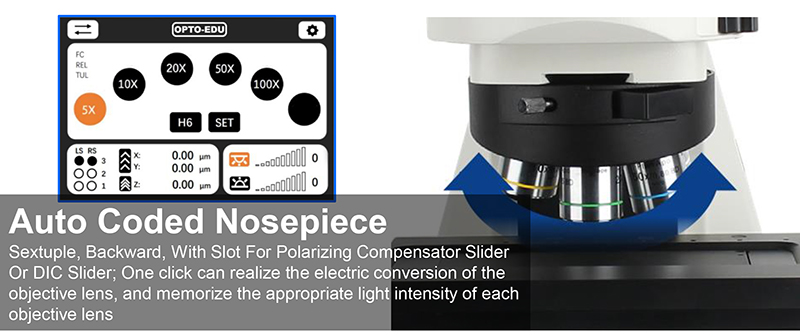

| Auto Coded Nosepiece Sextuple, Backward, With Slot For Polarizing Compensator Slider Or DIC Slider; One click can realize the electric conversion of the objective lens, and memorize the appropriate light intensity of each objective lens |

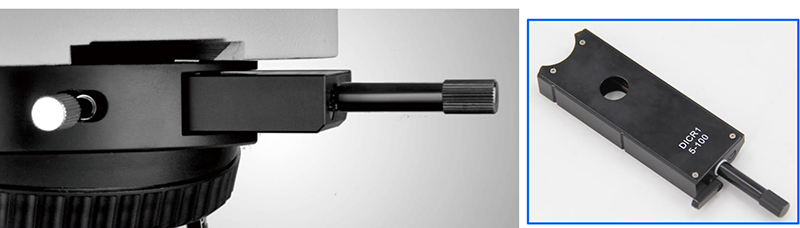

| Nomarski DIC With newly designed DIC module, the height difference of a specimen which can not be detected with brightfield becomes a relief-like or 3D image. It is ideal for the observation of LCD conducting particles and the surface scratches of hard-disk etc |

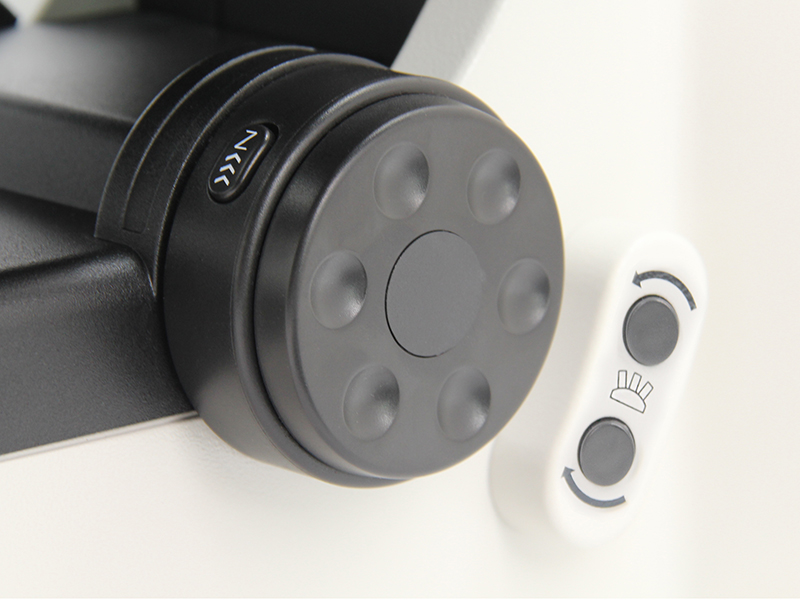

| Speed Control & Objective Convert Button The hand wheel buttons on both sides work independently, and different focusing speeds can be set respectively Quickly switch objectives during binocular observation |

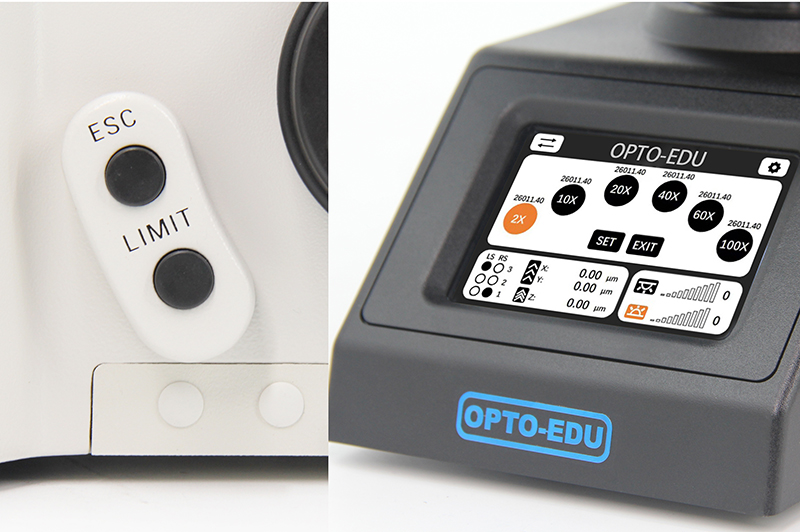

| ESC: Relative coordinate zero point LIMIT: Temporary upper limit Touch Screen Which can be used for focusing, adjusting light intensity, setting limit and converting objective lens |

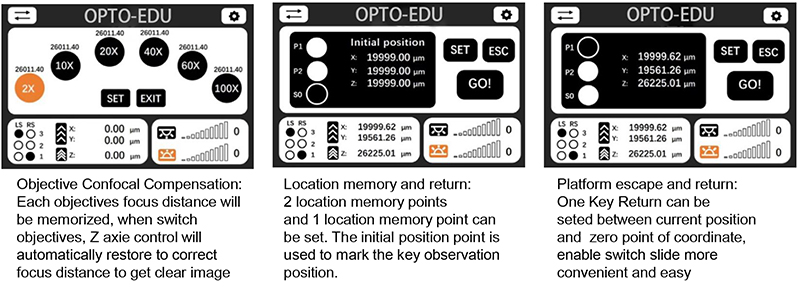

| Touch Control Screen, Saving Space, Flexible Control The front touch control screen integrated with the microscope does not occupy the desktop position. The interface is simple and easy to operate, and the programmable control simplifies the repeated observation and imaging process. Powerful functions: three axis coordinate display, speed gear display, objective electric switch, objective double hole directional switch, position memory and return, relative coordinate display, objective focus compensation, temporary upper limit setting, platform escape and recovery, display day / night mode, etc. |

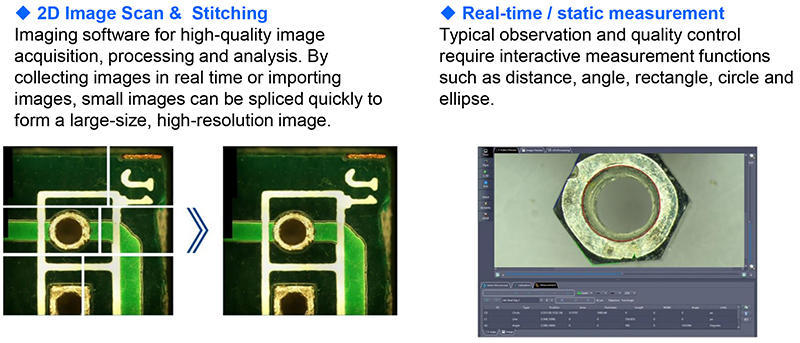

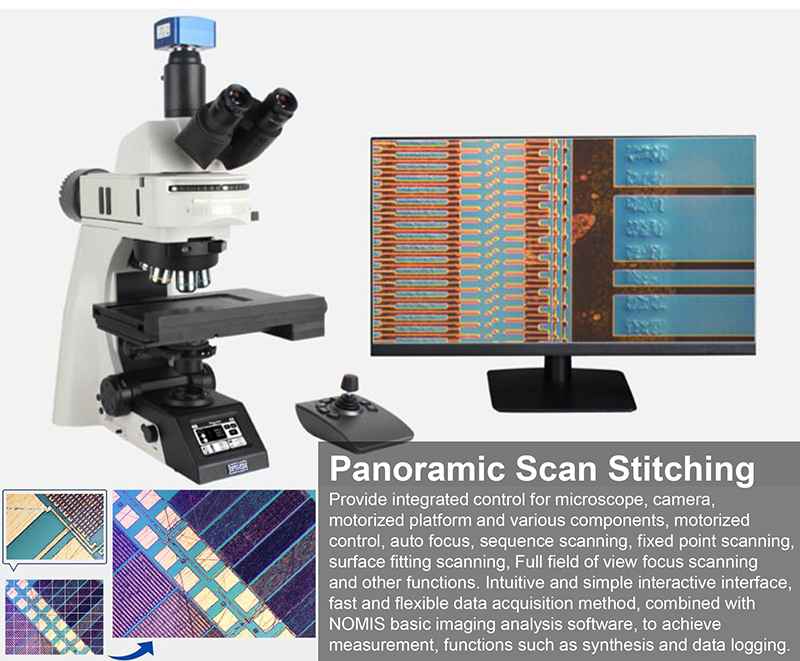

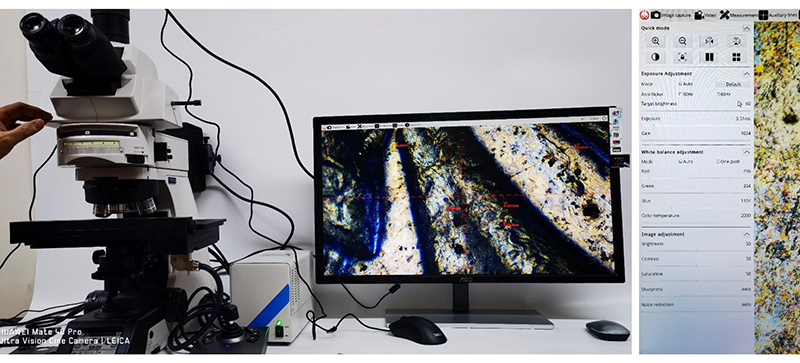

| Panoramic Scan Stitching Provide integrated control for microscope, camera, motorized platform and various components, motorized control, auto focus, sequence scanning, fixed point scanning, surface fitting scanning, Full field of view focus scanning and other functions. Intuitive and simple interactive interface, fast and flexible data acquisition method, combined with NOMIS basic imaging analysis software, to achieve measurement, functions such as synthesis and data logging. |

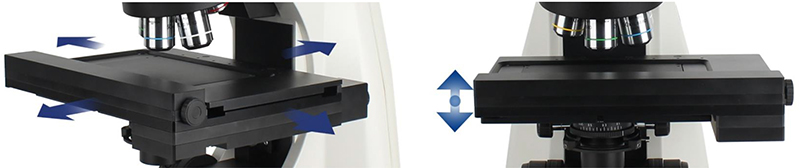

| Motorized X/Y/Z Working Stage A54.1095 micro electric control platform provides control movement in three directions of X/Y/Z. The stepper motor and screw rod mode is adopted to ensure the flatness and accuracy of the X/Y axis movement, and the maximum scanning speed can reach 25mm/s. Through software control, it can process microscopic shooting automation and process pictures, such as image stitching, depth-of-field fusion (need to match the electric Z-axis), perforated plate scanning, etc. |

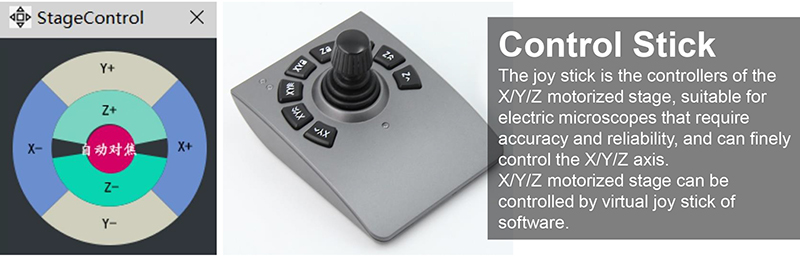

| Control Stick The joy stick is the controllers of the X/Y/Z motorized stage, suitable for electric microscopes that require accuracy and reliability, and can finely control the X/Y/Z axis. X/Y/Z motorized stage can be controlled by virtual joy stick of software. |

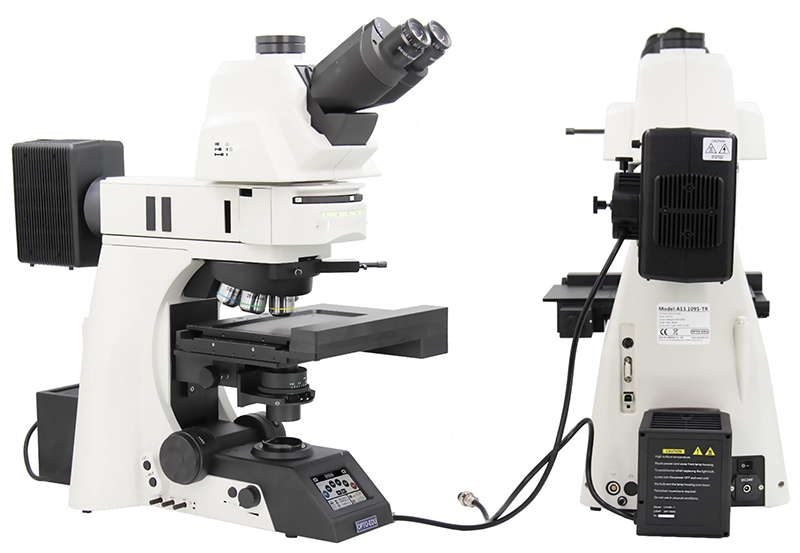

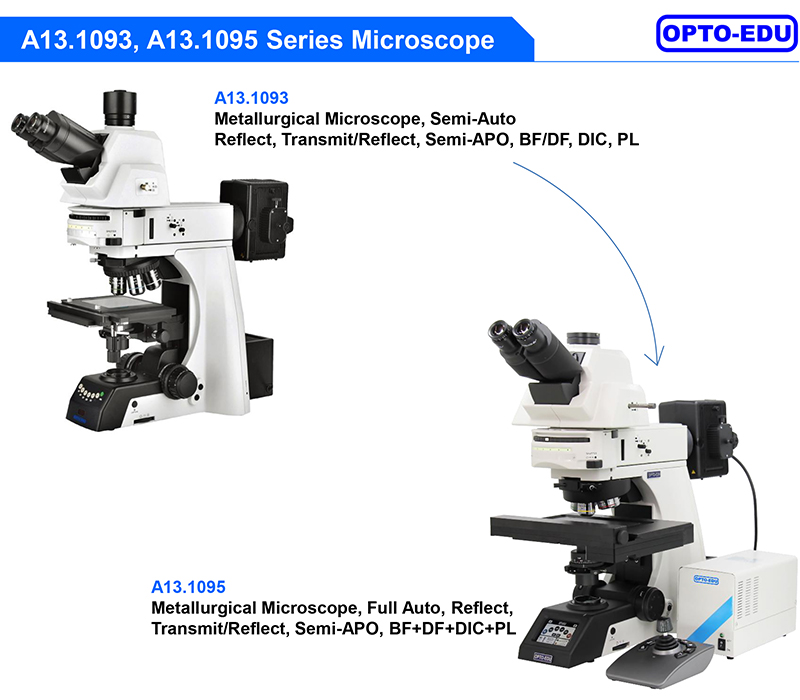

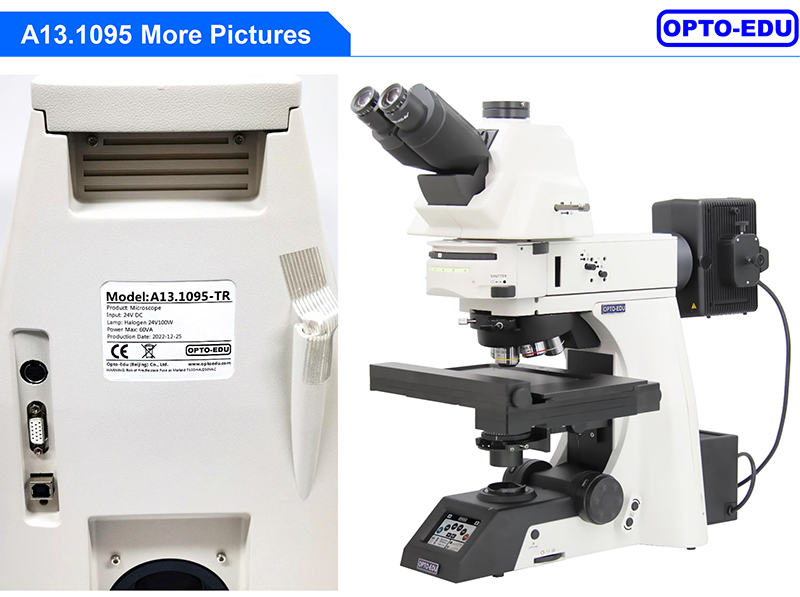

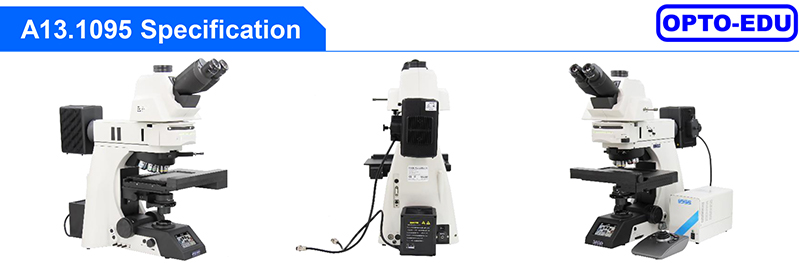

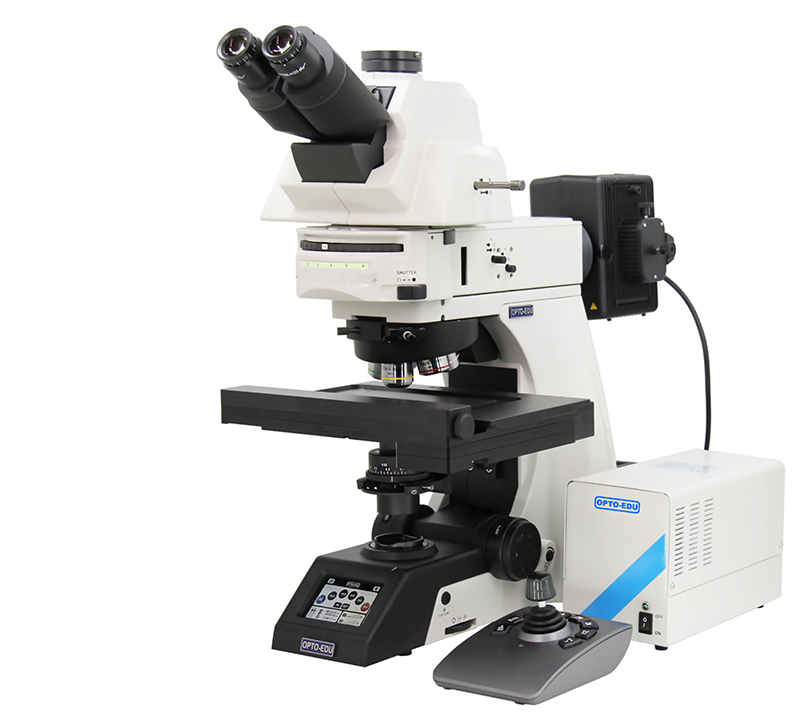

| A13.1095 Metallurgical Microscope, Full Auto, Reflect, Transmit/Reflect, Semi-APO, BF+DF+DIC+PL | A13.1095 | Cata.No. | ||
| -R | -TR | |||
| Optical System | NIS45 Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ● | ● | ||
| Polarizing | ● | ● | ||
| DIC | ● | ● | ||
| Main Body | BHManual Body + HalogenIllumination. | A54.1090-BH | ||
| BLManual Body + LEDIllumination. | A54.1090-BL | |||
| ATHSemi-Auto Body + HalogenIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | ● | ● | A54.1090-ATH | |
| ATLSemi-Auto Body + LEDIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | ○ | ○ | A54.1090-ATL | |
| Head | Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm | ○ | ○ | A53.1090-B |
| Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100 | ○ | ○ | A53.1090-T | |
| Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100 | ● | ● | A53.1090-TT | |
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ●● | ●● | A51.1090-1025 |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-1022 | |
| EW12.5x/16mm, High Eyepoint | ○ | ○ | A51.1090-12516 | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-1516 | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-2012 | |
| Nosepiece | Manual Nosepiece, Sextuple, Backward | A54.1091-6M | ||
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | A54.1091-6C | |||
| Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them | ● | ● | A54.1091-6A | |
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ||
| Protect Cover For Nosepiece Holes | ● | ● | A54.1091-C | |
| NIS45 N-MPFN Infinity Plan BF/DF Semi-APO Metallurgical Objective | BD 5x/0.15, W.D.20mm, No Cover Glass | ● | ● | A5M.1091-5 |
| BD 10x/0.3, W.D.11mm, No Cover Glass | ● | ● | A5M.1091-10 | |
| BD 20x/0.45, W.D.3mm, No Cover Glass | ● | ● | A5M.1091-20A | |
| BD LWD 20x/0.4, W.D.12mm, No Cover Glass | ○ | ○ | A5M.1091-20 | |
| BD LWD 50x/0.5, W.D.10.6mm, No Cover Glass | ○ | ○ | A5M.1091-50 | |
| LWD 100x/0.8, W.D.3.5mm, No Cover Glass | ○ | ○ | A5M.1091-100 | |
| NIS45 BF/DF APO | BD 50x/0.8, W.D.1mm, No Cover Glass | ● | ● | A5M.1092-50 |
| BD 100x/0.9, W.D.1mm, No Cover Glass | ● | ● | A5M.1092-100 | |
| Working Stage For Metallurgical Microscope | Motorized X/Y/Z Working Stage, Size 275x239x44.5mm, Move Range 125x75mm, Minimum step length 0.1um, repeat positioning accuracy ±1.5um, maximum speed 20nm/s, soft limit + mechanical limit + photoelectric switch limit, Z axis repeat positioning accuracy average: ±1.5um, near focus ±0.1um, Z Maximum axis speed 10r/s, three-dimensional controllable remote sensing, four-speed speed, USB2.0 & RS232 communication interface, communication speed 9600, Including Control Stick, Controller Box | ● | ● | A54.1095 |
| Condenser | LWD Condenser, N.A.0.65, W.D.10.2mm, Center Adjustable, Dual Condenser Lifting Handle | ● | ● | A5M.1095 |
| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm,Can Exchange Hand Wheel Between Left/Righ, | ● | ● | |
| Max Sample Space 76mm | ● | |||
| Max Sample Space 56mm | ● | |||
| Reflect Light Source | ReflectEpi Metallurgical Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination | ● | ● | A5M.1090 |
| 12V100W Halogen Lamp Housing | ● | ● | A5M.1090-100W | |
| BF/DF View Block | ● | ● | A5M.1090-BD | |
| BF1 View Block | ● | ● | A5M.1090-B1 | |
| BF2 View Block | ● | ● | A5M.1090-B2 | |
| Filter For Reflect Light Source | Filter Blue | ● | ● | A56.1093-B |
| Fibler Green | ● | ● | A56.1093-G | |
| Filter Yellow | ● | ● | A56.1093-Y | |
| Filter Forested | ● | ● | A56.1093-F | |
| Polarizing | Polarizer For Reflect Light Source | ● | ● | A5P.1090-RP |
| Analyzer For Reflect Light Source | ● | ● | A5P.1090-RA | |
| DIC | Blank Slider | ● | ● | A5P.1090-E |
| Nomarski DIC Slider For Reflect Light Source | ● | ● | A5M.1090-DIC | |
| Transmit Light Source | TransmitKohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House | ● | A56.1090-12V100W | |
| TransmitKohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body | ○ | A56.1090-3WLED | ||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | ● | A56.1090-ECO | ||
| AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected A13.1095 Upgradeable To Auto Brightness Adjust, Must Upgrade To A54.1091-6C Coded Nosepiece At Same Time | ● | A56.1090-AB | ||
| Filter For TransmitLight Source | Filter Holder On Base, Can Hold 3 Filters | ● | A56.1092-H | |
| Filter LBD | ● | A56.1092-LBD | ||
| Filter Green | ● | A56.1092-G | ||
| Filter Yellow | ● | A56.1092-Y | ||
| Filter ND6 | ● | A56.1092-ND6 | ||
| Filter ND25 | ● | A56.1092-ND25 | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ○ | ○ | A55.1090-E |
| C-Mount 1.0x | ○ | ○ | A55.1090-1.0x | |
| C-Mount 0.5x | ○ | ○ | A55.1090-0.5x | |
| Software | NOMIS Basic Image Processiing Software | ○ | ○ | A30.1090 |
| Other Accessories | Working Stage Holder Bracket | ● | ● | A54.1096 |
| Adapter To Adjust Eye Position | ○ | ○ | A54.1096-A1 | |
| Adapter To Lower The Stage Position 1" | ○ | ○ | A54.1096-A2 | |
| Immersion Oil | ○ | ○ | A50.1090-01 | |
| Allen Wrench | ● | ● | A50.1090-02 | |
| Power Cord | ● | ● | A50.1090-03 | |
| Short Eye Cover, For Eyepiece | ○ | ○ | A50.1090-04 | |
| Long Eye Cover, For Eyepiece | ○ | ○ | A50.1090-05 | |
| Eyepiece Micrometer, Cross | ○ | ○ | A50.1090-06 | |
| Adapter Ring To Install Eyepiece Micrometer | ○ | ○ | A50.1090-07 | |
| USB Cable | ○ | ○ | A50.1090-08 | |
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | ||||
