Metallurgical Microscope, Reflect & Transmit, BF/DF

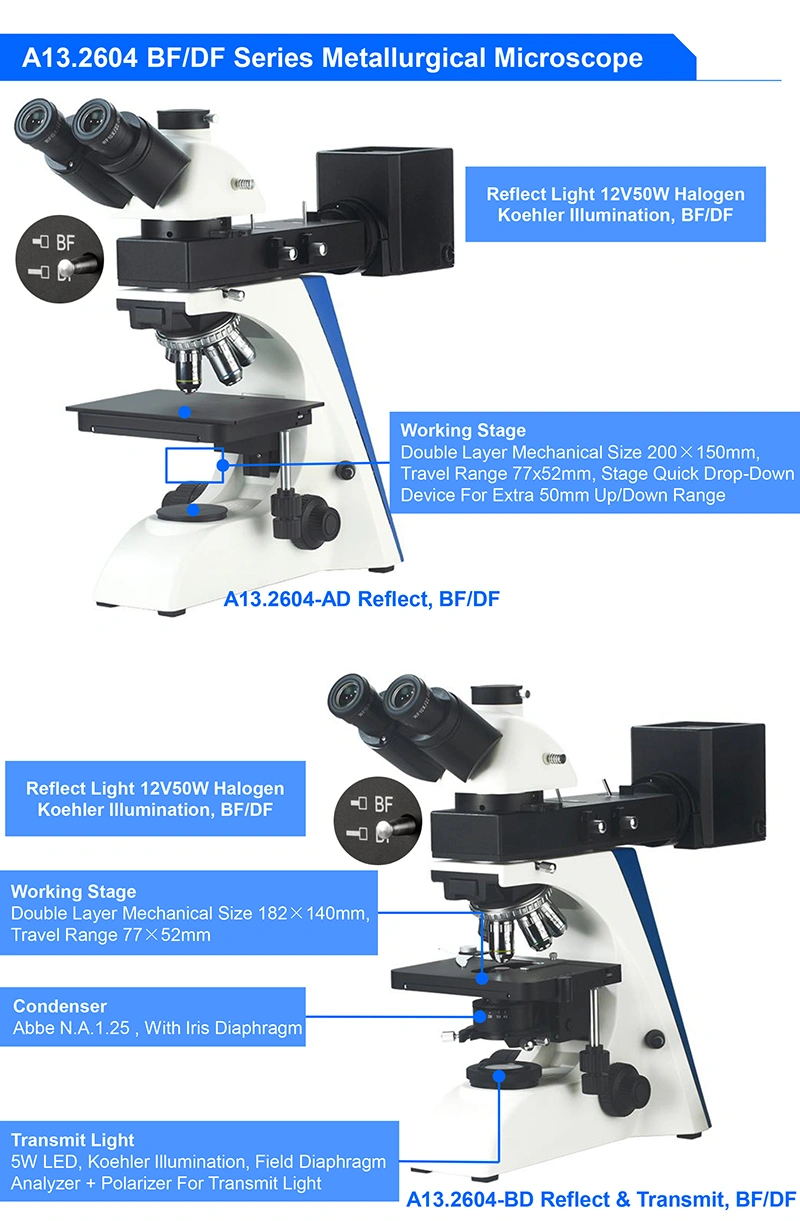

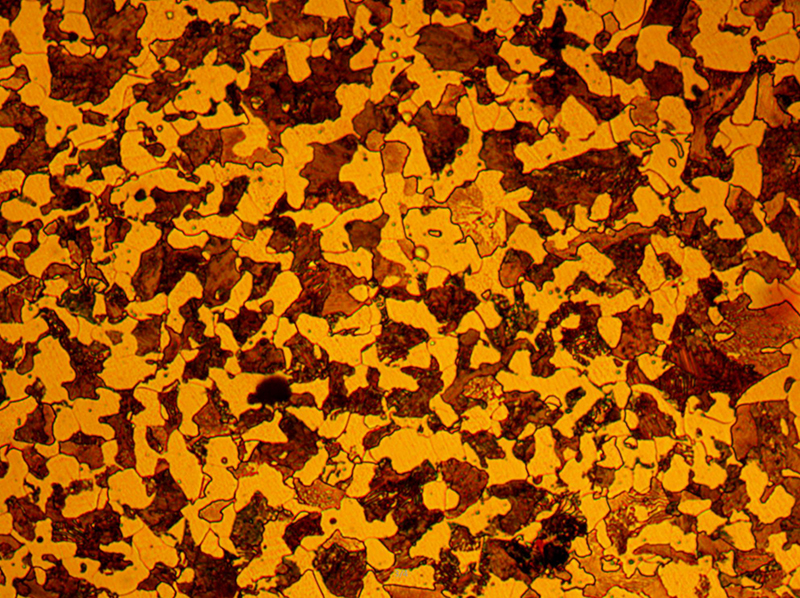

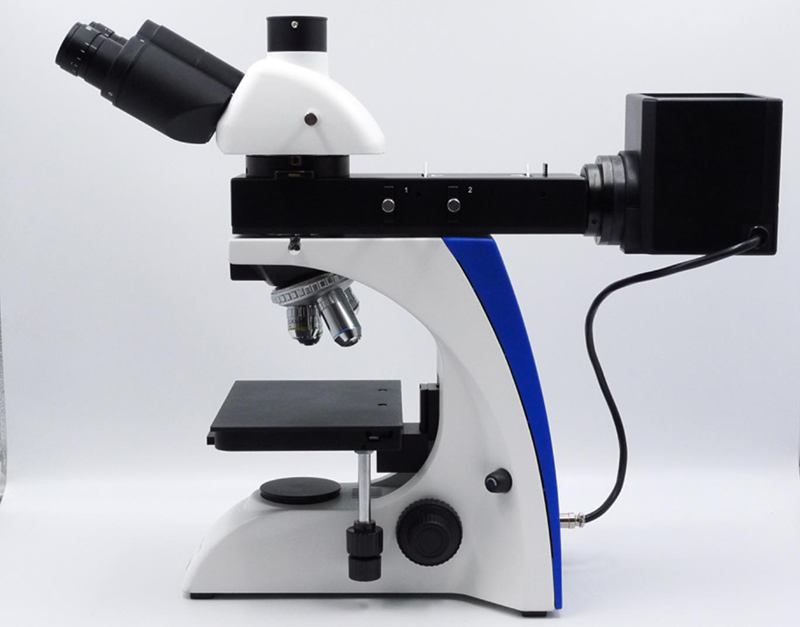

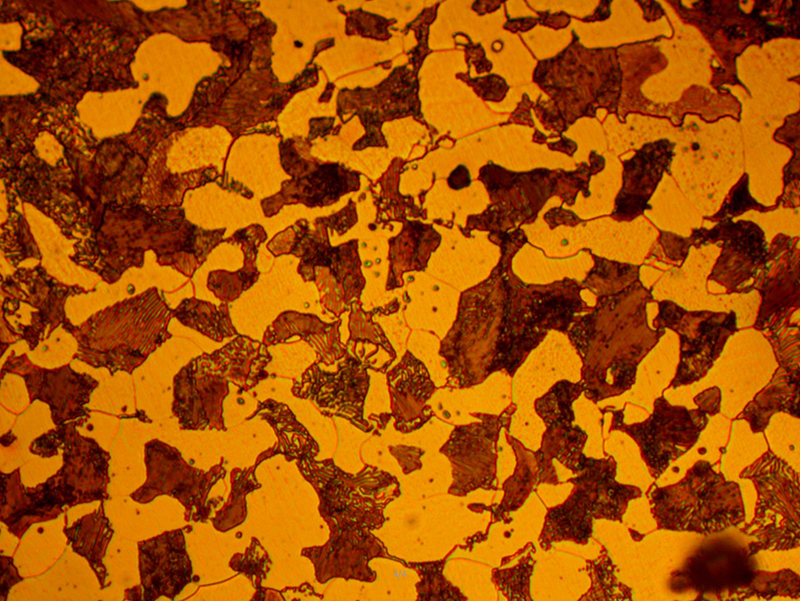

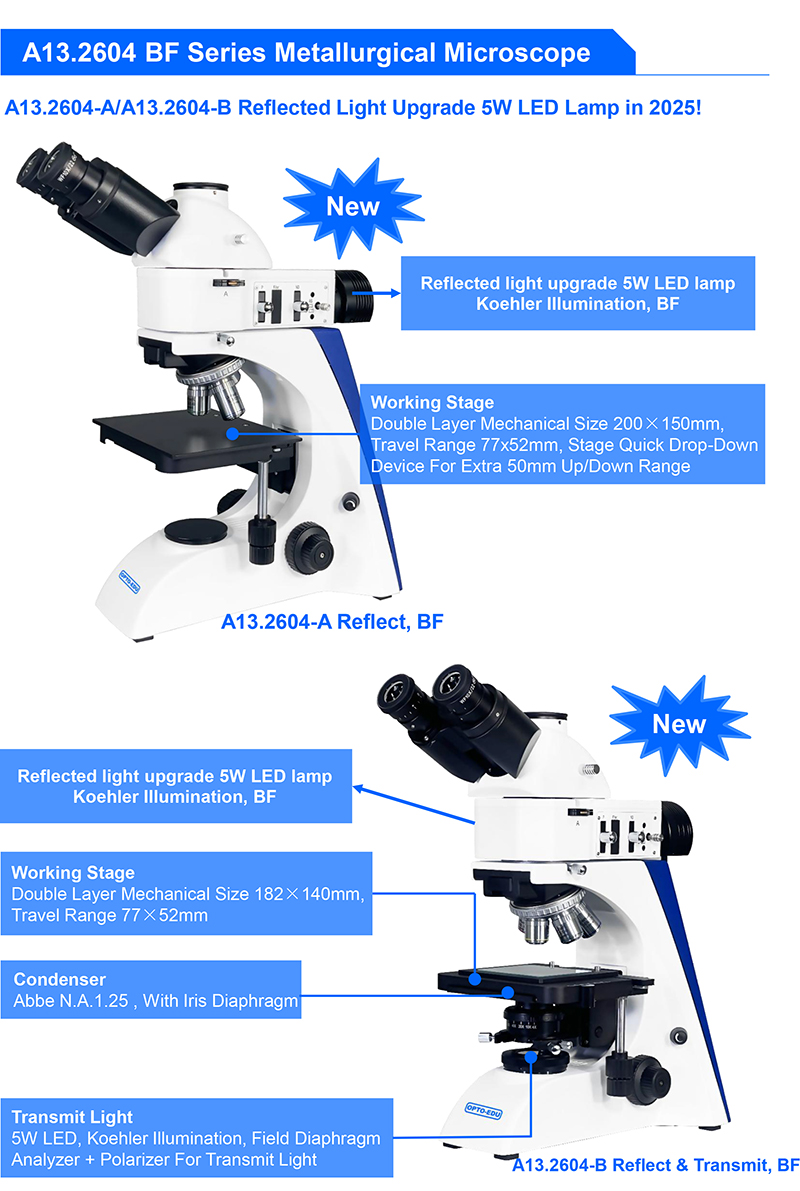

Best Reflect & Transmit Metallurgical Microscope, Both 5W LED Halogen Koehler Illumination
2021 Upgrade To Semi-APO Metallurgical LWD Infinity Plan Objective 5x,10x,20x,50x,80x,100x
2021 Upgrade To BF/DF Model With Metallurgical LWD BD Objectives 5x10x20x50x
Large Size Trinocular Head Eyepiece Tube Dia.30mm With Light Split Switch E100:P0/E20:P80
Mechanical Stage 182x140mm/77x52mm For Both Reflect & Transmit Light View

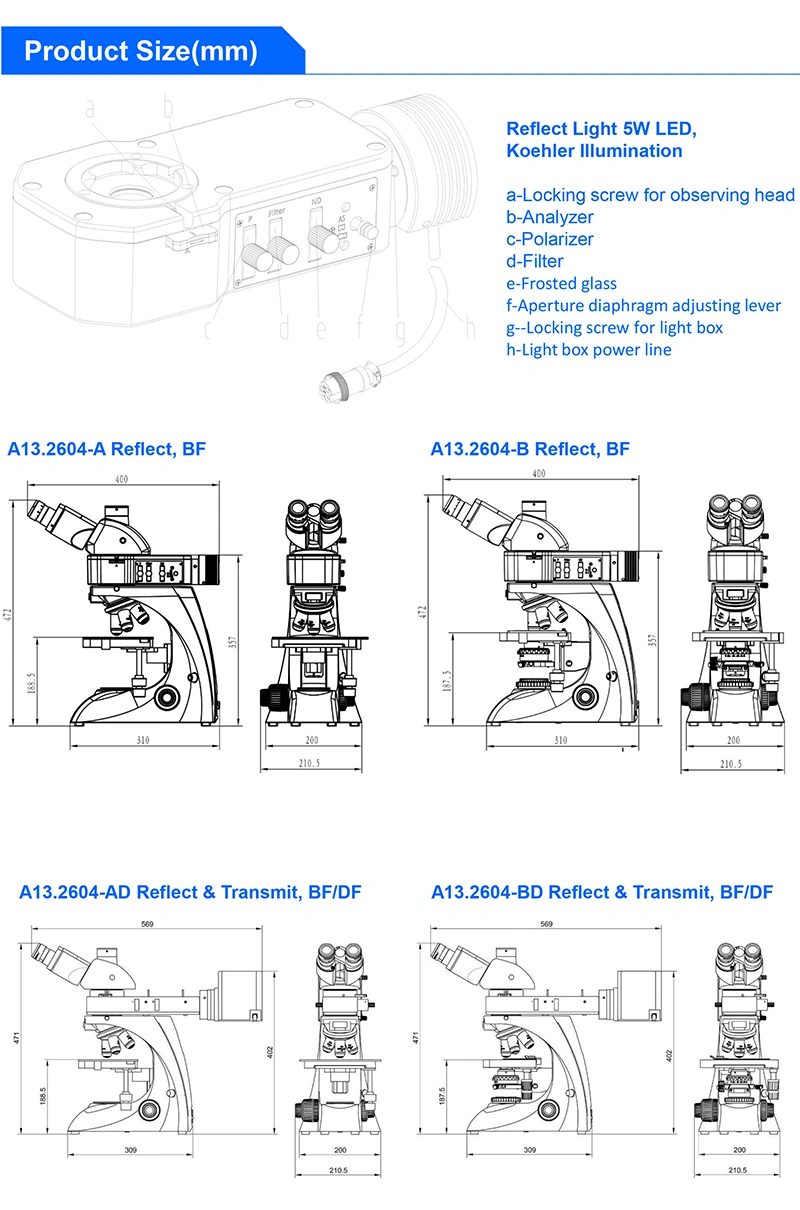

Specification:

A13.2604-BD

Metallurgical Microscope, Reflect & Transmit, BF

A13.2604-B

Metallurgical Microscope, Reflect, BF/DF

A13.2604-AD

Super Wide Field Eyepiece
SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

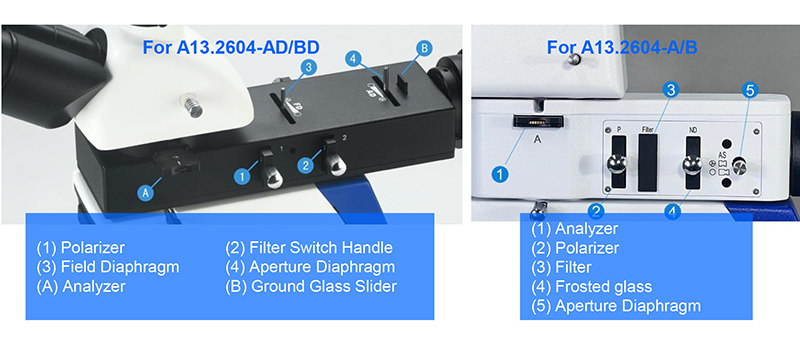

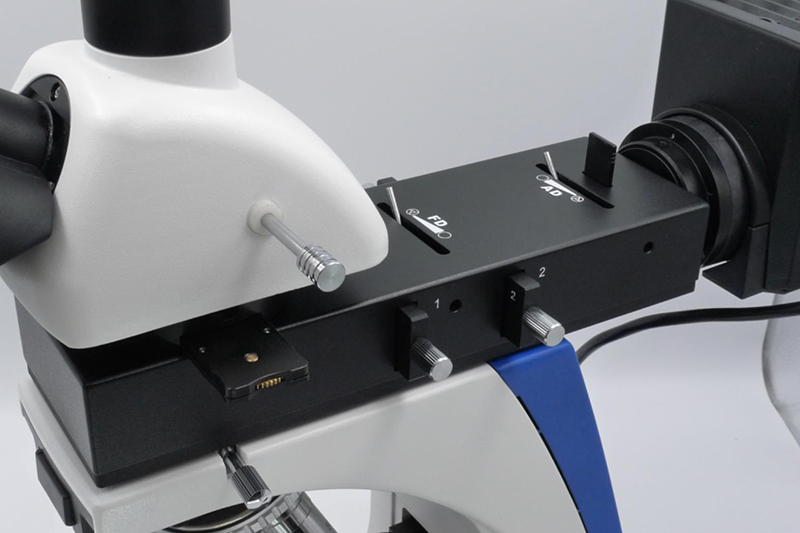

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Nosepiece
Quintuple, Backward, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 20x, 50x; Optional 80x, 100x

Condenser For A13.2604-B
Abbe N.A.1.25 , With Iris Diaphragm

5W LED Light Source, Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

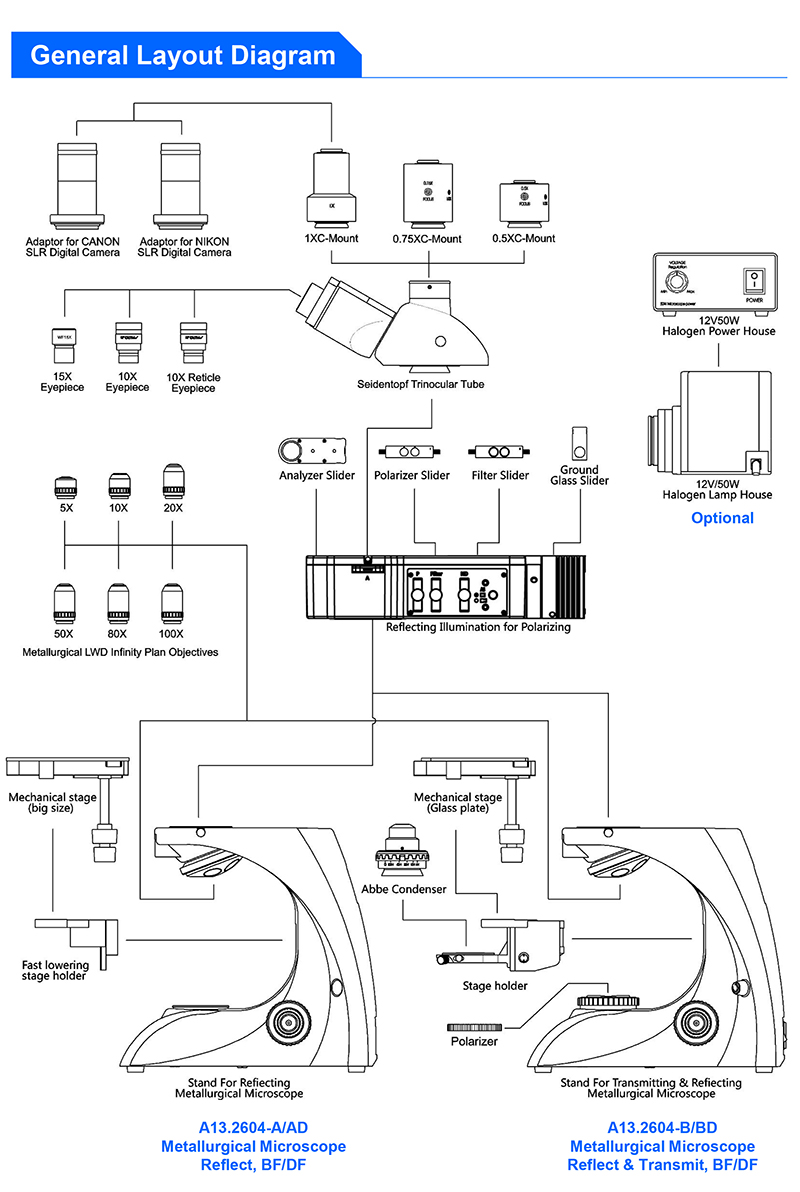

Items	A13.2604 Series Metallurgical Microscope, Reflect/Transmit, BF/DF	-A	-AD	-B	-BD	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	●	●	●	●	A53.2623-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●	●	●	A51.2621-1022
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable, With Micrometer X-0.1mm*180 Div / Y-Single Line	●	●	●	●	A51.2622-1022
Nosepiece	Quintuple, Backward	●		●		A54.2610-N01
Nosepiece	Quarduple, Backward, Special Design For BF/DF Observe		●		●	A54.2610-N924
Metallurgical LWD Infinity Plan Semi-APO Objectives	LMPLan FL 5x/0.15, W.D.=21.0mm	●		●		A5M.2635-5
	LMPLan FL 10x/0.3, W.D.=20.0mm	●		●		A5M.263510
	LMPLan FL 20x/0.40 W.D.=15.0mm	●		●		A5M.2635-20
	LMPLan FL 50x/0.55 W.D.=10.0mm	●		●		A5M.2635-50
	LMPLan FL 50x/0.75 W.D.=4.25mm	○		○		A5M.2635-50a
	LPL80x/0.80(S) W.D.=0.85mm	○		○		A5M.2633-80
	LMPLan FL 100x/0.90(S,Dry) W.D.=3.00mm	○		○		A5M.2635-100
Metallurgical LWD Infinity Plan BF/DF Objectives	M PLAN BD5x/0.13, W.D.=16.04mm		●		●	A5M.2634-5
	M PLAN BD10x/0.25 W.D.=18.48mm		●		●	A5M.263410
	M PLAN BD20x/0.40 W.D.=8.35mm		●		●	A5M.2634-20
	M PLAN BD50x/0.70(S) W.D.=1.95mm		●		●	A5M.2634-50
Working Stage	Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range	●	●			A54.2601-S01T
Working Stage	Double Layer Mechanical Size 182×140mm, Travel Range 77×52mm			●	●	A54.2601-S01T3
Condenser	Abbe N.A.1.25 , With Iris Diaphragm			●	●	A56.2614-C01d
Focusing	Coaxial Coarse And Fine Focusing Knobs, Travel Range: 25mm, Scale: 2µm	●	●	●	●
Illumination	Reflect Light 5W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●		●		A56.2650-5WLED
	Reflect Light 12V50W Halogen Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V	○	●	○	●	A56.2650-12V50WH
	Transmit Light 5W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	-	●	●	A56.2650-5WLED
	Transmit Light 6V30W Halogen Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V	-	-	○	○	A56.2650-6V30WH
Polarizing	Analyzer + Polarizer For Reflect Light	●	●	●	●	A5P.2603-BKR
Polarizing	Analyzer + Polarizer For Transmit Light	-	-	●	●	A5P.2603-BKT
Filter	Ground Glass Slider	●	●	●	●	A56.2620-F
Filter	Blue Filter Switch Handle	●	●	●	●	A56.2620-B
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	○	○	A55.2610

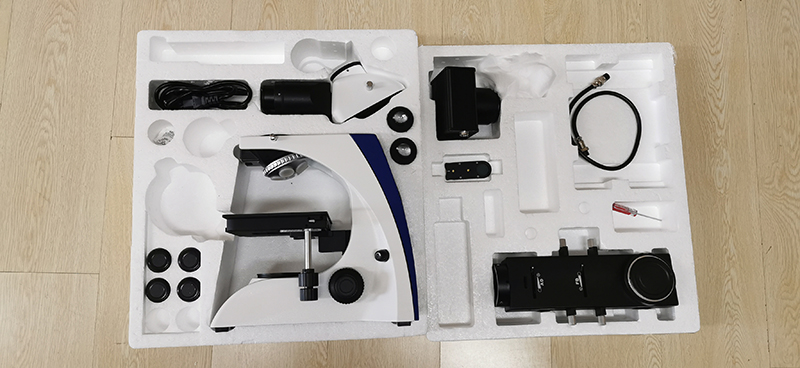

Package	Carton Size 570275450mm, 1 Unit/Ctn
Weight	Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A13.2604-BD	A13.2604-B	A13.2604-AD
Other Specification	Ground Glass Slider Blue Filter Switch Handle	Ground Glass Slider Blue Filter Switch Handle	Ground Glass Slider Blue Filter Switch Handle
Polarizing	Analyzer + Polarizer For Reflect Light and Transmit Light	Analyzer + Polarizer For Reflect Light and Transmit Light	Polarizer & Analyzer For Reflect Light
Power Supply Type	AC 110V-240V	AC 110V-240V	AC 110V-240V
Reflect Light	12V50W Halogen	5W LED	12V50W Halogen
Transmit Light	5W LED	5W LED	——
Light Source Type	LED Halogen	LED	Halogen
Light Source Features	Halogen 50W LED 5W Transmit & Reflect Kohler	LED 5W Transmit & Reflect Kohler	Halogen 50W Kohler
Condenser N.A.	1.25	1.25	——
Condenser Type	Abbe	Abbe	——
Condenser Features	Iris Diaphragm	Iris Diaphragm	——
Focusing Scale	0.002mm	0.002mm	0.002mm
Focusing Range	25mm	25mm	25mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable	Tension Adjustable	Tension Adjustable
Working Stage	——	——	Stage Quick Drop-Down Device For Extra 50mm Up/Down Range
Working Stage Moving	77x52mm	77x52mm	77x52mm
Working Stage Size	182x140mm	182x140mm	200x150mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm
Objective	Metallurgical LWD Infinity Plan BD Objective 5x,10x,20x,50x	Metallurgical LWD Infinity Plan Semi-APO 5x,10x,20x,50x	Metallurgical LWD Infinity Plan BD Objective 5x,10x,20x,50x
Objective Type	Infinity Plan Dark Field	Infinity Plan	Infinity Plan Dark Field
Objective Features	LWD BF+DF	LWD	LWD BF+DF
Nosepiece Holes	4 Holes	5 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward
Eyepiece	WF10x/22mm, 1pc WF10x/22mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, 1pc	WF10x/22mm, 1pc WF10x/22mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, 1pc	WF10x/22mm, 1 pcs WF10x/22mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100
Head Interpupillary	48~76mm	48~76mm	48~76mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	50x-500x	50x-500x	50x-500x
Optical System	Infinity Plan	Infinity Semi-Plan	Infinity Plan
Features	Infinity BF+DF	Infinity APO	Infinity BF+DF
Standard Function	BF+DF+PL	BF+PL	BF+DF+PL
