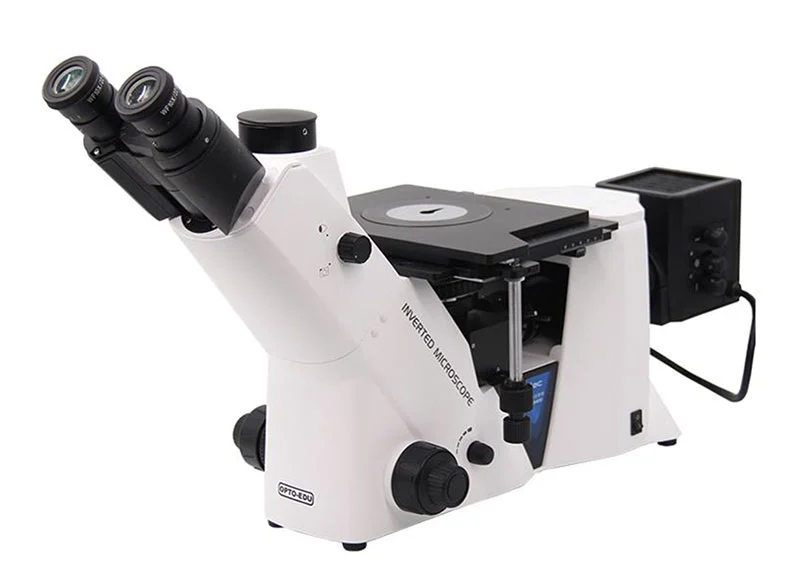

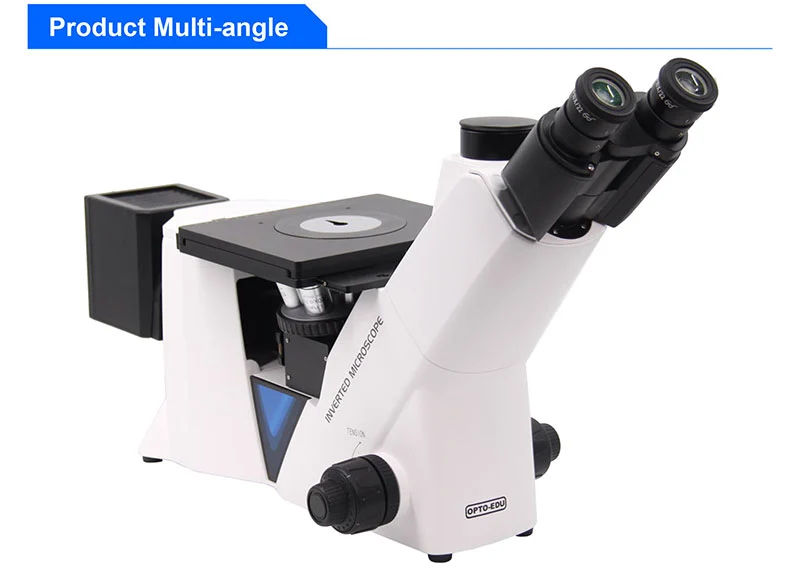

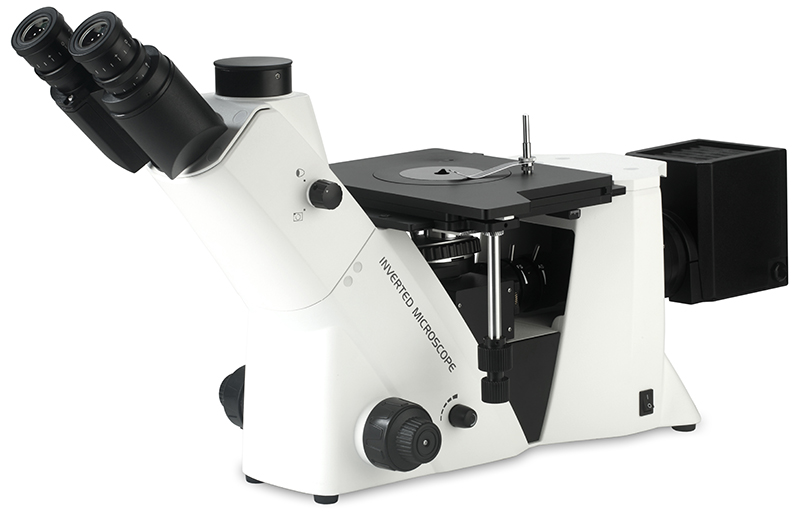

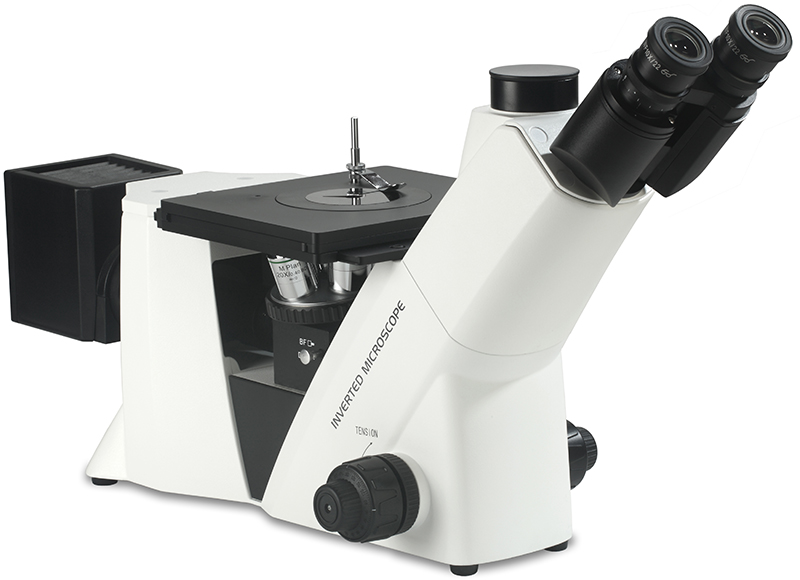

Invered Metallurgical Microscope, Reflect Light, BF/DF

A13.2606-BD

Like Favorites

Invered Metallurgical Microscope, Reflect Light, BF/DF

Professional Metallurgical Microscope For Bright Field, Dark Field, Polarizing Observation
Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80
Metallurgical LWD Infinity Plan Semi-APO BF (Bright Field) & BD (Bright & Dark Field) Objectives
Large Working Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm

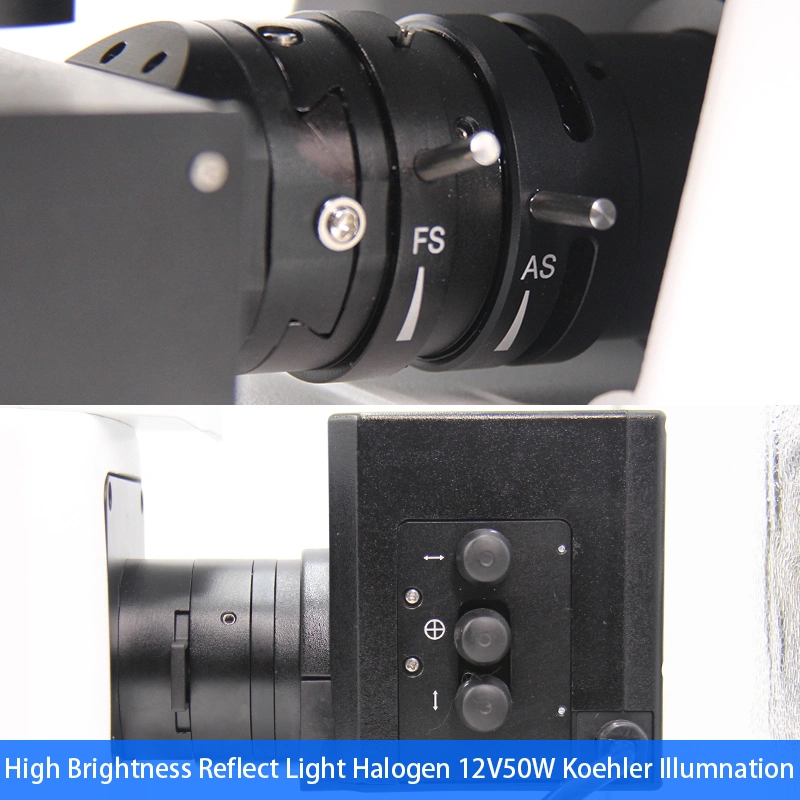

High Brightness Reflect Light Halogen 12V50W Koehler Illumination

Specification:

A13.2606-BD

Invered Metallurgical Microscope, Reflect Light, BF

A13.2606

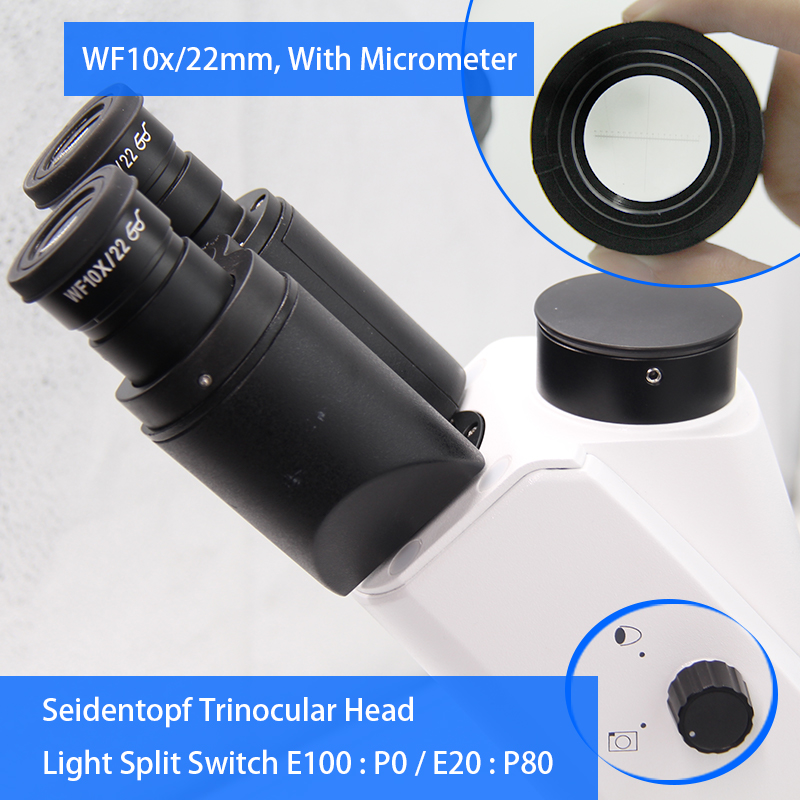

Super Wide Field Eyepiece

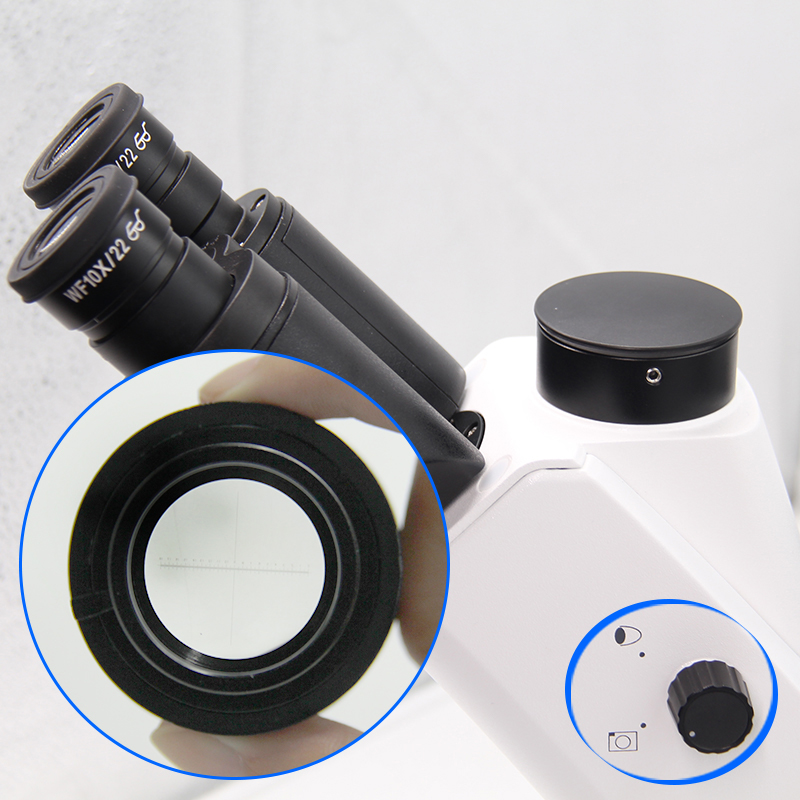

Seidentopf Trinocular Head Inclined 30°, Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, With Micrometer

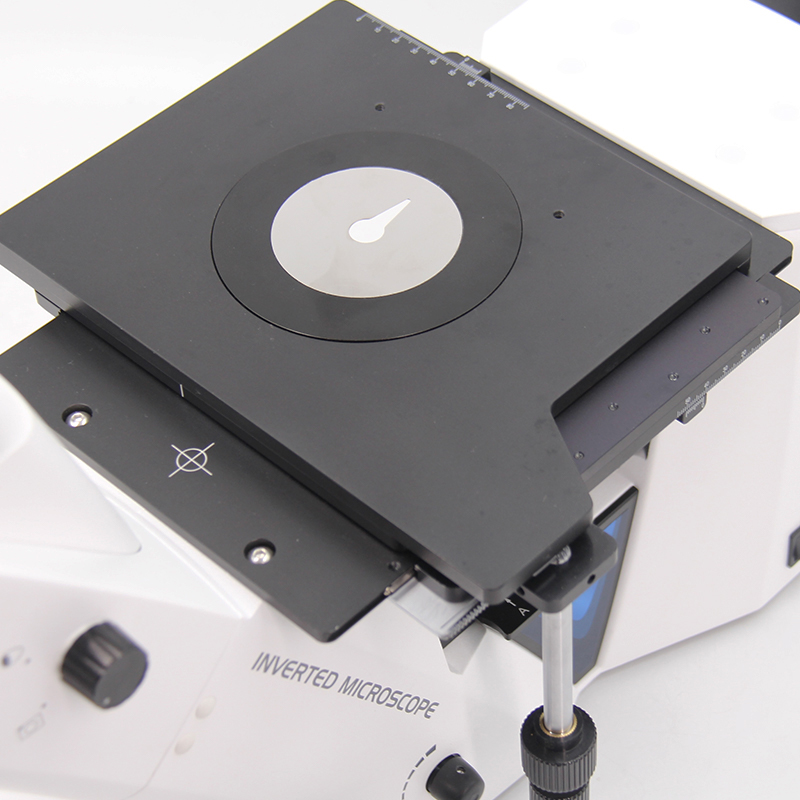

Working Stage

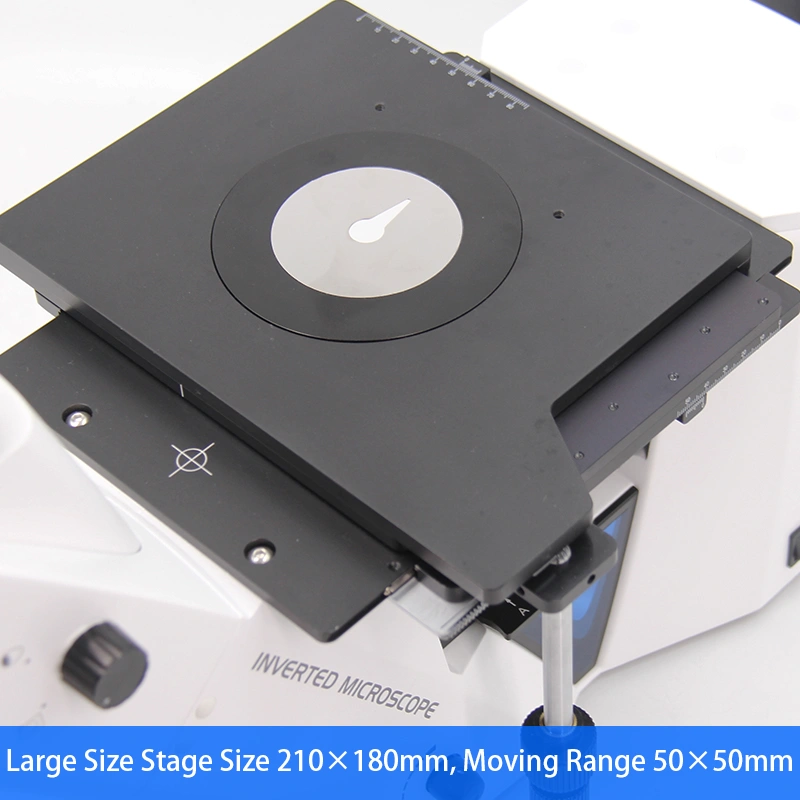

Stage Size 210×180mm, Moving Range 50×50mm

Objectives For A13.2606

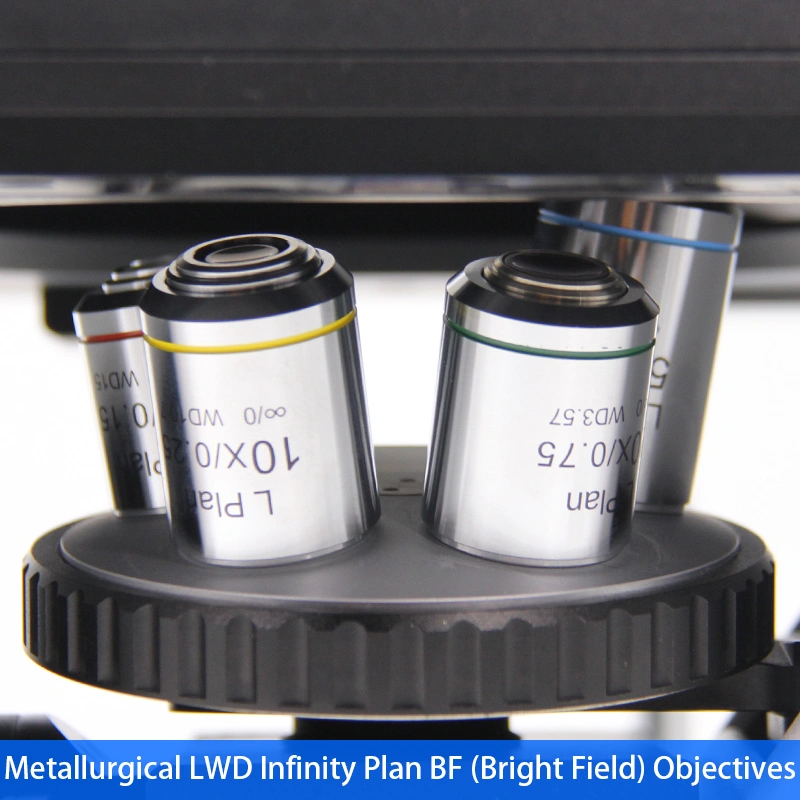

Metallurgical LWD Infinity Plan BF (Bright Field) & BD (Bright & Dark Field) Objectives

Illumination
Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

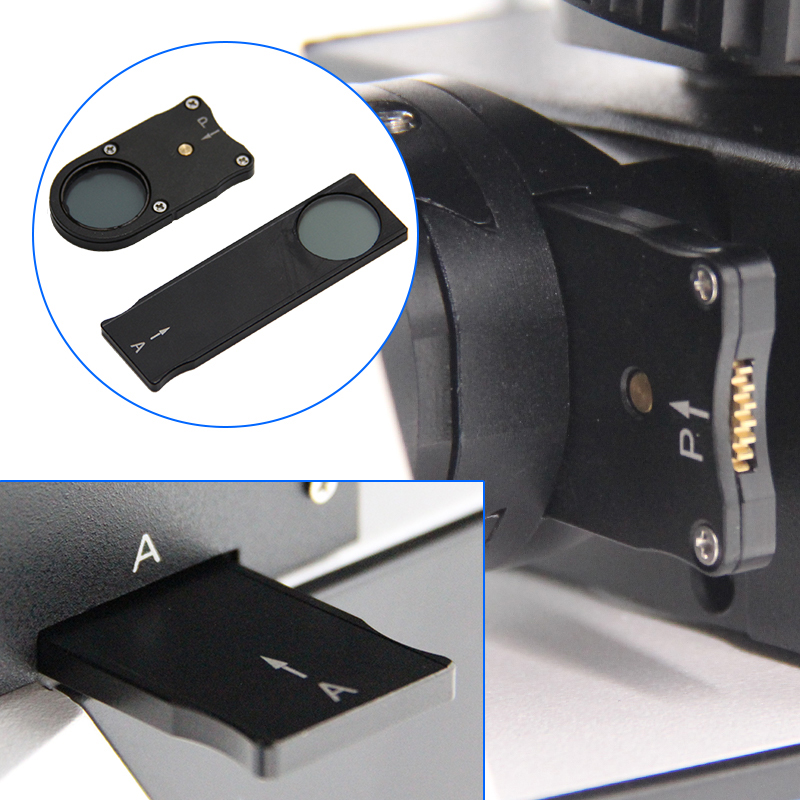

Polarizing

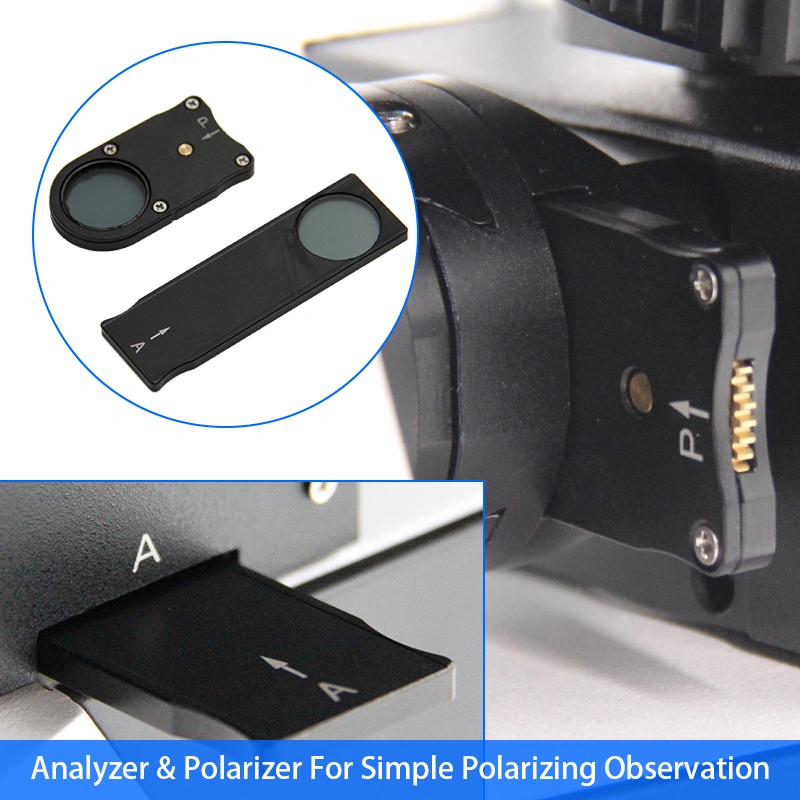

Analyzer & Polarizer for simple polarizing observation

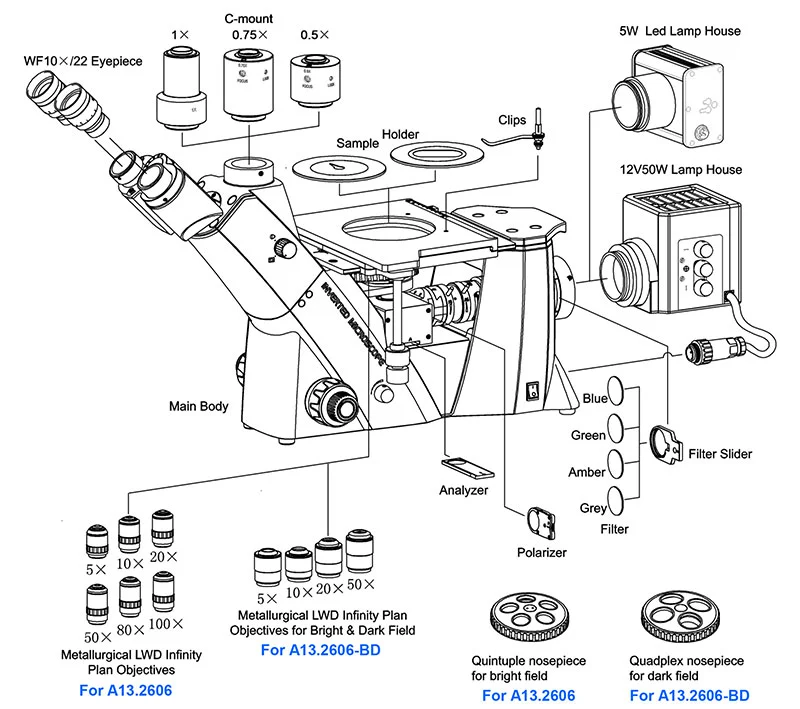

Items	A13.2606 Invered Metallurgical Microscope	A13.2606	A13.2606-BD	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	A53.2643

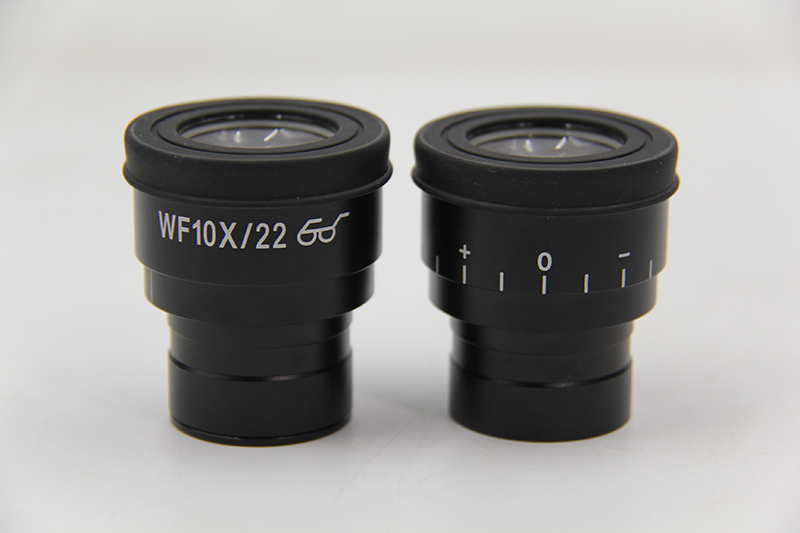

Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●	A51.2621-1022
	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable, With Micrometer X-0.1mm*180 Div / Y-Single Line	●	●	A51.2622-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	A51.2621-2012

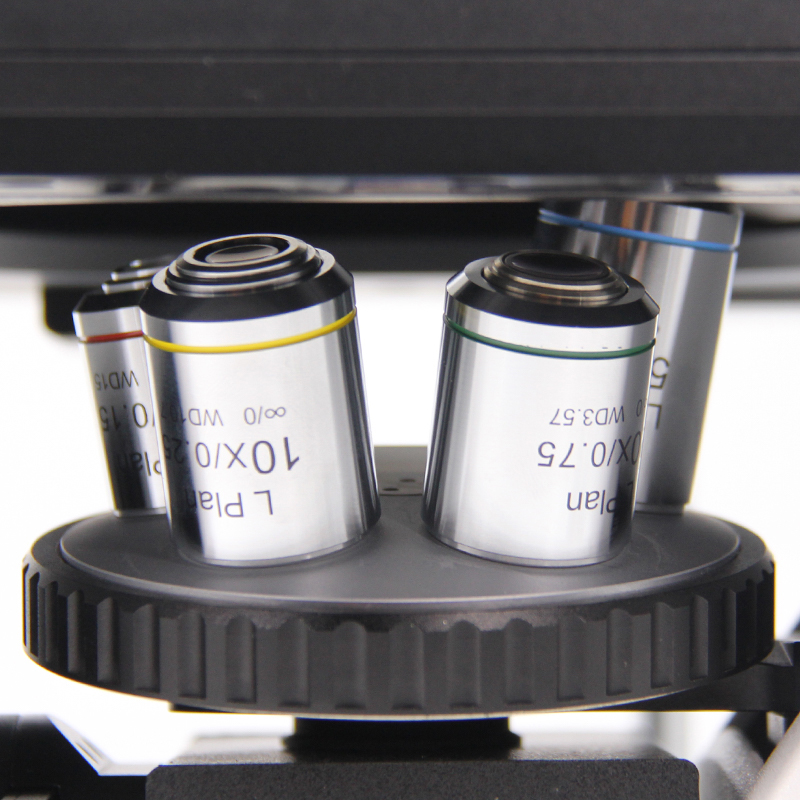

Nosepiece	Quintuple	●	-	A54.2610-N925
Nosepiece	Quadruple(Specially For Bright&Dark Field objectives)	-	●	A54.2610-N924
Metallurgical LWD Infinity Plan BF (Bright Field) Semi-APO Objectives	LMPLan FL5x/0.15, W.D.=21.0mm	●	○	A5M.2635-5
	LMPlan FL 10x/0.3, W.D.=20.0mm	●	○	A5M.263510
	LMPlan FL 20x/0.40 W.D.=15.0mm	●	○	A5M.2635-20
	LMPlan FL 50x/0.55 W.D.=10.0mm	●	○	A5M.2635-50
	LMPlan FL 50x/0.75 W.D.=4.25mm	○	○	A5M.2635-50a
	LMPlan FL 100x/0.85 W.D.=3.0mm	○	○	A5M.2635-100

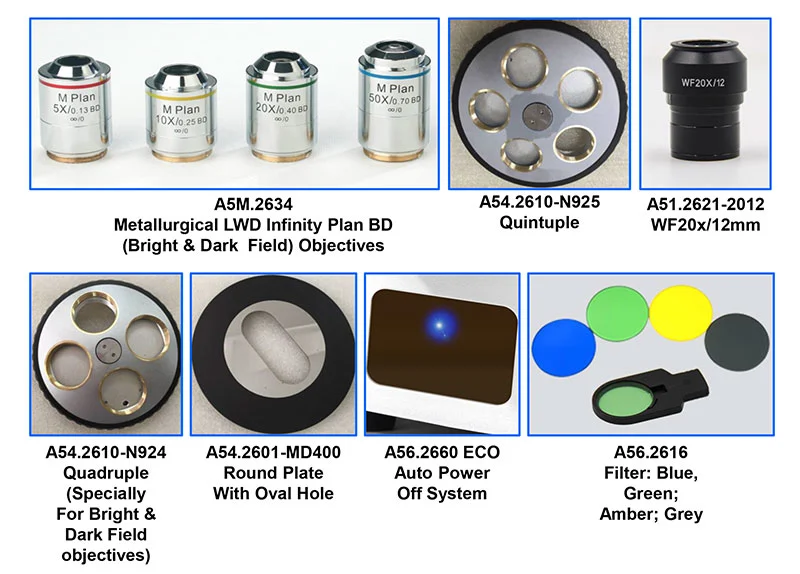

Metallurgical LWD Infinity Plan BD (Bright & Dark Field) Objectives	LPL 5x/0.13BD, W.D.=16.04mm	-	●	A5M.2634-5
	LPL10x/0.25BD, W.D.=18.48mm	-	●	A5M.2634-10
	LPL 20x/0.40BD, W.D.=8.35mm	-	●	A5M.2634-20
	LPL 50x/0.70BD, W.D.=1.95mm	-	●	A5M.2634-50
Working Stage	Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm	●	●	A54.2601-S11T
Working Stage	Round Plate With Oval Hole	○	○	A54.2601-MD400
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm	●	●
Polarizing	Analyzer + Polarizer Set	●	●	A5P.2602
Illumination	Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V	●	●	A56.2650-12V50WH
Illumination	Koehler Illumination 5W LED, Input Voltage 100V~240V	○	○	A56.2650-5WLED
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	A56.2616-34B
	Green, Dia.34mm	○	○	A56.2616-34G
	Amber, Dia.34mm	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	A56.2616-34N

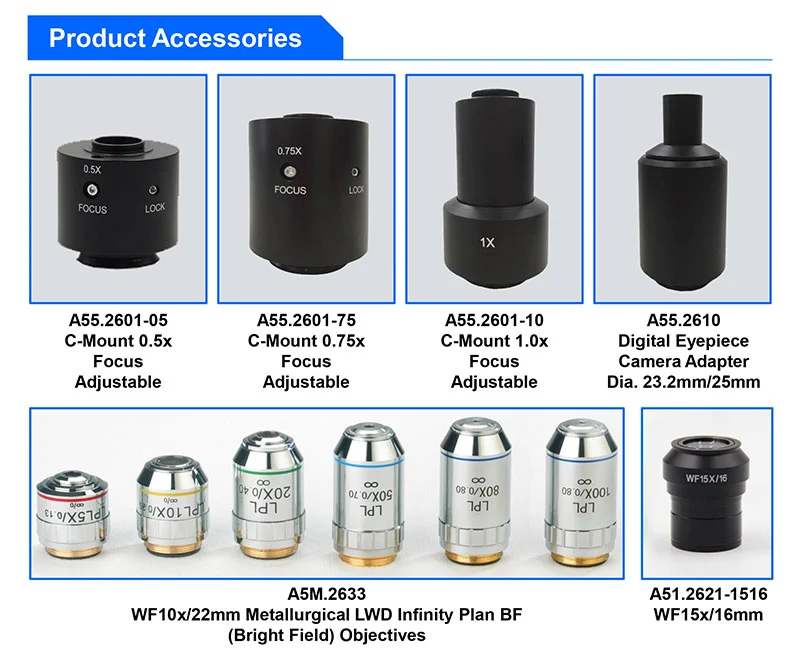

Adapter	SLR Digital Camera Adapter For Canon, 100% Light For Camera Portt	○	○	A55.2622-BC
	SLR Digital Camera Adapter For Nikon, 100% Light For Camera Port	○	○	A55.2622-BN
	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610

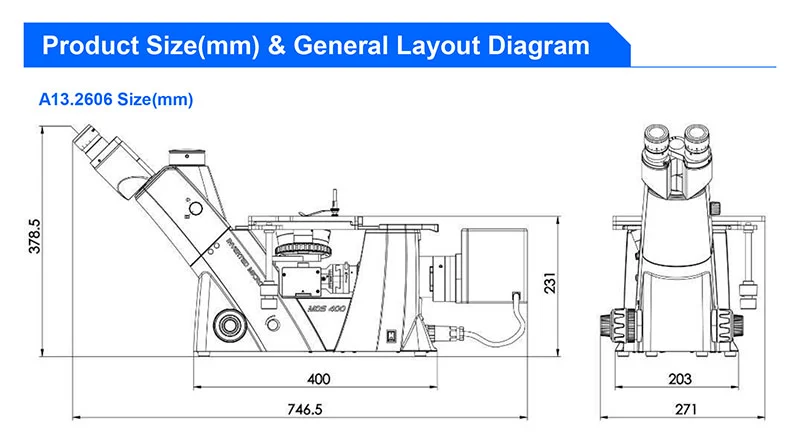

Package	Packing Size: 660mmx590mmx325mm
Weight	Gross Weight: 17 kgs, Net Weight: 12.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

More Pictures

Pictures Hide Same Show Difference

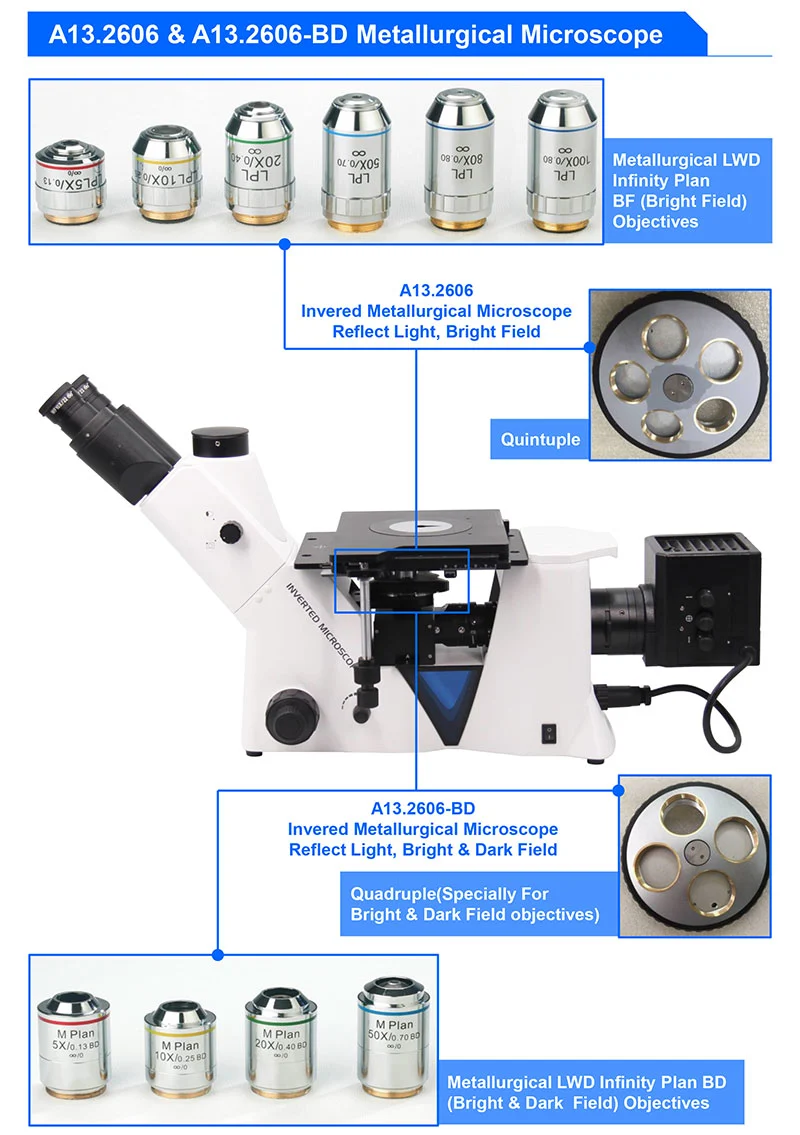

Model No.	A13.2606-BD	A13.2606
Other Specification	Blue Filter Dia. 34mm	Blue Filter Dia. 34mm
Polarizing	Analyzer+Polarizer set	Analyzer+Polarizer set
Video Adapter	C-Mount 0.3x	——
Reflect Light	12V50W Halogen	12V50W Halogen
Light Source Type	Halogen	Halogen
Light Source Features	Halogen 50W Kohler	Halogen 50W Kohler
Focusing Knob	——	Fine Stroke Per Rotation 0.2mm
Focusing Scale	0.002mm	0.002mm
Focusing Range	10mm	10mm
Working Stage Moving	50x50mm	50x50mm
Working Stage Size	210x180mm, Round Plate Dia. 110mm	210x180mm, Round Plate Dia. 110mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Size ≥140x140mm	Size ≥140x180mm
Objective	Metallurgical LWD Infinity Plan BD: LPL 5x/0.13BD, W.D.=16.04mm LPL 10x/0.25BD, W.D.=18.48mm LPL 20x/0.40BD, W.D.=8.35mm LPL 50x/0.70BD, W.D.=1.95mm	Metallurgical LWD Infinity Plan BF: LPL 5x/0.13, W.D.=16.04mm LPL 10x/0.25, W.D.=18.48mm LPL 20x/0.40, W.D.=8.35mm LPL 50x/0.70, W.D.=1.95mm
Objective Type	Infinity Plan	Infinity Plan Metallurgical
Objective Features	LWD BF+DF Covreless	APO LWD
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF 10x/22mm, 1 pc. WF 10x/22mm, with Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pc.	WF 10x/22mm, 1 pc. WF 10x/22mm, with Micrometer X-0.1mm*180 Div / Y-Single Line, 1 pc.
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80	E100:P0/E20:P80
Head Diopter	Both Tube Adjustable	——
Head Interpupillary	48~76mm	48~76mm
Head Rotation	Fixed	Fixed
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	——	50x-500x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity APO
Power Supply Type	——	AC 110V-240V
Focusing Type	——	Coaxial Coarse & Fine
Focusing Features	——	Tension Adjustable
Head Inclination	——	30°
Standard Function	——	BF+PL
