Polarizing Microscope, Semi-APO, Transmit & Reflect Light

A15.1091-TR

Like Favorites

Polarizing Microscope, Semi-APO, Transmit & Reflect Light

Research Level Polarizing Microscope, Manual, Transmit/Reflect, Semi-APO
Extra Wide Eyepiece EW10x/25mm Dia.30mm Diopter Adjustable With Lock Pin
Quintuple Nosepiece Center Adjustable, NIS60 Infinity Plan Strainless Semi-APO PL5x10x20x50x100x
Round Stage Dia.190mm, With Attachable Moving Stage Range 30x30mm
Transmit ECO Kohler Illumination 12V100W Halogen, Reflect 12V100W Halogen

Specification:

A15.1091-TR

Polarizing Microscope, Semi-APO, Reflect Light

A15.1091-R

Polarizing Microscope, Semi-APO, Transmit Light

A15.1091-T

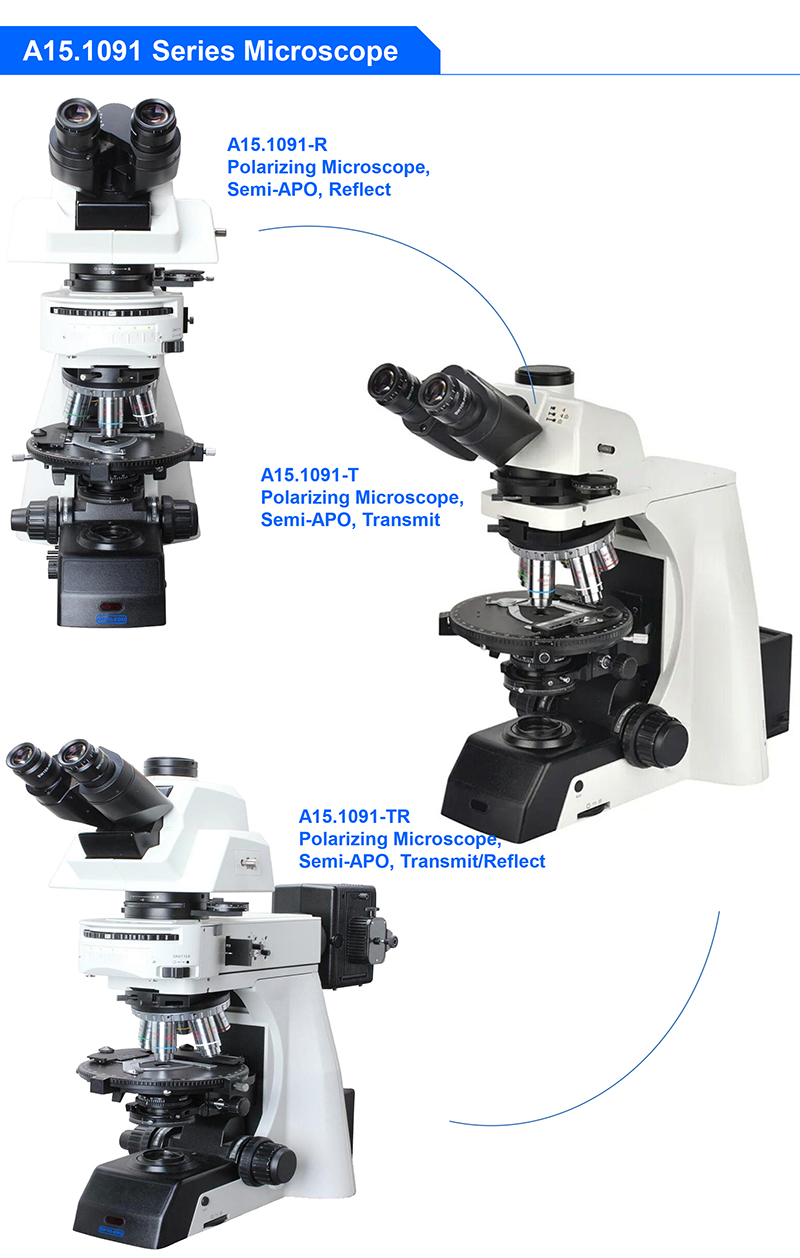

A15.1091 Series Polarizing Microscope		A15.1091			Cata.No.
A15.1091 Series Polarizing Microscope		-T	-TR	-R	Cata.No.
Optical System	NIS60 Infinite Optical System	●	●	●
Observation Method	Bright Field	●	●	●
	Dark Field,	○	○	○
	Polarizing	●	●	●
	Phase Contrast	○	○	○
	Flourescent	○	○	○
	DIC	○	○	○
Main Body	BHManual Body + HalogenIllumination.	●	●	●	A54.1090-BH
	BLManual Body + LEDIllumination.	○	○	○	A54.1090-BL
	ATHSemi-Auto Body + HalogenIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	○	○	○	A54.1090-ATH
	ATLSemi-Auto Body + LEDIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	○	○	○	A54.1090-ATL
Head	Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm	○	○	○	A53.1090-B

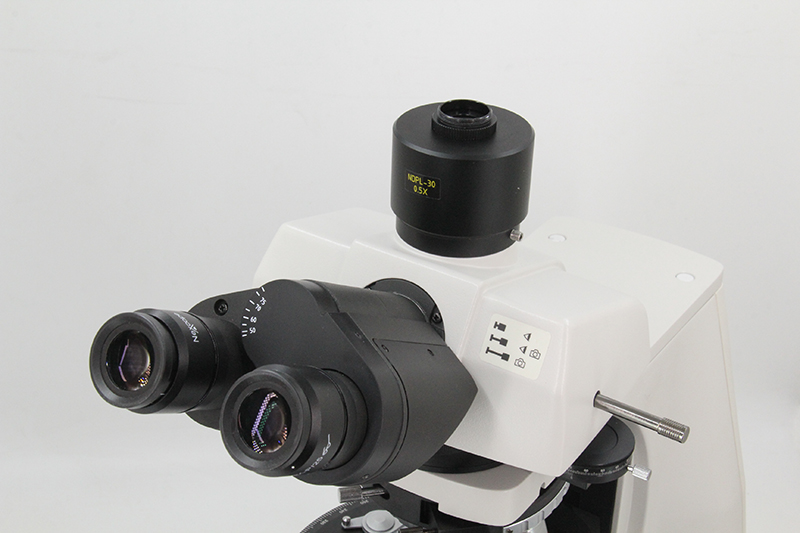

	Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	○	○	A53.1090-T
	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	○	●	●	A53.1090-TT
Eyepiece	EW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●	●	●	A51.1090-1022
	EW10x/22mm, With Scale Cross, With Locating Pin, For Polarizing	●	●	●	A51.1090-1022S
	EW10x/22mm, With Cross Hair, With Locating Pin, For Polarizing	○	○	○	A51.1090-1022C
	EW10x/22mm, With Grid Plate, With Locating Pin, For Polarizing	○	○	○	A51.1090-1022G
	EW12.5x/16mm, High Eyepoint	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-2012
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	●	●	●	A54.1091-5M
	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●
	Protect Cover For Nosepiece Holes	●	●	●	A54.1091-C
NIS60 Strain-Free Infinity Plan Objective	4x/0.1, W.D.30mm, PL, No Cover Glass	●	-	-	A5P.1091-4
	10x/0.25, W.D.10.2mm, PL, No Cover Glass	●	-	-	A5P.1091-10
	20x/0.4, W.D.12mm, PL, No Cover Glass	●	-	-	A5P.1091-20
	40x/0.65, W.D.0.7mm, PL, No Cover Glass	●	●	-	A5P.1091-40
	100x/1.25, W.D.0.2mm, PL, No Cover Glass	●	●	-	A5P.1091-100
NIS60 Strain-Free Semi-APO Infinity Plan Objective	5x/0.15, W.D.20mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-5
	10x/0.3, W.D.11mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-10
	20x/0.45, W.D.3.0mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-20
	50x/0.8, W.D.1.0mm, APO, PL, No Cover Glass	-	●	●	A5P.1092-50
	100x/0.9, W.D.1.0mm, APO, PL, No Cover Glass	-	●	●	A5P.1092-100

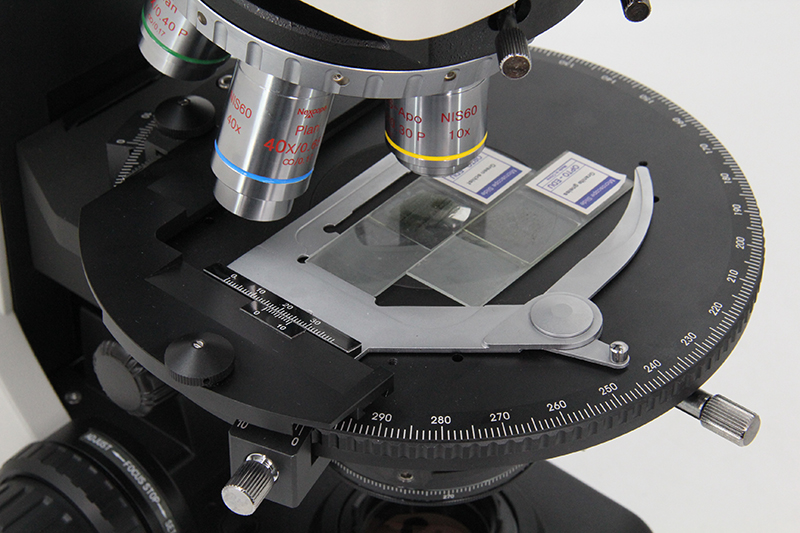

Working Stage	High-precision Pre-Adjusted Revolving Round Stage, Diameter 190mm, Center Adjustable, 360° Scale, Minium Division 1° , Minium Reading 6´ by Means of Vernier Scale, 45° Click Stop Knob.	●	●	●	A54.1094
Working Stage	Attachable Moving Stage, Moving Range 30x30mm	●	●	●	A54.1094-R
Condenser	Swing-Out Condenser NA0.9/0.25	●	●	●	A56.1091-S
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●	●
Polarizing Unit & Compensator	Bertrand Lens Intermediate Unit, With Slot For Compensator Slide	●	●	●	A5P.1090-CB
	λ Compensator Slide	●	●	●	A5P.1090-Cλ
	λ1/4 Compensator Slide	●	●	●	A5P.1090-C1/4λ
	Quartz Wedge Slide	●	●	●	A5P.1090-CQ
	Blank Slide	●	●	●	A5P.1090-BS
Transmit Light Source	TransmitKohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	-	A56.1090-12V100W
Polarizing For Transmit Light	Protective Glass	●	●	-	A5P.1090-G
	Transmit Polarizer, Swing Out	●	●	-	A5P.1090-TP
	Transmit Analyzer Slide	●	●	-	A5P.1090-TA
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	-	A56.1092-H
	Filter LBD	●	●	-	A56.1092-LBD
	Filter Green	●	●	-	A56.1092-G
	Filter Yellow	●	●	-	A56.1092-Y
	Filter ND6	●	●	-	A56.1092-ND6
	Filter ND25	●	●	-	A56.1092-ND25
Reflect Light Source	ReflectEpi Polarizing Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination	-	●	●	A5P.1090
	12V100W Halogen Lamp Housing	-	●	●	A5P.1090-100W
	BF1 View Block	-	●	●	A5P.1090-B1
	BF2 View Block	-	●	●	A5P.1090-B2
PolarizingFor Reflect Light	Circularly Polarized Light Block	-	●	●	A5P.1090-CP
	Reflect Polarizer Slide	-	●	●	A5P.1090-RP
	Reflect Analyzer Slide, 360º Dial Rotate, Minimum Scale Reading 0.1º	-	●	●	A5P.1090-RA
	Blank Slide	-	●	●	A5P.1090-E
Filter For Reflect Light	Filter Blue	-	●	●	A56.1093-B
	Filter Green	-	●	●	A56.1093-G
	Filter Yellow	-	●	●	A56.1093-Y
	Filter Forested	-	●	●	A56.1093-F
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	A55.1090-10
	C-Mount 0.5x	○	○	○	A55.1090-05
Other Accessories	Working Stage Holder Bracket	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	A54.1096-A2
	Immersion Oil	○	○	○	A50.1090-01
	Allen Wrench	●	●	●	A50.1090-02
	Power Cord	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	A50.1090-07
	USB Cable	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures Hide Same Show Difference
Model No.	A15.1091-TR	A15.1091-T	A15.1091-R
Polarizing	Intermediate Unit, With Analyzer 360° Rotatable, Compensator λ, λ1/4, Quartz Wedge, Bertrand Lens	Intermediate Unit, With Analyzer 360° Rotatable, Compensator λ, λ1/4, Quartz Wedge, Bertrand Lens	Intermediate Unit, With Analyzer 360° Rotatable, Compensator λ, λ1/4, Quartz Wedge, Bertrand Lens
Polarizing Features	Center Adj. Stage Center Adj. Nosepiece Strain-Free Objective	Center Adj. Stage Center Adj. Nosepiece Strain-Free Objective	Center Adj. Stage Center Adj. Condenser Strain-Free Objective
Video Adapter	C-Mount 0.3x	C-Mount 0.3x	——
Reflect Light	Reflect 12V100W Halogen Illuminator, Block BF1/BF2/Circularly Polarized, Reflect Polarizer/Analyzer	——	Reflect 12V100W Halogen Illuminator, Block BF1/BF2/Circularly Polarized, Reflect Polarizer/Analyzer
Transmit Light	Transmit 12V100W Halogen, ECO, Filter LBD/G/Y/ND6/ND25, Transmit Polarizer/Analyzer	Transmit 12V100W Halogen, ECO, Filter LBD/G/Y/ND6/ND25, Transmit Polarizer/Analyzer	——
Light Source Type	Halogen	Halogen	Halogen
Light Source Features	Halogen 100W Kohler	Halogen 100W Kohler	Halogen 100W Brightness Adjustable Kohler Illumination
Condenser N.A.	0.9/0.25	0.9/0.25	0.9/0.25
Condenser Type	Swing-Out	Swing-Out	Swing-Out
Condenser Features	Center Adjustable Rack & Pinionↆ↑	Center Adjustable Rack & Pinionↆ↑	Center Adjustable Rack & Pinionↆ↑
Focusing Knob	Can Exchange Hand Wheel Between Left/Righ	Can Exchange Hand Wheel Between Left/Righ	Can Exchange Hand Wheel Between Left/Righ
Focusing Scale	0.001mm	0.001mm	0.001mm
Focusing Range	35mm	35mm	35mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage	With Attachable Moving Stage	With Attachable Moving Stage	With Attachable Moving Stage
Working Stage Moving	30x30mm	30x30mm	30x30mm
Working Stage Size	Dia. 190mm	Dia. 190mm	Dia. 190mm
Working Stage Type	Round Stage	Round Stage	Round Stage
Objective	NIS60 Infinity Plan Strain-Free Semi-APO Objective 5x/0.15, Semi-APO, PL 10x/0.3, Semi-APO, PL 20x/0.45, Semi-APO, PL 40x/0.65, Semi-APO, PL 100x/1.25(Oil), Semi-APO, PL	NIS60 Infinity Plan Strain-Free Semi-APO Objective 5x/0.15, Semi-APO, PL 10x/0.3, Semi-APO, PL 20x/0.45, Semi-APO, PL 40x/0.65, Semi-APO, PL 100x/1.25(Oil), Semi-APO, PL	NIS60 Infinity Plan Strain-Free Semi-APO Objective 5x/0.15, Semi-APO, PL 10x/0.3, Semi-APO, PL 20x/0.45, Semi-APO, PL 40x/0.65, Semi-APO, PL 100x/1.25(Oil), Semi-APO, PL
Objective Type	Infinity Plan	Infinity Plan	Infinity Plan
Objective Features	Strain-Free	Strain-Free	APO Strain-Free Parfocal 60mm
Nosepiece Holes	6 Holes	6 Holes	5 Holes
Nosepiece Features	Inward With DIC Slot With Polarzing Slot	Inward With DIC Slot With Polarzing Slot	With DIC Slot With Polarzing Slot
Eyepiece	EW10x/25mm, 2pcs	EW10x/25mm, 2pcs	EW10x/22mm, 1pcs EW10x/22mm, With Scale Cross, With Locating Pin, For Polarizing, 1pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable
Head Light Path	E100:P0/E20:P80/E0:P100	E100:P0/E20:P80/E0:P100	——
Head Interpupillary	47~78mm	47~78mm	47~78mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	——	——	50x-1000x
Optical System	Infinity Plan	Infinity Plan	Infinity Plan
Features	Infinity ECO (Auto Power Off)	Infinity ECO (Auto Power Off)	Infinity
New Product Year	2020	2020	2020
Power Supply Type	——	——	Power Cord Detachable AC 100V-240V Wide Voltage
Upgrade Function	——	——	BF+DF+PL+PH+FL+DIC
Standard Function	——	——	BF+PL
