LED Flourescent Microscope, For Phthisis Checking

A16.0208-PH

Like Favorites

LED Flourescent Microscope, For Phthisis Checking

Trinocular Head, 30° Inclined, Interpupillary Distance 55~75mm
Infinity Plan Achromatic Fluorescent Objective 10x,20x,40x Available
5W LED High Brightness Epi-fluorescent Illumination With B,G,UV,V Filter
Quintuple, Center Adjustable, Backward Ball Bearing Inner Locating
3W LED Transmit Illumination , Adjustable Brightness, With Collector For LED

Specification:

A16.0208-PH

A16.0208-2

A16.0208-4

Specification	A16.0208 LED Fluorescent Microscope	-2	-4	-PH	Cata.No.
Head	Trinocular Head, 30° Inclined, Interpupillary Distance 55~75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Switch E100:P0/E0:P100, 100% Light Pass To Photo Tube	●	●	●
Eyepiece	Wide Field WF10x/22mm	●	●	●	A51.0202-1022
Eyepiece	Dividing Eyepiece 10x/22mm, 0.10mm/Div	○	○	○	A51.0205-G10B
Nosepiece	Quintuple, Center Adjustable, Backward Ball Bearing Inner Locating	●	●	●
Objective	Infinity Plan Achromatic Objective PL 4x/0.10	●	●	○
	Infinity Plan Achromatic Objective PL 10x/0.25	●	●	●
	Infinity Plan Achromatic Objective PL 40x/0.65	○	○	●
	Infinity Plan Achromatic Objective PL 60x/0.80	○	○	●
	Infinity Plan Achromatic Objective PL 100x/1.25 (Spring, Oil)	●	●	●
	Infinity Plan Achromatic Fluorescent Objective PL FL10x/0.35 (Spring)	○	○	○
	Infinity Plan Achromatic Fluorescent Objective PL FL20x/0.65 (Spring)	○	○	○
	Infinity Plan Achromatic Fluorescent Objective PL FL40x/0.85 (Spring)	●	●	○
Working Stage	Rackless Double Layer Mechanical Stage 180x150mm, Moving Range 75x50mm	●	●	●
Focus System	Coaxial Coarse & Fine Focus, With Tension Adjustable And Up Stop, Fine Focusing Minimum Division 0.002mm	●	●	●
Condenser	Abbe N.A.1.25, Rack & Pinion Height Adjustable, With Iris Diaphragm, With Blue Filter	●	●	●
Light Source	3W LED Transmit Illumination , Adjustable Brightness, With Collector For LED	●	●	●
Fluorescence	5W LED High Brightness Epi-fluorescent Illumination, Modular Deisgn	●	●	●

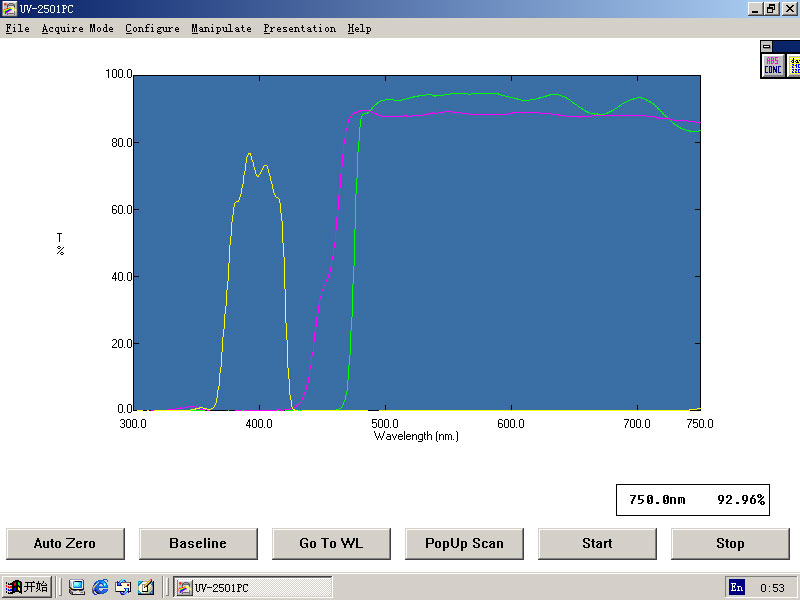

	B+G Fluorescent Filter Group	●

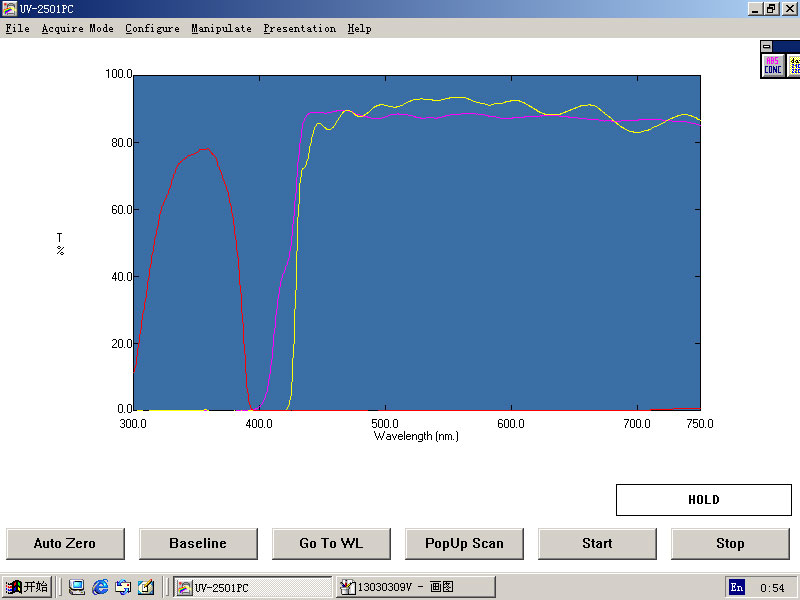

	V+UV Fluorescent Filter Group		●
	Auramine Filter Set, EX:445/50, DM:490, EM:495LP, For Phthisis Checking			●
	Fluorescent Filter Set For CFP，FITC，CY3，DAP And Etc.	○	○	○
Power Supply	External Power Adapter, Input AC 80-250V, Output DC12V, Supply Power To Both Transmit & Fluorescent LED Light	●	●	●
Power Supply	Rechargeable Battery Pack, Large Capacity 60Wh Support 8 Hours Working Time For Transmit or Fluorescent LED Light Source	○	○	○
CCD Adapter	0.4x	○	○	○	A55.0202-01
	0.5x	○	○	○	A55.0202-04
	1.0x	○	○	○	A55.0202-02
	0.5x With Dividing 0.1mm/Div	○	○	○	A55.0202-03
Photo Adapter	2.5x/4x Change Over Photograph Attachment With 10x Photo Eypiece	○	○	○	A55.0201-01
	4x Focusing Photograph Attachment	○	○	○	A55.0201-02
	MD Adapter	○	○	○	A55.0201-03
	PK Adapter	○	○	○	A55.0201-04
	Digital Camera Adapter For Canon EF ditigal SLR Camera Adapter	○	○	○	A55.0204-02

Pictures Hide Same Show Difference
Model No.	A16.0208-PH	A16.0208-2	A16.0208-4
Power Supply	——	External Power Adapter, Input AC 80-250V, Output DC12V	External Power Adapter, Input AC 80-250V, Output DC12V
Reflect Light	——	5W LED Fluorescent Epi-Illumination	5W LED Fluorescent Epi-Illumination
Transmit Light	6V20W	3W LED	3W LED
Light Source Type	Halogen	LED	LED
Condenser N.A.	1.20	1.25	1.20
Condenser Type	Abbe	Abbe + Iris Diaphragm	Abbe
Condenser Features	Slot For PH Slide Rack & Pinionↆ↑	Center Adjustable With Filter Holder Rack & Pinion Up/Down	Slot For PH Slide Filter Holder Rack & Pinionↆ↑
Focusing Knob	Low	——	——
Focusing Scale	0.002mm	0.002mm	0.002mm
Focusing Range	25mm	——	——
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage Moving	75x50mm	75x50mm	75x50mm
Working Stage Size	193x155mm	180x150mm	180x150mm
Working Stage Type	2 Layers Mechanical	Double Layers Mechanical	2 Layers Mechanical
Working Stage Features	Size ≥140x140mm	——	Size ≥140x140mm
Objective	——	Infinity Plan 4x10x100x, Infinity Plan Fluorescent 40x	Infinity Plan 4x10x100x, Infinity Plan Fluorescent 40x
Objective Type	Infinity Plan	Infinity Plan Fluorescent	Infinity Plan Fluorescent
Nosepiece Holes	4 Holes	5 Holes	5 Holes
Nosepiece Features	Center Adjustable With DIC Slot	——	Center Adjustable
Eyepiece	——	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs
Eyepiece Diameter	23.2mm	23.2mm	23.2mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Rotation	Eyetube Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	——	40x-1000x	——
Optical System	Infinity Plan	Infinity Plan	Infinity Plan
Features	Infinity	Infinity	Infinity
Power Supply Type	——	AC 90V-240V Wide Voltage	AC 110V-240V
Light Source Features	——	Transmit & Reflect Brightness Adjustable	——
Focusing Type	——	Coaxial Coarse & Fine	——
Head Diopter	——	Left Tube Adjustable	——
Head Interpupillary	——	55~75mm	——
Head Inclination	——	30°	——
Standard Function	——	BF+FL	——
Fluorescent Band	——	——	4 Bands

A16.0208 Catalogue.pdf
