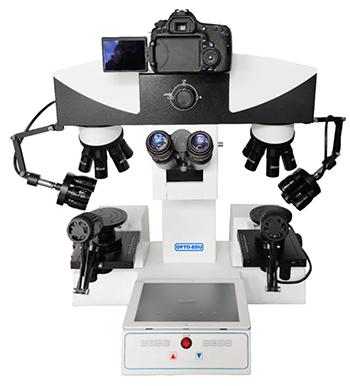

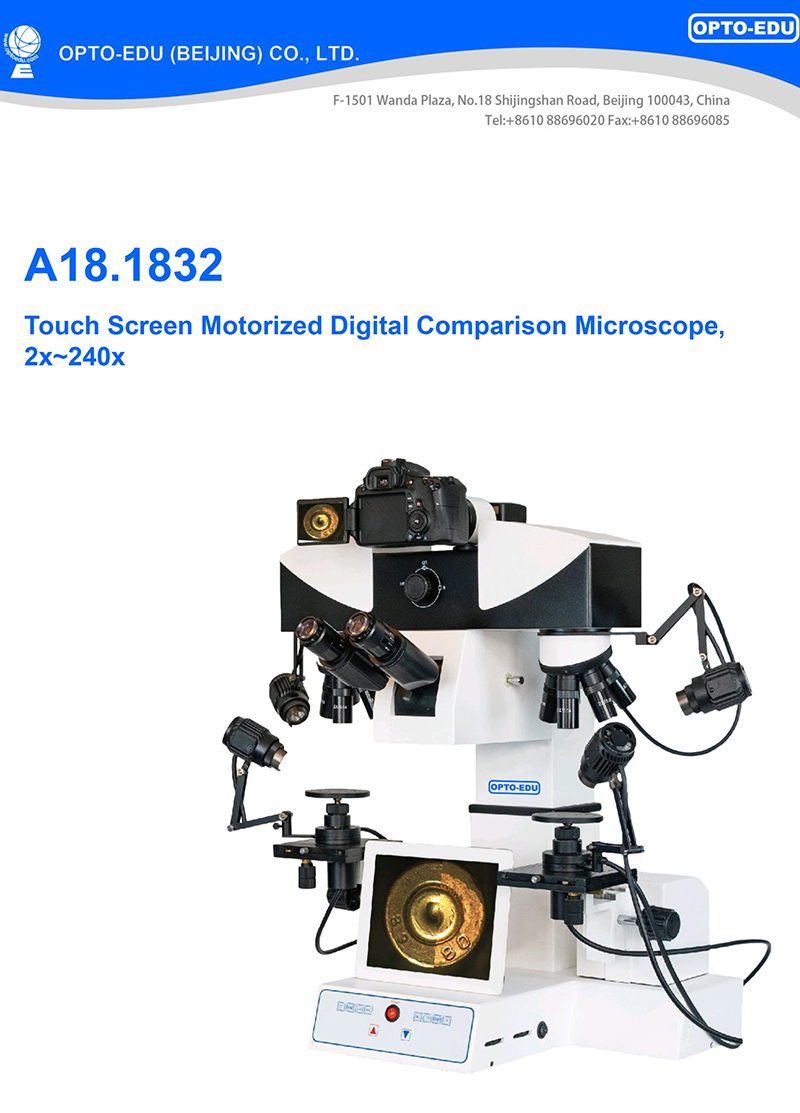

The A18.1832 Touch Screen Motorized Digital Comparison Microscopeoffers 2x–240x magnification with a 0–45° tilt-adjustable binocular head and WF10x/22mm, WF20x/13mm eyepieces. Featuring a motorized sextuple nosepiece, LWD infinity plan objectives (0.5x–6x), and auxiliary lenses (4x, 2.0x), it includes XYZ stage movement, rotation, and 150mm motorized column adjustment. Equipped with Win11 touch screen tablet integration for advanced analysis and control, this microscope ensures precision and efficiency in digital comparison tasks. |
 | ◉Newly Developed 2025! Win11 Touch Screen Tablet Integrated Analysis Software & Control System ◉Total Magnification 2x-240x, 0-45° Tilt Adjustable Binocular Head With Eyepiece WF10x/22mm, WF20x/13mm ◉Sextuple Nosepiece, LWD Infinity Plan Objectives 0.5x,1x,1.5x,2x,4x,6x, Auxiliary Lens 4x,2.0x ◉Motorized 6 Holes Nosepiece, Motorized Working Stage XYZ Moving & R Rotating ◉Motorized Column Up/Down 150mm, Motorized Separation Line Moving |
| Objective | Eyepiece 10X | Eyepiece 20X | Photograpging & Video System | Working Distance | ||
| Mag./Viewfield φ22mm | Mag./Viewfield φ12mm | |||||
| 1X/0.03 | 10X/φ22 | 20X/φ12 | Measure According to Monitor & Digital Camera | 102mm | ||
| 1.5X/0.04 | 15X/φ15 | 30X/φ8 | ||||
| 2X/0.05 | 20X/φ11 | 40X/φ6 | ||||
| 4X/0.072 | 40X/φ5.5 | 80X/φ3 | ||||
| 6X/0.075 | 60X/φ3.7 | 120X/φ2 | ||||
| 0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm | |||

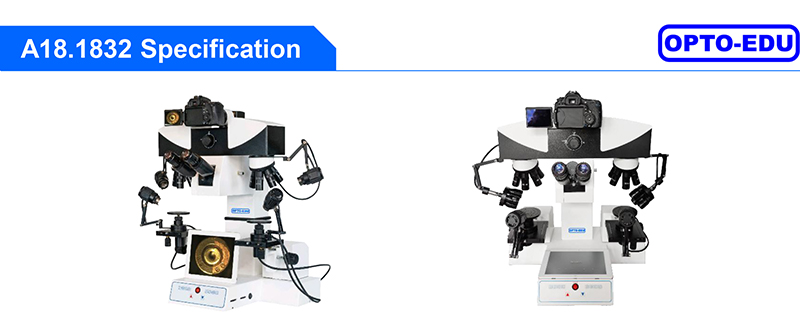

| A18.1832 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table | |||||||
| Magnification | 2x~240x Optical | ||||||
| Head | 0-45° Tiltable Binocular Head, Interpupillary Distance 48~75mm, Diopter +/-5 Adjustable | ||||||

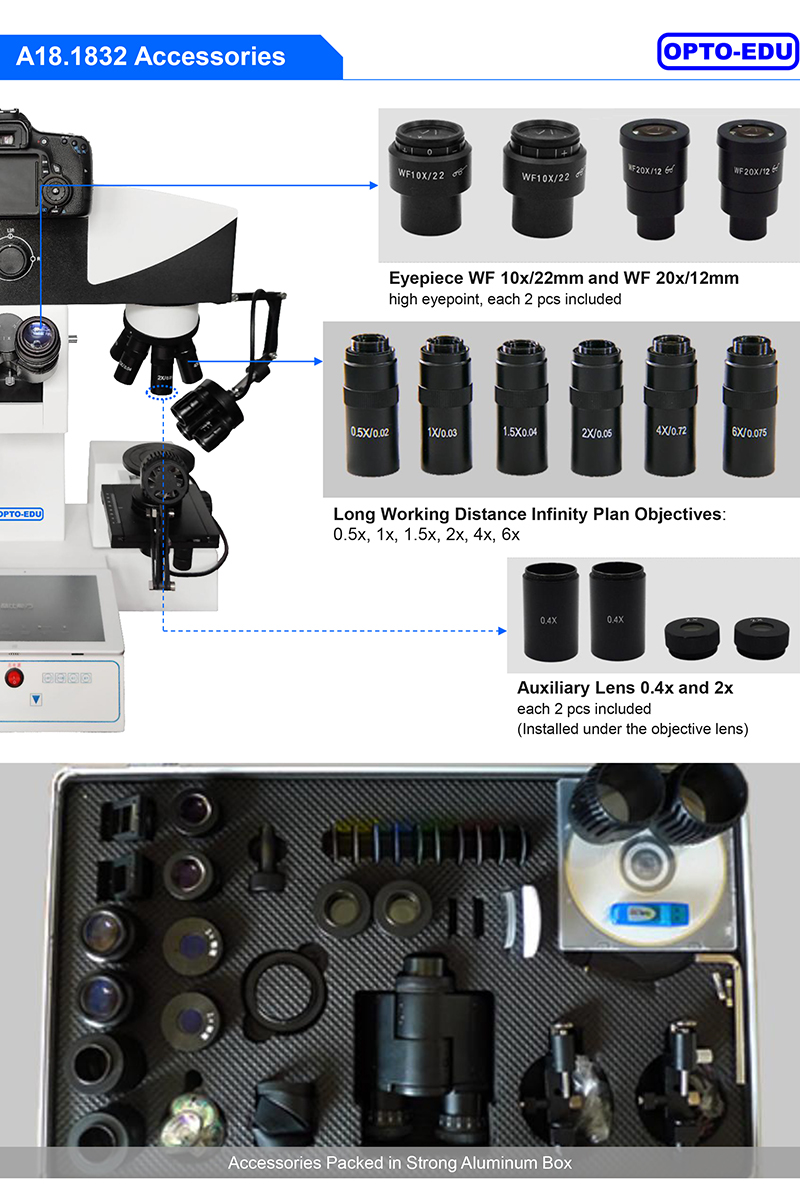

| Eyepiece | WF10x/22mm, High Eyepoint | ||||||
| WF20x/12mm, High Eyepoint | |||||||
| Nosepiece | 6 Hole Click Stop Nosepiece | ||||||
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x | ||||||
| Auxiliary Lens 0.4x, 2.0x | |||||||
| Working Distance | 101mm | ||||||
| View Field | Dia. 2.3~62mm | ||||||
| Magnification Correcting | Magnification Correction System, With Correcting Lens | ||||||
| Separation Line Adjusting | Separation Line Adjust System In Back, With Special Designed Adjust Driver | ||||||
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm | ||||||
| Round Tiltable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable | |||||||
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | |||||||

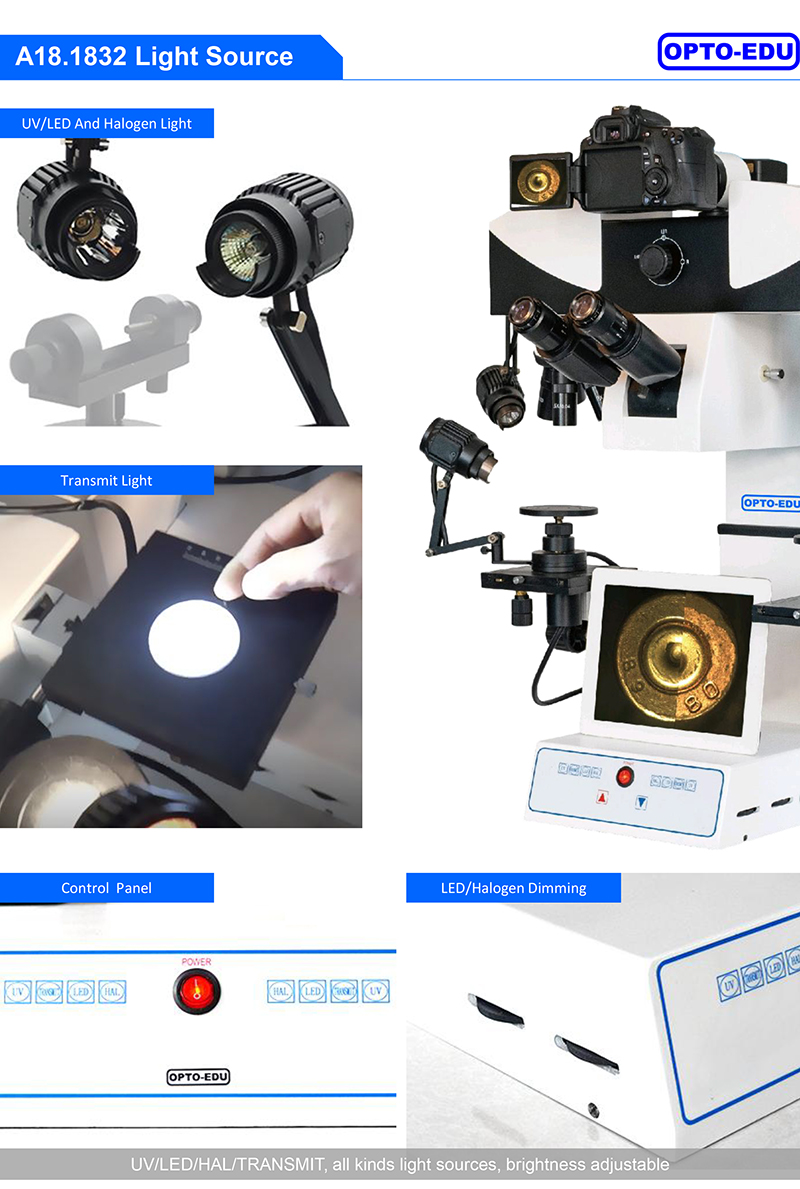

| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable，2pcs | ||||||
| 5W LED/UV Cold Light, High Brightness, Brightness Adjustable，2pcs | |||||||

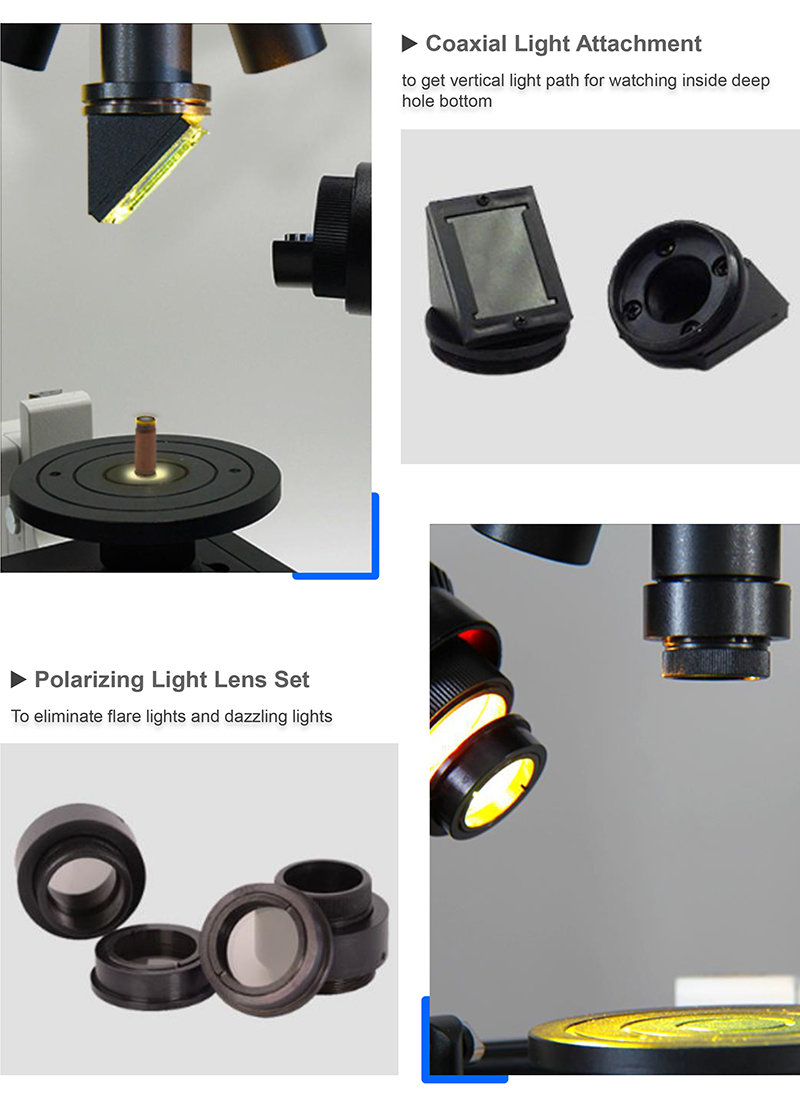

| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface，2pcs | |||||||
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights，2pcs | |||||||
| Transmit Bottom Light (Built-in Working Stage) | |||||||
| Ultraviolet Light Lens，2pcs | |||||||
| Filters: Red, Blue, Yellow, Green，2pcs Each Color | |||||||

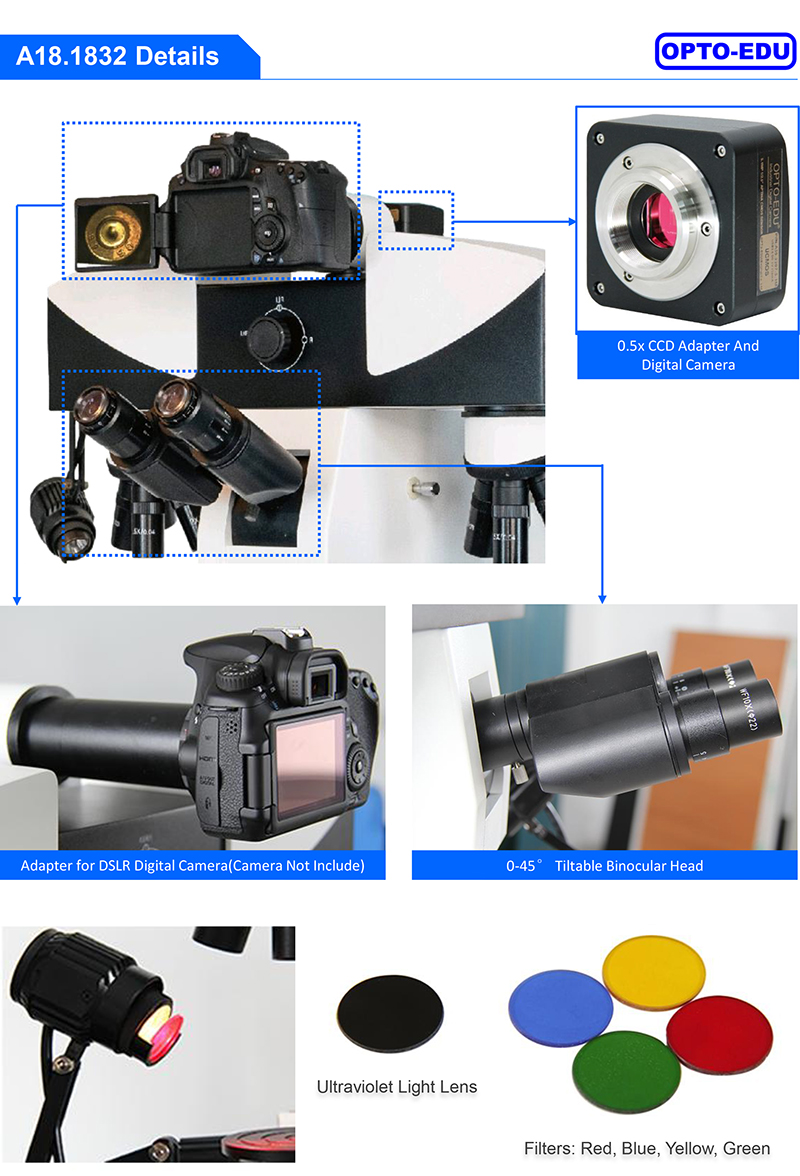

| Adapter | 0.5x CCD Adapter For Digital Camera | ||||||
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) | |||||||
| CCD Camera | 5.1M High Resolution Color CCD Camera, 1/2.5"CMOS, USB 2.0 Output, Resolution 2592*1544 Pixels, Pixel Size 2.2*2.2μm | ||||||

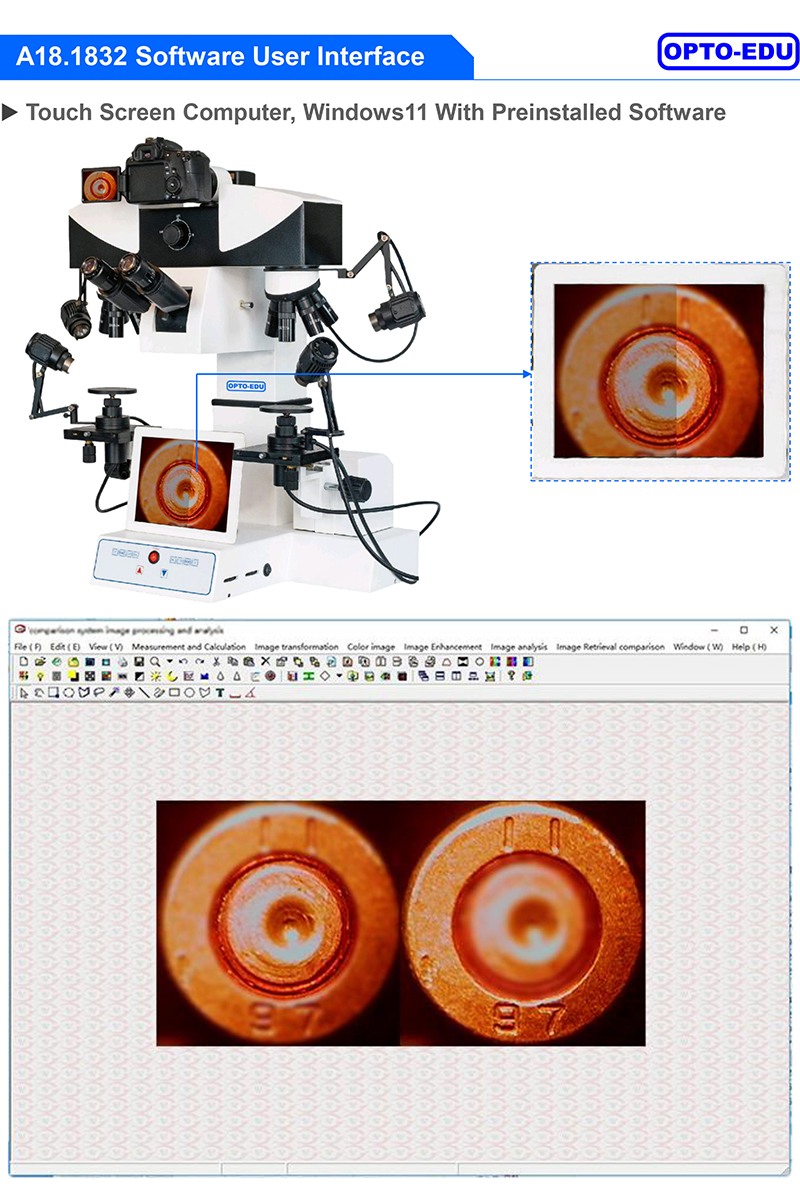

| Touch Screen Computer | Touch Screen Computer, Windows With Preinstalled Software | ||||||

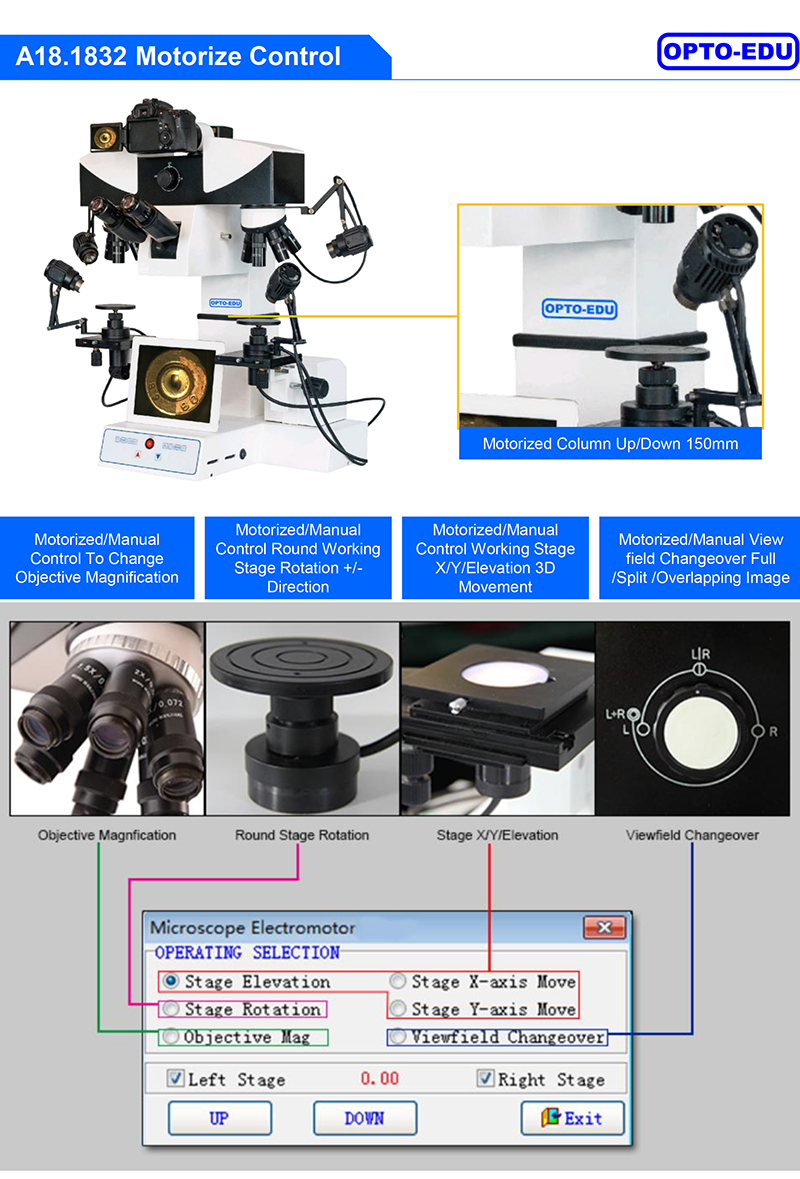

| Software & Motorize Control | Professional Forensic Image Analysis Software | ||||||
| Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image | |||||||
| Motorized/Manual Control Working Stage X/Y/Z 3D Movement | |||||||
| Motorized/Manual Control Round Working Stage Rotation +/- Direction | |||||||
| Motorized Column Up/Down 150mm | |||||||
| Motorized/Manual Control To Change Objective Magnification | |||||||
| Power | 80~240V Wide Range Voltage | ||||||
| Bullet Holder | Standard Bullet Holder 2 Sets, Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects | ||||||
| Dimension | Instrument Size 40*60*72cm | ||||||
| Optional Accessories | |||||||
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 | |||||
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 | |||||
| Working Table | Motorized Up/Down Working Table, Surface 60cm*120cm, Height 65cm,Up/Down Moving 170mm | A54.1821 | |||||

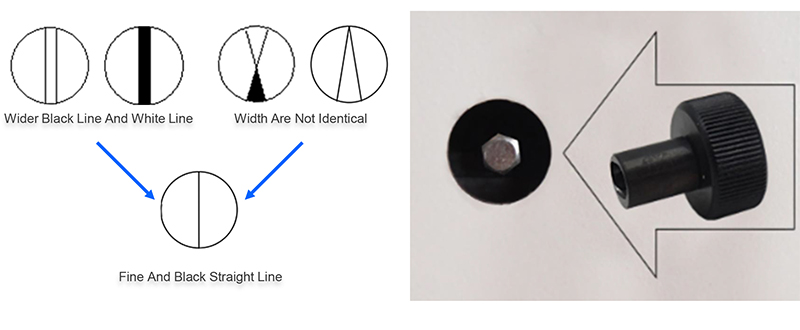

▶Separation Line Adjust System Separation Line Adjust System in Black, with special designed adjust driver |

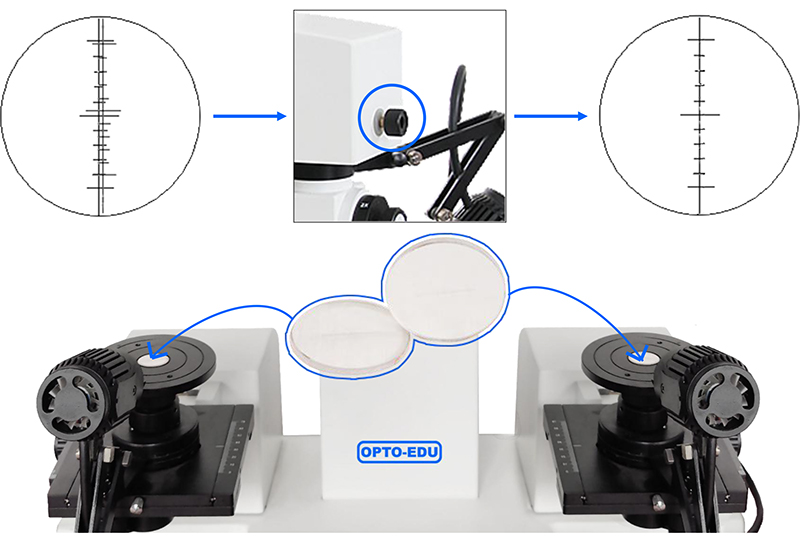

▶Magnification Correction System, With Correcting Lens Put 2 correcting lens on 2 working stage, see through eyepiece, find 2 clear scale images in overlapping mode, adjust correcting knob on right side of microscope body, until the 2 scales fully match each other. |

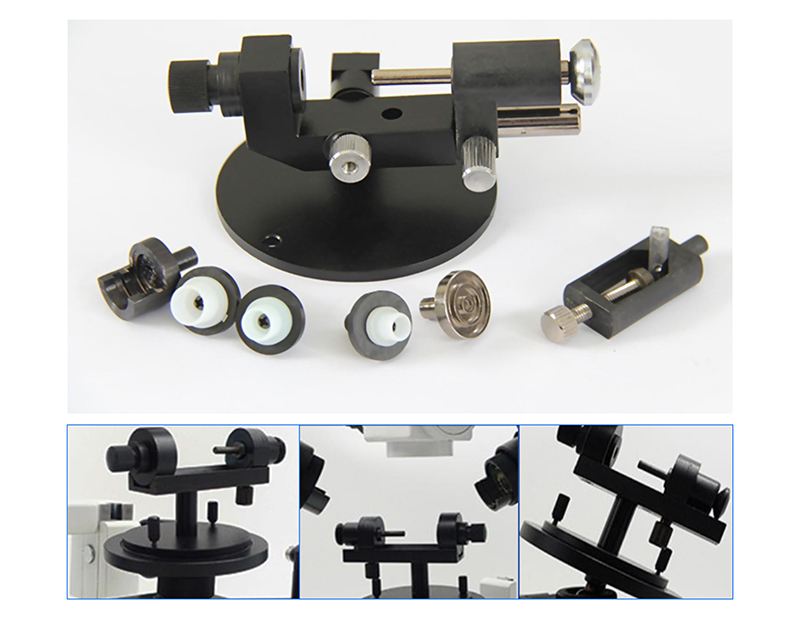

▶Bullet Holder Set To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets. |

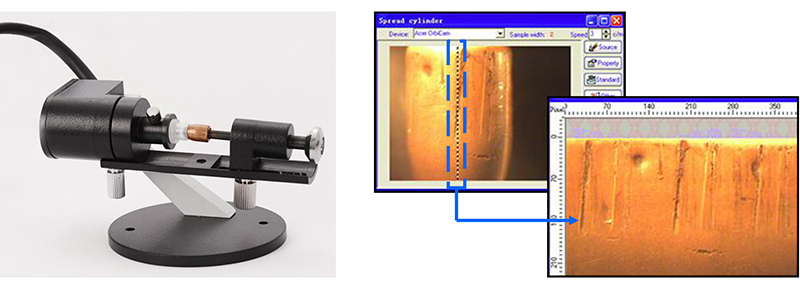

▶Motorized Bullet Holder (Optional) To capture rotating cartridge surface and spread; to observe/compare easily, used with software |
