Monocular Zoom Video Microscope, 0.7-4.5x, Black Large Pole Stand

A21.3601-B3

Like Favorites

Monocular Zoom Video Microscope, 0.7-4.5x, Black Large Pole Stand

0.7-4.5x Monocular Zoom Video Microscope Body
Total Magnification 0.35x-2.25x Continou Zoom
With Standard CCD Mount And Optical Lens 1x
Column Diameter 25mm, Working Distance 100mm
C-Mount 0.35x, 1.0x, Auxiliary 0.5x, 2.0x Optional

Specification:

A21.3601-B3

Monocular Zoom Video Microscope, 0.7-4.5x

A21.3601-STL7

A21.3601

Items	A21.3601 Mono Zoom Video Microscope	A21.3601	A21.3601 -B3	A21.3601 -STL7
Head	Monocular	●	●	●
C-Mount	0.5x, W.D.100mm	●	●	●
Objective	0.7x-4.5x	●	●	●
Magnification	0.35x-2.25x, Zoom Power	●	●	●
Focusing Type	XLB-A1 Basket Holder, Range 62mm, Mirror Aperture Φ50mm	●	●	●
Stand	None, Main Body Only	●
	B3 Pillar Stand, Column diameter Φ25mm, Height 323mm or 270mm		●
	STL7 Stand, Diameter Φ25mm, Height 340mm, Size 380x260x20mm			●

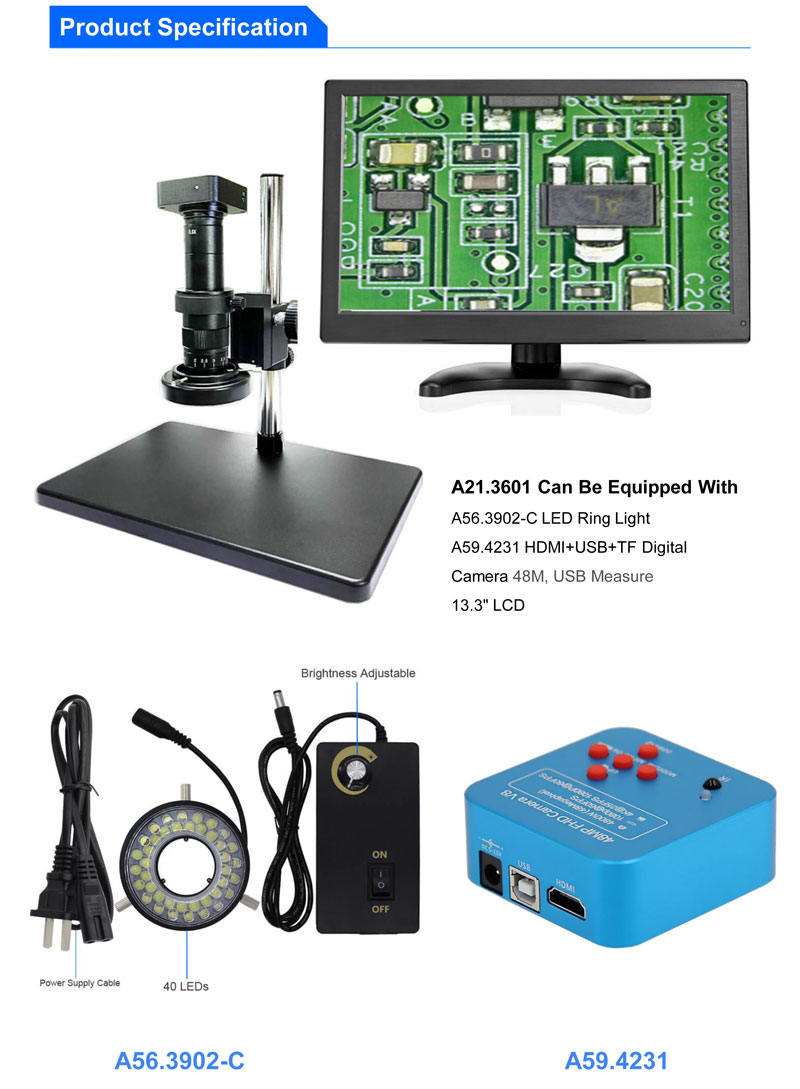

Items	A21.3601 Mono Zoom Video Microscope Optional Accessories
C-Mount	0.35x
C-Mount	1.0x
Auxiliary Objective	0.5x
Auxiliary Objective	2.0x
Light Source	LED Ring Lamp

Eyepiece	Standard Objective 0.7x-4.5x		Auxiliary objective 0.5x		Auxiliary objective 2.0x
	W.D.100mm		W.D.198mm		W.D.46mm
	Magnification	Field Of View	Magnification	Field Of View	Magnification	Field Of View
0.35x	0.245x	23.0	0.1225x	46.0	0.49x	11.6
0.35x	1.575x	3.0	0.7875x	7.0	3.15x	1.7
0.5x	0.35x	17.6	0.175x	35.0	0.7x	8.8
0.5x	2.25x	2.7	1.125x	5.0	4.5x	1.3
1.0x	0.7x	9.0	0.35x	17.6	1.4x	4.0
1.0x	4.5x	1.6	2.25x	3.0	9x	0.7

Pictures Hide Same Show Difference
Model No.	A21.3601-B3	A21.3601-STL7	A21.3601
Camera Mounting	C-Mount	C-Mount	C-Mount
Stereo Stand	B3 Pillar Stand, Column diameter Φ25mm, Height 323mm or 270mm	STL7 Stand, Diameter Φ25mm, Height 340mm, Size 380x260x20mm	——
Focusing Knob	XLB-A1 Basket Holder, Range 62mm, Mirror Aperture Φ50mm	XLB-A1 Basket Holder, Range 62mm, Mirror Aperture Φ50mm	——
Focusing Range	62mm	62mm	——
Working Stage	B3 Pillar Stand, Column diameter Φ25mm, Height 323mm or 270mm	STL7 Stand, Diameter Φ25mm, Height 340mm, Size 380x260x20mm	——
Objective Type	Stereo	Stereo	Stereo
Standard Magnification	0.35x-2.25x	0.35x-2.25x	0.35x-2.25x
Standard Function	BF	BF	BF

A21.3601 Catalogue.pdf 797.90KB 2023/01/10
