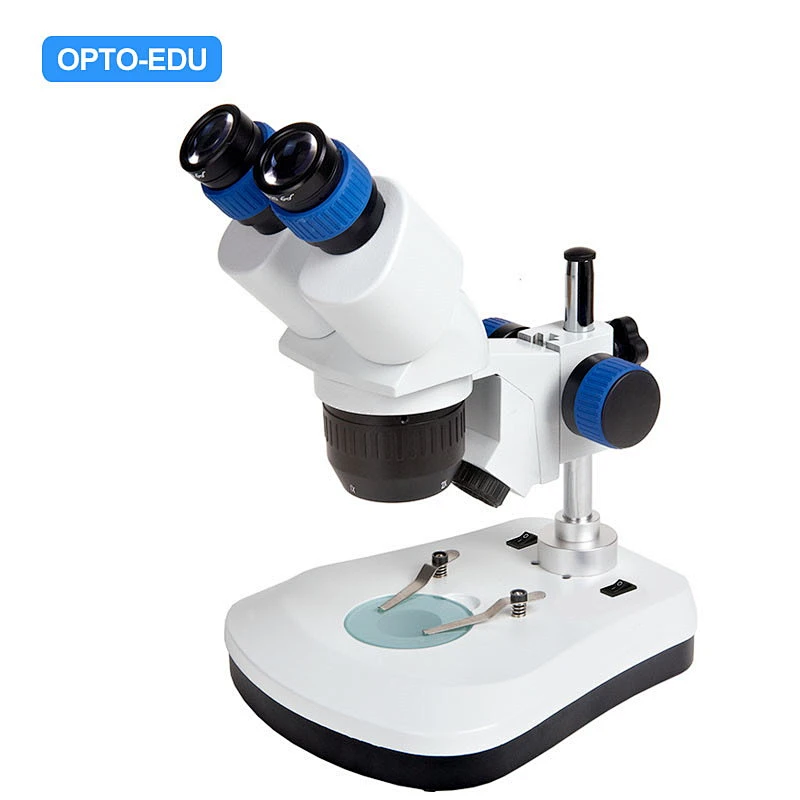

OPTO-EDU A22.1237-PB Stereo Microscope, 1x2x/1x3x/2x4x

Stereo Microscope, 1x2x/1x3x/2x4x, Pole Stand, Dial Switch

Binocular Head 360° Rotatable With Locked-in Eyepiece

WF10x/22mm High Eye Point Wide Field Eyepiece

Main Objective 90° Rotatable 1x2x, 1x3x, 2x4x Optional

Track Stand & Pole Stand Optional With Up/Bottom Light

Dial & Touch Power On/Off Switch Optional

Pictures Hide Same Show Difference
Model No.	A22.1237-PB	A22.1237-P	A22.1237-PA	A22.1237-TA	A22.1237-TB
Other Specification	Dial Switch	——	Touch Switch	Touch Switch	Dial Switch
Stereo Stand	With Blue Rubber Ring	With Blue Rubber Ring	With Blue Rubber Ring	With Blue Rubber Ring	With Blue Rubber Ring
Stereo Stand Type	Pole Stand	Pole Stand	Pole Stand	Track Stand	Track Stand
Power Supply Type	Cordless Rechargeable	——	Cordless Rechargeable	Cordless Rechargeable	Cordless Rechargeable
Reflect Light	LED 1W	——	LED 1W	LED 1W	LED 1W
Transmit Light	LED 7x20mA	——	LED 7x20mA	LED 7x20mA	LED 7x20mA
Light Source Type	LED	——	LED	LED	LED
Focusing Knob	With Blue Color Rubber Ring	With Blue Color Rubber Ring	With Blue Color Rubber Ring	With Blue Color Rubber Ring	With Blue Color Rubber Ring
Focusing Range	40mm	40mm	40mm	40mm	40mm
Focusing Type	Coarse Focus Only	Coarse Focus Only	Coarse Focus Only	Coarse Focus Only	Coarse Focus Only
Working Stage	Round Forest Glass Plate 1 pc Round Black/White Plate 1 pc	Round Forest Glass Plate 1 pc Round Black/White Plate 1 pc	Round Forest Glass Plate 1 pc Round Black/White Plate 1 pc	Round Forest Glass Plate 1 pc Round Black/White Plate 1 pc	Round Forest Glass Plate 1 pc Round Black/White Plate 1 pc
Working Stage Size	Dia.60mm	Stage Plate Dia.60mm	Dia.60mm	Dia.60mm	Dia.60mm
Objective	1x3x, Optional 1x2x//2x4x	1x3x, Optional 1x2x//2x4x	1x3x, Optional 1x2x//2x4x	1x3x, Optional 1x2x//2x4x	1x3x, Optional 1x2x//2x4x
Eyepiece	WF10x/22mm, 2pcs	WF10x/20mm, 2 pcs	WF10x/22mm, 2pcs	WF10x/22mm, 2pcs	WF10x/22mm, 2pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Super WF ≥23mm	——	Super WF ≥23mm	Super WF ≥23mm	Super WF ≥23mm
Head Specification	Eyetube With Eyepiece Fixing Screw, With Blue Color Ring	With Eyepiece Fixing Screw, With Blue Color Ring	Eyetube With Eyepiece Fixing Screw, With Blue Color Ring	Eyetube With Eyepiece Fixing Screw, With Blue Color Ring	Eyetube With Eyepiece Fixing Screw, With Blue Color Ring
Head Diopter	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable
Head Interpupillary	55~75mm	55~75mm	55~75mm	55~75mm	55~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	45°	45°	45°	45°	45°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	10x20x-20x40x	10x20x-20x40x	10x20x-20x40x	10x20x-20x40x	10x20x-20x40x
Standard Function	BF	BF	BF	BF	BF
New Product Year	2015	2017	2015	2015	2015

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

Items	A22.1237 Stereo Microscope
Model	P	PA	PB	TA	TB
Head	Rotatable 360°, Inclination 45° Binocular, With Locked-in Eyepiece, Left & Right Diopter Adjustable ±5°, Head Interpupillary 55-75mm
Eyepiece	WF10x
Objective	Three Kind Of Objective 90° Rotatable For Selection: 1x2x, 1x3x, 2x4x
Light Source	No Light Source	Reflect 1WLED, Transmit 7x20mA
Stand	Pole Stand	Pole Stand Touch Switch	Pole Stand Dial Switch	Track Stand Touch Switch	Track Stand Dial Switch
Working Stage	Φ60 White/Black And Φ60 Frosted Glass
Power Supply	No Light Source	AC 100V-240V Wide Range, With 3xAA Rechargeable Batteries 1300mAh
Optional Accessories
Eyepiece	WF5x
	SWF10x
	WF15x
	WF20x
