A22.1239-TB

Like Favorites

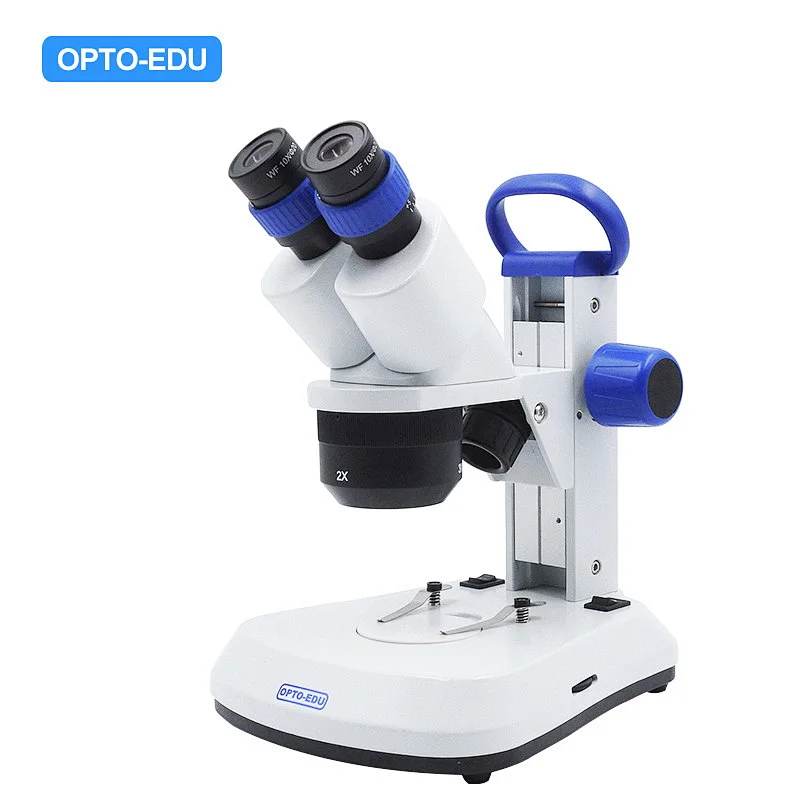

Stereo Microscope, 1x2x3x/1x2x4x

  • Binocular Head 360° Rotatable With Locked-in Eyepiece
  • 1x2x3x/1x2x4x Three Lens Group Switchable
  • WF10x/22mm High Eye Point Wide Field Eyepiece
  • Track Stand With Up/Bottom Light Brightness Adjustable
  • Dial & Touch Power On/Off Switch Optional
Quantity:














ItemsA22.1239-TAA22.1239-TB
HeadBinocular Head, 45° Inclined, Interpupillary Distance 48~75mm
EyepieceWF10x/20mm
Objective1x,2x,3x Or 1x,2x,4x (Optional)
FocusingCoarse Focusing, Range 40mm
Working Distance57mm
StandTrack Stand + Touch SwitchTrack Stand + Dial Switch
With Dia 70mm Glass Stage And White/Black Stage
Light SourceTop 1W LED, Bottom 7x20mA LED Light Brightness Adjustable
PowerAC 100~240V Wide Range Power, With 3xAA Rechargeable Batteries Built-in Base. (For Order Shipped By Air, The Batteries Will Not Be Included)


Pictures
Model No. A22.1239-TB A22.1239-TA
New Product Year
2017 2017
Optical System
Greenough Greenough
Standard Magnification
10x20x30x 10x20x30x
Head Type
Seidentopf Binocular Seidentopf Binocular
Head Rotation
Head Rotate 360° Fixed
Head Interpupillary
48~75mm 48~75mm
Head Diopter
Both Tube Adjustable Both Tube Adjustable
Head Specification
With Eyepiece Fixing Screw, With Blue Color Ring With Eyepiece Fixing Screw, With Blue Color Ring
Eyepiece Diameter
30.0mm 30.0mm
Eyepiece
WF10x/20mm, 2 pcs WF10x/20mm, 2 pcs
Objective Type
CMO (Stereo) CMO (Stereo)
Objective
1x2x3x, Optional 1x2x4x 1x2x3x, Optional 1x2x4x
Working Stage Size
Stage Plate Dia.60mm Stage Plate Dia.60mm
Working Stage
Round Forest Glass Plate 1 pc

Round Black/White Plate 1 pc
Round Forest Glass Plate 1 pc

Round Black/White Plate 1 pc
Focusing Type
Coarse Only Coarse Only
Focusing Range
40mm 40mm
Focusing Knob
With Blue Color Rubber Ring With Blue Color Rubber Ring
Light Source Type
LED LED
Transmit Light
LED 7x20mA LED 7x20mA
Reflect Light
LED 1W LED 1W
Power Supply Type
Cordless Rechargeable Cordless Rechargeable
Video Adapter
C-Mount 0.3x C-Mount 0.3x
Working Distance
57mm 57mm
Stereo Stand Type
Track Stand Track Stand
Other Specification
Dial Switch Touch Switch
