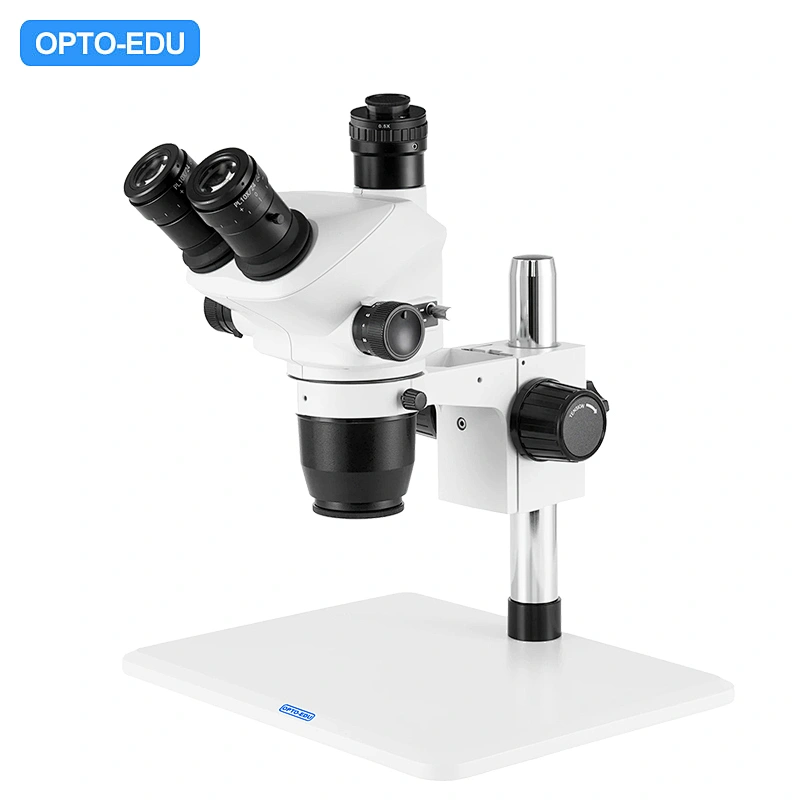

Zoom Stereo Microscope, 0.65-5.2x, 1:8

Continous Zoom 0.65-5.2x Binocular & Trinocular Head, Zoom Ratio 1:8

Standard 6.5x-52x, Up To 3.25x-260x With Optional Eyepieces & Auxiliary Objectives

High Eyepoint, Dia.30mm WF10x/22mm, Optional WF15x, WF20x, WF25x

Working Distance 118mm, Up To 42~218mm With Auxiliary Objectives

35 Kinds Stand Optional, Details See A54.3630

Specification:

A23.3652

A23.3652 Zoom Stereo Microscope, 0.65-5.2x
Optical System	Greenough
Head	Binocular / Trinocular Head, Interpupillary Distance 55~75mm
Magnification	0.65x~5.2x Continuous Zoom Body, Total Magnification 3.25x~260x (With Optional Eyepiece & Lens)
Zoom Ratio	1:8
Eyepiece	WF10x/24mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Max Field of View	Ф42 mm
Working Distance	118mm (1x), Optional 42~218mm
Bracket Holder Hole	Inner Dia. Ф76mm

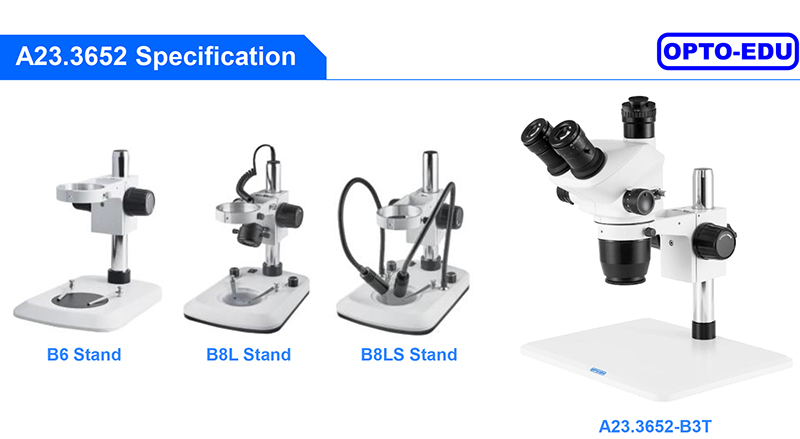

Model	A23.3652-B6T
	Trinocular Head, Light Split Switch 100:0/0:100
	B6 Pole Stand, Size 21027438mm, Pole Dia.32mm, Height 240mm, No Light Source,
	0.5x C-Mount

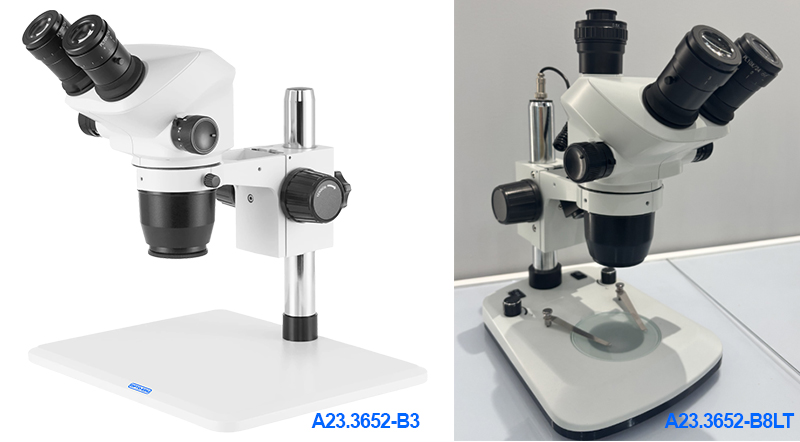

	A23.3652-B8LT
	Trinocular Head, Light Split Switch 100:0/0:100
	B8L Pole Stand, Size 21027438mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED,
	0.5x C-Mount
	A23.3652-B8LST
	Trinocular Head, Light Split Switch 100:0/0:100
	B8LS Pole Stand, Size 21027438mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED,
	0.5x C-Mount
	A23.3652-B3T
	Trinocular Head, Light Split Switch 100:0/0:100
	B3 Pole Stand, Size 38026020mm, Pole Dia.32mm, Height 240mm, No Light Source,
	0.5x C-Mount
Optional	Eyepiece WF15x, WF20x, WF25x, A51.3622
	Auxiliary Lens 0.5x, 0.75x, 1.5x, 2.0x, A52.3652
	C-Mount 1.0x, A55.3623
	35 Kinds of Stands & Brackets, See A54.3630

A23.3652 Optical Data Sheet
Auxiliary Objective Lens		0.5x	0.75x	1x (Standard)	1.5x	2.0x
Working Distance		218 mm	140 mm	118 mm	68 mm	42mm
WF10x/24mm	Magnification	3.25x~26x	4.88x~39x	6.5x~52x	9.75x~78x	13x~104x
WF10x/24mm	Field of View(mm)	73.85~9 .23	49.23~6.15	36.92~4.62	24.62~3.08	18.46~2.31
WF15x/16mm	Magnification	4.88x~39x	7.31x~58.5x	9.75x~78x	14.63x~117x	19.5x~156x
WF15x/16mm	Field of View(mm)	49.23~6.15	32.82~4.1	24.62~3 .08	16 .41~2.05	12.31~1.54
WF20x/12mm	Magnification	6.5x~52x	9.75x~78x	13x~104x	19.5x~156x	26x~208x
WF20x/12mm	Field of View(mm)	36.36~4.62	24.62~3 .08	18 .46~2 .31	12 .31~1.54	9 .23~1.15
WF25x/10mm	Magnification	8.13x~65x	12.19x~97.5x	16.25x~130x	24.38x~195x	32.5x~260x
WF25x/10mm	Field of View(mm)	30.77~3 .84	20.51~2.56	15 .38~1 .92	10.26~1.28	7.69~0.96

Pictures

Model No.

A23.3652

Working Distance

格式:1.0,或1.0~2.0

Stereo Zoom Ratio

1:8

Focusing Scale

0.000000

Focusing Range

0.000000

Working Stage Size

格式:100x100mm,或 Dia.100mm
