EVOS LCD Cell Image Inverted Microscope, Semi-APO, BF+PH

A33.2607-D

Like Favorites

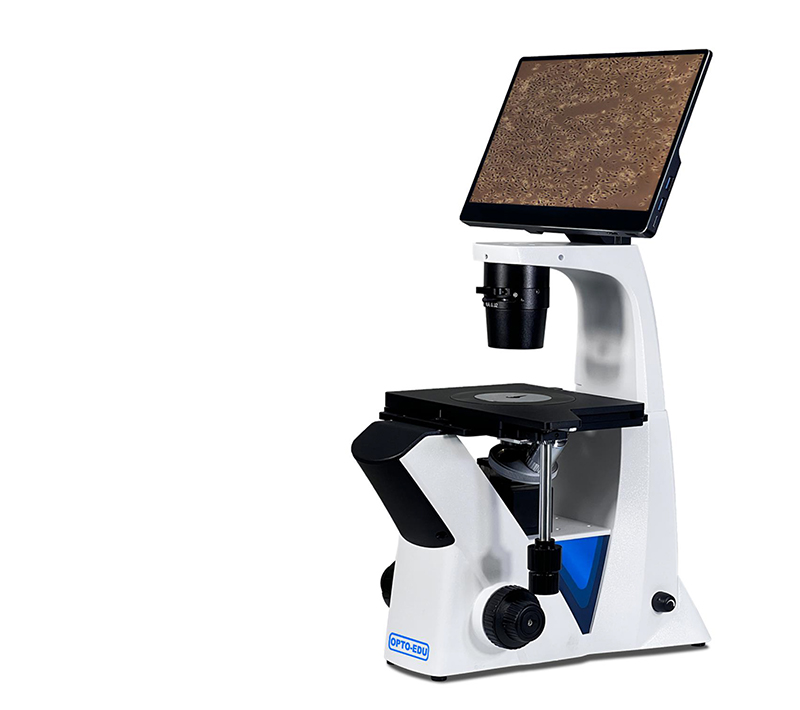

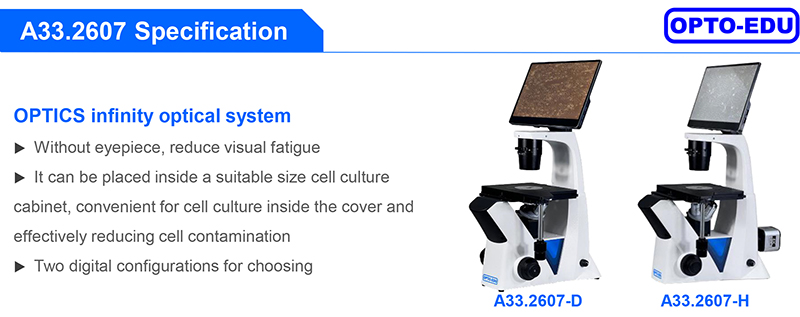

EVOS LCD Cell Image Inverted Microscope, Semi-APO, BF+PH

EVOS Cell Imaging System With High Quality Infinity Corrected Optical System
11.6" Win11 Tablet + 6.3M USB3.0 Digital Camera, or 11.6" LCD + 4K HDMI Digital Camera
LWD Infinity Plan Semi-APO Fluorescent BF & PH 4x,10x,20x,40x Objectives
LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser
Working Stage 180x155mm, LWD Condenser N.A.0.32, Transmit 5W LED Koehler Illumination

Specification:

A33.2607-D

A33.2607-H

Objectives In Standard Outfit

LWD Infinity Plan FL Semi-APO Objectives 10x,40x

LWD Infinity Plan FL Semi-APO Phase Contrast Objectives 20x

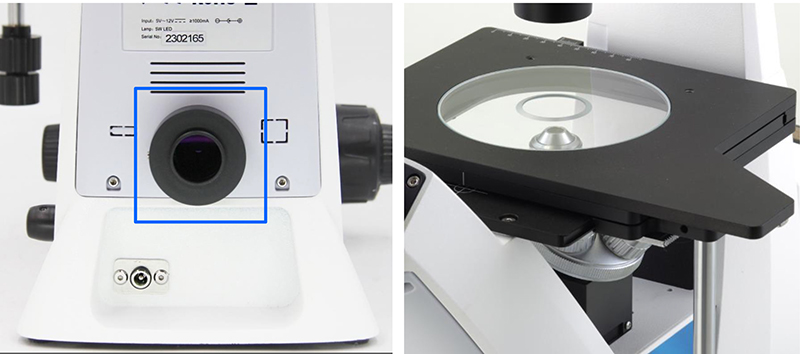

Photo Tube With C-Mount 0.65x

Built-in 0.65x C-Mount In Back of Microscope Body

Triple Layers Mechanical Stage With Glass Plate (StandardOutfit)

Mechanical Stage 180x155mm

Metal Plate Dia.110mm,Inner Dia.25mm (Optional)

Fixed Stage Size 180x203mm (Optional)

Glass Plate Dia.110mm, Inner Dia.30mm

Item	Inverted Metallurgical/Biological Microscope Specification	A33.2607 -D	A33.2607 -H	Order NO.

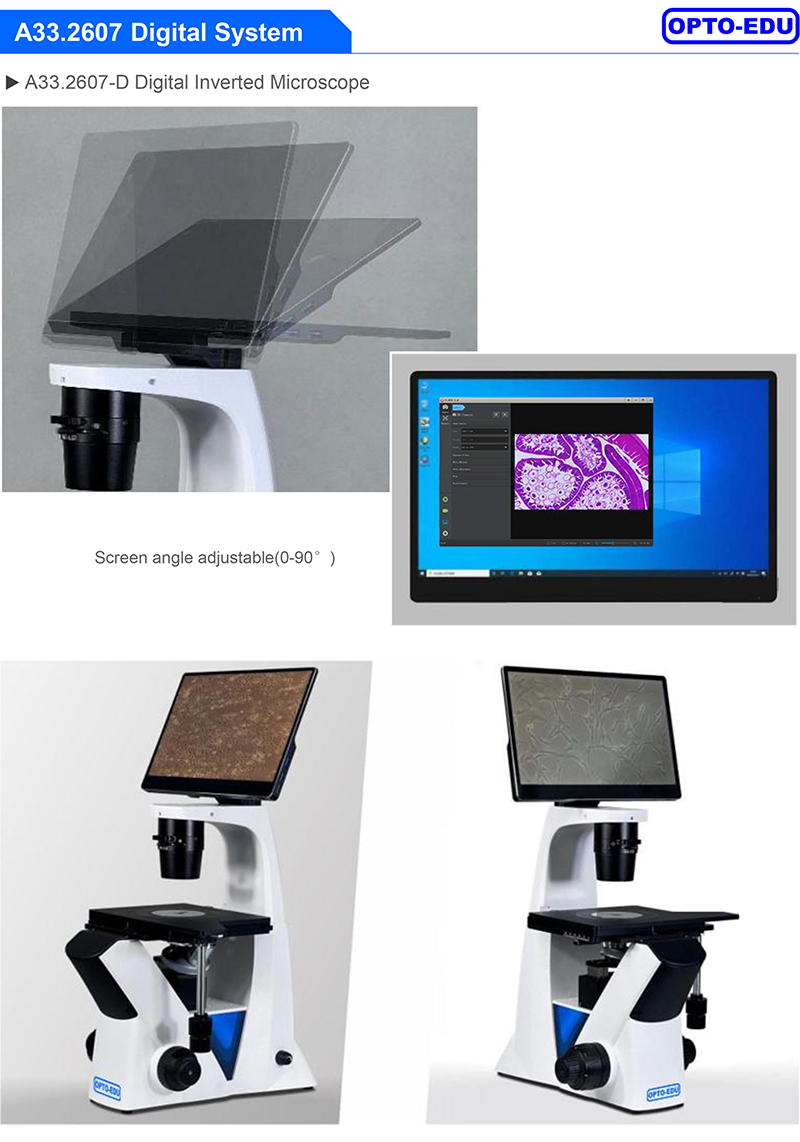

Digital Camera	--11.6"Win11 Tablet, 8G+128G, Image View Measure Software, Support Bluetooth, WIFI, USB3.0, Net. --6.3M USB 3.0 High Speed 60 FPS Digital Camera	●

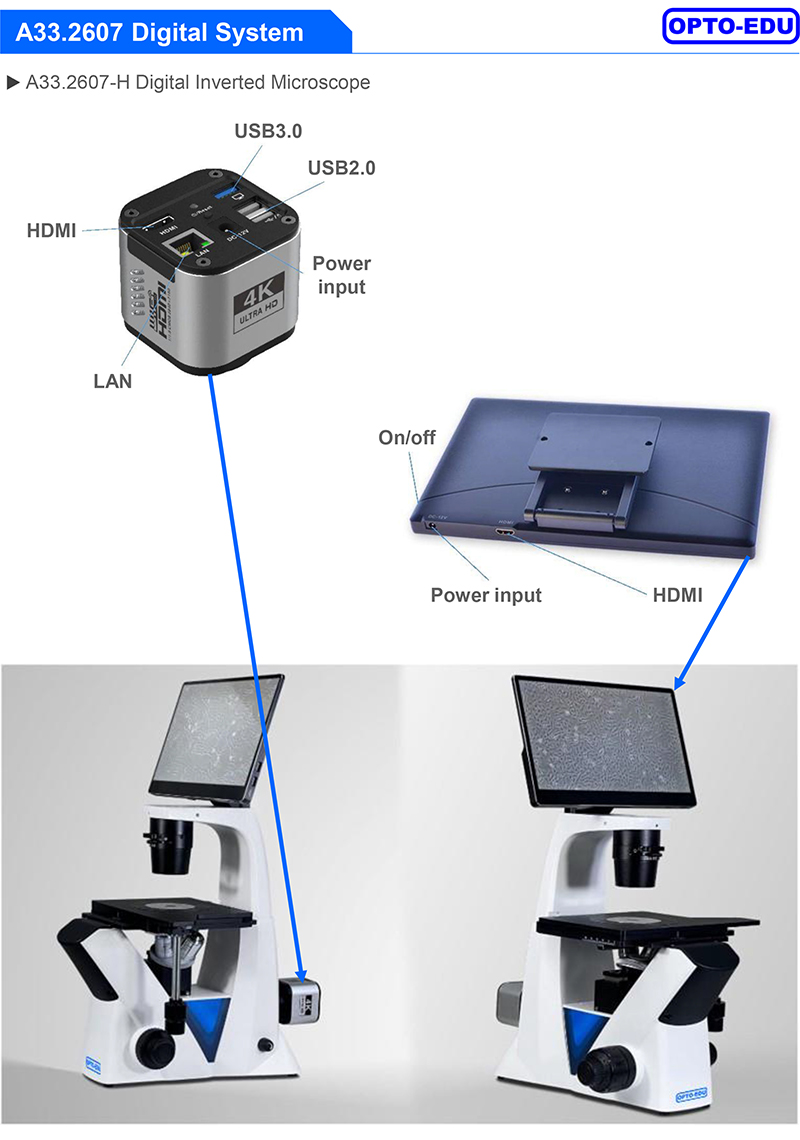

HDMI Camera	--11.6"IPS LCD Screen, Resolution 1920*1080p --4K HDMI Digital Camera, Output HDMI+USB+WIFI6 +Net, Built-in Menu For Photo, Video, Measure, Control by Mouse & Keyboard		●

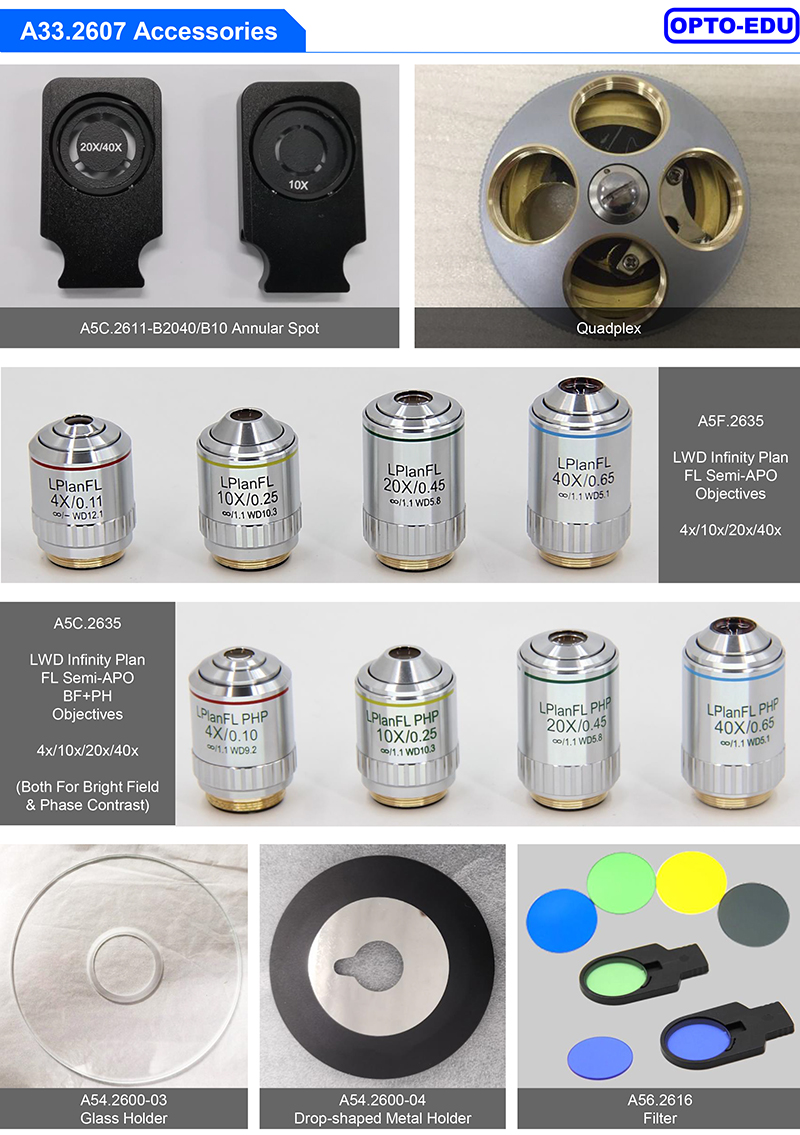

LWD Infinity Plan FL Semi-APO Objectives	L Plan FL 4x/0.11 W.D.=12.1mm	●	●	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	○	○	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	○	○	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	○	○	A5F.2635-40
LWD Infinity Plan FL Semi-APO BF+PH Objectives	For Both Bright Field & Phase Contrast View	○	○
	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	A5C.2635-04
	L Plan FL PHP 10×/0.25 W.D.=10.3mm	●	●	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	●	●	A5C.2635-40
Phase Contrast Slide	10x	●	●	A5C.2611-B10
Phase Contrast Slide	20x/40x, For Both 20x And 40x	●	●	A5C.2611-B2040
Nosepiece	Quadruple	●	●	A54.2610-N03

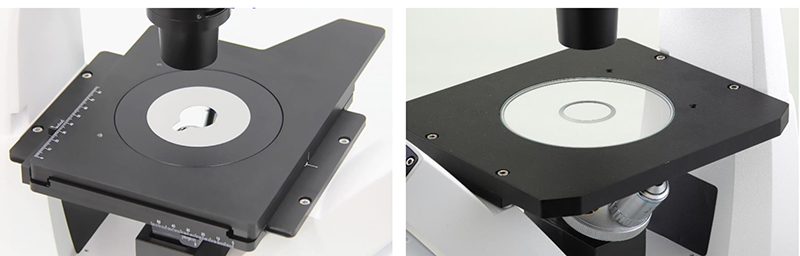

Stage	Three-layer Mechanical Stage, Size 180x155mm, Moving Range 75×40mm, Scale 0.1mm, Round Hole Size Dia.110mm			A54.2600-01
	Fixed Stage, Size 180×203mm, Round Hole Size Dia.110mm	○	○	A54.2600-02
	Glass Plate, External Diameter Dia.110mm, Inside Diameter Dia.30mm	●	●	A54.2600-03
	Metal Plate, External Diameter Dia.110mm, Inside Diameter Dia.25mm	○	○	A54.2600-04

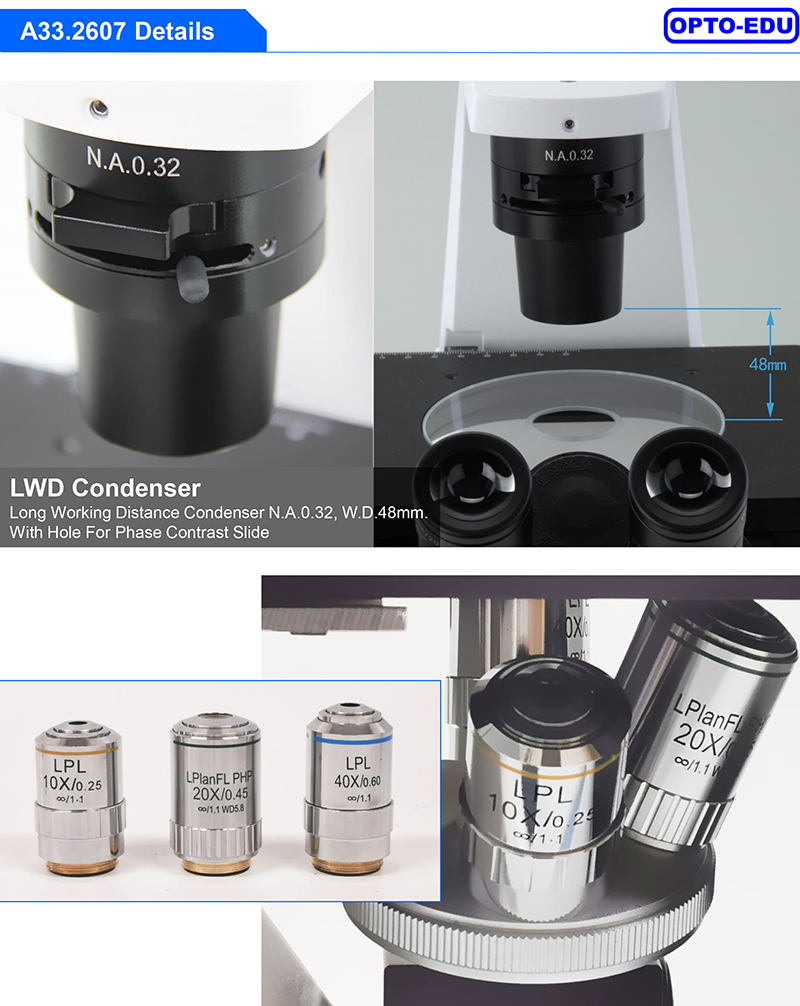

Condenser	Long Working Distance, N.A.0.32, Working Distance 48mm, With Slide Hole For Phase Contrast Slide	●	●	A56.2614-D3
Focusing	Coaxial Coarse And Fine Focusing Unit, Coarse Stroke: 10mm, Fine Stroke Per Rotation: 0.2mm, Fine Division 2 μm.	●	●

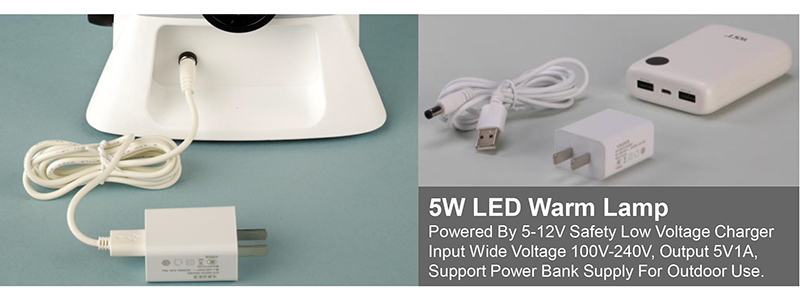

Illumination	5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	A56.2612-5WP
Filter	Green, Dia.21mm, With Filter Slider, or Put on Phase Contrast Slide	●	●	A56.2616-21G
	Grey, Dia.21mm	○	○	A56.2616-21N
	Blue, Dia.21mm	○	○	A56.2616-21B
	Yellow, Dia.21mm	○	○	A56.2616-21A
C-mount	Built-in C-Mount 0.65x	●	●

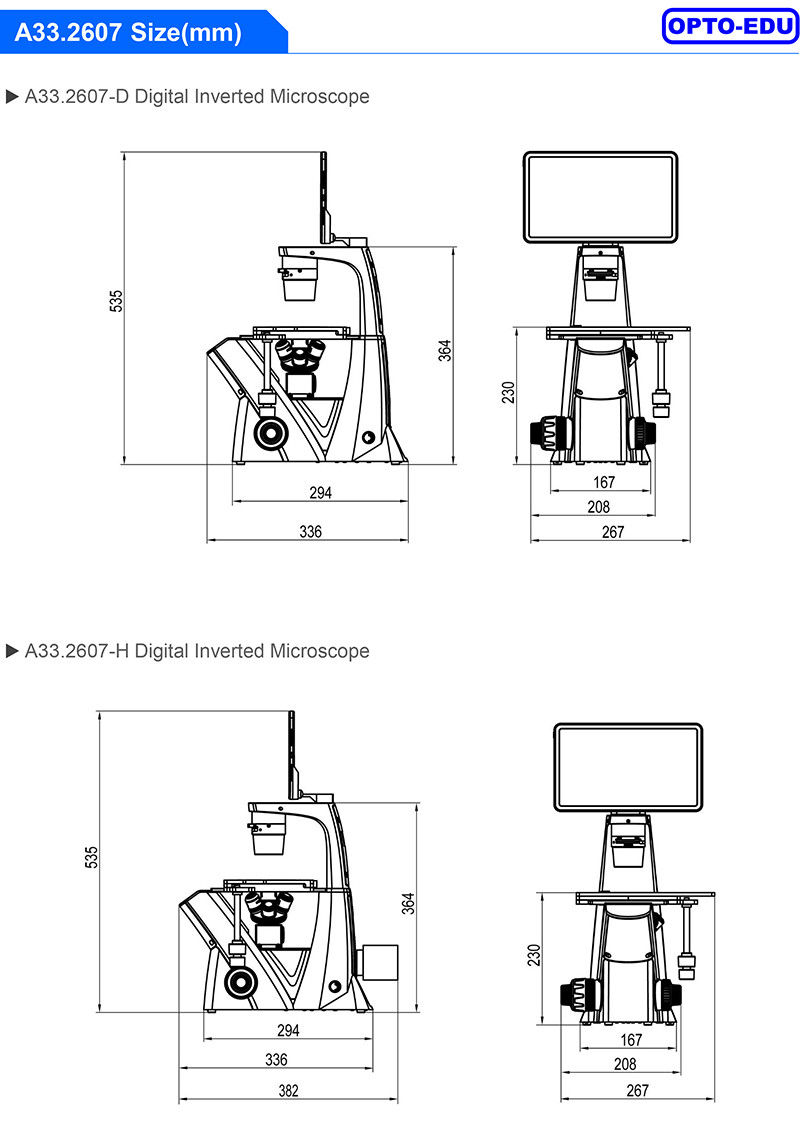

Packing Size	515x480x315mm, Gross Weight 9kgs, Net Weight 7kgs
Note:"●"Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A33.2607-D	A33.2607-H
Other Specification	Blue & Green Filter, Dia. 34mm	Blue & Green Filter, Dia. 34mm
Phase Contrast	Infinity Phase Contrast LWD Semi-APO FL20x Objective, Annular Spot 10x & 20x/40x	Infinity Phase Contrast LWD Semi-APO FL20x Objective, Annular Spot 10x & 20x/40x
Power Supply Type	AC 110V-240V	AC 110V-240V
Reflect Light
Transmit Light	6V/30W Halogen	6V/30W Halogen
Light Source Type	Halogen	Halogen
Light Source Features	Halogen 30W Kohler	Halogen 30W Kohler
Condenser	Working Distance 72mm (With Condenser), 195mm (Without Condenser).	Working Distance 72mm (With Condenser), 195mm (Without Condenser).
Condenser N.A.	0.3	0.3
Condenser Type	LWD/ELWD	LWD/ELWD
Condenser Features	Slot For PH Slide Filter Holder Disc Diaphragm	Slot For PH Slide Filter Holder Disc Diaphragm
Focusing Scale	0.002mm	0.002mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable	Tension Adjustable
Working Stage	Round Slide Size Φ110mm, Culture Dish Holder 54mm	Round Slide Size Φ110mm, Culture Dish Holder 54mm
Working Stage Size	210x241mm	210x241mm
Working Stage Type	Fixed + Attachable	Fixed + Attachable
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm
Objective	Infinity Plan LWD Semi-APO FL10x20x40x, Infinity Phase Contrast LWD Semi-APO FL20x	Infinity Plan LWD Semi-APO FL10x20x40x, Infinity Phase Contrast LWD Semi-APO FL20x
Objective Type	Infinity Plan Phase Contrast Fluorescent	Infinity Plan Phase Contrast Fluorescent
Objective Features	APO LWD	APO LWD
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF10x/22mm, 2 pc	WF10x/22mm, 2 pc
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80	E100:P0/E20:P80
Head Diopter	Both Tube Adjustable	Both Tube Adjustable
Head Interpupillary	48~76mm	48~76mm
Head Rotation	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Inclination	45°	45°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	100x-400x	100x-400x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity
Standard Function	BF+PH	BF+PH
New Product Year	2023	2023
