C-Mount Adapter For Olympus Microscope 1.2x

A55.2206-1.2x

Like Favorites

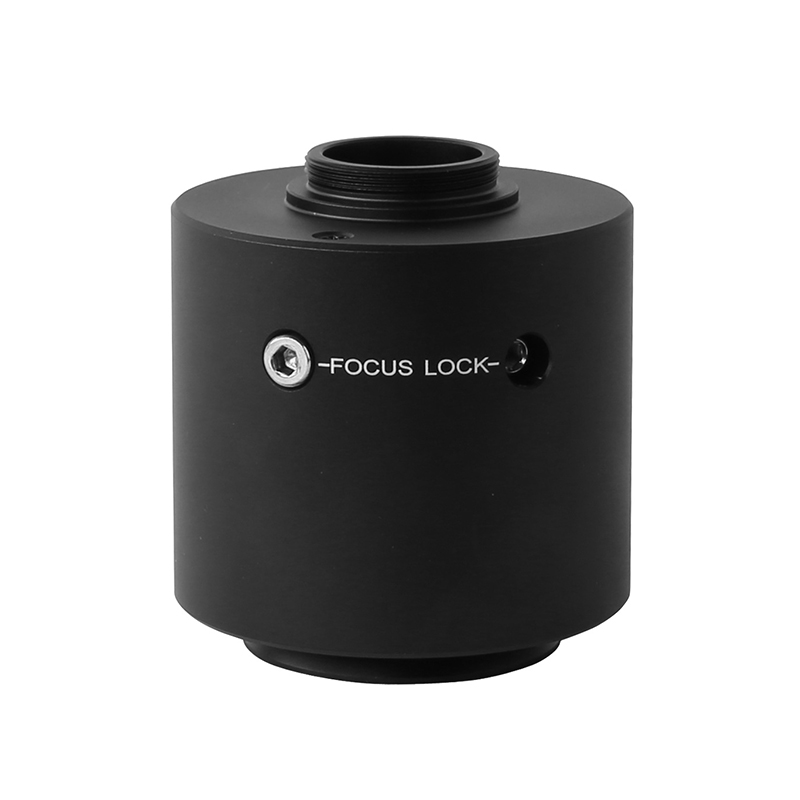

C-Mount Adapter For Olympus Microscope 1.2x

支持显微镜专门为Olympus CX,BX,MX,STM,SZX,IX,GX系列显微镜设计

Specification:

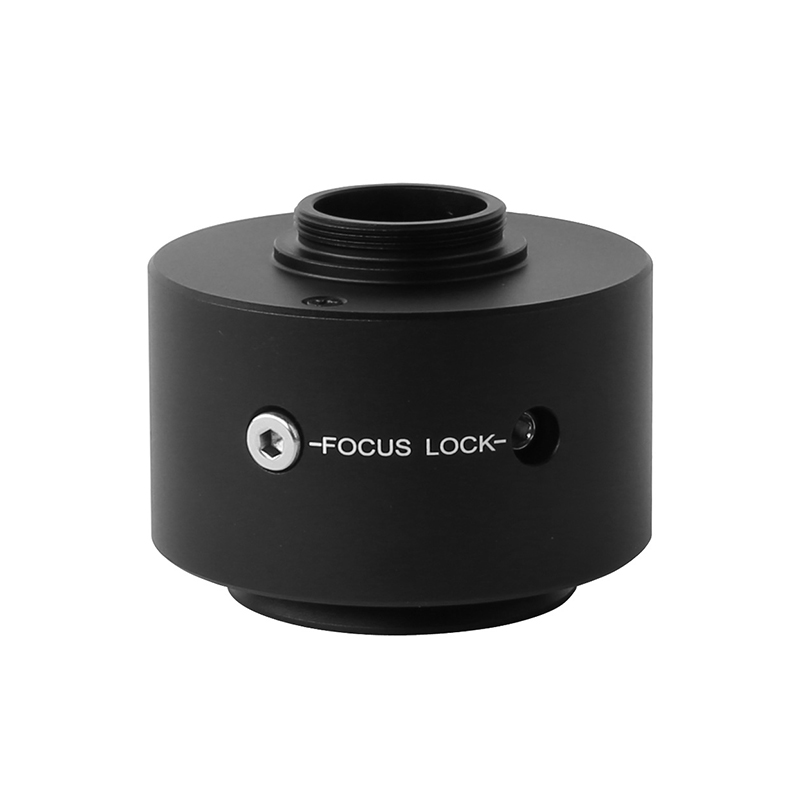

C-Mount Adapter For Olympus Microscope 1.0x

A55.2206-1.0x

A55.2206-1.2x

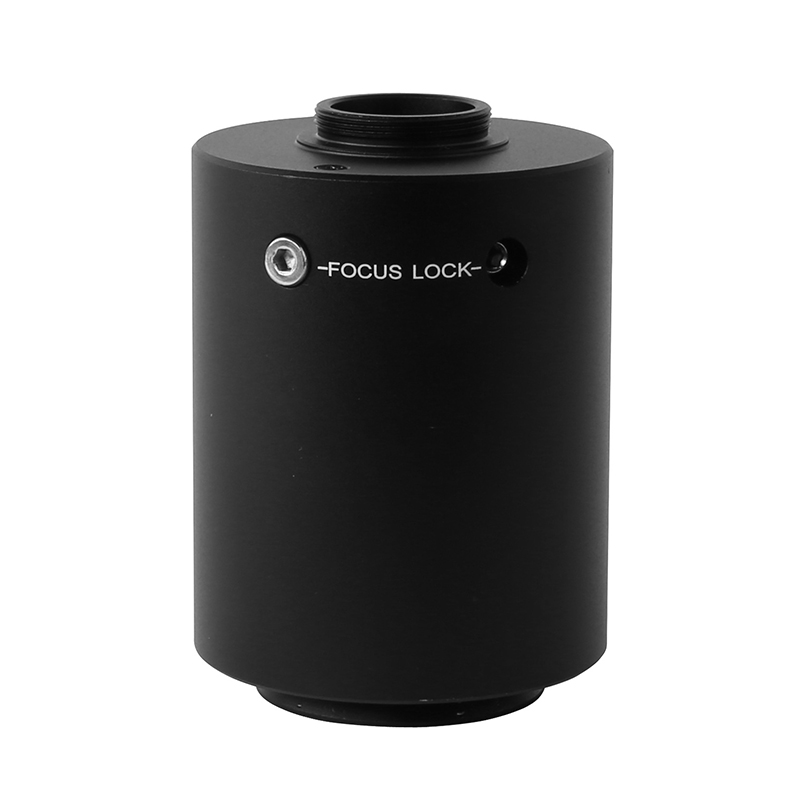

C-Mount Adapter For Olympus Microscope 0.8x

A55.2206-0.8x

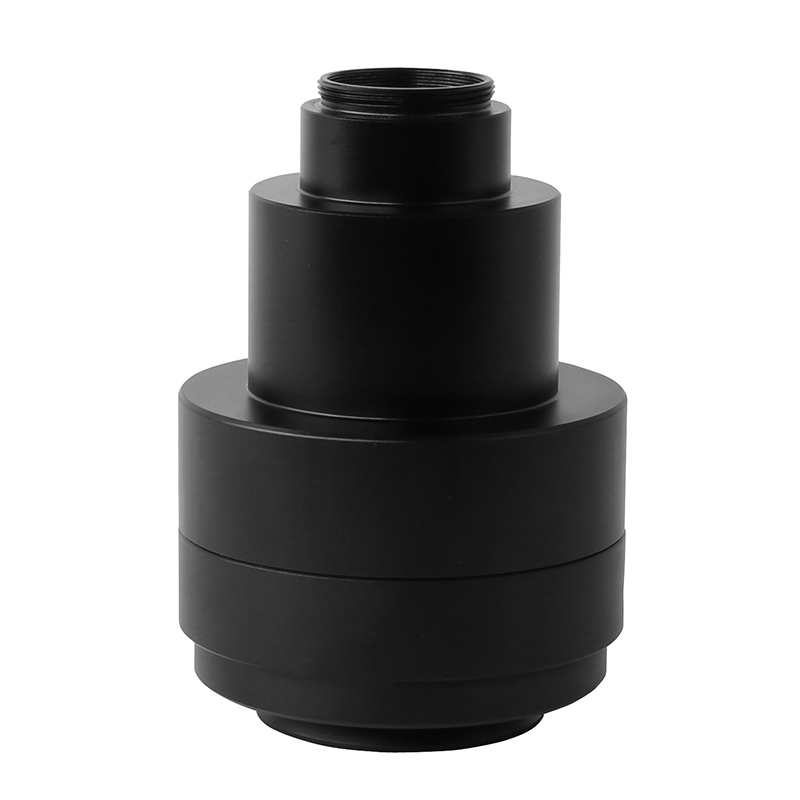

C-Mount Adapter For Olympus Microscope 0.63x

A55.2206-0.63x

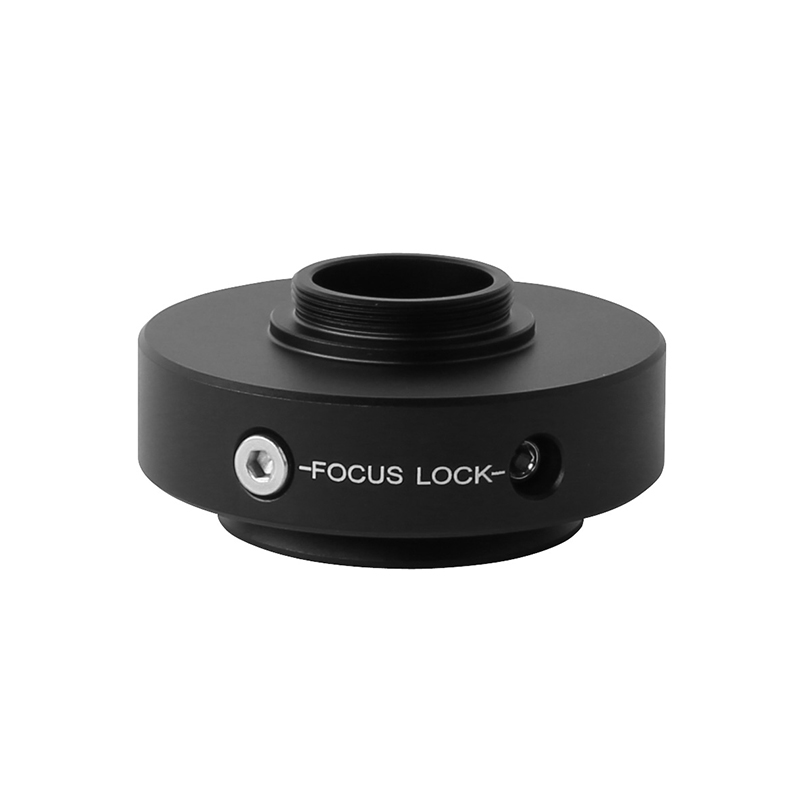

C-Mount Adapter For Olympus Microscope 0.35x

A55.2206-0.35x

C-Mount Adapter For Olympus Microscope 0.50x

A55.2206-0.50x

Features

1. Convert the Olympus trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
2. With different built-in reduction lens (1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
3. Can be installed in UIS trinocular tube such as : BX series, BX2 series, CX series, CX2 series, MX series;
4. Build of material: anodized aluminum;
5. Telecentric optics with low light deficiency;
6. Parfocal with different microscope objective lenses;
7. Diffraction limited MTF;
8. Aperture totally coupled with UIS microscope objective’s exit pupil.

Specification

Model	Photo	Magnification	Sensor Size	Mount Type

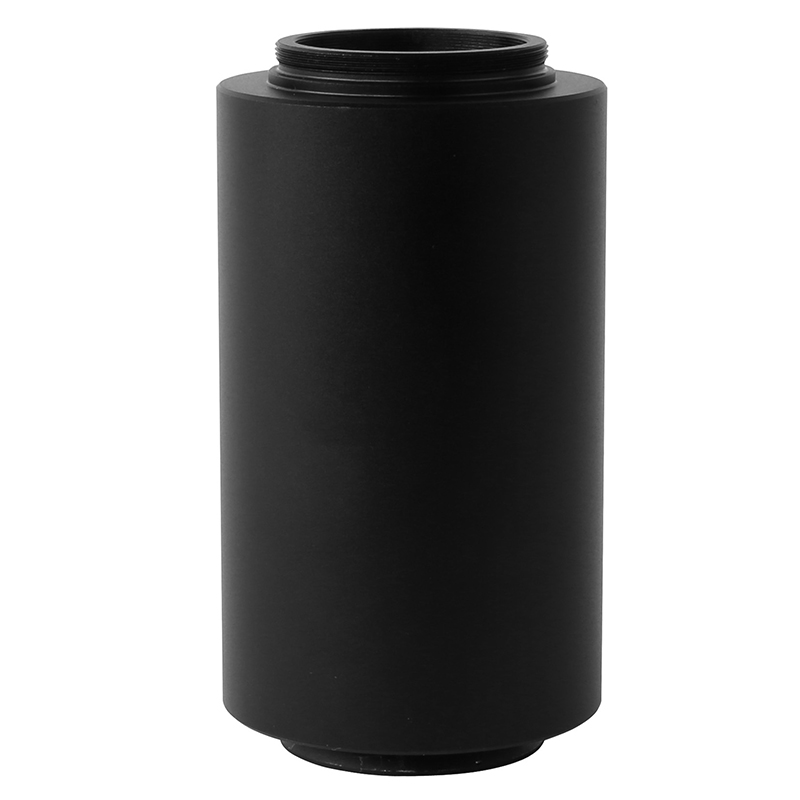

A55.2206-1.2X		1.2X	4/3”,1”	T2-Mount
A55.2206-1.0x		1X	1”, 2/3”	C-Mount
A55.2206-0.8x		0.80X	1”,2/3”	C-Mount
A55.2206-0.63x		0.63X	2/3”,1/1.8”,1/2”	C-Mount
A55.2206-0.50x		0.5X	1/1.8”,1/2”,1/2.5”	C-Mount
A55.2206-0.35x		0.35X	1/3”,1/4”,1/5”	C-Mount
Supported Microscope	Specially designed for Olympus CX，BX，MX，STM，SZX，IX，GX(GX41) series microscopes

Pictures Hide Same Show Difference
Model No.	A55.2206-1.2x	A55.2206-1.0x
Other Specification	标配其他配件功能	——
Stereo Stand	标配底座描述	——
Fluorescene	标配荧光装置, 包括电源	——
Metallurgical	标配金相装置	——
Polarizing	标配偏光装置	——
Phase Contrast	标配相衬装置	——
Dark Field	标配暗场装置	——
Power Supply	电源其他描述	——
Reflect Light	反射光源描述	——
Transmit Light	透射光源描述	——
Condenser	聚光镜其他描述	——
Focusing Knob	调焦其他描述	——
Focusing Scale	标准写法：0.01mm	0.000000
Focusing Range	标准写法：25mm	0.000000
Working Stage	工作台其他描述	——
Working Stage Moving	标准写法： Moving Range 50x76mm Precision 0.1mm	——
Working Stage Size	标准写法: 100x100mm, 或 Dia.100mm	格式:100x100mm,或 Dia.100mm
Objective	标配物镜写法： 4×/0.1, W.D.25mm 10×/0.25, W.D.11mm 20×/0.4, W.D.9mm 40×/0.6(S), W.D.3.8mm 100x/1.25(S,O), W.D.0.1mm	——
Eyepiece	标配目镜写法： WF10x/18mm, 2 pcs WF16x/13mm, 2 pcs	——
Head Specification	头部其他描述	——
Head Interpupillary	54~75mm	54~75mm
