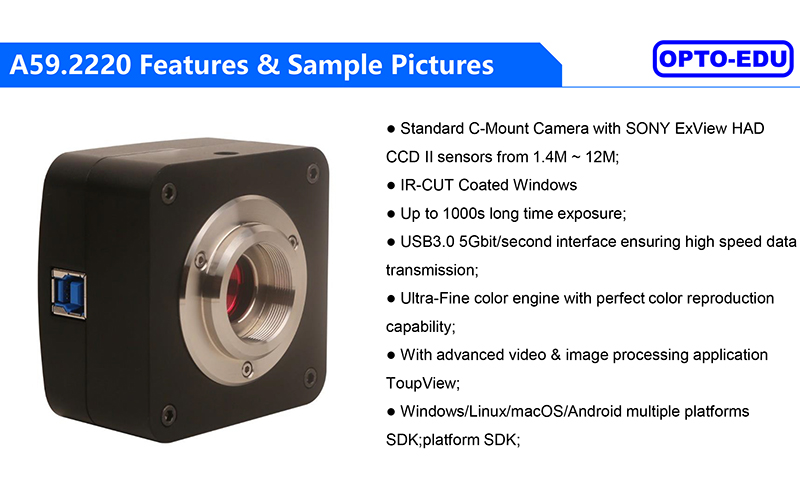

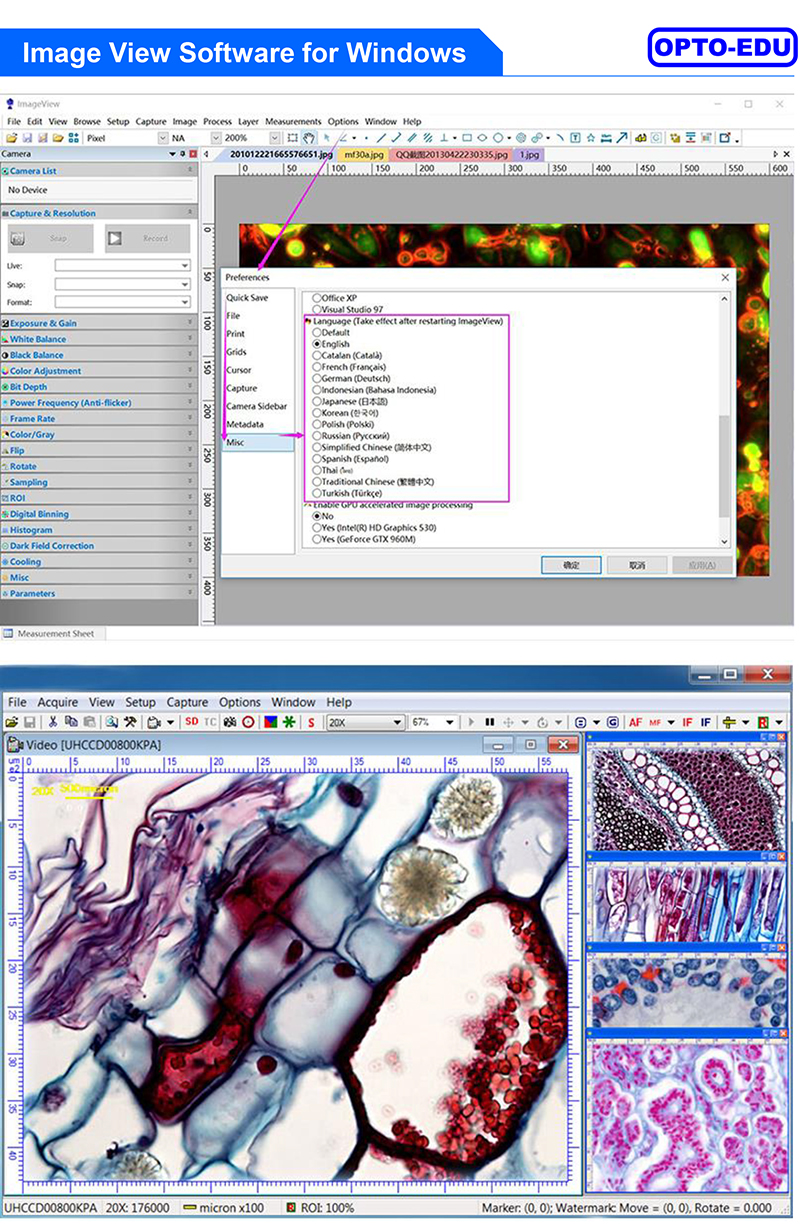

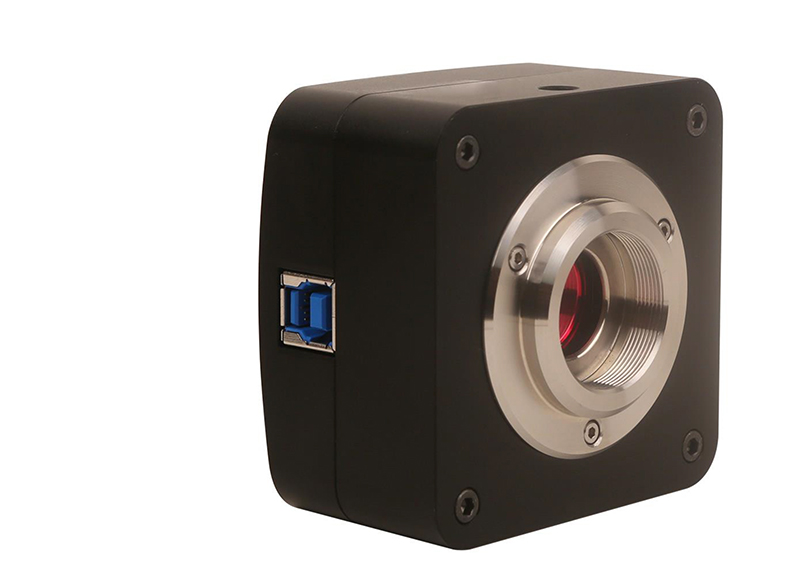

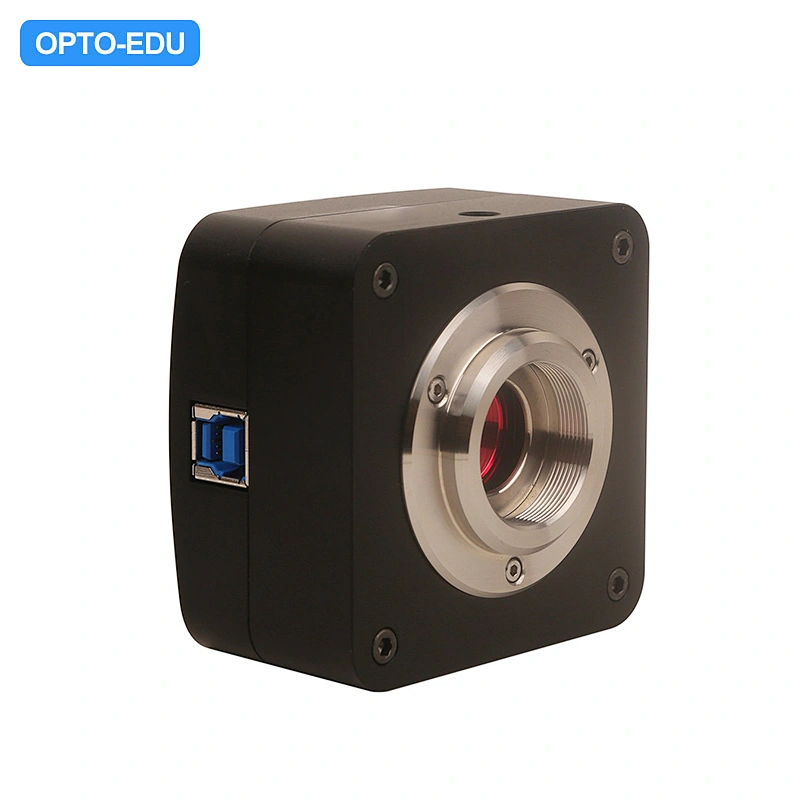

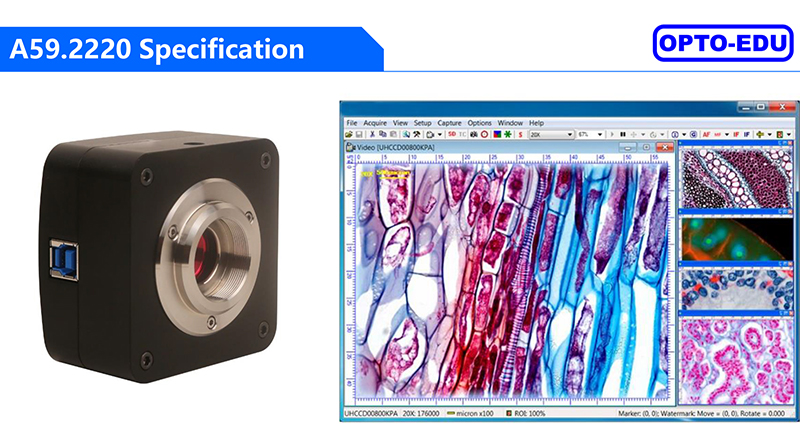

A59.2220 USB3.0 CCD Digital Camera ToupTek A59.2220 is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB3.0 is used as the data transfer interface. A59.2220 Camera hardware resolutions range from 1.4M to 12M and come with the integrated CNC aluminum alloy compact housing. A59.2220 comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); The A59.2220 can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate. |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| 12MPA | 12M/ICX834AQG© 1“ (13.15x8.77) | 3.1x3.1 | 420mv with 1/30s 15.2mv with 1/30s | 3.6@4248x2836 3.6@2124x1418 | 1x1 2x2 | 0.06ms~1000s |
| 12MMA | 12M/ICX834ALG(M) 1“ (13.15x8.77) | 3.1x3.1 | 420mv with 1/30s 12mv with 1/30s(F8.0) | 3.6@4248x2836 3.6@2124x1418 | 1x1 2x2 | 0.06ms~1000s |
| 9MPA | 9.0M/ICX814AQG© 1“ (12.47x9.98) | 3.69x3.69 | 580mv with 1/30s 12mv with 1/30s | 4.4@3388x2712 4.4@1694x1356 | 1x1 2x2 | 0.06ms~1000s |
| 9MMA | 9.0M/ICX814ALG(M) 1“ (12.47x9.98) | 3.69x3.69 | 660mv with 1/30s 12mv with 1/30s(F8.0) | 4.4@3388x2712 4.4@1694x1356 | 1x1 2x2 | 0.06ms~1000s |
| 6MPA | 6.0M/ICX695AQG© 1“ (12.48x9.99) | 4.54x4.54 | 880mv with 1/30s 8mv with 1/30s | 7.5@2748x2200 14@2748x1092 | 1x1 | 0.06ms~1000s |
| 6MMA | 6.0M/ICX695ALG(M) 1“ (12.48x9.99) | 4.54x4.54 | 1000mv with 1/30s 8mv with 1/30s | 7.5@2748x2200 14@2748x1092 | 1x1 | 0.06ms~1000s |
| 2.8MPA | 2.8M/ICX674AQG© 2/3“ (8.81x6.63) | 4.54x4.54 | 800mv with 1/30s 4mv with 1/30s | 15@1938x1460 17@1610x1212 18@1930x1092 | 1x1 | 0.05ms~1000s |
| 2.8MMA | 2.8M/ICX674ALG(M) 2/3“ (8.81x6.63) | 4.54x4.54 | 950mv with 1/30s 4mv with 1/30s | 15@1938x1460 17@1610x1212 18@1930x1092 | 1x1 | 0.05ms~1000s |
| 1.4MPB | 1.4M/ICX825AQA© 2/3“ (8.88x6.70) | 6.45x6.45 | 2000mv with 1/30s 4.8mv with 1/30s | 25@1376x1040 | 1x1 | 0.07ms~1000s |
| Other Specification | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-Fine Color Engine/NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| ADC | 8 Bit / 14 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB Port: USB3.0 High-speed Port Display: 17” or Larger CD-ROM |

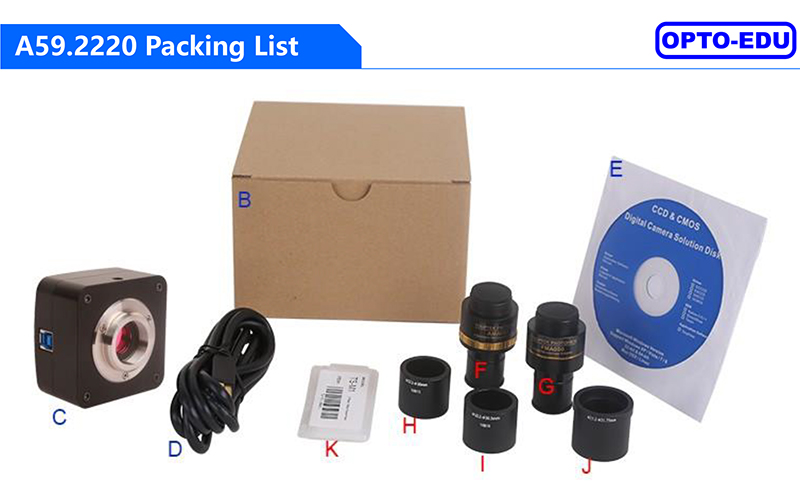

| Standard Camera Packing List | |||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.7~0.75Kg/ box) | ||
| C | U3CCD series USB3.0 C-mount CMOS camera | ||
| D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||

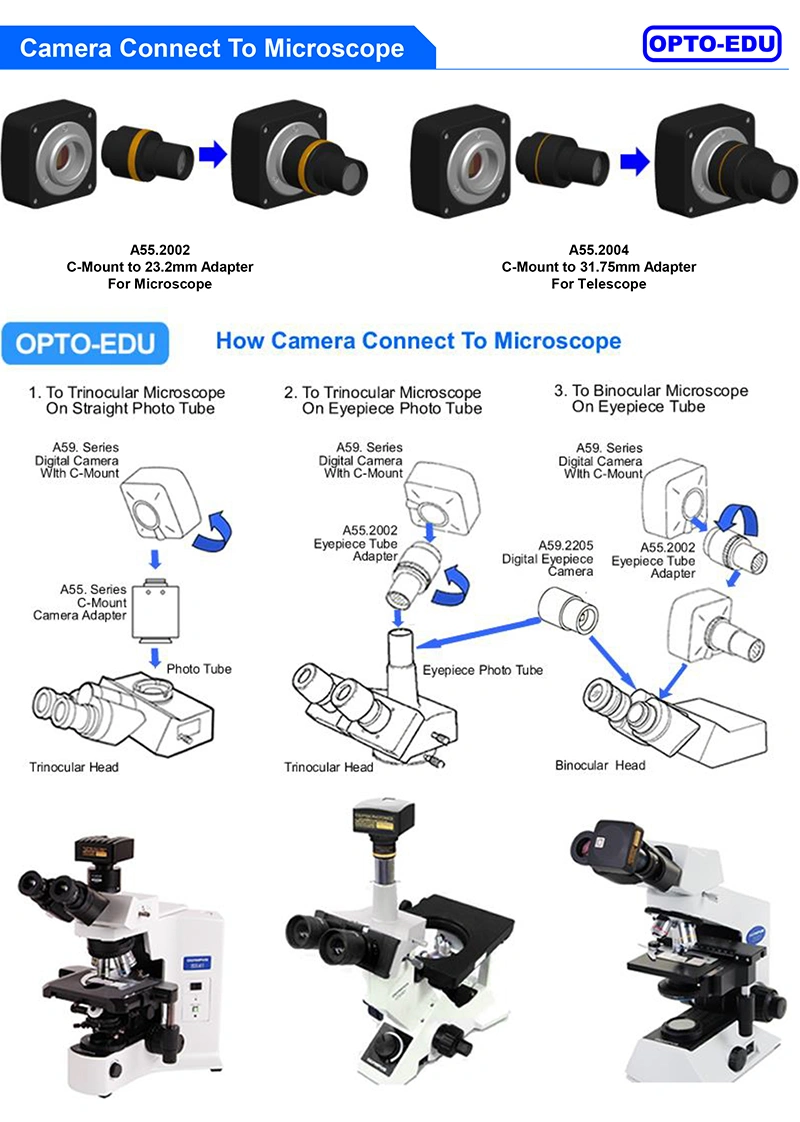

| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100 | ||
| G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
| C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100 | ||
| Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope Camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
