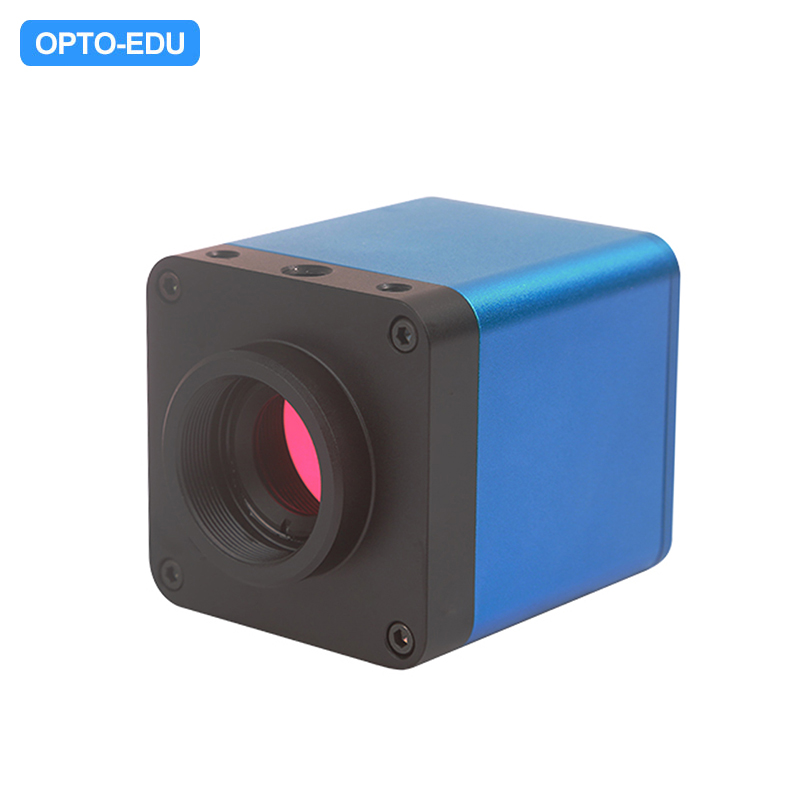

 | A59.2251 WIFI+USB2.0 Digital Camera The WEUCAM series cameras can be connected to smart devices or computers through USB/LAN/WiFi. It can be used for video and image acquisition of stereo microscope or biomicroscope, and can also be used for interactive microscope teaching system, which is convenient for teachers to teach and students to learn. |
◆Sony Exmor back illuminated large-sized CMOS sensor with lower noise and better photosensitive characteristics ◆USB/LAN/WiFi multiple video outputs, WiFi adopts 802.11AC chip, with higher transmission bandwidth ◆Powerful ISP functions, real-time video transmission can reach up to 30fps/4M ◆ToupView/ToupLite software for PC, fully applicable for biological and stereological observations ◆iOS/Android app for smart phones or tablets |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure (ms) |
| 4MPA | 4M/Sony IMX347© 1/1.8"(7.8x4.38) | 2.9x2.9 | 921mv with 1/30s 0.15mv with 1/30s | 30@2688*1512(USB) 30@2688*1512(NETWORK) | 1x1 | 0.021ms~1000ms |

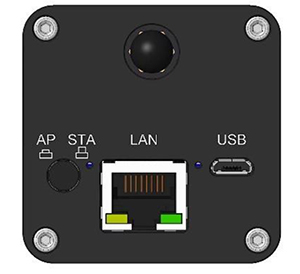

| Interface | Function Description |

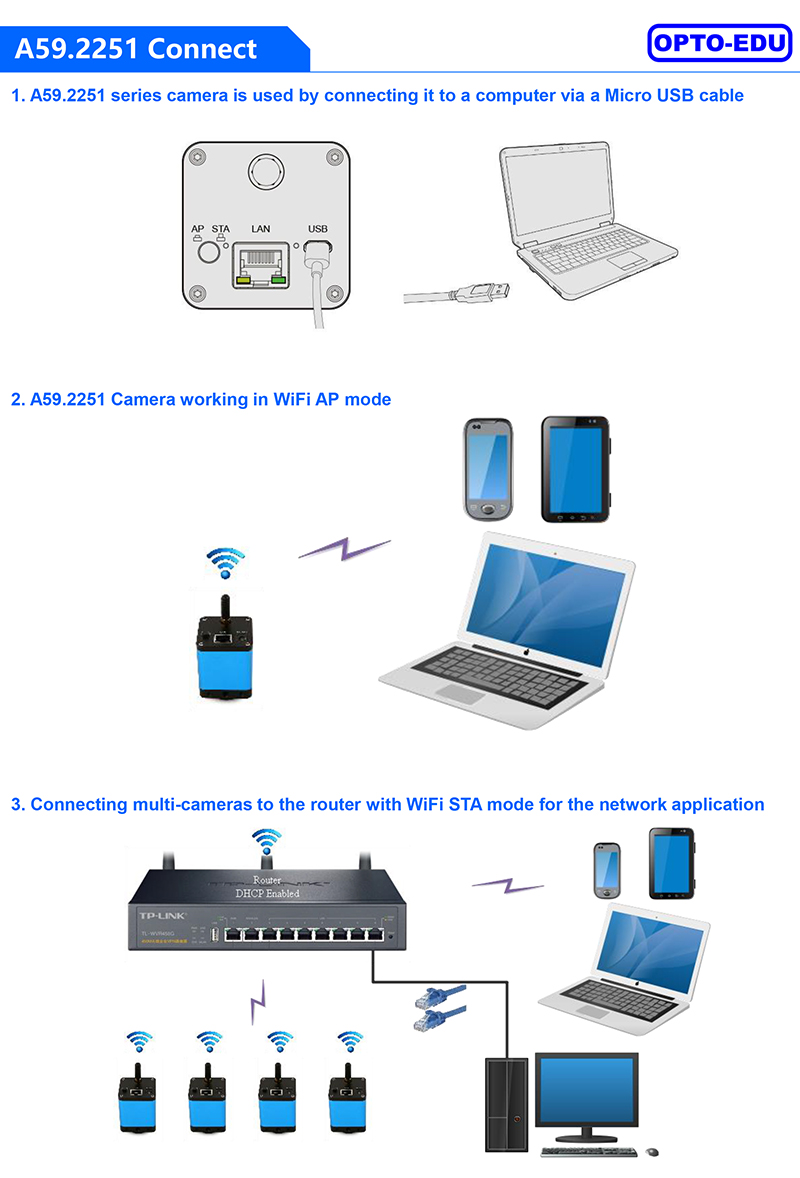

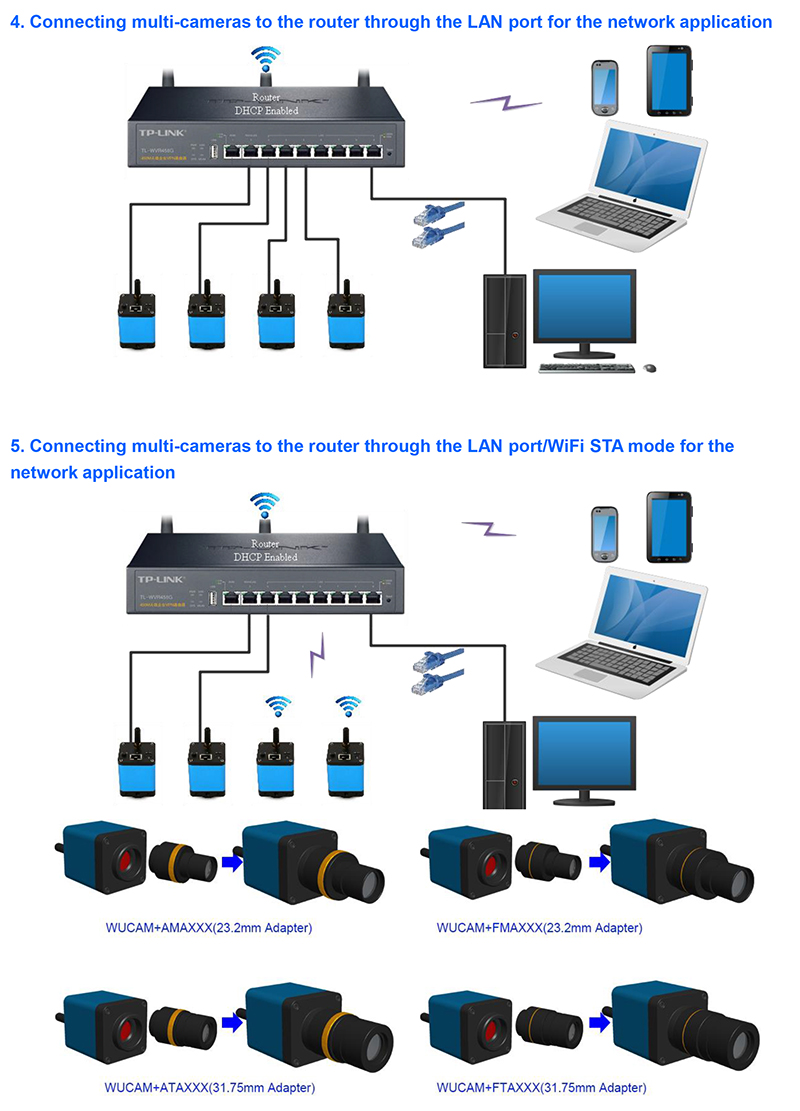

| LAN | 100M Ethernet port to connect to the router or computer to transfer video. Video can be transmitted via LAN or WiFi. LAN and WiFi cannot be used at the same time. The priority of LAN connection is higher than WiFi. |
| USB | Connect the Micro USB 5V/1A power supply to power the camera, at this time the Camera provides LAN or WiFi connection mode. Connect the Micro USB cable to the USB port of the computer to achieve video image output. |
| AP/STA Switch Button | Press to switch between AP and STA mode. Connecting 2~3 clients for a single Camera is recommended |
| Video Output Interface | Function Description |
| LAN Interface | 30fps@2688*1512 H264 encoded video and Jpeg image capture. |
| USB Interface | Connect to PC via Micro USB cable to transfer MJPEG/H264 real-time images, support 30fps@2688*1512 and 30fps@1920*1080. |
| WiFi Interface | Support 802.11ac protocols in AP/STA mode; 30fps@2688*1512 H264 encoded video and Jpeg image capture. |
| Software Environment under LAN/WLAN/Output | |
| White Balance | Auto, Manual and ROI White Balance |
| Color Technique | Ultra-Fine Color Engine |
| ISP | Exposure(Automatic/Manual Exposure)/ Gain, White Balance(Auto, Manual and ROI White Balance), Sharpening, 3D Denoise, Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment，50HZ/60HZ Anti-flicker， Mirror/Flip， color to grey, Network Bandwidth Adjustment |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet RJ45 Interface: 100M bps or more WiFi Adaptor: Support 802.11 b/g/n/ac Display:19” or Larger CD-ROM |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | Micro USB DC 5V/1A Adapter |

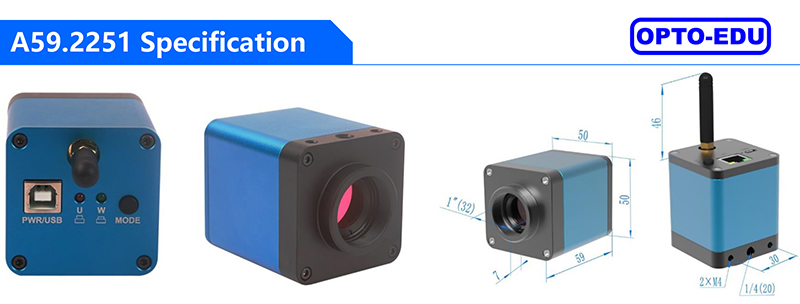

| Camera Size | |
| Length x Width x Height | 50 mm x 50mm x 112mm |
| Shipping Weight | 0.19 kg |

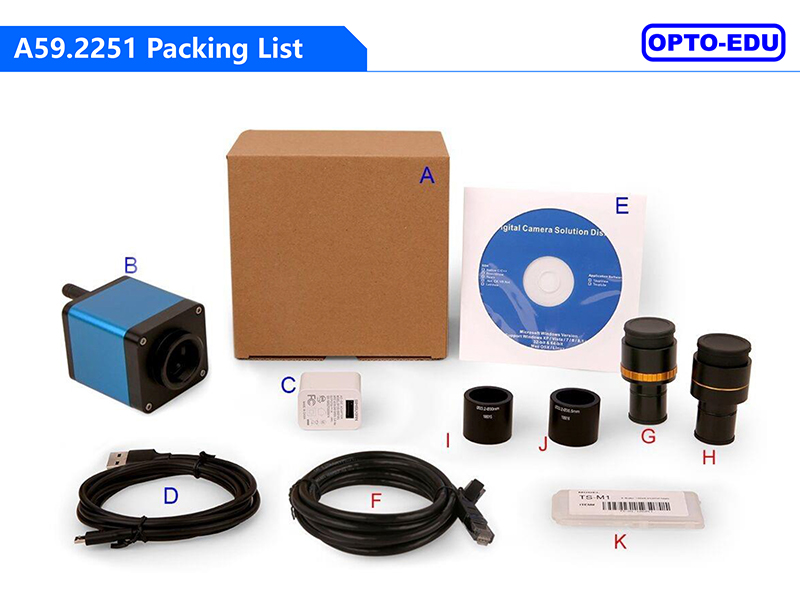

| Standard Packing List | |||
| A | Gift box : L:15cm W:15cm H:10cm (1pcs, 0.5kg/ box) | ||
| B | One WEUCAM series camera | ||
| C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 5V 1A American standard: Model: POWER-U-5V1A(SK12G-0500100U): UL/CE/FCC European standard: Model: POWER-E-5V1A(SK12G-0500100V): UL/CE/FCC | ||
| D | Micro USB cable 1.5 meters | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| F | Ethernet cable | ||

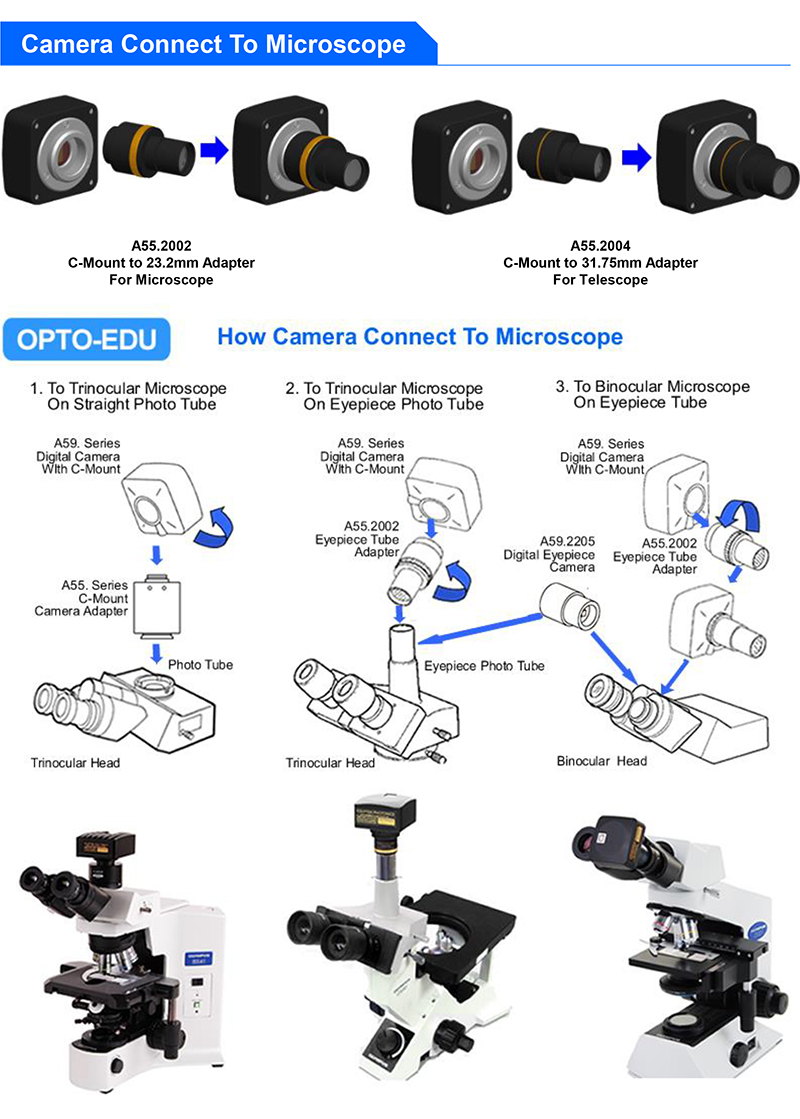

| G | Adjustable lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108001/AMA037 108002/AMA050 108003/AMA075 |
| H | Fixed lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108005/FMA037 108006/FMA050 108007/FMA075 |
| Note: For G and H optional items, please specify your Camera type(C-mount, microscope Camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| I | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| J | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
