The microscope head is an important part of the microscope, usually including the optical system, focusing system, eyepieces, objective lenses, etc. Its main function is to magnify the sample and make the sample details visible through optical lenses or other optical elements, and can be observed and recorded through the eyepiece or digital imaging system. The quality of the microscope head will directly affect the quality and accuracy of sample observation.
Are you ready to enter the microscopic world? Microscopes are like magic windows that make tiny things look bigger, but did you know there are different types of them? Let’s explore the cool differences between monocular head,, Dual-View head, binocular head, and trinocular head!

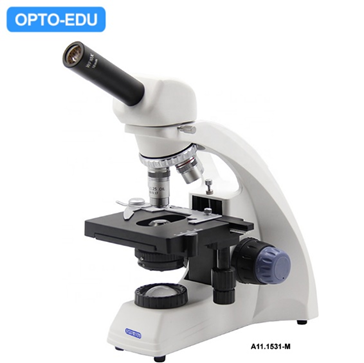

Monocular Head
A popular option for schools and children, monocular microscopes tend to be a cheaper and simpler option. As the name suggests, monocular heads have only one eyepiece. In general, children prefer a monocular head while adults prefer a binocular head. The single eyepiece suits children because their eyes are closer together and they can struggle to use dual eyepieces. Due to the single eyepiece, monocular heads also don’t need to be adjusted for differences in interpupillary distance or vision strength between users so they’re very easy for younger students and children to share in educational settings.

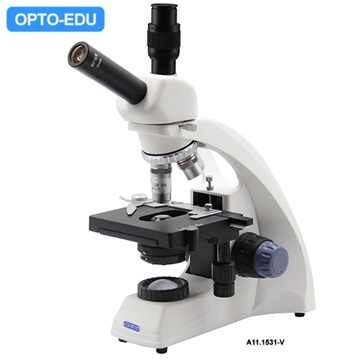

Dual-View Head
It offers dual monocular viewing ports which can be used by two simultaneous users or a single user and a camera. As a dual-user microscope in a classroom, a teacher can see what the student sees. This allows the student to be instructed while viewing a specimen. By using an optional camera on the second port, real-time video can be streamed to a computer and recorded, or used with popular video conferencing apps to provide remote streaming. This functionality is perfect for remote learning and professionals who need to share video with online peers.
Binocular Head
Ever tried watching a 3D movie with special glasses? A binocular microscope is like having 3D glasses for your eyes! With two eyepieces, it gives you a more comfortable and detailed view, making the microscopic adventure even more exciting. Binocular heads are usually adjustable to compensate for interpupillary distance (the distance between your eyes) and uneven vision. They’re a versatile and useful choice for most people. Both binocular head and trinocular head can be divided into two types: stretch type and hinge type: Sliding binocular and Sieidentopf, take binocular head for example.

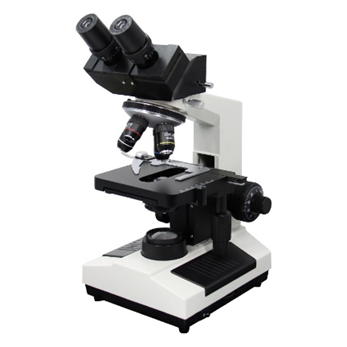

Sliding BinocularHead
When adjusting the eyepieces on a sliding head (often found on cheaper or older microscopes), you simply slide the eyepieces further apart or slide them closer together on a horizontal axis. However, there’s a small issue with the focus.
When you physically change the length of the optical tube like this, the focus of the microscope also changes. This means that every time you adjust the eyepieces, you have to refocus on your sample.

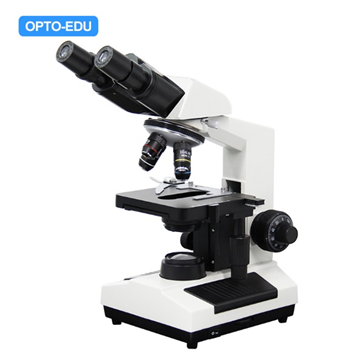

Siedentopf Binocular Head
Generally considered superior, the Siedentopf head takes a different approach. With the Siedentopf, the eyepieces rotate around a central axis, similar to binoculars.
Pushing the eyepieces up or down moves them closer or further apart as they rotate around the central section.
Adjustments are easy and intuitive, but the real benefit is that the length of the optical tube on the Siedentopf head doesn’t change when you adjust the eyepieces. This means you won’t need to refocus every time your microscope changes hands.

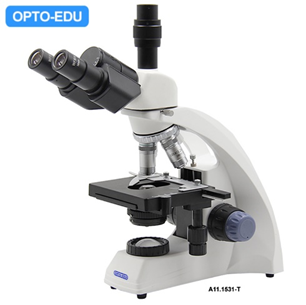

Trinocular Head
Now, imagine having a microscope with three eyes! A trinocular microscope is like having a superhero team-up. It has two eyepieces for you and one extra eye, called a trinocular port, where you can attach a camera. It's like capturing a snapshot of the tiny world, and a trinocular microscope is the best choice for anyone who wants to record, share or photograph their work.

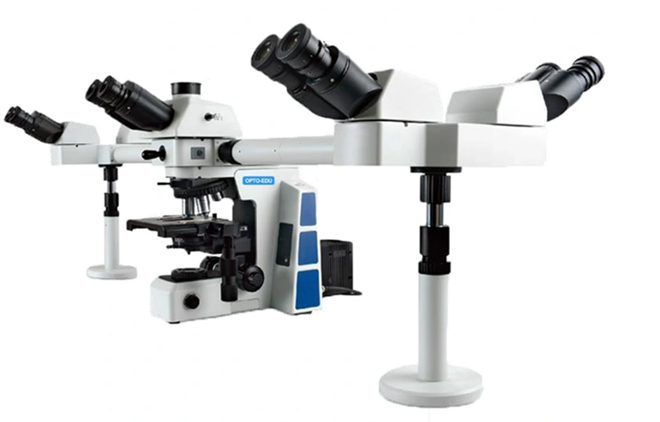

Multi-head
When it comes to collaborative research and high-level teaching, multi-head microscopes are invaluable.
Multi-head microscopes also have a number of other features and benefits.
Simultaneous Viewing
How many users can a multi-head microscope accommodate? Well, it varies, depending on the model, ranging from the most common options like two-, three- and five-person microscopes to more extensive ones that can go as high as 26.
Benefits Timesaving
Multi-head microscopes make learning and working smoother and faster, both in classrooms and workplaces.
Cost-effective
Multi-head microscopes might seem expensive initially, but they’re much cheaper than buying multiple separate microscopes.
Welcome to view all multi-Viewing microscope
Which one should you choose?
It’s just like picking your favorite ice cream flavor—it all depends on your personal preferences! If you enjoy exploring on your own, a monocular microscope is the perfect choice. If you want to share the excitement with friends, opt for a binocular microscope. If you dream of documenting your discoveries, then a trinocular microscope is your best bet; and if you want multiple people to observe the same specimen simultaneously—each through their own eyepiece—then choose a multi-viewer microscope!
Addition
The images formed by ordinary optical microscopes are inverted, so it will be inconvenient during actual operation, mainly because it does not conform to people's general habits. For example, when positioning the specimen to be observed during the operation, the operation process will be different from what the observer sees. Arriving in the opposite direction. Therefore, engineers also developed upright image microscopes, which are uncommon and are generally used in higher-level microscopes.
Huang Xin
