What Is Microscope Working Stage？

I. Definition

II. Classification

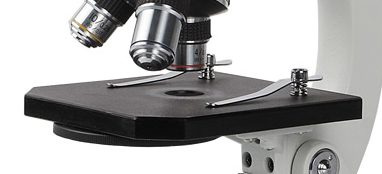

• Simple Stage
  • Typically a fixed platform equipped with spring clips or slide holders to secure the glass slide.
  • To move the specimen, the slide must be pushed manually. This operation is not precise and is unsuitable for high-magnification observation.

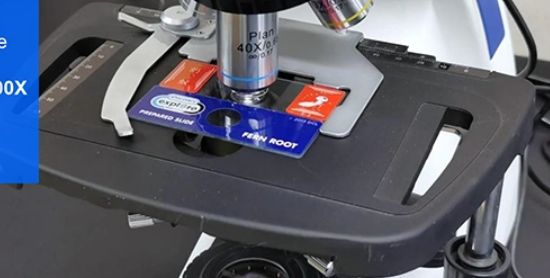

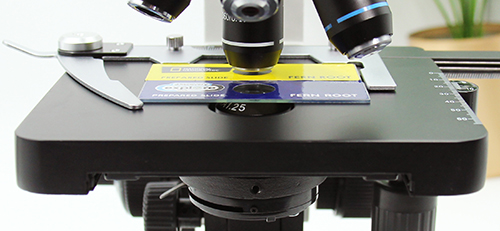

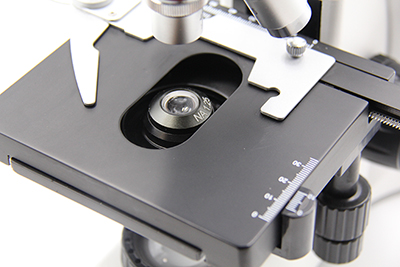

• Mechanical Stage
  • Builds upon the simple stage by adding precision X-axis (left/right) and Y-axis (forward/backward) movement control knobs.
  • By turning the knobs, the specimen can be moved precisely and smoothly, facilitating systematic observation of the entire slide. This is particularly useful under high magnification.

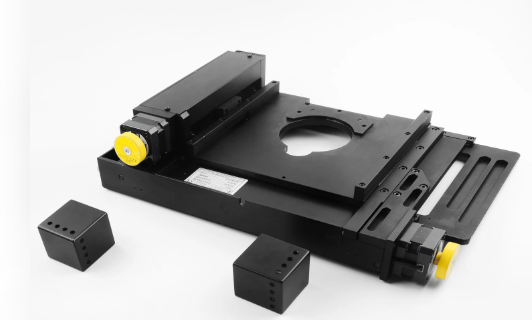

• Electric Stage
  • Driven by motors, allowing for high-speed and high-precision automated positioning.
  • Often equipped with encoders and compatible with computer software to enable functions such as automatic scanning and multi-point imaging.

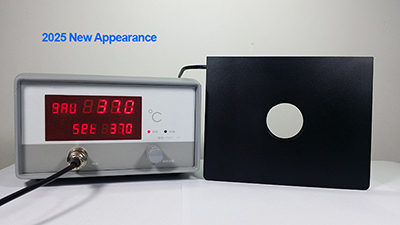

• Thermostatic Stage
  • Features a heating function to provide a constant temperature environment for the specimen.
  • Primarily used for experiments requiring specific temperatures, such as observing live cells or tissue cultures.

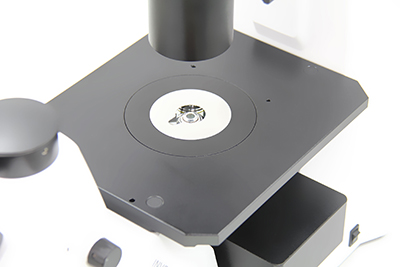

• Inverted Microscope Stage
  • Specifically designed for inverted microscopes. Its structure differs from that of upright microscopes, typically featuring a larger opening to accommodate containers like culture flasks.

2.Classification by Operation Type

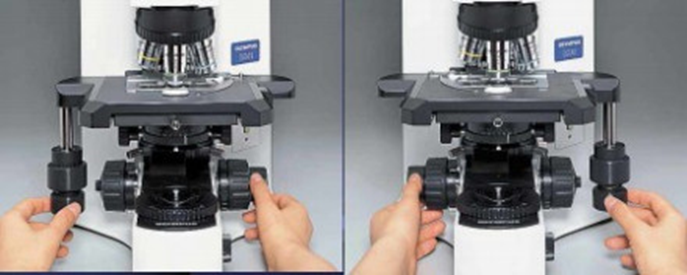

• Left-hand Stage
• Right-hand Stage
  • Right-hand stages are standard in China. Left-hand stages generally require customization.

3.Classification by Shape

• Square Stage
  • The most common type, usually rectangular. Variations include single-layer clip stages and double-layer mechanical stages.

• Large Tabletop Stage
  • Provides larger space for operation and observation. Sizes are typically 200–280 mm or larger.

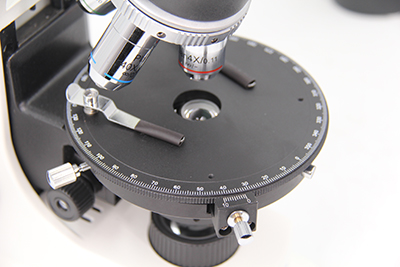

• Circular Stage
  • Capable of 360° rotation, allowing observation of the specimen from different angles. This is common in applications such as polarizing microscopy.
